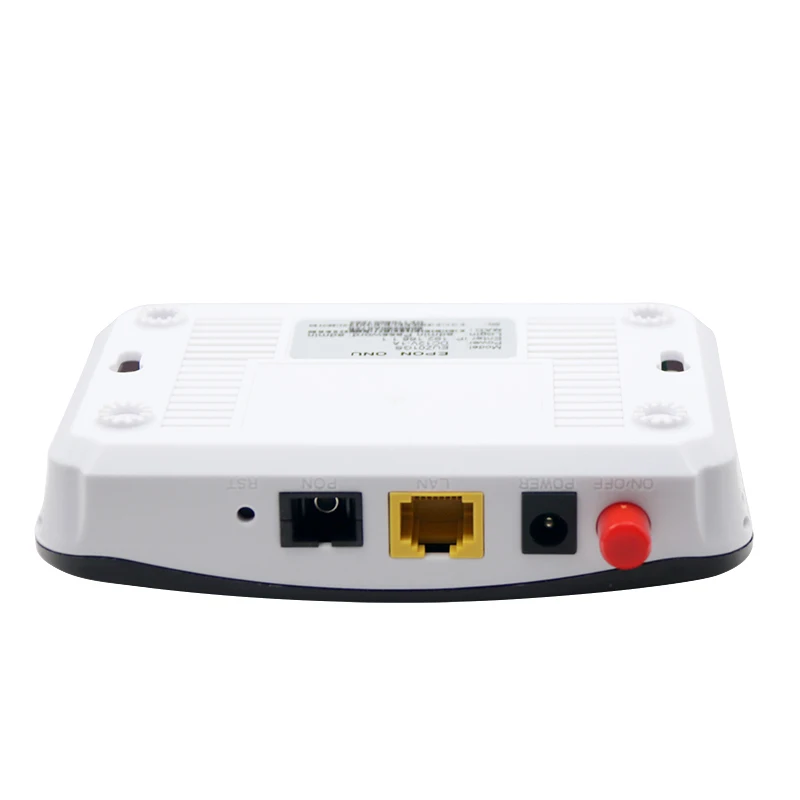

1GE EPON ONU ZTE Chipset Factory Price For Home FTTH Solution

FOB Reference Price:Get Latest Price
$6.50 - $11.00 / Piece | 2.0 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 5000 >5000
Est. Time(days) 7 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$9.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM/ODM
Model Number:
EUZ01GS
No. of Fiber:
1.
Use:
FTTH
Downlink:
1*10/100/1000M auto-adaptive
Uplink:
1*EPON interface
Wavelength:
Tx 1310nm, Rx 1490nm
Power Interface:
12V DC Power Supply
Shell:
Plastic casing
fiber type:
SFF
Dimension:
120*80*26mm
Weight:
0.2kg
Certification:
ISO9001/CE/RoHS
Warranty:
1 Year
Type:
FTTH Solutions
Product Certification certification
CE Certified.
Valid from 2016-09-29 until 2049-12-31
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Packing Box Dimensions: 18.2*13*4 cm
Export Carton Dimensions: 63*37.5*28 cm
Units per Export Carton: 60/pieces
Weight Per Unit: 0.2kg
Export Carton Weight: 13kg
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 500 501 - 2000 2001 - 5000 >5000
Est. Time(days) 7 15 20 To be negotiated
Video Description

1GE EPON ONU ZTE Chipset Factory Price For Home FTTH Solution
Product Description
Power adapter
Specification
1. Introduction
EUZ01G series single-user ONU is designed for ONU in deferent FTTH solutions by HDV, The carrier-class FTTH application provides date service access.
EUZ01G series adopts high-performance and low-consumption chips, and supports CTC 3.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.

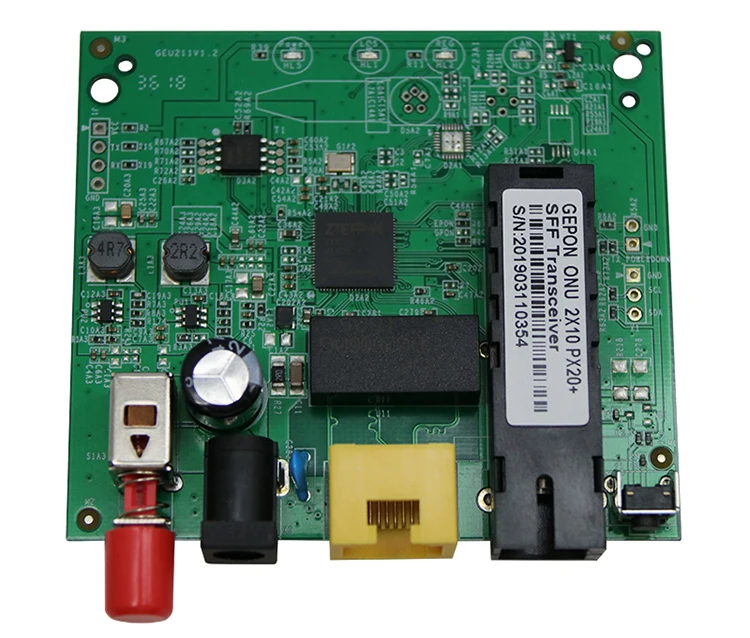

EUZ01G series is designed by ZTE chipset

2. Functional Feature ●Router mode supports PPPoE/DHCP/ static IP ●Support port-based rate limitation and bandwidth control; ●In compliant with IEEE802.3ah Standard ●Up to 20KM transmission Distance ●Support data encryption, group broadcasting, port Vlan separation, etc. ●Support Dynamic Bandwidth Allocation (DBA) ●Support ONU auto-discovery/Link detection/remote upgrade of software; ●Support VLAN division and user separation to avoid broadcast storm; ●Support power-off alarm function ,easy for link problem detection ●Support broadcasting storm resistance function ●Support ACL and SNMP to configure data packet flter flexibly ●Specialized design for system breakdown prevention to maintain stable system Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
3.Specification:
Item
Parameter







Interface


PON Interface
1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric1.25Gbpsupstream/downstream SC single-mode fiber
split ratio:1:64
Transmission distance 20KM
User Ethernet Interface
1*10/100/1000M auto-negotiation Full/half duplex mode
RJ45 connector Auto MDI/MDI-X 100m distance
Power Interface
12V DC Power supply







Performance Parameters

PON
Optical Parameter
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm Connector Type: SC
Optical Fiber: 9/125 single-mode fiber

Data Transmission Parameter
PON Throughput: Downstream 950Mbps; Upstream 930Mbps, 1000Mbps
Packet Loss Ratio:<1*10E-12 latency: <1.5ms


Gateway
Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode
WAN support Internet,VoIP,IPTV,TR069
LAN supports DHCP and static IP Support NAT and NAPT
Support UPnP
