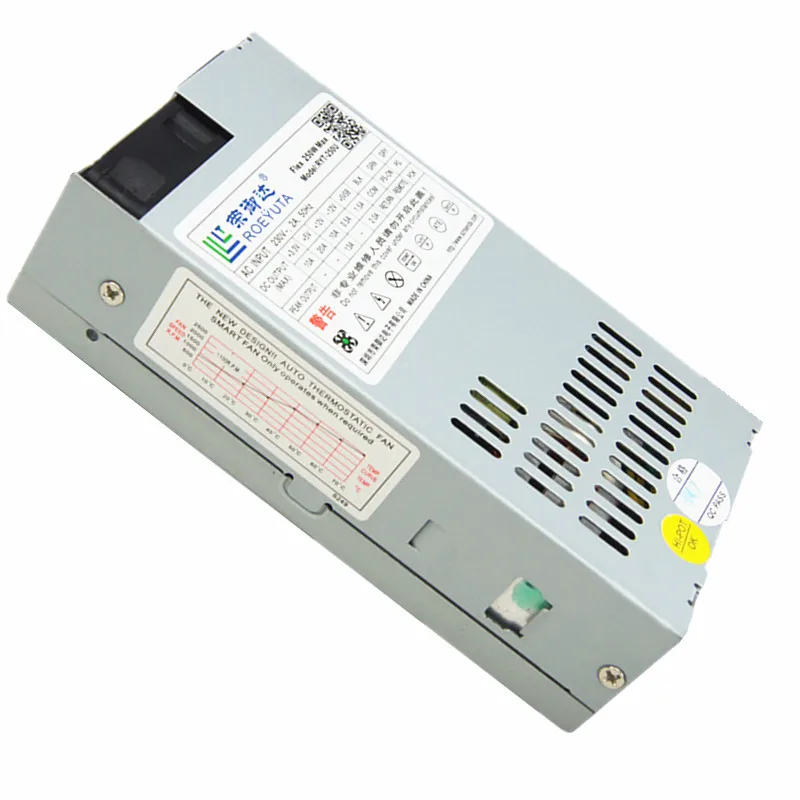

1U FLEX ATX Mini PC Power Supply 200W,230W, 250w 300w 400w

  • 120-359 Pieces
    $18.50
  • >=360 Pieces
    $17.00
1 batch = 12 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Roeyuta
Model Number:
RYT-250U
Input Voltage:
230VAC, 220V
Output Type:
Multiple
Output Power:
201 - 300W
Output Voltage:
12v
Output Frequency:
50/60Hz
Output Current:
13A
Item Name:
Switching PC Power Supply
Type:
1U FLEX Power Supply
Application:
Industrial PC, Checking machine ,All-in-one machine,etc.
Model:
RYT-250U
Input:
230VAC
Max Power:
250W
Test:
100%Full Load Burn-in Test
Cooling Fan:
4cm FAN
Size:
150x81.5x40mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X35X11 cm
Single gross weight:
9.0 kg
Package Type:
Dimension: 150*81.5*40mm Package List: 12pcs/ctn Carton Size: 500*350*110mm Weight: 0.65/kg,9kg/ctn
Lead Time :
Quantity(Pieces) 1 - 1200 >1200
Est. Time(days) 10 To be negotiated

1U FLEX ATX Mini PC Power Supply 200W,230W,250w 300w 400w



Specification:

Model Number:  RYT-250U

Max. Power:       250w

Application:         Industrial PC/Checking Machine/All-in-One Machine etc.

Fan Type:           4cm

Name:                Flex Power Supply

Input Voltage:     230Vac

High Efficiency:  85%

Dimension:         150*81.5*40mm

Package List:     12pcs/ctn

Carton Size:        500*350*110mm



Feature:

• In accordance with Flex12V version 2.0
• High efficiency
• Low output ripple noise
• Each output with over voltage protection
• Each output voltage with short-circuit protection
• 4CM fan
• 100% high temperature aging test (50℃)
• Life cycle: more than 80KH hours



Parameter 1:

AC Input: 230Vac,3A,47~63Hz

DC Output:

+.3.3V(oRANGE):10A

+5V(Red):20A

+12V(Yellow):13A

-12V(Blue):0.5A

+5SVB(Purple):1.5A

-5V(White):-A

Output Power:Max Power:250W,Rated Power:200w

Parameter:

Protection functionOVP,OPP,SCP
Cooling System

8000RMP(+/-10%)

Fan4cm
TEMP.AUTO ONTROL2500rpm at 41.7℃~7000rpm at 60.5℃
Noise22dB at 7000rpm
P.G signal100-500ms
Keet time17ms(min)
Conversion Efficiency75%
MTBF100000 hours
Working Temperature0-50



RYT-250U_04_DSC00718-1_RYT-250U_01_RYT-250U_06_RYT-250U_03_RYT-250U_08_RYT-250U_10_
