1W LED deck light recessed led step light LED DC12V under cabinet led light

FOB Reference Price:Get Latest Price
$5.00 - $50.00 / Pieces | 50 Piece/Pieces (Min. Order)
Color:
Silver
Emitting Color:
Cold White Warm White
Lamp Power(W):
1
Model Number:
DL-1001
Report Suspicious Activity
Overview
Quick Details
Warranty(Year):
3
Input Voltage(V):
DC12V DC24V
Lamp Luminous Flux(lm):
100
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65, IP 65
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
PLAYLED
Light Source:
LED
Item Type::
Deck Light
Lamp Powe:
1 W
Input Voltage:
DC12V~DC24V
Beam angle:
120 Degree
IK rating:
IK 06
Material:
Anodizing aluminum
Next:
0.08
Cable:
1PC rubber cable 0.3M H05RN-F 2x0.34mm square
Warranty:
3 Years
Item Type:
Underground Lights
Color Temperature(CCT):
Warm White
LED Light Source:
Cree
Lamp Luminous Efficiency(lm/w):
90
Supply Ability
Supply Ability:
455000 Piece/Pieces per Month Please contact us for the corret prices of detailed quantity
Packaging & Delivery
Packaging Details
38*36.5*24 cm (200pcs/carton)
Port
Jiangmen,Shenzhen,Guangzhou
Product Features

1W LED deck light IP65 recessed led step deck light LED DC12V DC24V 1 watt under cabinet led light

. Beautiful appearance.
. Excellent design of heat-conducting housing ensure long life time of LED.
· Aluminum housing made by CNC machine.
· 20~25 um thickness of anti-crossion protective Passivated film for housing.
· Waterproof IP65.
· 3 years warranty.
· Proffesional sales and technicians to serve you.

Data Sheet
General Data
Item No.
DL-1001
Power
1 Watts
LED type
1PCS CREE XPE LED
Luminous flux
95~100 l m
CCT
2700K,3000K, 4000K, 6000K ,R/G/Y/B
CRI
80+
Beam angle
120°
Dimension
40*12 mm ( Diameter x Height)

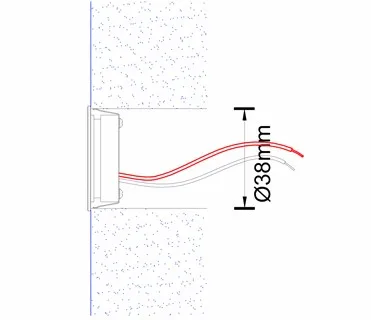

Cut out
38 mm
Net weight
0.08 kgs
Warranty
3 years
Certifications
CE, RoHS
Electrical Data
Input voltage
DC12V ,DC24V
Insulation class
Class III
Cable
1PC rubber cable 0.3M H05RN-F 2x0.34mm square
Driver
Low voltage constant current output ,excluding the transformer
Construction Data
IP rating
IP65 Waterproof
IK rating
IK06
Housing
Solid Passivated (Anodizing) Aluminum CNC machined
Protection finishing
20~25μm thickness anodized film for housing .Dark grey standard.
Trim
SS316
Glass
Tempered Glass.T=4mm.
Accessories
Clip
Aluminium spring fixed on the body
Detailed Pictures

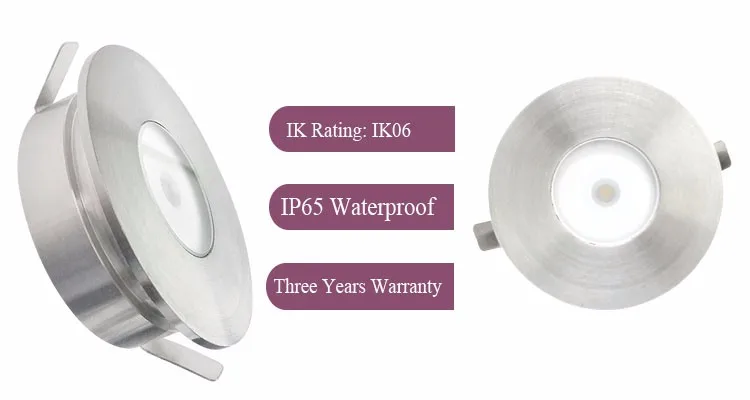

Passivated aluminum housing and waterproof IP65, High loading capacity IK06,and 3 years warranty.

It's with imported high quality COB LED for long life.

Stainless still 316 trim.

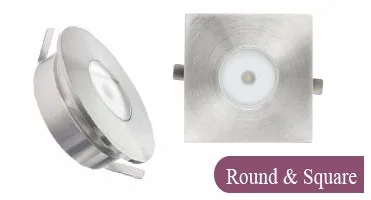

Round trim and square two design as options.

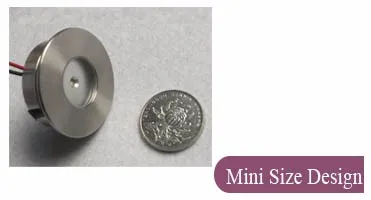

Mini size bigger the coin.




Illumination picture showcase

It's with CCT 3000K,and 120 degrees beam angle.

We have our own IES photometrical machine to make the IES test.

                   Light distribution cureve

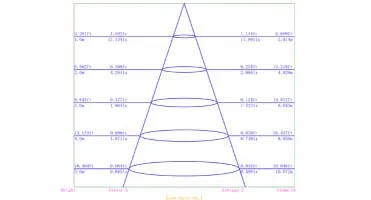

                               Lux distance curve

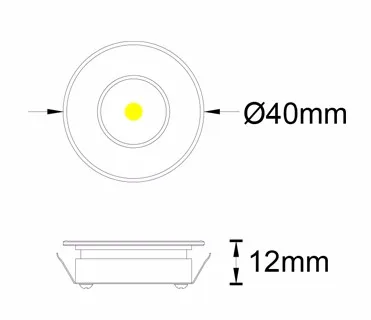

Dimension
Related products
Please click the picture to check this deck series !

Please click the below picture to check our main products series or send me the Email info4(@)pyledlight.com for the PDF file E-catalogue to check our whole range products . (Pls remove "()")

Application Pictures

Application for stairs.

Company Introduction

Puyuan Electronic Illumination Co., Ltd. with registed brand PLAYLED is a professional LED lighting manufacturer in China,established in 2007 years.

It is specialized in producing Exterior LED lights, such as LED inground light, LED deck lights, Spike spot lights, step lights, underwater pool lights,LED flood lights,wall washer etc.. We not only pay much attention on quality but also on the details such as design ,finishing optics etc..

We adhere to quality standards of operation and is compliant with ISO9001:2008 for quality management operations system and ISO14001:2004 for environmental system certification.Our products have varying quality certifications such as CE,RoHS,TUV and cUL assure reliability,particularly those which are exported to Europe, North America,South America,Australia,Iceland,Malaysia,Indonesia and Philippines,UAE,Saudi Arabia etc.

We usually attended Guangzhou Fair, HongKong International Lighting Fair ( Autumn Edition),HongKong International Lighting Fair ( Spring Edition),Japan Light Fair,LED Expo Thailand,Light Middle East in DUBAI etc.

Contact Us

1.Are you a trade company or a manufacturer?

We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.

2.What is your delivery date?

 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.

3.What is your payment terms?

For samples: 100% deposit.

For regular order:30% deposit in advance and 70% balance before shipment.

The payment method can be Paypal,western union bank, bank for TT .

4.What's your delivery terms ?

We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.

5.What's your warranty ?

We are confident on our quality of design,and the warranty is 3 years.

6.Can I buy the quantity below MOQ ?

Yes,please contact us for the detailed prices based on your detailed quantity requirement.
