1kw 1.5kw 2kw 3kw 4kw 5kw 6kw 7kw Hybrid Solar Power Inverter

Feedback Ratings
$156.00 - $537.00 / Piece | 1 Piece (Min. Order)
Output Power:
4KW 24V/48V
$390.00
- +
available
1KW 12V/24V
$156.00
- +
available
1500W 12V/24V/48V
$185.00
- +
available
All 8 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 20 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Samples - $151.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Shinenovo
Model Number:
W9 1KW-7KW
Output Type:
Single
Size:
49*22*19CM- 58*31*27CM
Weight:
15KG - 50KG
Input Voltage:
12VDC/24VDC/48VDC/96VDC
Output Voltage:
110VAC±2%/240VAC±2%
Type:
DC/AC Inverters
Output Frequency:
50/60HZ±1%
Output Current:
According to load.
Product name:
1KW to 7KW dc ac inverter
Rated power:
1KW to 7KW
AC input voltage range:
85VAC~138VAC/170VAC~275VAC
AC input frequency range:
45-65HZ
Output waveform:
Prue Sine Wave
Output frequency range:
Tracking automatically
AC charging current:
0-30A
Transfer time:
≤4ms
Display:
LCD
Efficiency:
>85%

Packaging & Delivery

Selling Units:
Single item
Single package size:
67X40X35 cm
Single gross weight:
56.0 kg
Package Type:
1 pc inverter packed in 1 strong carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5 6 - 10 >10
Est. Time(days) 7 20 To be negotiated
Video Description
Product Description

1kw 1.5kw 2kw 3kw 4kw 5kw 6kw 7kw Hybrid Solar Power Inverter

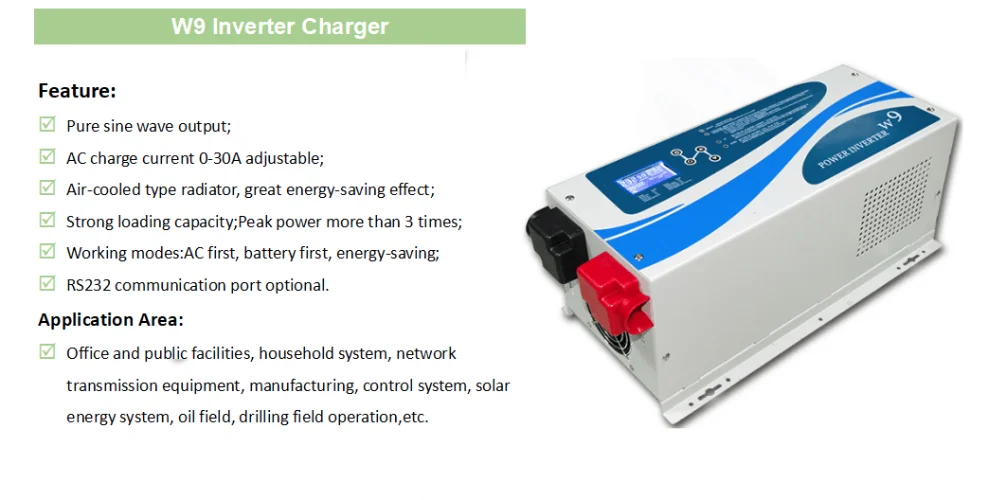

W9 Series Off-Grid Solar Inverter
Optional Power
1kw 1.5kw 2kw 3kw 4kw 5kw 6kw 7kw
Input Voltage
12vdc 24vdc 48vdc 96vdc
Output Voltage
110vac 120vac 220vac 230vac
Output
50Hz/60Hz
Output Wave
Pure Sine Wave
Phase
Single Phase
Application
Household/Industrial/Public Facilities/Oil field, Drilling field operation,etc

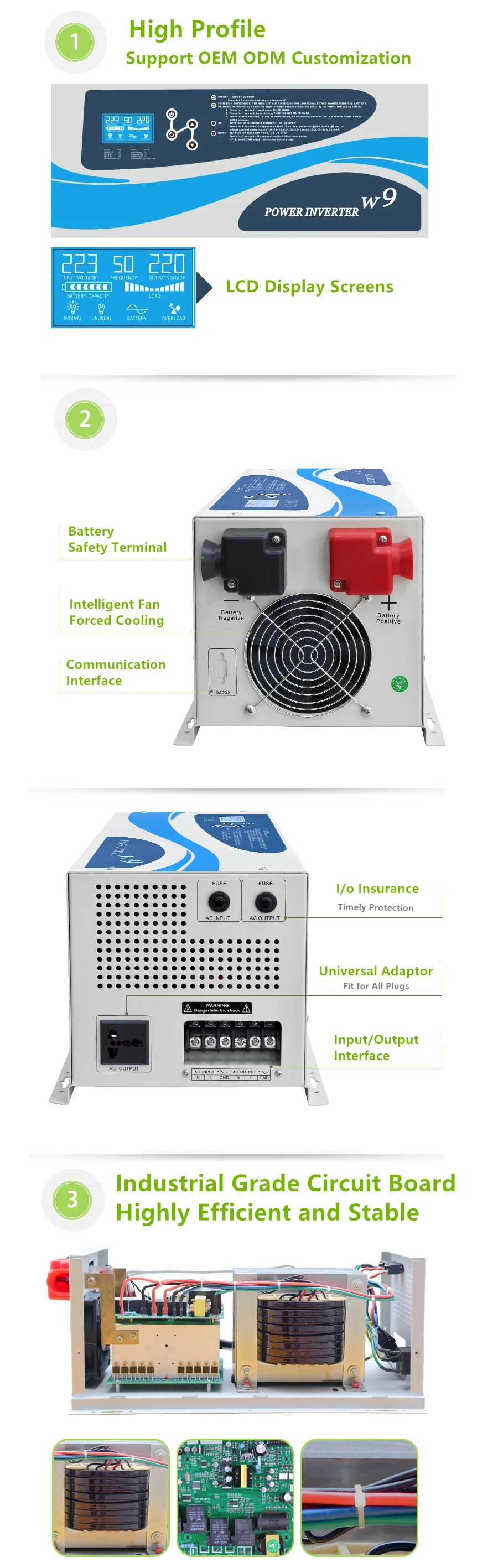

Detailed Images
Model :W9
10212/24
15212/24/48
20212/24/48
30224/48
Rated power
1000w
1500w
2000w
3000w
Nominal battery voltage
12/24VDC
12V/24/48VDC
12V/24V/48VDC
24V/48VDC
Size(L*W*H mm)
485*218*184
530*245*215
Carton Size(L*W*H mm)
540*280*240
590*300*270
N.W.(KG)
15
17
24
28
G.W.(KG)
17
19
27
31
Model: W9
40224/48
50248
60248
70248/96
Rated power
4000w
5000w
6000w
7000w
Nominal battery voltage
24/48VDC
24/48VDC
48VDC
96VDC
Size(L*W*H mm)
580*307*265
Carton Size(L*W*H mm)
640*365*320
N.W.(KG)
42
48
48
50
G.W.(KG)
45
51
52
54
Input
DC Input voltage range
10.5~15VDC(Single battery voltage)
AC Input voltage range
85VAC~138VAC/170VAC~275VAC
AC Input frequency range
45Hz~60Hz
Output
Efficiency
≥85%
Output voltage
(battery mode)
110VAC±2%/220VAC±2%
Output frequency
(battery mode)
50/60Hz±1%
Output wave form
Pure sine wave
AC Output voltage range
110VAC±10% / 220VAC±10%
AC Output frequency range
Tracking automatically
Working Mode
Battery First / AC First / Saving Energy Mode
AC charging current
(selectable)
0-30A
Transfer time
≤4ms
Display
LCD
Thermal method
Cooling fan in intelligent control
Battery Type(Optional)
Gel U.S.A/A.G.M.1/A.G.M.2/Sealed lead Acid/Gel European/Open lead Acid/Calcuim(open)/Sulphation cycle
Protection
Over-load / Over-discharge / Short circuit / High temperature / Reverse polarity
Communication
RS232(Optional)
Enviro-nment
Temperature
-10℃-40℃
Noise
≤55dB
Humidity
0%~95%(No condensation)

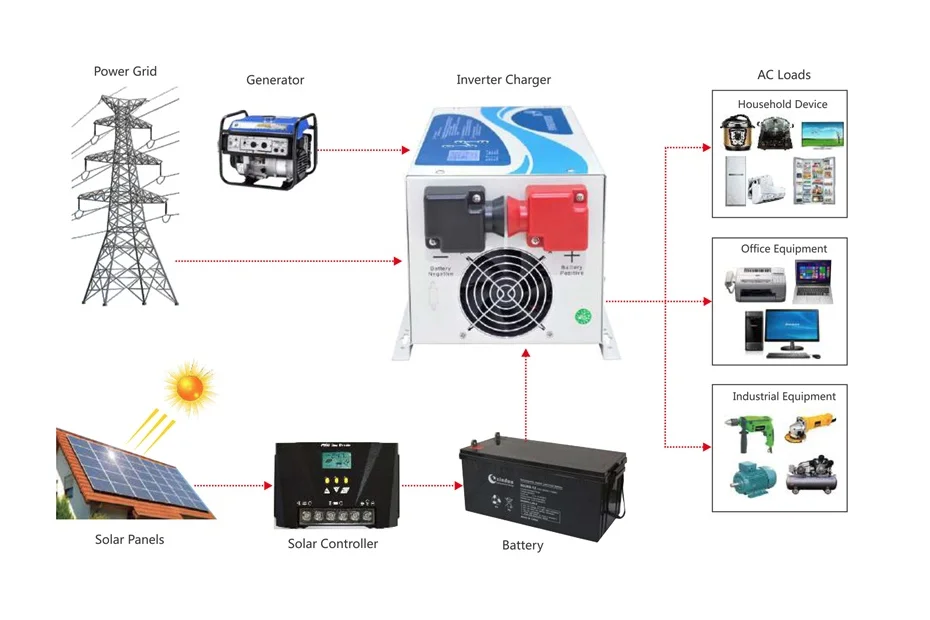

Product Application

Products Categories

              Solar Panel                                   Solar Inverter                               Solar Controller                    Solar Power System

Application Area:
Office and public facilities, household system, network transmission equipment, manufacturing, control system, solar energy system, oil field, drilling field operation,etc.

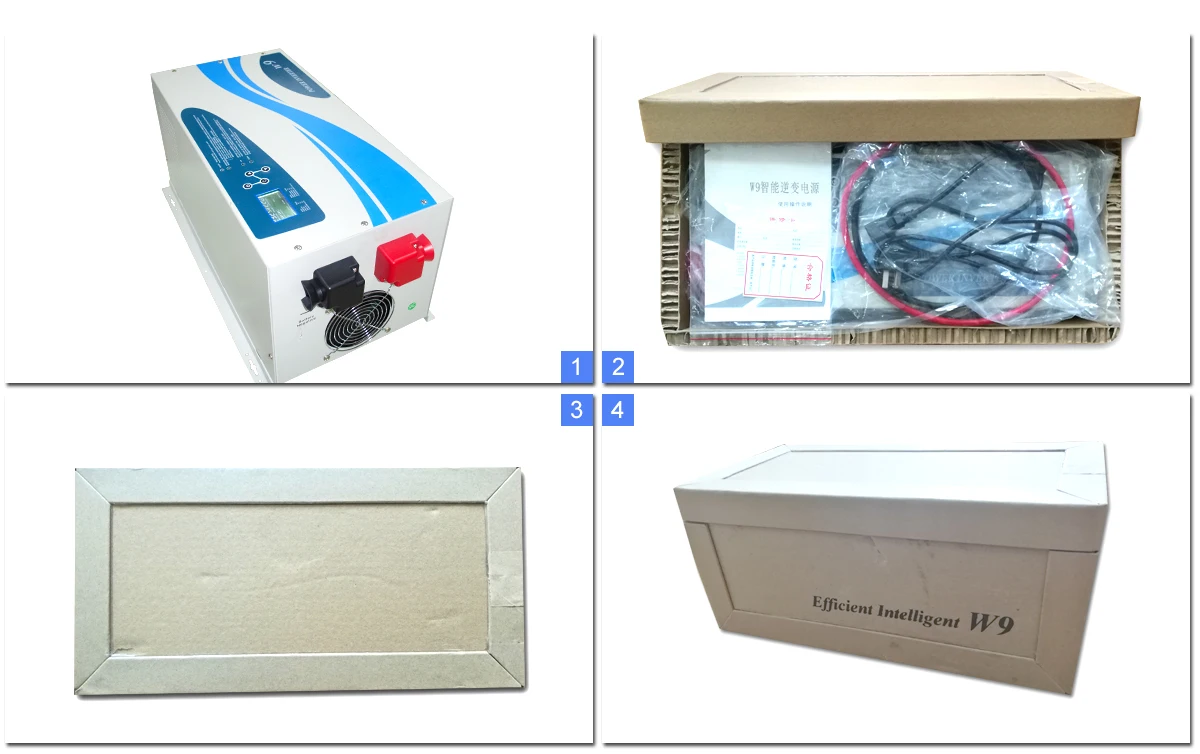

Packing & Delivery
Our Company
Why Choose Us

1.Our products are the most complete
2.Our price is not the lowest, but our quality is the best
3.All our products are shipped directly from the factory
4.All products are available for after-sales support
5.We guarantee that the products are genuine and we reject inferior products and hate inferior products
6.We can provide technical support

Terms of Payment

We welcome you to pay by Trade Assurance
*100% product quality protection
*100% on-time shipment protection
*100% payment protection for your covered amount

No.
Order Amount
Terms of payment
1
Less than USD5,000
100% by T/T. West Union and Paypal are acceptable.
2
From USD5,001 to USD9,999
30% T/T in advance, 70%balance before shipment
3
Morethan USD10000
(1) 30%T/T in advance,70% balance by LC, or
(2) 100% by LC

My Reviews

2019 Hot Sale

FAQ

1.Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
2. Q:How to choose a right inverter?
A:Tell us your demand, then our sales will recommend a suitable inverter to you.
3. Q:How about the delivery time?
A: 7 days for sample; 25 days for bulk order.
4. Q:What is the warranty of inverter?
A: One year warranty.
5. Q:How to solve the technical problem?
A:24 hours after-service consultancy just for you and to make your problem to solveeasily.
6.Q: What kind of output you can do?
A: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz.If you have special requirements, please tell us for engineer consulting.
7. Q: What appliances your inverters can load?
A: Our inverter can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
