1mw turbine generator hydro

FOB Reference Price:Get Latest Price
US $270-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
Well-being
Model Number:
GT03-LJ
Type:
Hydro Generator
flow rate:
0.001-5 cubic meter per second
water head:
1-30 m
Power range:
0.3KW to 5MW
Runner blade:
Angle adjustable
Runner Diameter:
100-800mm
Runner material:
made from Stainless steel ZG06Cr13Ni4Mo or casting iron
Voltage:
110,220V,400V/50-60hz optional
Efficiency:
86-97.5%
Rated Cosin Factor:
0.8
Control system:
Automatic on-grid or off-grid running control optional
Supply Ability
Supply Ability:
800 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case packaging with protective steel frame
Port
Any port of China
Lead Time :
from 5 days to 5 months according to project scale



Main Products



Product Introduction

Micro-hydro systems are typically defined as 1 MW and less. The limit is set to 1MW because this is about the maximum size for most stand alone hydro systems not connected to the grid,

and suitable for "run-of-the-river" installations.



Our company has 60 years of experiences in designing hydro turbine, our products cover turgo tubine, pelton turbine, francis turbine, kaplan turbine, tubular turbine and cross flow turbine,

and the unit capacity of our hydro turbine ranging from 0.3W to 10MW.



We are able to provide hydro power project turn key solution. And at the same time provide trainning course, old hydro power station update service and CFO service.

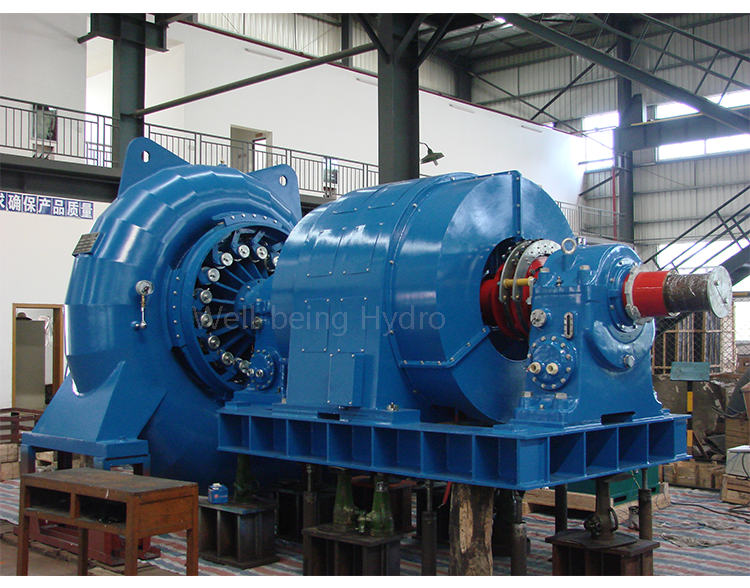

500KW-5 MW Francis Turbine(Brush-less excitation motor, stainless runner, electric governor, automatic control system)

500KW-5MW Vertical Kaplan Turbine (Brush-less excitation motor, stainless runner, electric governor, automatic control system)



 500KW-5MW horizontal Pelton Turbine (Brush-less excitation motor, stainless runner, electric governor, automatic control system)

500KW-5MW tubular Turbine (Brush-less excitation motor, stainless runner, electric governor, automatic control system)

Parameters (below parameter only reference, hydro turbine is tailor-made product, please contact us for precise technic parameter)





Power

(kW)

Model



Water head(m)



Flow Rate

(m3/s)



Speed

(r/min)



mm

Pipe Diameter

5KW

HL110-LJ-20

15

0.05

1500

21

200mm

10KW

HL110-LJ-30

15

0.12

750

30

300-350mm

15KW

HL110-LJ-30

18

0.13

750

30

300-350

mm

20KW

HL110-W-30

23

0.15

1000

30

300-350mm

20KW

HL110-WJ-35

18

0.18

750

35

350-400mm

30KW

HL110-WJ-30

30

0.18

1000

30

300-350mm

30KW

HL110-WJ-30

23

0.21

750

35

400mm-450mm

40KW

HL110-WJ-30

32

0.18

1000

30

350-400mm

40KW

HL110-WJ-35

26

0.22

1000

30

400-450mm

50KW

HL110-WJ-35

31

0.24

1000

35

400-450mm

50KW

HL110-WJ-42

26

0.31

750

42

500mm

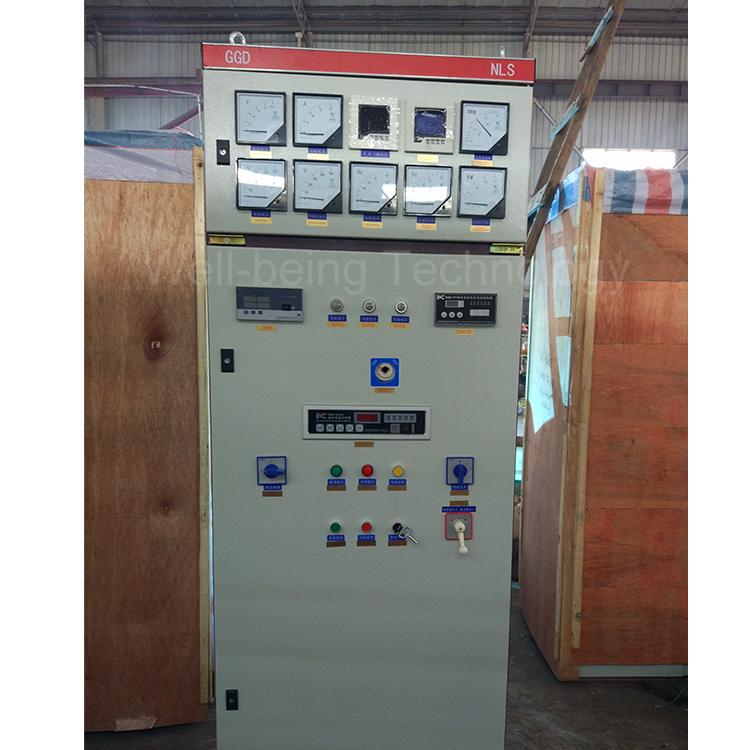

Full-Automaitc Control System(On-grid and off-grid running):








Product Advantage

Company Information



Certifications

Customer Story





 FAQ

1. You are a trading company or a manufacture?

We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Ganzhou City and Pingnan City, pay a visit to our you will know more about us

2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity

Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).

3. What information shoul I provide for getting the quotation?

We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.

4. When my turbine shut down, who can help me solve the problem?

You are free to call me day or night at my cellphone number. I am sure our engineer able to fix the problem either by changing spare parts or remove something.

5.  How can I trust you?

Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.

Packaging&shipping

Accepted Delivery Terms

FOB/CIF/EXW/CPT/CFR ect.

Accepted Payment Currency

USD,RMB, Or other currency

Accepted Payment Terms

T/T,L/C/Paypal/Money Gram etc.

Nearest Port

Guangzhou Port

Lead Time

Accroding to project scale, usually from 7-60 days

Packing Details

Fumigation wooden boxes/ cartons with foam inside
