1x8 LGX Box Cassette Card Inserting SC/APC PLC Splitter Module 1:8 8 Ports Fiber Optical PLC Splitter

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 100 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Graphic customization (Min. Order: 10000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Tongmai & OEM
Model Number:
Fiber Optic PLC Splitter
Product name:
Fiber Optic PLC Splitter
Connector:
SC/LC/FC/ST
Application:
FTTH,FTTX,CATV
Type:
1*4/1*8/1*16/1*32/1*64/2*4/2*8/2*16/2*32/2*64
Wavelength:
1260-1650nm
Insertion Loss:
≤0.1dB
Fiber Type:
G657A
Operating Temperature(°C):
-40~+80
Material:
ABS
Certification:
ISO9001
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week Fiber Optic PLC Splitter
Packaging & Delivery
Packaging Details
Fiber Optic PLC Splitter
Standard package. Packed by carton box or customized
Port
Guangzhou/Shenzhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 3 To be negotiated

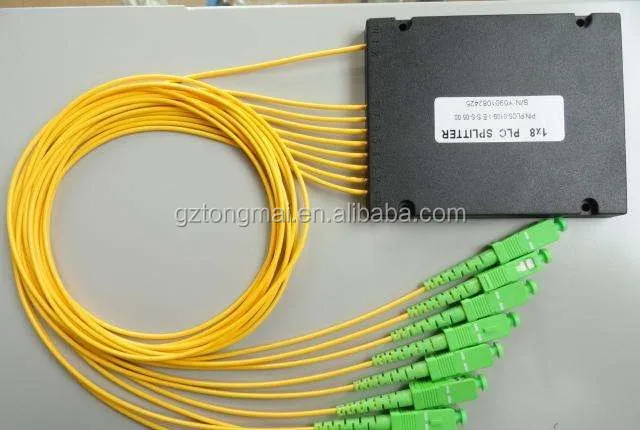

1x8 LGX Box Cassette Card Inserting SC/APC PLC Splitter Module 1:8 8 Ports Fiber Optical PLC Splitter

Product Description



Description:

PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive.



Applications:

1. FTTx Deployments (FTTP,FTTH,FTTN,FTTC)

2. Cable Television (CATV)

3. Local Aerial Networks (LAN)

4. Passive Optical Networks (PON)

5. Test Equipment



Specifications:

1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC



Technical Parameter:



Wavelength(nm):1260-1650
MaterialABS
DesignOEM & ODM
SpecificationsA (2.4.8 port) : 60L*7W*4H mmB (16 port ) : 60L*12W*4H mmC (32 port ) : 80L*20W*6H mm
Connectors FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available
Parameters1x21x4  1x8 1x161x321x64

1x128

Insertion Loss   (dB)≤4.2≤7.4≤10.7≤13.9≤17.2≤21.5≤24
PDL (dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
Uniformity (dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
Return Loss (dB)≥50
Directivity (dB)≥55
Directivity (dB)≥55
Temperature Range (°C)-40~+75
Storage Temperature (°C-40~+85
NOTE: The above parameter is for splitter with connector, if without connector, insertion loss will reduce by 0.2dB.

More Products:


                                                                                ------------------------------------------------------


FAQ



Pyament
T/T,Western Union,Paypal,L/C are acceptable.



Leadtime

Generally 1-5 working days after payment confirmed, it's also according to your quantity.



Shipment & Delivery

Courier, such as DHL,UPS, FedEx, TNT, Airline and Ocean ship, it depends on your choice.



Contact Us

Prompt answer for any question or inquiry !
Contact Person: Kay Mo
Cell/wechat/whatsapp: +8615919637505
