2.0'' inch 128x160 128*160 resolution small transparent oled screen led lcd display NVK128X160

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    US$48.00
  • >=10 Pieces
    US$47.00
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Graphic
Place of Origin:
Jeju-do, South Korea
Model Number:
NVK-160SC004F-S-0000
Brand Name:
kolon
Size:
2.0
Resolution:
128(W) x RGB x 160(H)
Color:
262K colors
Interface:
18/16/9/8/6 bit parallel data with MPU(8080-series MPU)
Driver IC:
LD7222
Packaging & Delivery
Packaging Details
Antic-static bag and carton.
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 3 To be negotiated

Product Type: Transparent oled display



2.0'' inch 128x160 128*160 resolution small transparent oled screen led lcd display NVK128X160







Detailed Images







Product Description



1. Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: 262K colors
3) Drive Duty: 1/160 Duty

4) Wide viewing angel: >160 degree




2. Mechanical Specifications
1) Number of Pixels: 128(W) x RGB x 160(H)

2) Panel Size: 37.79(W) x 60.65(H) x 1.2(T)(mm)
3) Active Area: 31.462(W) x 39.333(H) (mm)
4) Pixel Pitch: 0.246 × 0.246 (mm)
5) Dot Size: 0.056 × 0.219 (mm)

6) Weight: 5(g)







3. Pin: 43pin





4. Driver: LD7222



5. Interface: 18/16/9/8/6 bit parallel data with MPU(8080-series MPU)

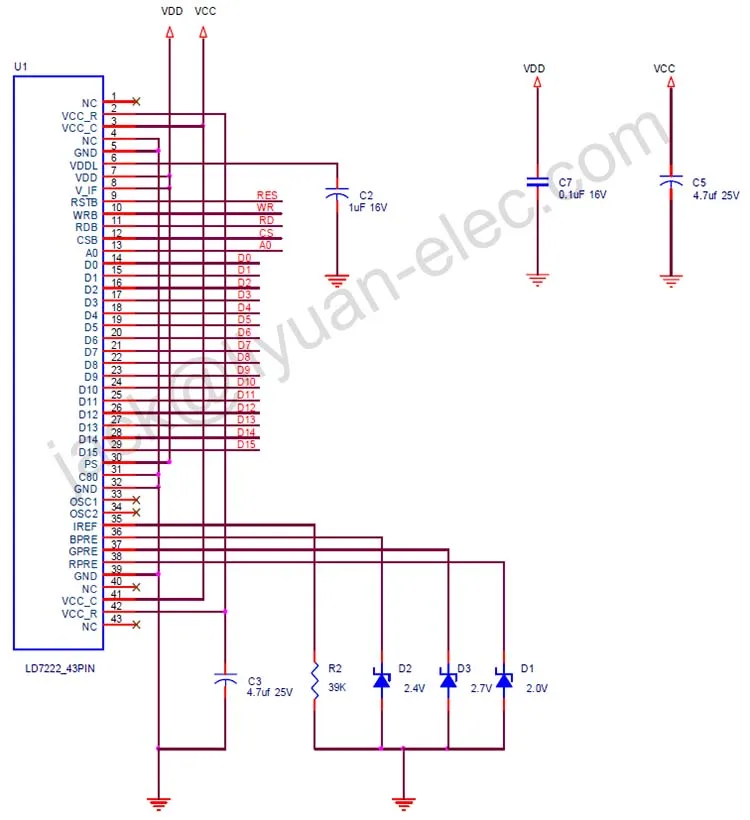

Application Circuit.









6. Drawing:















We will provide detailed datasheets of screen/module/driver IC and application circuit to you.







Payment & Shipping

Payment

Please contact us before you make payment.
Payment terms: T/T, Western Union.


Delivery

Items will be shipped within 2 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packing
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.
