2.4 inch customized 240(RGB) x320 tft lcd display, RGB display panel 2.4 inch tft lcd module module spi module

FOB Reference Price:Get Latest Price
  • 1 - 499 Pieces
    $8.00
  • 500 - 999 Pieces
    $4.00
  • 1000 - 2999 Pieces
    $3.70
  • >=3000 Pieces
    $3.50
Lead Time:
Quantity(Pieces) 1 - 10 11 - 500 >500
Est. Time(days) 20 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Graphic customization (Min. Order: 1000 Pieces)

More

Customized packaging (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
TFT
Place of Origin:
Guangdong, China
Model Number:
ZW-T024SQS-09
Brand Name:
Disea
Size:
2.4 Inch
Resolution:
240*320
Display Mode:
TN/NW
Interface:
4-wire-SPI
Driver IC:
ST7789V
Brightness:
250cd/m2
viewing:
6
touch panel:
None
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard International Exportation Package
Port
HK
Lead Time :
Quantity(Pieces) 1 - 10 11 - 500 >500
Est. Time(days) 20 35 To be negotiated
Product Description

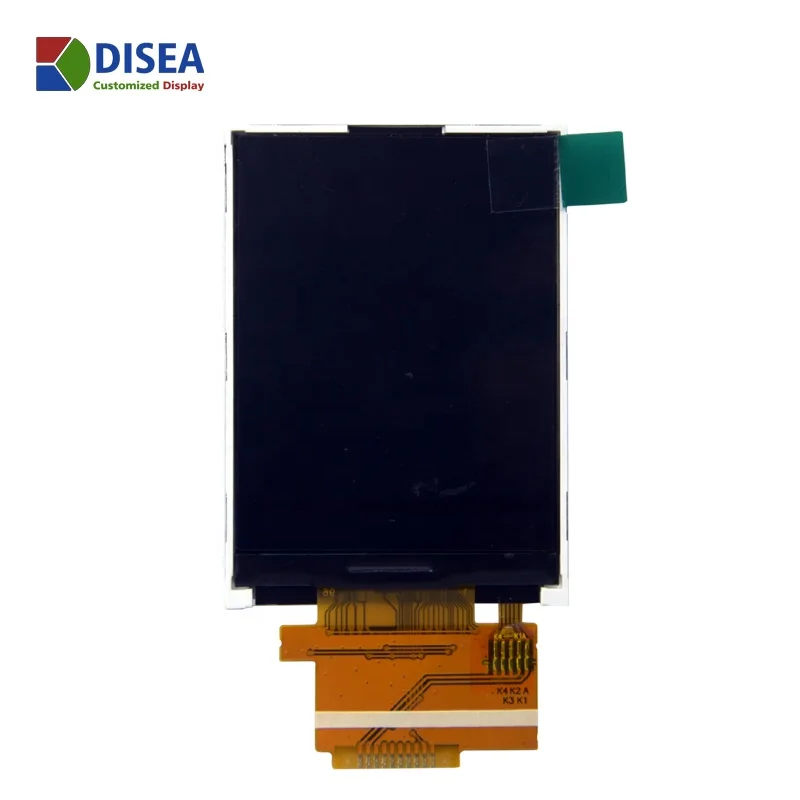

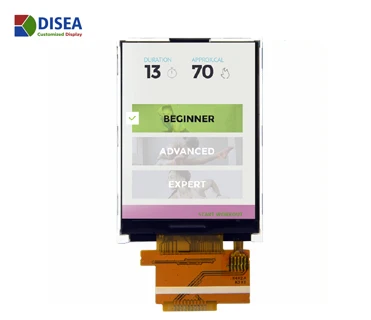

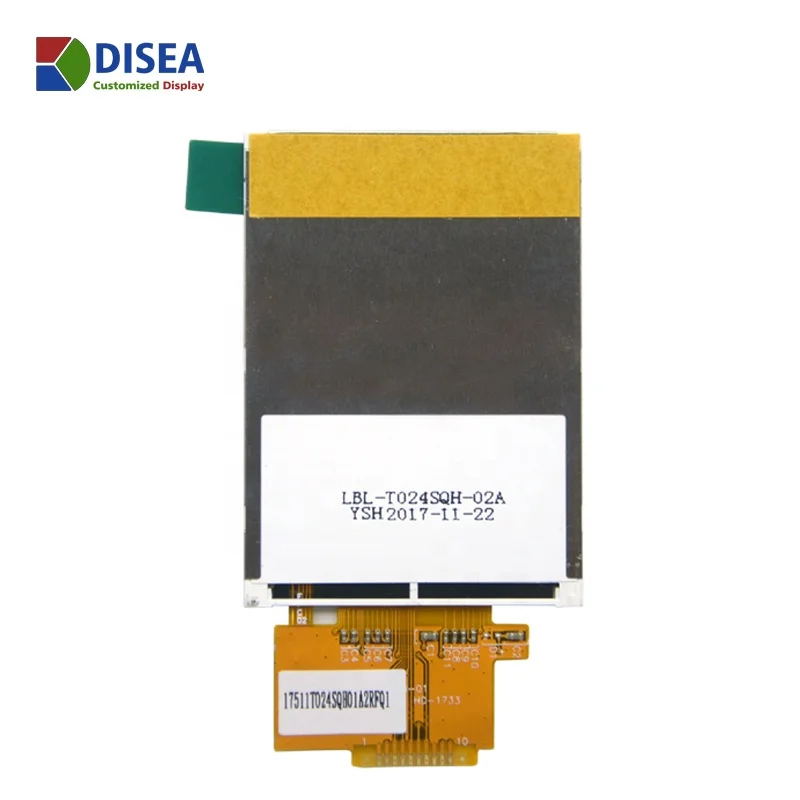

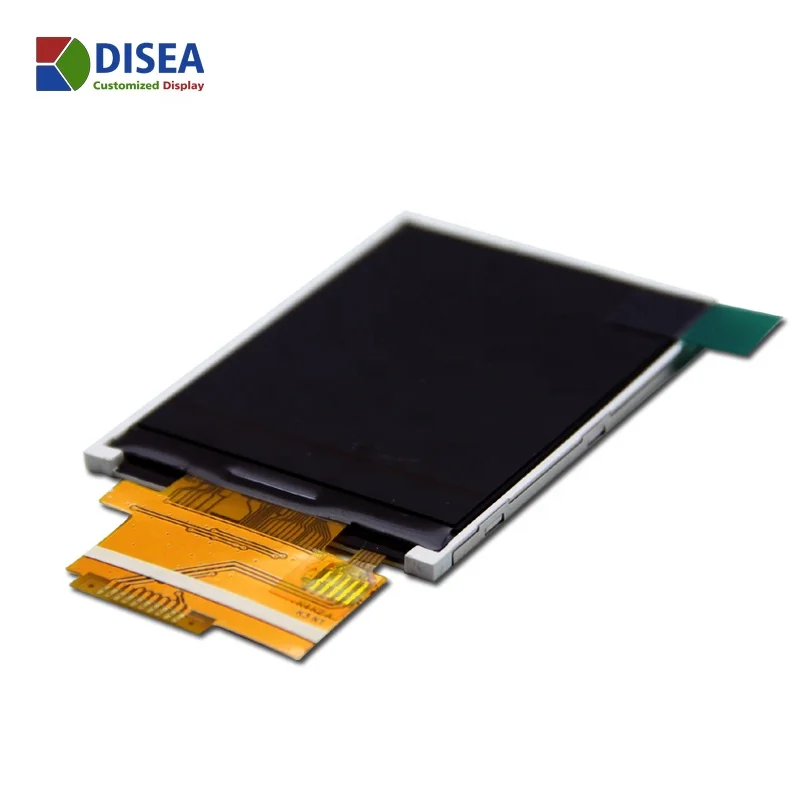

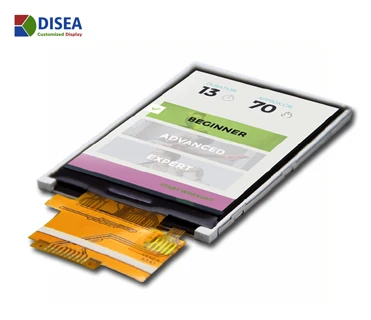

       ZW-T024SQS-09 is a  TFT-LCD  module. It is composed of a TFT-LCD panel, driver IC, FPC, a back lightunit. The 2.4 display area contains 240 x 320 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.


Feature
Specification
Unit






Display Specification
Brand
Disea
-
Size
2.4
inch
Resolution
240*320
dots
Pixel pitch
0.153(H)*0.153(V)
mm
Display Mode
TN/NW
-
Viewing Direction
6
o'clock
Gray Scale Inversion Direction
12
o'clock
Luminance
250
cd/m2

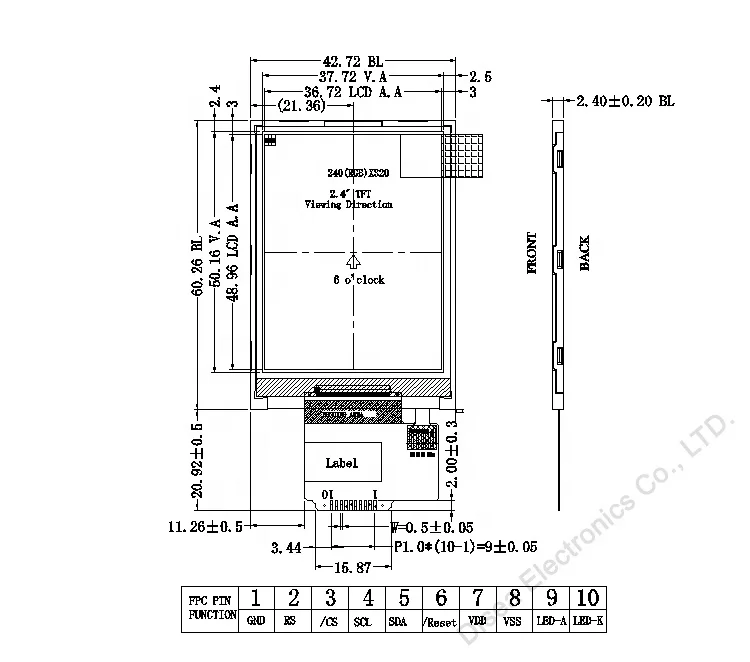

Mechanical Characteristics
LCM (W * H * D)
42.72*60.26*2.40
mm
Active Area (W * H )
36.72*48.96
mm
With /Without TP
without
-
LED Numbers
4-LED
pcs
Operation temperature
-20~+70
Storage temperature
-30~+80



  Electrical

Characteristics
Interface
4-wire-SPI/10PIN
-
LCM Power Supply
2.8
v
LED Power Supply
3.0
v
Color Depth
262K
-
LCM Driver IC
ST7789V
-
CTP Driver IC
-
-
Detailed Image
Packing & Delivery

Packing


Delivery


Customized

We can according to your demand to customized your display.

Such as customized the frame, backlight brightness, backlight shape, long-life led wick, FPC shape and interface definition, silk-printing your Logo and so on.

Customized process
DISEA process
1> Customer requirements:
Size, resolution, brightness, interface,CTP specification  and other requirements, or to drawing, sample for evaluation.
2> Disea provides solutions:
Evaluate and propose solutions according to customer requirements.
3> Customer confirmation:
The customer confirm the solution provided by Disea.
4> Disea offer:
Provide reasonable and advantageous tooling cost quotation and confirm product unit price.
5> Customer payment model fee:
Customer pays the tooling cost.
6> For drawing:
Disea design and issue formal drawings for customer's confirmation.
7> Customer confirms drawings:
The customer has confirmed whether the engineering drawings of Disea meet the requirements. Please sign back. Our company will change to meet the requirements if necessary.
8> Make Tooling:
According to the drawing confirmed by the customer, Disea will make the sample.
9> Sample confirmation:
Send the sample to customer for confirmation within the agreed time.
10> Sample debugging:
If customers encounter any difficulties in sample debugging, Disea's engineers will provide technical support as soon as possible.
11> Sample confirmation:
Customer's sample debugging is completed, and the specification and effect are satisfied.
12> Production:
Determine the final unit price, quantity and delivery time after customer orders to Disea.
13> Production arrangement:
According to the final sample confirmed by the customer, Disea arranges the material for production scheduling.
14> Delivery order:
Arrange shipment according to customer's quality requirement or Disea standard.
15> After-sales service:
Warranty within one year, provide follow-up technical support.

We can according to your demand to customized your touch screen.

Such as customized cover glass's shape,silk-printing color,touch with water,with salt water touch,with gloves and so on.

Our Company

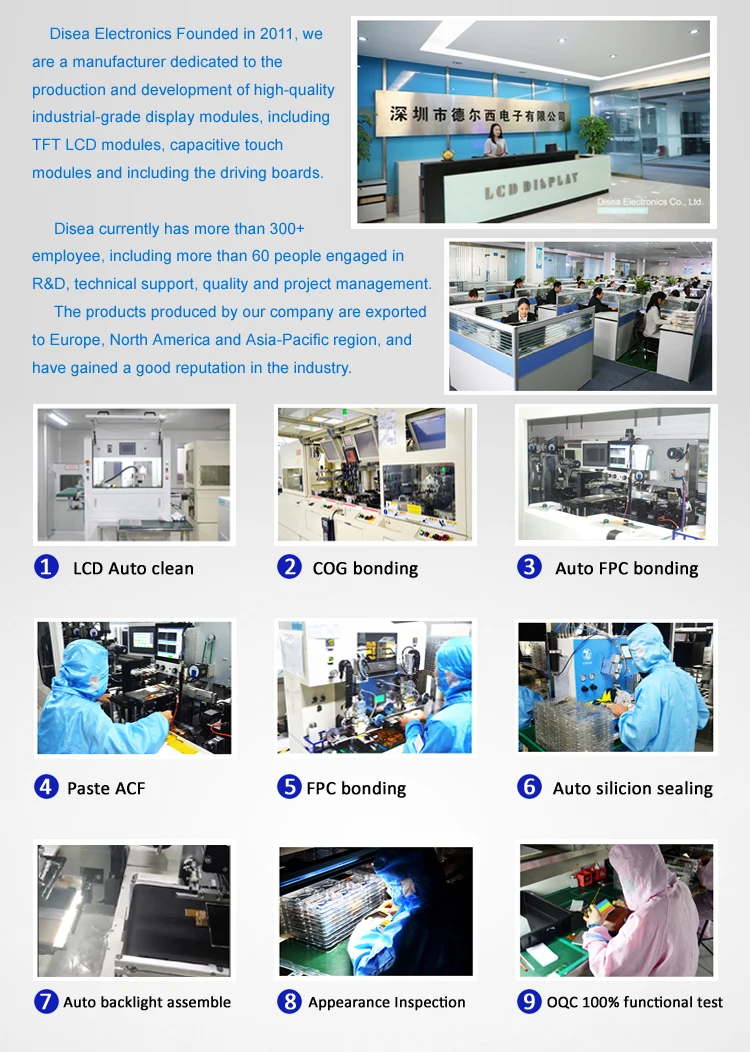

In Disea Electronics, aging is being a normal procedure for production and it makes a much lower defect ratio. Rely on our professional quality engineers and thorough quality control system, the Disea product quality is acknowledged by customers especially we have 100PPM defect ratio for automitive products.

Certifications
Advantage
FAQ

Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.


Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.


Q: What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.

Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

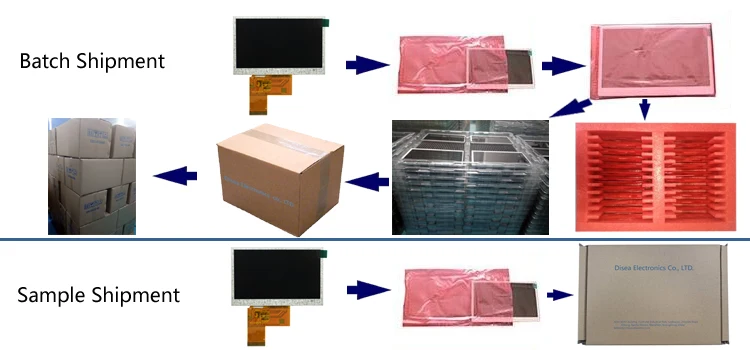

Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

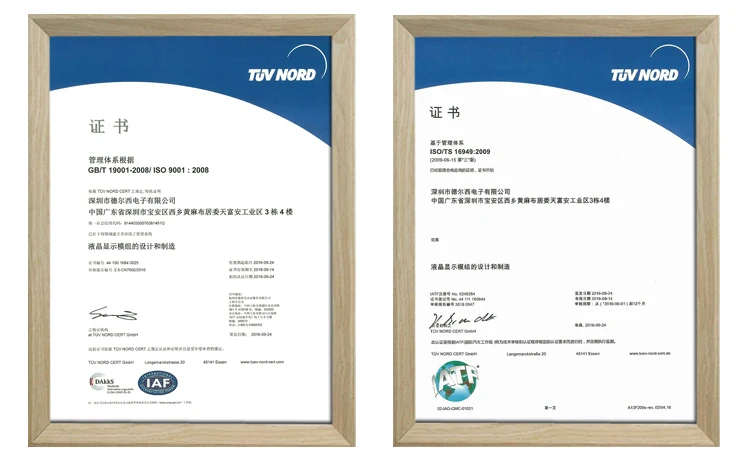

Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.

Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.

Q:The product specification is in Chinese or English?
A:The version of product specification is English.

Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q: What is the products application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto and AOI, etc.
