long range RFID reader personnel tracking system

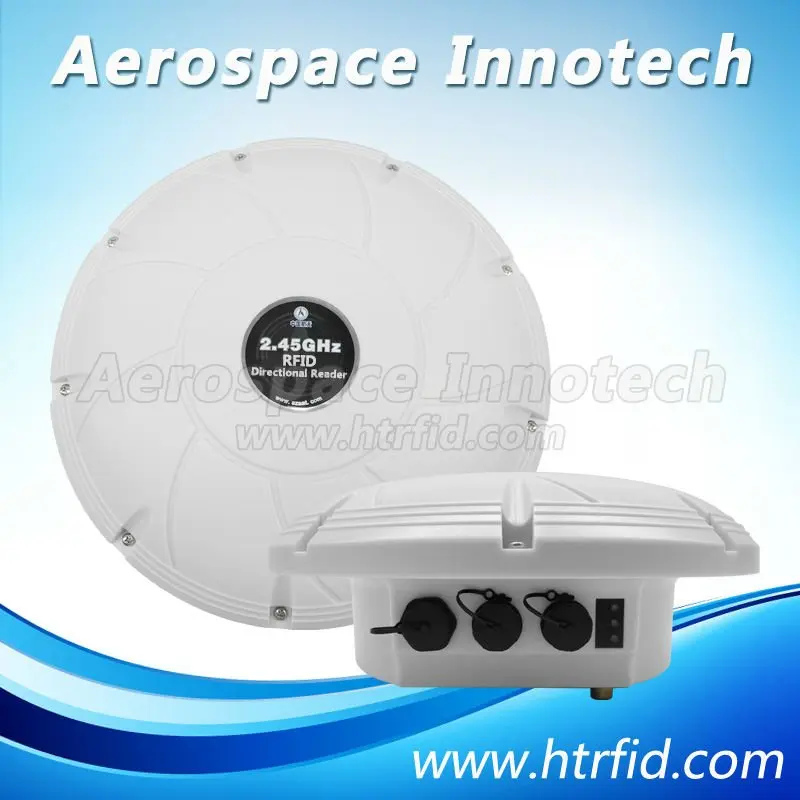

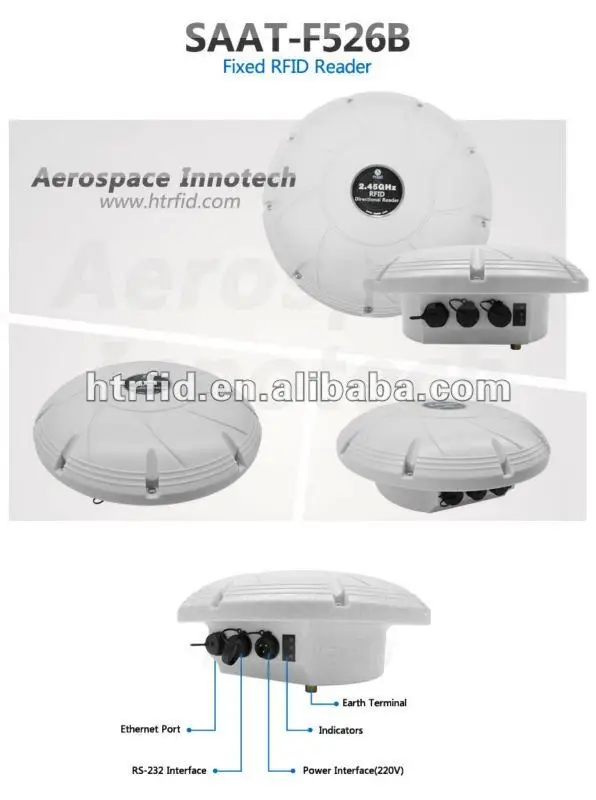

SAAT-F526B Fixed RFID reader operates in the 2.45 GHz band, with high-recognition, long-range, powerful, high- reliability & expandability and other characteristics. The read range is adjustable within 0~200 meter.
Applications
- School & corporation personnel management and positioning
- Automatic vehicle identification
- Parking management, highway toll collection
- Warehousing and logistics
|
RF Parameters |
|
|
Operating Frequency |
2.4-2.48GHz |
|
Output Power |
+15dBm (adjustable by software) |
|
Sensitivity |
-95dBm |
|
Communication Interfaces |
RS-232, 10/100M Adaptive Ethernet |
|
Optional Interfaces |
RS-485, Wiegand 26/34 |
|
Wireless Expansion Module |
GPRS/GSM(optional), CDMA(optional), 802.11 WIFI module(optional) |
|
I/O Port |
2- channel relays output(optional), 2- channel trigger input(optional) |
|
Firmware Upgrade |
Support serial port |
|
Application Software Platform |
Provide development kit of API(C++ and C#) |
|
Tag operation |
|
|
Tag Protocol |
Private Protocol |
|
Tag Operating Mode |
Compatible with active and passive operating mode tags |
|
Reading Range |
0-200m (depend on the tag power output) |
|
Identification Speed |
200pcs/s (tag ID) |
|
Anti-confliction |
Identifying 300pcs tag at the same time |
|
Mechanical & Electrical performance |
|
|
Indicator |
Buzzer, LED (Power, Reading, Data transmission) |
|
Product Dimensions |
Φ330mm×126mm (excluding stand); Φ13.0 in×5.0 in (excluding stand) |
|
Package Dimensions |
560mm×380mm×185mm |
|
Net Weight |
1.6kg |
|
Gross Weight |
5.15kg |
|
Power Supply |
AC180V~240V (optional external power adapter ) |
|
Power Consumption |
300mW |
|
Operating Temperature |
-40℃~+60℃ |
|
Storage Temperature |
-60℃~+80℃ |
|
Humidity |
5% ~ 95% (non-condensing) |
|
IP Rating |
IP67 |
|
Shock Resistance |
10~500Hz, 100mm/15g, triaxial |
