2.4ghz wireless audio zigbee wifi modules rf mesh module data transmission module cc2530 zigbee module

  • 2-99 Pieces
    $2.58
  • 100-499 Pieces
    $2.49
  • 500-999 Pieces
    $2.41
  • >=1000 Pieces
    $2.33
Supplier Type:
Original manufacturer
$
- +
available
Odm
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples: $2.68 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $2.68 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Chipset:
CC2530
Brand:
Cojxu
Model Number:
E18-MS1-IPX
Application:
IOT wireless data transmission
Country of Origin:
Sichuan,China
Product name:
ZigBee wireless transceiver module
Product advantages:
Zigbee, with shield
IC:
CC2530
Working frequency:
2.4GHz
Transmitting power:
4 dBm
Air data rate:
250k
Test distance:
240m
Size:
14.1*20.8 mm
Package:
SMD
Communication interface:
I/O

Packaging & Delivery

Selling Units:
Single item
Single package size:
1.5X2.5X0.5 cm
Single gross weight:
0.005 kg
Package Type:
High quality shockproof carton
Lead Time :
Quantity(Pieces) 1 - 50 51 - 500 >500
Est. Time(days) 5 12 To be negotiated

Product Description

2.4ghz wireless audio zigbee wifi module rf mesh module data transmission module cc2530 zigbee module

[IC] : CC2530

[Frequency] : 2.4~2.48GHz

[Distance] : 0.24km

[Interface] : IO

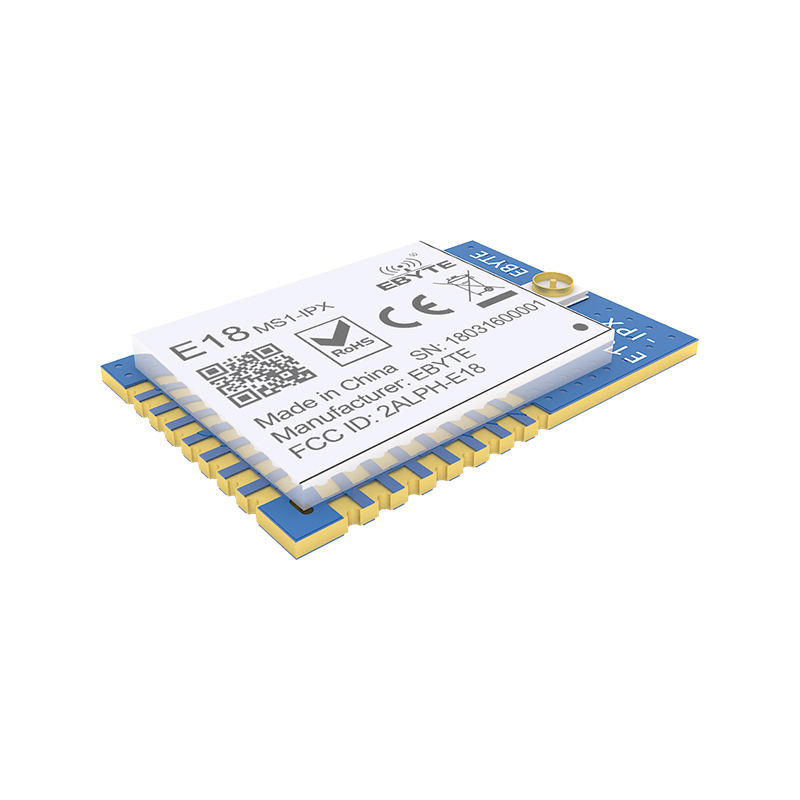

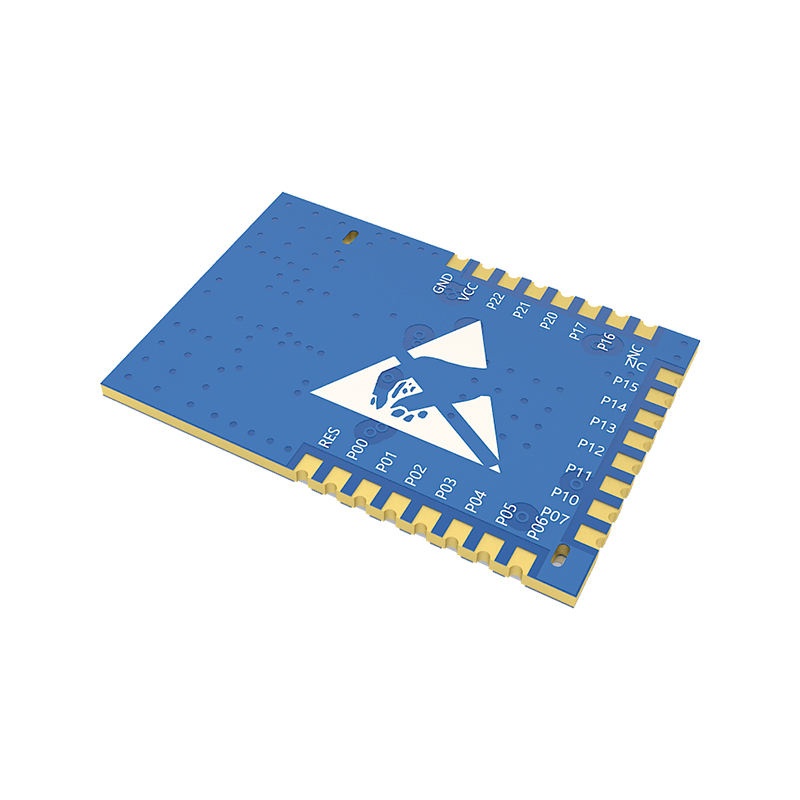

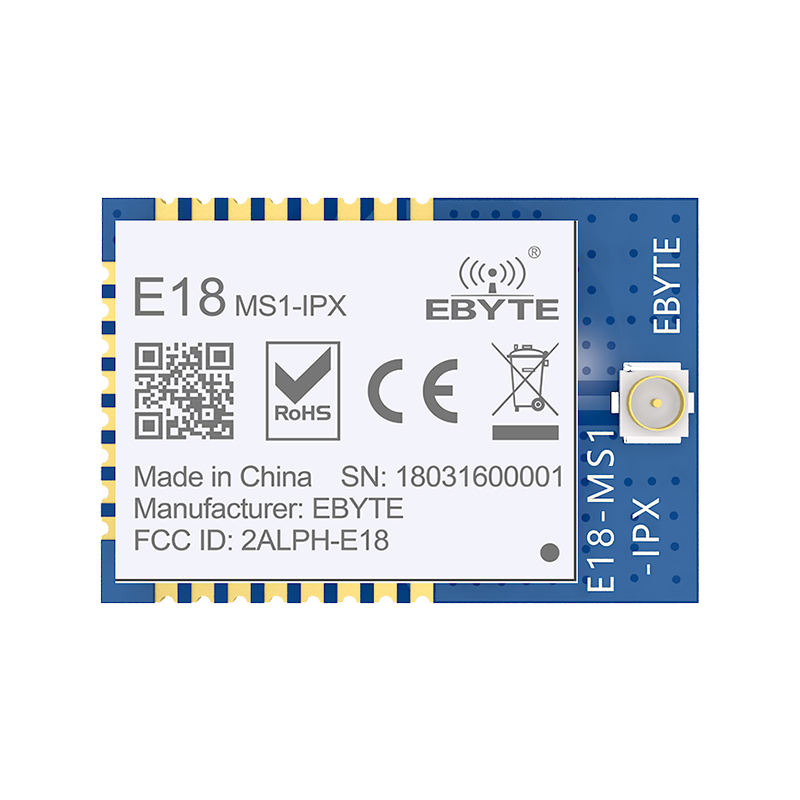

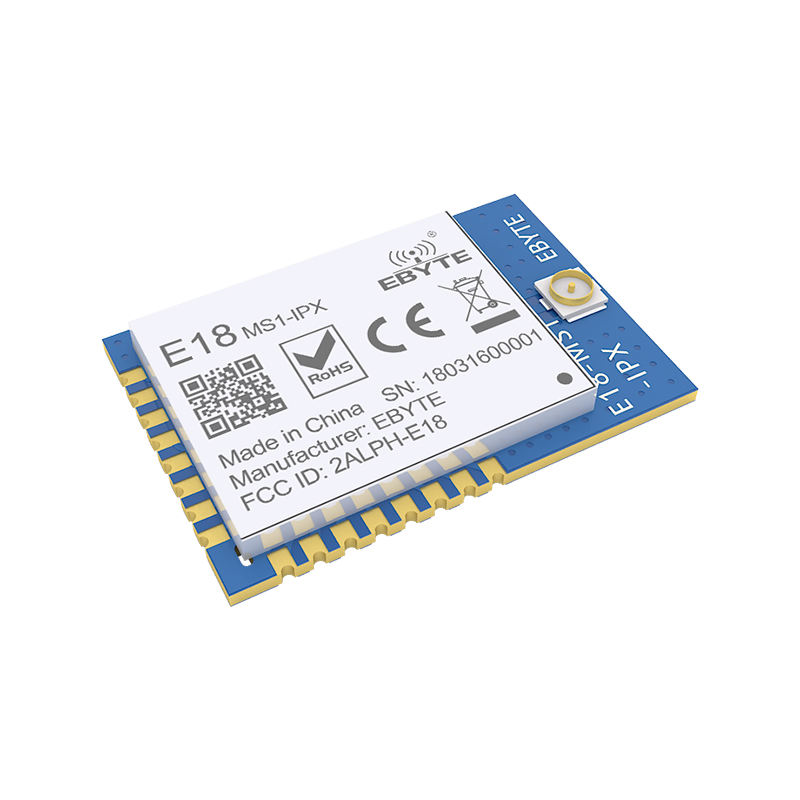

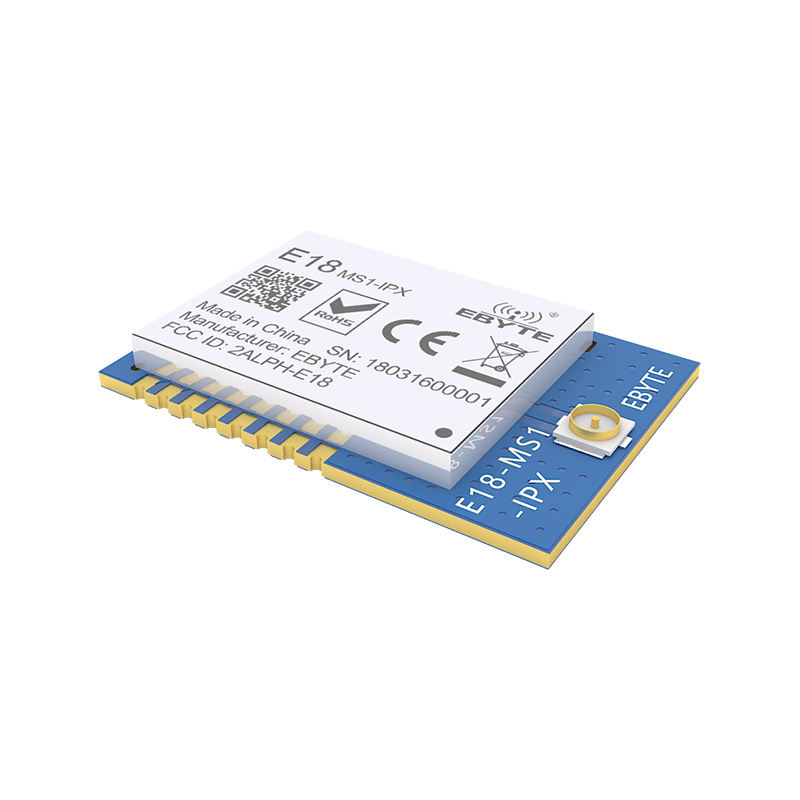

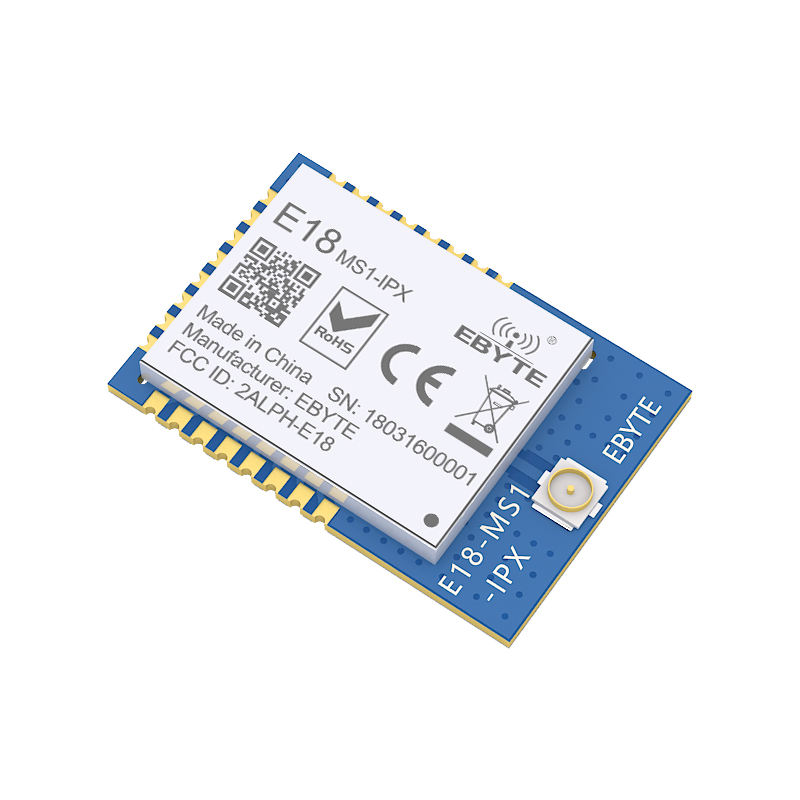

[Introduction] : E18-MS1-IPX is based on original imported RF chip CC2530 form TI inAmerica. The IC chip is integrated with 8051 microcontroller and wireless transceiver, and applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol.All the IO ports are led out by the module,which means that multi-aspect development is realizable.



RF ParameterValue
Remark
Working frequency
2400~2480 MHz

Default:  2.4GHz (32MHz oscillator)

Transmitting power4 dBm

About 2.5mW

Receiving sensitivity-96.4 dBm

Air data rate: 250kbps

Communication protocal
ZigBee

-

Test distance240m

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 250kbps

Electronic parameterMin.Typ.Max.Unit
Power supply
2.03.33.6V
Communication level2.03.33.6V
Transmitting current
262831mA
Receiving current
25
2730mA
Sleep current
0.6
1.21.8μA
Operating temperature
-4020
+85
Operating humidity
1060
90%
Storage temperature
-4020
+125



Manual support
Recommend For You

Packaging & Shipping

1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days to arrive in most countries.

2.We can also help you ship  the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive ;

3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.

4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T



Company Information

Cojxu is a high-tech company focused on IoT solutions,specializes in the developing and manufacturing wireless products such as Industrial DTU,UART Module,SPI Modul,Data Radio,PKE Module,Development Kits(Antenna,Multi-functional Adapter,Downloader and CC Debugger etc)

Our company owns a number of independent research&development products and obtain unanimously approved customers.with powerful R&D team and marketing team.

Cojxu always provide customers with perfect After-sales service and technical assistance.

Certifications



Our Services



FAQ

Q1: Are you a manufacturer or a trading company?

A1: We are a manufacturer.

Q2: Can you do ODM or OEM for us?

A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.

Q3: What about the delivery time?

A3: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.

Q4: What is your delivery terms and payment terms?

A4: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.

Q5: After service and warranty?

A5: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.

Q6. How can we know the product quality?

A6: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

Q7. How can we get samples from you ?

A7.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.

Q8.Can your module be connected with Arduino board? Can you provide Sample code?

A8: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin.    Sorry we don’t have the sample code to offer.

Q9.Can your module be connected with Raspberry Pi?

A9: Yes, our module can be connected with Raspberry Pi.
