2.5 TON BACKHOE LOADER MODEL WZ30-25 BACKHOE LOADER

Feedback Ratings
  • 1-4 Sets
    $17,000.00
  • 5-9 Sets
    $16,000.00
  • >=10 Sets
    $15,000.00
Rated Load:
2500 Kg
Model Number:
WZ30-25
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
color (Min. Order: 1 Sets)
Main parts customizing (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
6.3t
Dimension(Long * Breadth * High):
7800 x 2100 x 3100 mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Condition:
New
Brand Name:
JUFENG
Place of Origin:
Shandong, China (Mainland)
Type:
Backhoe Loader
Moving Type:
Wheel Loader
Certification:
ISO9001, CE
Loader Bucket rated load:
2500 Kg
Excavator bucket volume:
0.3 M3
Loader Dumping height:
3500mm
Excavator Max. digging H/D/R:
5280 /3000 / 4800 mm
Engine type:
YUNNEI 4102, Turbo charged and water cooled
Engine power:
76 KW (103HP)
Torque converter:
Split type YJ280
Chassis:
Articulated chassis
Axle:
Medium wheel side reducer driving axle
Min. turning radius:
5.5 m

Packaging & Delivery

Selling Units:
Single item
Single package size:
780X210X310 cm
Single gross weight:
6500.0 kg
Package Type:
Nude packing, 2 sets per 40HQ container.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

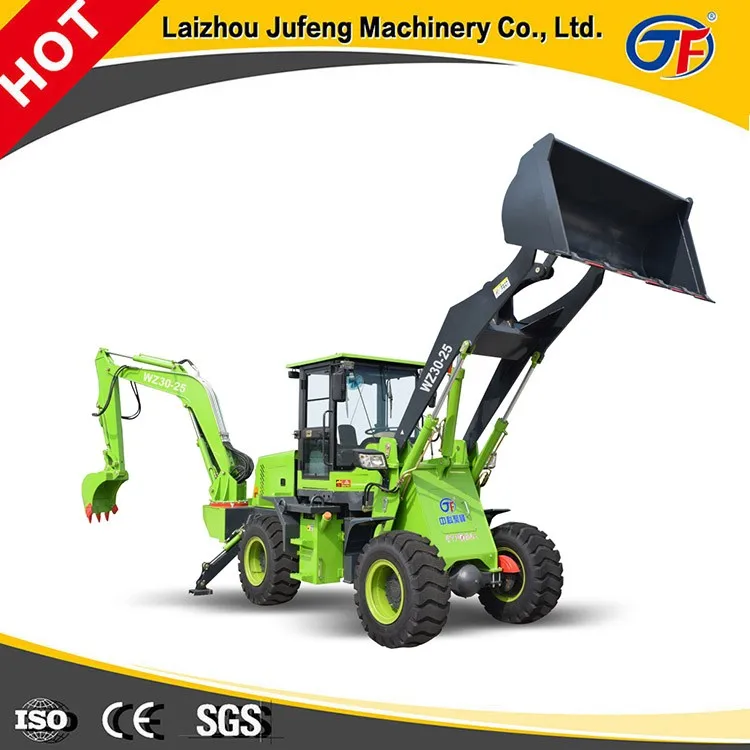

MODEL WZ30-25 BACKHOE LOADER (2.5 TONS)

Product Introduction

Model WZ30-25 wheel loader is a kind of unique vehicle which combines the function of wheel loader and excavator together. The rated loading capacity of loader bucket is 2.5 tons. The wheel-side reducer driving axle and full hydraulic transmission case make the vehicle move in any kinds of complex off road ways, it adopts articulated chassis and the min. turning radius is 5.5 meters only.

Features:

 Powerful breakout force and digging force, bucket automatically laid flat at high dumping position, working time is shortened greatly, and the working efficiency is improved greatly.

 Air-over-oil assist caliper braking system.

 Split type torque converter, not easy to overheat, easy maintenance.

 Leaning-forward front frame, long dumping distance, high raising weight.

 Optional engine: CUMMINS engine or other engine is available.

 Electronic flameout, automatic power off, no knife-switch.


Main Features

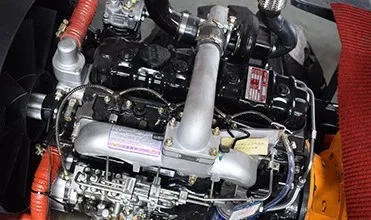

China TOP Brand YUCHAI Diesel Engine


WZ30-25 is driven by YUNNEI 4102, 76 kW (103 HP), Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.

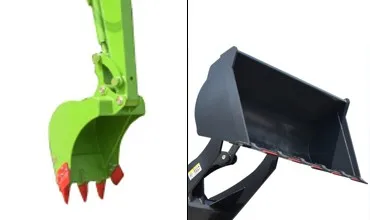

2.5-Ton Loader bucket and 0.3M3 Excavator bucket


2000 mm wide loader bucket, the rated load of bucket is 2500 Kg. The dumping height  is 3500 mm and dumping reach is 1000 mm. The excavator bucket is 0.3M3, max. digging height is 5280 mm, max. digging depth is 3000 mm, and max. digging radius is 4800 mm.

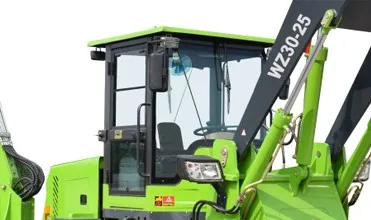

ROPS & FOPS Cabin


ROPS & FOPS cabin is available on this vehicle which helps to increase the safety of driver greatly.

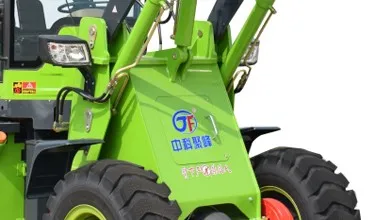

Integrated Front Fame

Leaning-forward front frame which features long dumping distance and high raising weight.

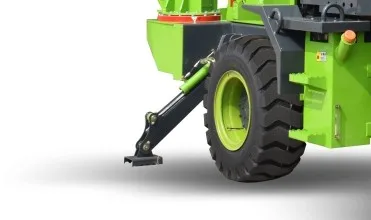

Safety Lock Outrigger.

Safety lock outrigger is applied on this vehicle to guarantee the safe operation.

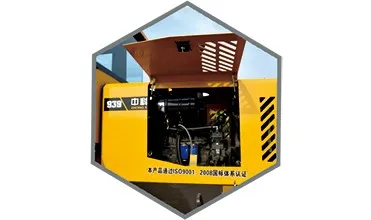

Thickened Steel Plate Engine Casing

The engine casing adopts thickened punch forming steel plate, which increases the stability of whole vehicle greatly.

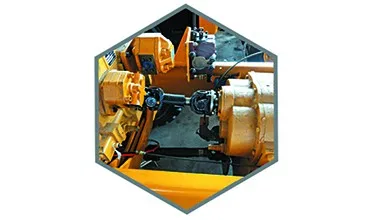

Split Type Torque Converter

Split type torque converter is applied on this vehicle which is not easy to overheat, and it is easy for maintenance.

Bucket
Rated Load
2500 Kg
Bucket Capacity
1.2 M3
Bucket Width
2000 mm
Dumping Height
3500 mm
Dumping Reach
1000 mm
Excavator Bucket
Bucket volume
0.3 M3
Bucket Width
550 mm
Max. Digging height
5280 mm
Max. Digging depth
3000 mm
Max. Digging Radius
4800 mm
Boom Slewing Angle
270°
Engine
Model
YUNNEI, 4102 Turbo Charged and Water Cooled
Rated power
76 KW (103 HP)
Emission standard
Euro II
Chassis
Structure
Articulated chassis
Articulation angle
35 degrees
Transmission gear
Automatic, 2F+ 2R shift
Driving & steering
4-Wheel drive (4x4), hydraulic articulated steering
Wheelbase
2550 mm
Tread
1600 mm
Axles
Medium wheel-side reducer driving axle
Torque Converter
YJ280 (Split type)
Brake
Air brake
Tyre size
Off road steel cord type, 16/70-20
Cabin
Type
ROPS & FOPS type
Air conditioning system
Optional
Vehicle
Min. turning radius
5.5 m
Min. ground clearance
400 mm
Operating weight
6500 Kg
Overall size (L×W×H)
7800 x 2100 x 3100 mm
Optional accessories:
YUCHAI Engine (4102, 78 KW), CUMMINS Engine (4BT-C100, 75 KW)
Air Conditioner in side cabin

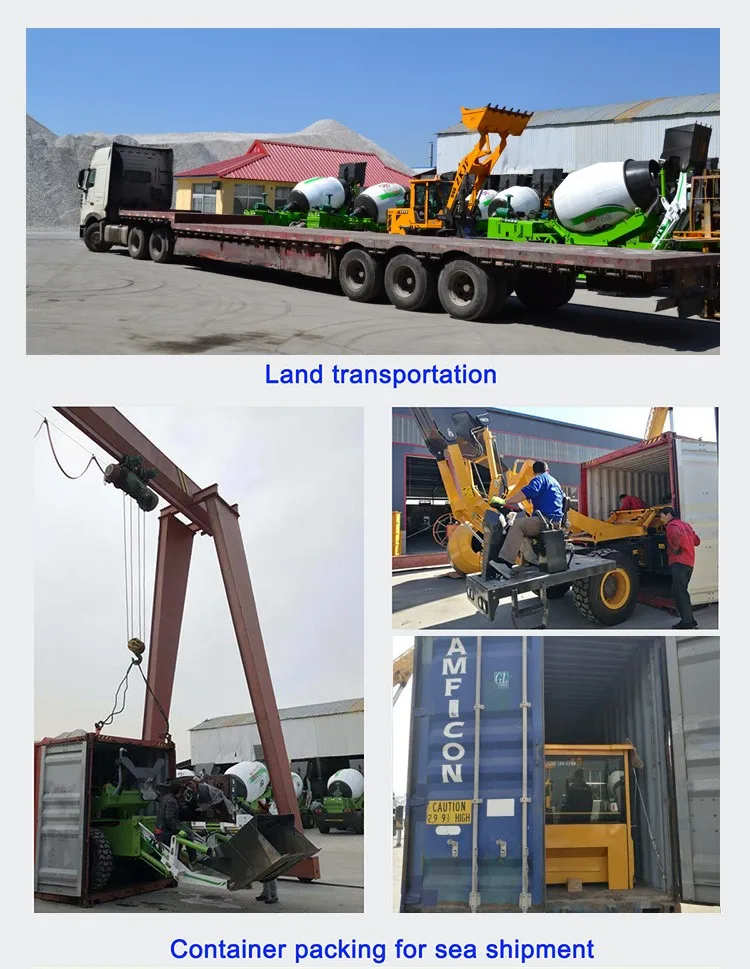

Packing & Delivery
FAQ
Our Company

Company Brief Introduction


Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.
