20 Ton Small Gantry Electric hydraulic press

  • 1 - 9 Sets
    $1,200.00
  • 10 - 19 Sets
    $1,000.00
  • 20 - 29 Sets
    $800.00
  • >=30 Sets
    $600.00
Nominal Force (kN):
200
Shipping:
Support Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Samples:
$1,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Slide Stroke (mm):
620
Machine Type:
Double Column Hydraulic Press
Return Force (kN):
20 kN
System:
Normal
Condition:
New
Place of Origin:
China
Brand Name:
FORN
Year:
2019
Voltage:
220V/380V
Dimension(L*W*H):
620mm*300mm*1290mm
Certification:
CE ISO9001
Weight (T):
0.3 T
Model Number:
DYYL-20
Motor Power (kw):
2.2 kw
Key Selling Points:
Competitive Price
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support
After Warranty Service:
Video technical support, Online support
Applicable Industries:
Machinery Repair Shops
Local Service Location:
None
Showroom Location:
None
CNC or Not:
Normal
Power Source:
Hydraulic
Type:
Hydraulic Punching Press
Color:
Blue
Keyword:
Hydryalic Press
Brand:
FORN
Power souce:
Electricity Hydraulic Power
Stroke:
140MM
Pressing Type:
Single Action
Model:
DYYL-20
Nominal Force (kN):
200 kN
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
QINGDAO/SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

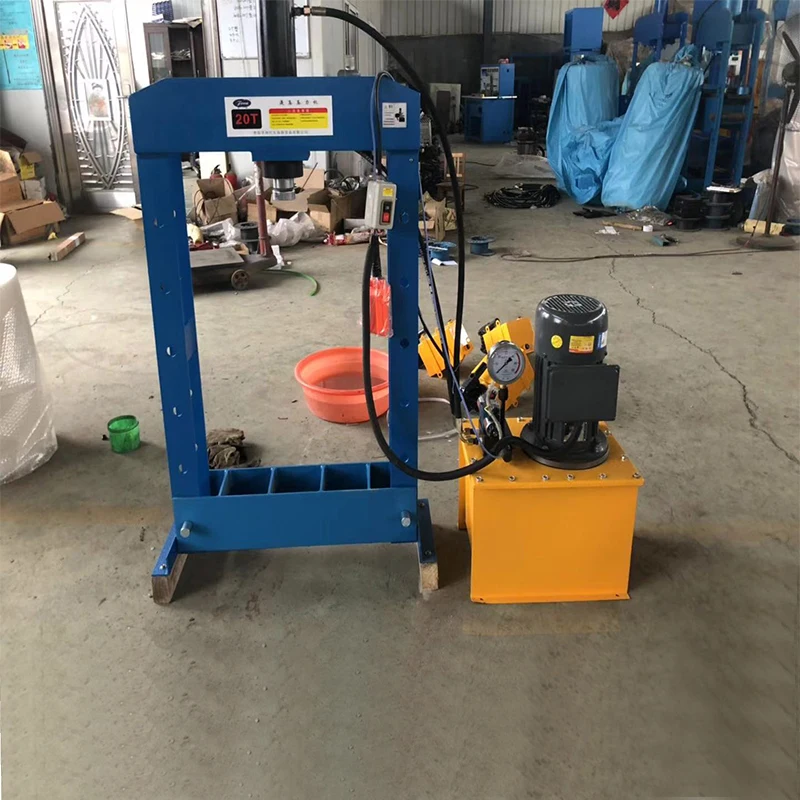

Small Gantry Electric hydraulic press 20 Ton
Product Description
  • After absorbing advantages of similar products from home and abroad on the basis of keeping
    improving, electric oil press is upgraded product which adopts door type steel structure and one piston
    High-low pressure pump with parallel connection, high-low pressure is available when it is low
    pressure in order to enhance the speed. Only high pressure pump can provide oil with low flux
    when it is high pressure, it is newly developed ultra high pressure piston pump of our company.
    Manual direction changing to control stroke of piston rod, hydraulic pressure can drive workbench to lift.
    It has elegant appearance, easy and safe operation, stable performance and reliableperformance.
    Fit for dismantling, installing, moulding, straightening, drawing and moulding for machinery industry,
    as well as once cold riveting and moulding of pot-angle tooth, thus it is necessary press for auto repair
    industry in modern society.

.
Detailed Images

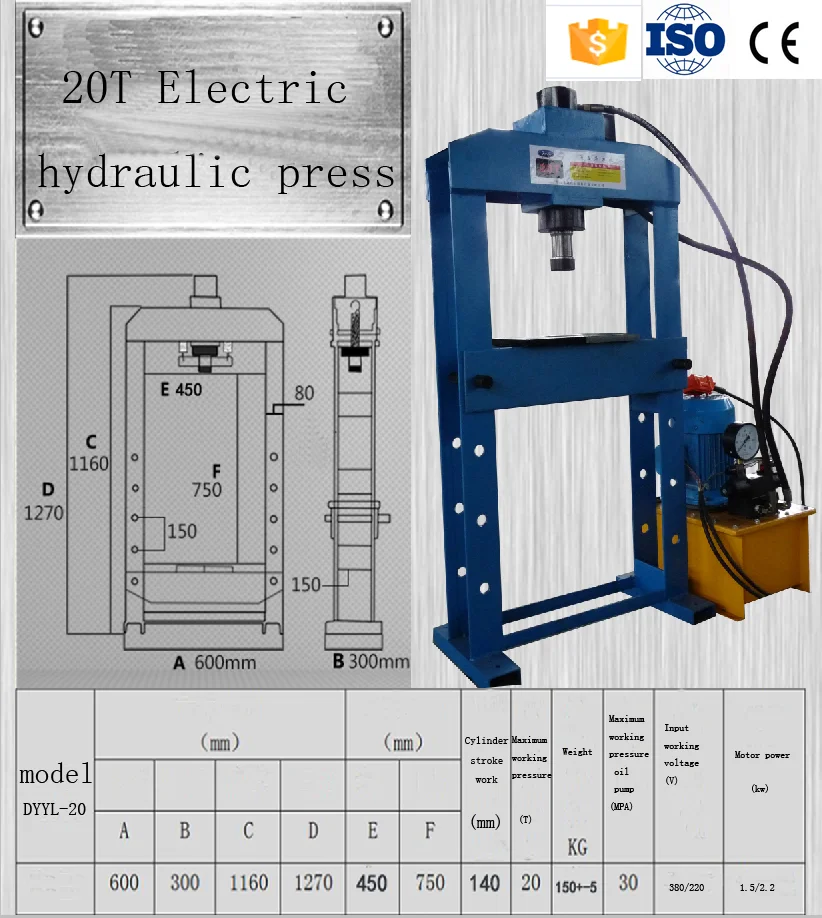

MODEL
WEIGHT
STROKE
MAX PRESSURE PUMP OIL
MOTER POWER
DYYL-20
150+5KG
140MM
30MPA
1.5/2.2 KW
