- Lighting solutions service:
Lighting and circuitry design, DIALux evo layout, Project Installation
- Luminous Efficacy(lm/w):
- Input Voltage(V):
- CRI (Ra>):
- Beam Angle(°):
- Working Lifetime(Hour):
- Lamp Body Material:
- IP Rating:
CCC, CE, C-tick, EMC, FCC, LVD, RoHS, SAA, SASO
- Place of Origin:
- Brand Name:
- Model Number:
- Light Source:
- Lamp Luminous Flux(lm):
- Working Temperature(℃):
-30 to +50
- Lamp Luminous Efficiency(lm/w):
160 outdoor Football court
5 Years reflector led industrial
3000K, 4000K, 5000K, 6000K 400w led proyector
Meanwell reflector led 600w with PC
Aluminum+Lens reflector led 400w flood light
- Body Size:
598*463*130mm 500w spotlight waterproof
- LED Quantity:
480pcs Football Stadium Lighting 400W
- Power Factor:
>0.99 stadium led light 400w
- Power Efficiency:
>92% soccer field lights led modular
- LED Light Source:
SMD 3030 led flood light 600w Dali
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 65X48X14 cm
- Single gross weight:
- 14.000 kg
- Package Type:
- Individual Foreign Trade Packaging, 63*53*17cm/pcs, 14.8kg/pcs
- Picture Example:
- Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 >500 Est. Time(days) 7 15 To be negotiated
200 Watt 300W 400 Watt 500 Watt 600 Watt 1000W LED Flood Light Dali Dimmable 0/1-10V160lm/w 600w flood light 1000w highmast Stadium Football Lighting 600w led projector Football Court
Specifications of 600W Flood Light LED :
|600W LED Industrial Light Main Technical Parameters|
|Input Voltage:||AC 100~277V|
|LED Chip||Lumileds 5050|
|Power Driver:||MeanWell ELG|
|LED QTY:||276pcs 5050|
|LED Working Voltage:||DC48-54V|
|LED Luminous Flux||Warm White||96500LM|
|Center Illuminance||Height 8M||3100LUX|
|Illuminance Area||Height 8M||Dia.614CM points visible|
|Height 9M||Dia.689CM points visible|
|Height 10M||Dia.766C M points visible|
|Color Temperature||Warm White||3000K~3500K|
|Color Rendering Index||Ra>80|
|Light Distribution:||LED points visible|
High Lumens Led Flood Light Advantage:
driver box(for optional)
Features of Outdoor Flood Light LED :
LED Chip: SMD5050 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: Rayborn LED flood lights are adopted Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥93.
Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Pure aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180°C.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.

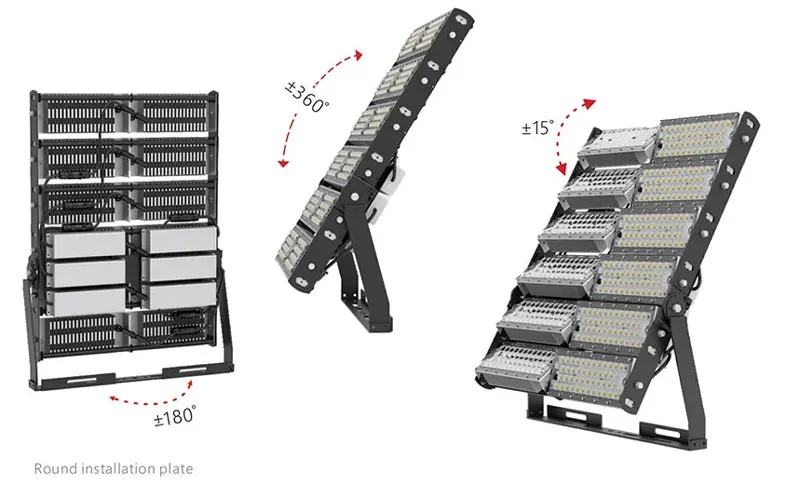

Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Installation information of Flood LED Light :
1. Check all the parts and accessories of LED flood light;
2. Must cut off the power supply before installation;
3. Make sure the flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of flood light with power supply, then switch on the power.
5. When the flood light is working, it must be kept vertical downward.
Applications of IP66 LED Flood Light :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
Strict Tests of LED Flood lighting :
Before shipping, all the LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.3
Company Information :
Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
Q1,Are your factory or trading company?
We are led light factory of led light with more than 10 years experience.
Q2,What about the lead time?
Sample needs 3-5 days, mass production time needs 7-10 working days.
Q3,Could you offer a solution for my workshop/warehouse?
Yes,that is our profession,we have engineer can give light plan to you.
Q4,Is it possible to print my logo on your products?
Yes, ,we can stick label or laser print as your requirement,just send us your logo before production.
Q5,Whats the warranty on your product?If failed,can you replace?
Our product offer 5 warranty time,if product failed during warranty time,we send new part at free.
Q6,How to place an order?
You can make payment throught alibaba or by T/T(bank wire transfer) or Paypal to us directly.
