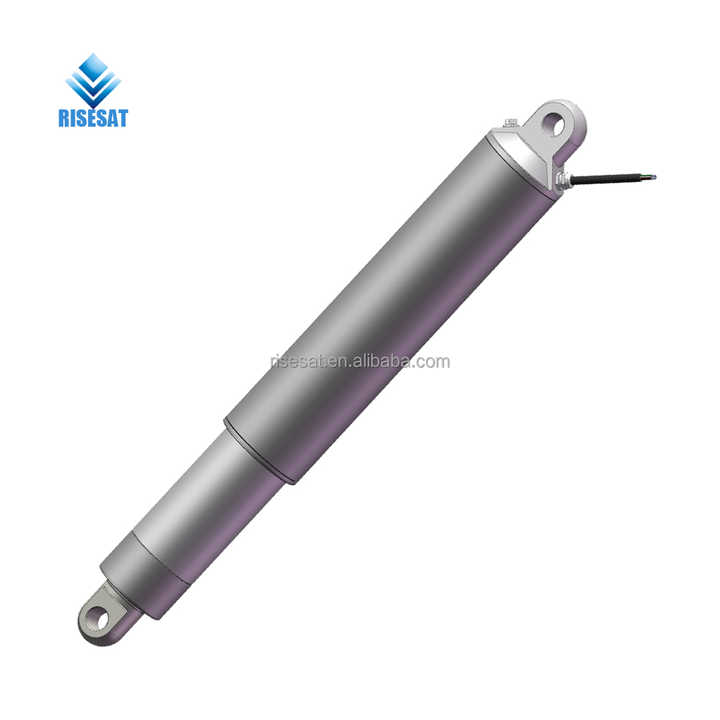

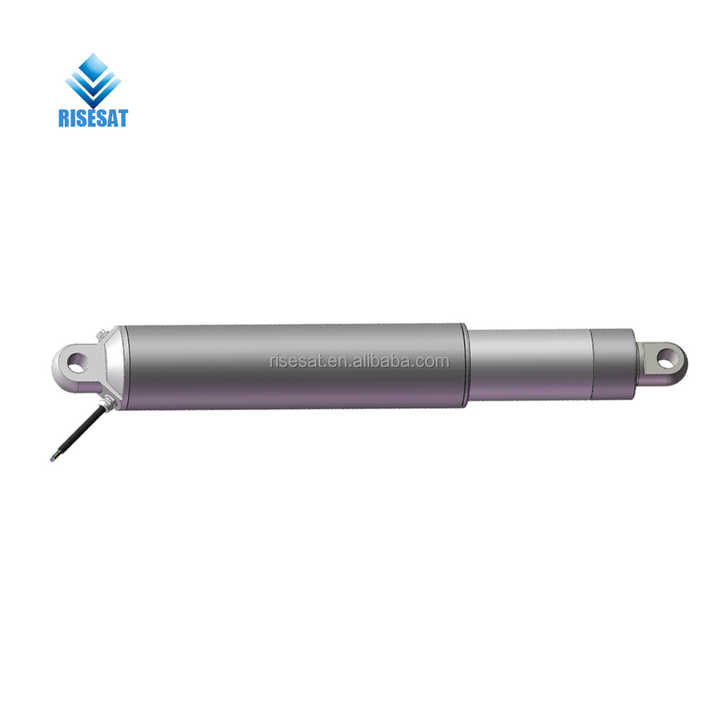

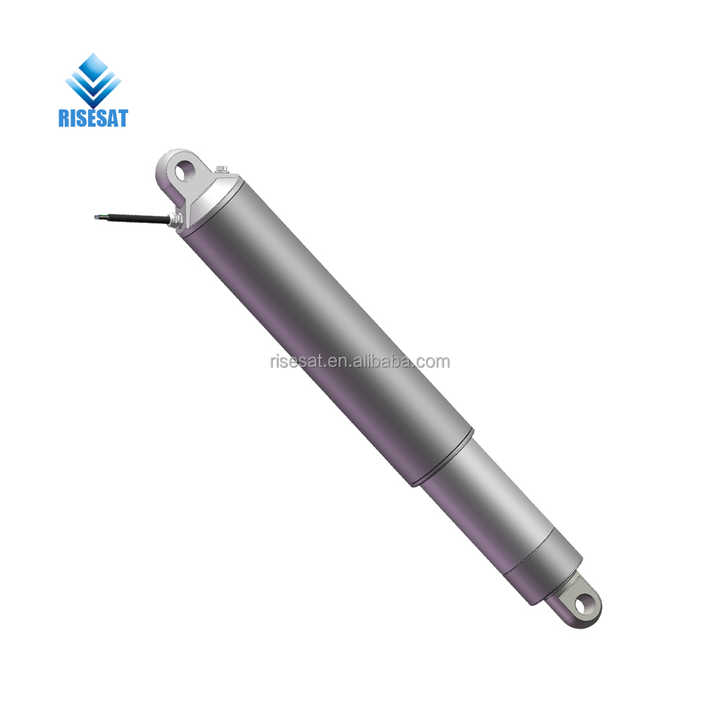

20000N High Load Lifting Column Linear Actuator for Solar PV Trackers 86mm Diameter Column

No reviews yet

Anhui Risesat Electronics Co., Ltd.12 yrs

CN

20000N High Load Lifting Column Linear Actuator for Solar PV Trackers 86mm Diameter Column

20000N High Load Lifting Column Linear Actuator for Solar PV Trackers 86mm Diameter Column

20000N High Load Lifting Column Linear Actuator for Solar PV Trackers 86mm Diameter Column

20000N High Load Lifting Column Linear Actuator for Solar PV Trackers 86mm Diameter Column

Key attributes

Industry-specific attributes

Speed(RPM)

20000N

Continuous Current(A)

13A

Efficiency

IE 1

Other attributes

Warranty

1 year

Place of Origin

Anhui, China

Brand Name

RISESAT

Model Number

RS-l8-86

Use

BOAT, solar PV trackers

Type

Brush Motor

Construction

Permanent Magnet

Commutation

Brush

Protect Feature

IP66

Voltage

24V 36V 48V

Power

480W

Static force pull

65KN

Max. stroke length

1000mm

Duty Cycle

10% 2 Mins Continuous Max

Noise

<80dB

Nut material

copper

color options

Black, Grey, Silver

Limit Switch

Built-in

Function Option

hall sensor, over current protection

Packaging and delivery

Selling units

Single item

Single package size

100X25X10 cm

Single gross weight

10.000 kg

Lead time

Customization options

Product descriptions from the supplier

FREE shipping capped at $20.00 on your first order

Customizable

2 - 99 pieces

$299.00

100 - 499 pieces

$259.00

>= 500 pieces

$199.00
