2000L Glycol Jacket Conical Beer Fermenter

FOB Reference Price:Get Latest Price
$500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ACE-FJG-2018052
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ACE
Processing Types:
Alcohol
Voltage:
Adjustable
Power(W):
0-30KW
Dimension(L*W*H):
User Requirements, According to requirement
Weight:
200KG-2000KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Material:
SUS304
Capacity:
50L-20000L
Processing::
Fermenting Equipment
Application:
Chemical,food,beverage and liquid
Surface finish:
Matt polish or Mirror polish
Standard Component:
Manhole, thermometer, cleaning ball, etc
Working temperature::
10-120°C
Insulation material:
Polyurethane
Experience:
Over 10 year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plwooden box or as customers' requirement for Fermentation Tank
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description


The Inner thickness is 3.0mm, the exteral jacket thickness is 2.0mm, So our tanks have a good warm-keeping effect. Cylinder (Oval, SUS304), thickness: 3.0mm, Insulation layer: Rock wall-thickness: 80mm. Equipped with: Blender; Power: 1.5KW; Speed ratio: 1:43, Wort pipe and the washing pipe is separated device. Top manhole door: Diameter: 400mm, atmospheric pressure manhole design. Liquid level display device: sight glass & liquid level gauge, Equipped Sparging device for cleaning. Outsourcing surface: Weld polishing processing. As the polishing precision, it can up to Ra0.4µm. The surface is polished for 3 times.Cylinder (Oval, SUS304),thickness is 3.0mm. Insulation layer, Rock wall-thickness is 80mm.

Main Features

Effective volume:200L-10000L

Inner container: SUS304,Thickness 3mm, 2B finished.

Outer container: SUS304, thickness 2mm, Grind arenaceous.

Shell jacket: SUS304, thickness 1.5mm.

Insulation Material: polyurethane, thickness: 80mm.

Ribbon polished for the welded place.

Conical top/ Cylinder/ conical bottom/ shell jacket(one or two sections) / bottom jacket / insulation both on shell and bottom / with adjustable legs.

Connections:level interface/ steam Import and Export/ Pt100 interface/ top manhole / respirator/ Inlet/ Outlet.

Processing
Data Sheet
Capacity
Cylinder(ODxH)
OAH
Inner Thickness
7BBL
1000 x 1250mm
2530mm
3mm
10BBL
1150 x 1250mm
2670mm
3mm
15BBL
1250 x 1680mm
3250mm
3mm
20BBL
1400 x 1700mm
3400mm
3mm
30BBL
1650 x 1850mm
3740mm
3mm
40BBL
1750 x 2050mm
4040mm
3mm
Detailed Images

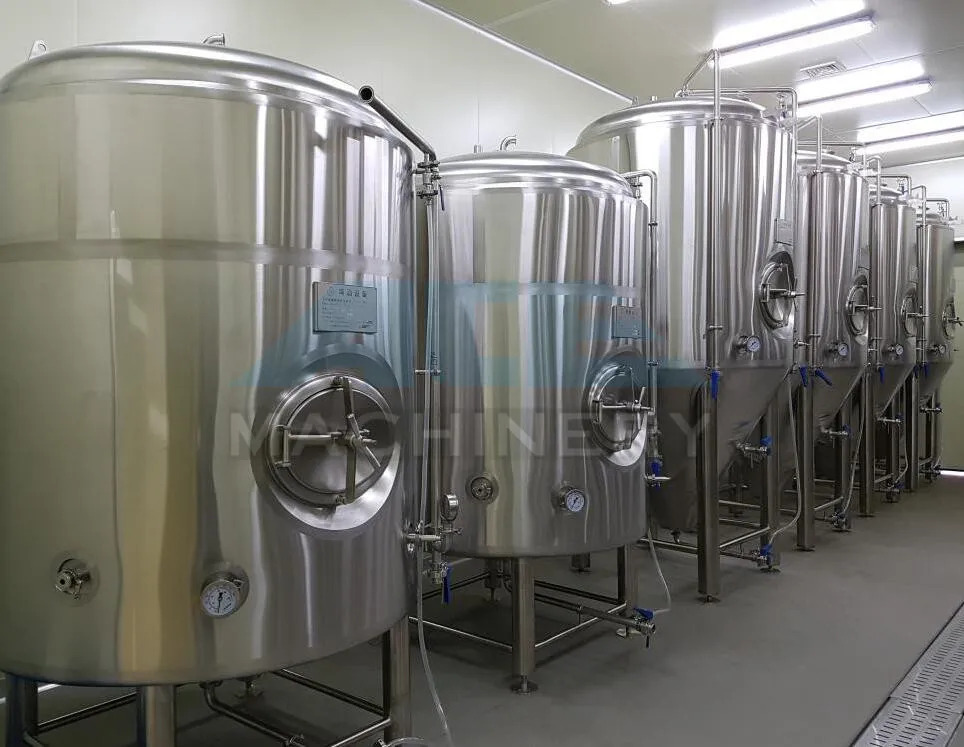

Fermenter system

Cooling way: Dimple, Cooling media: glycol water, The Inner thickness is 3.0mm, the exteral jacket thickness is 2.0mm, Oval head cone bottom, thickness: 1.5mm, Polyurethane-thickness: 80mm, Equipped with: Cone 60° resist compression design, dripping temperature drop, Sampling method: 1 piece of aseptic sampling valve, Design pressure 0.3MPa; Working pressure 0.15Mpa. Cleaning System: CIP. washing unit: Comprehensive cleaning.


Refrigerating System


Based on the absorption of the foreign technology and innovate, there are more than 20 invention patents. All the parts are made of stainless steel 304(pipeline and inside and outside of tanks are polished very well). In the production process, we will make a very strict inspection on welding. The quality of our products reaches the first class in China.

Inner (SUS304) thickness: 3.0mm,

External-jacket (SUS304) thickness: 2.0mm, Insulation: Polyurethane-thickness 80 mm,

Internal and external panel protection, weld slinging band; Valves, accessories supporting. Temperature mode: PT100 temperature probe, temperature transmitting, temperature control panel display.




Feeding method:

 Ethylene glycol or alcohol water from the tank top manhole door an injection, refrigeration water since the ice water tank top into. Discharging method: Ethylene glycol water from ice water tank bottom ethylene glycol out pipe discharge, cooling water from ice water tank bottom cooling water return pipe out.

The refrigerating unit for water tank water cooling, through the cycle to fermentation tank cooling, through the plate heat exchanger to heat wort cooling.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
According to requirement
Weight
100KGS---5000KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Loading
Size
Customized the diameter to fit.
Weight
100KGS---5000KGS



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
