2000W inverter with internal limiter dc 45-90v to ac 220V 230V 240V inverters on grid mppt solar inverter 2kw

  • 1 Pieces
    $405.00
  • >=2 Pieces
    $395.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
TEPOWER
Model Number:
TEG-2000G2-LCD
Output Power:
0-2000W
Output Type:
Single
Size:
425*275*125mm
Weight:
7.0kg
Input Voltage:
45-90V DC
Output Voltage:
190-260V AC
Type:
DC/AC Inverters
Output Frequency:
46HZ-65HZ
Output Current:
5A/2.5A
Application:
Solar Powers system
Color:
Silver
Certificate:
CE Approved
Output waveform:
Pure Sine Wave Output
Protection:
Short Circuit
Rated power:
2000w
Efficiency:
92%
Display:
LCD Display
Feature:
Energy Saving
Warranty:
2 Year

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X28X13 cm
Single gross weight:
7.0 kg
Package Type:
Standard Export Carton Packing
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Related products







   ac 45-90v 2000w wind turbine inverter                     2000w off grid tie  inverter                      45-96v 2000w grid tie inverter




Product Description



                                                                                                        2000W inverter with internal limiter dc 45-90v to ac 220V 230V 240V inverters on grid mppt solar inverter 2kw











2000w Solar Power Grid Tie Inverter

  --with Limiter / Sensor   Battery Discharge Power Mode

  --DC 45V-90V

  --AC 220V 230V 240V  ( auto work )



Aliexpress.com : Buy 2000W MPPT Solar Power on Grid Tie Inverter with Limiter 45 90VDC AC 220V 230V 240V from Reliable on grid tie suppliers on Shanghai Tingen Electric Co., Ltd.

Why we produced the GRID TIE INVERTER WITH LIMITER ?

It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are  reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if  power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

This is the 2nd generation grid tie inverter with limiter.

With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customer’s cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.

New upgraded firmware enable battery or solar limiter current and power model.

User can set the maximum output power of inverter , this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

Technical Data

Continuous Power Output1900W
Peak Power Output2000W
Input DC Voltage Range45V ~ 90V
Peak power tracking voltage50V-90V
AC Output Voltage Range
190VAC ~ 260VAC
Output Frequency46Hz~65Hz
Standby Power Consumption<0.5W
Total Harmonic Distortion<5%
Peak Inverter Efficiency92%
MPPT Efficiency99%
Power Factor0.99
Output Wave FormPure Sine Wave
MPPT FunctionYes
Over Current ProtectionYes
Over Temperature Protection                                         Yes
Reverse Polarity ProtectionYes
Anti-Island ProtectionYes
StackableYes
Weight ( Kg)6kg
Dimensions (W x H x D)434x196x88 mm









Description:

a: DC input , for solar panels connection

b:  Connector for external limiter

c: Connector for internal limiter

d: AC output , use AC cable to connect to home grid

Sensor Clamp :



Aliexpress.com : Buy 2000W MPPT Solar Power on Grid Tie Inverter with Limiter 45 90VDC AC 220V 230V 240V from Reliable on grid tie suppliers on Shanghai Tingen Electric Co., Ltd.

Inverter Using:

1.  Standard Grid Tie Inverter Model

Single 1pcs inverter using:





more than 1 unit inverters stackable using:





2. Using Grid Tie Inverter With Limiter Model









2.1 The Grid Tie Inverter with Limiter delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

2.2 The heart of the Grid Tie Inverter with Limiter is the Limiter Module (LM). The LM continuously sampled the power needed by the load through the current sensor connected after the Main Circuit Breaker. The LM then will process the signal. It then sends signal to Grid Tie Inverter how much power to deliver to the load in real time.

2.3 The user, after installing and connecting the GTIL correctly, need not do anything and the unit will do its work automatically.



3. Installation of GTIL With Internal Limiter





3.1 This installation is not require an additional limiter module,Installation is much easier.Clamp the current sensor cable to the hot wire to measure the current,the internal limiter will auto detect the load power and control the inverter output power,excess power will be well controlled.

3.2 External protective device including dc and ac SPD(Surge protection device),dc and ac breaker,etc is recommended to installed in the system.

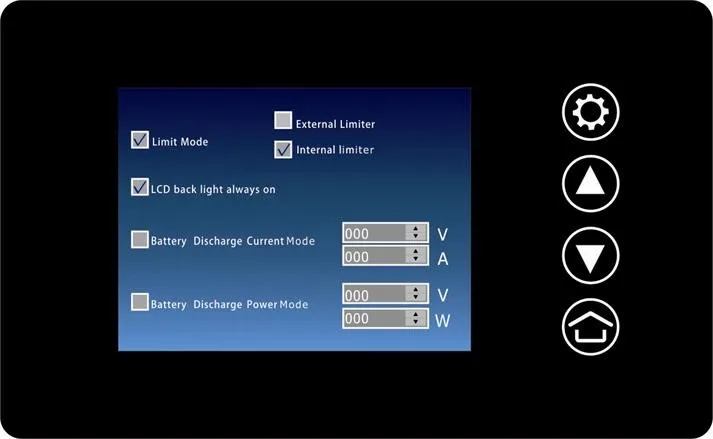

4.Limiter Setting on the LCD of the inverter:

The GTIL include three working mode:

Work as normal GTI without power limitation.

Work under Internal limiter mode

Work under External limiter mode,

Pls make your setting on the LCD and save it,details setting operation,pls read the GTI manual.





5 Battery Discharge Power Mode

New upgraded firmware enable battery or solar limiter current and power model.

User can set the maximum output power of inverter , this can make the inverter work at cooler contition as user want and extend the lifespan of the inverter .
User can set kick in/off voltage of the inverter which can flexible using with battery bank depend on users mind and can prevent battery bank from over discharged .

6 Limiter Module Specification

1. Clamp sensor- Max 100A

2. Wattmeter- Max 9999w

3. Terminal Block-Max 20A

4. Receptacle- max 2000w

5. Clamp sensor signal- 5v AC max mA

6. DC signal Cable- 5v DC, max mA
