200L Jacketed Small Beer Brewing Equipment For Brewery

Feedback Ratings
$30,000.00 / Set | 1 Set (Min. Order)
Model Number:
HG-PJSB200L
$30,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
50 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Special technology and needs (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Applicable Industries:
Hotels, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HG
Processing Types:
Beer
Voltage:
Custom-made
Power(W):
Custom-made
Dimension(L*W*H):
Custom-made
Weight:
It depends
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Raw material:
Food-grade stainless steel SUS304
Heating way of mash system:
Steam-heating, gas-fire heating, electric-heating, etc. available
Vessels of mash system:
3 vessels, 4 vessels available
Touch screen:
Weld polishing processing

Packaging & Delivery

Selling Units:
Single item
Single package size:
23X22X22 cm
Single gross weight:
22.0 kg
Package Type:
Iron frame
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Product Description

Specifications

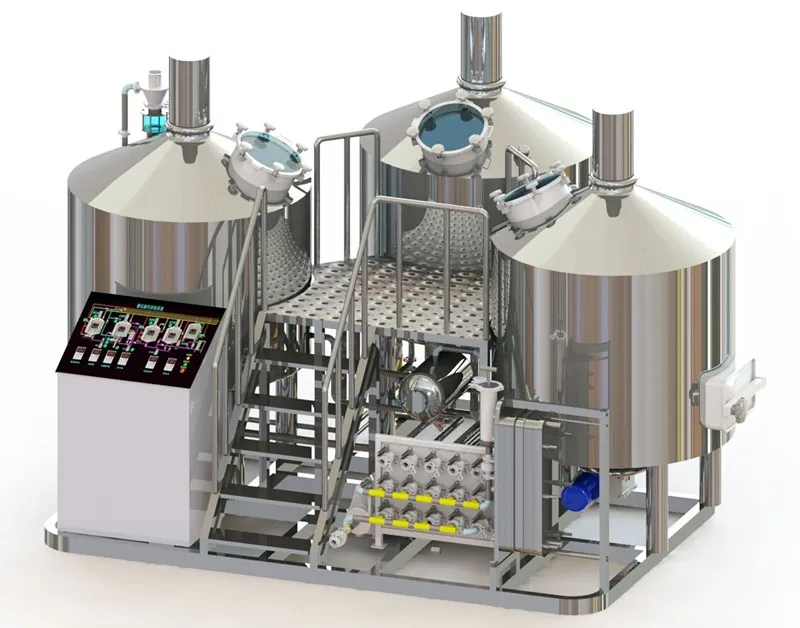

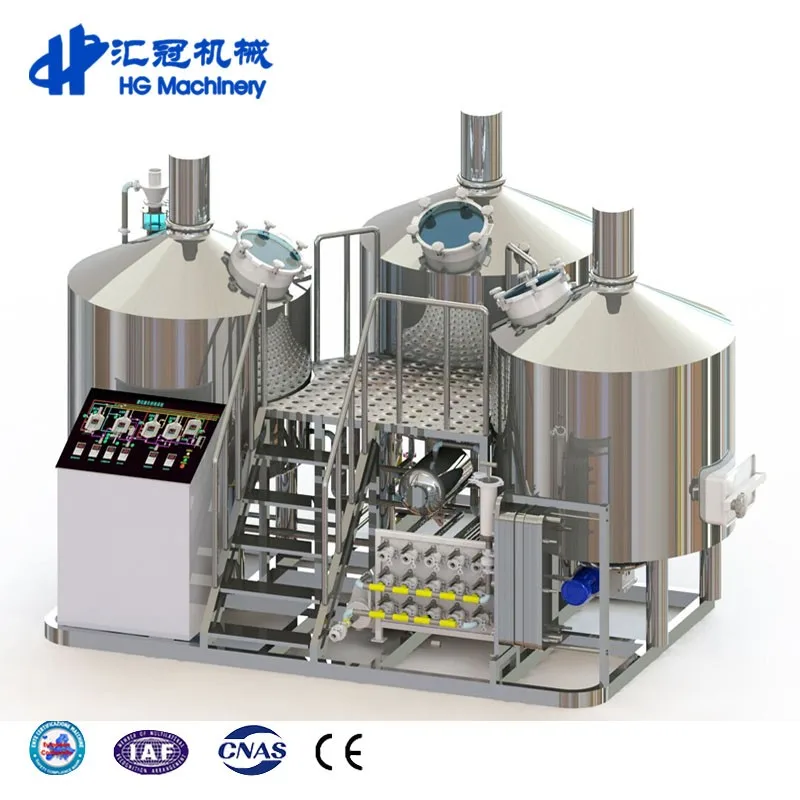

200L Brewhouse/Brewery equipments/Beer brewing System
Heating way: Electric-heating, gas-fire heating, steam-heating, oil-heating, etc. for choice
Mash tank, Lauter tun, Boiling Kettle, Whirlpool tun in various combination.

Components
Useful capacity
Quantity and capacity of components
Mash system
200L
1*200L mash tank with blender controlled by lower ABB motor;
1*200L lauter tank using automatic raker, milled sieve plate and lower ABB motor;
1*200L boiling tank/whirlpool tank;
1*mixer;
1*40L hop filter;
1*40L wort grant;
1*BR0.23/20 20m2 plate heat exchanger;
3*5000L/h wort/hot water pumps using ABB motors
1*50kg/h gas-fired steam boiler;
1*operation platform;
1* pipeline for mash system
Fermentation system
200L
6*200L fermentation tanks;
1*40L yeast tank;
1*pipeline for fermentation system and cooling system
Refrigerating system
400L
1*400L Ethylene glycol tank
1*400L cold water tank
1*2HP chillers;
1*5000L/h ethylene glycol/cold water pump using ABB motor;
CIP system
50L
1*50L movable CIP station
Controlling system
Assort

stainless steel cabinet shell with Siemens touch screen and PLC(semi-automatic mash system and automatic fermentation& cooling system)
Detailed Images

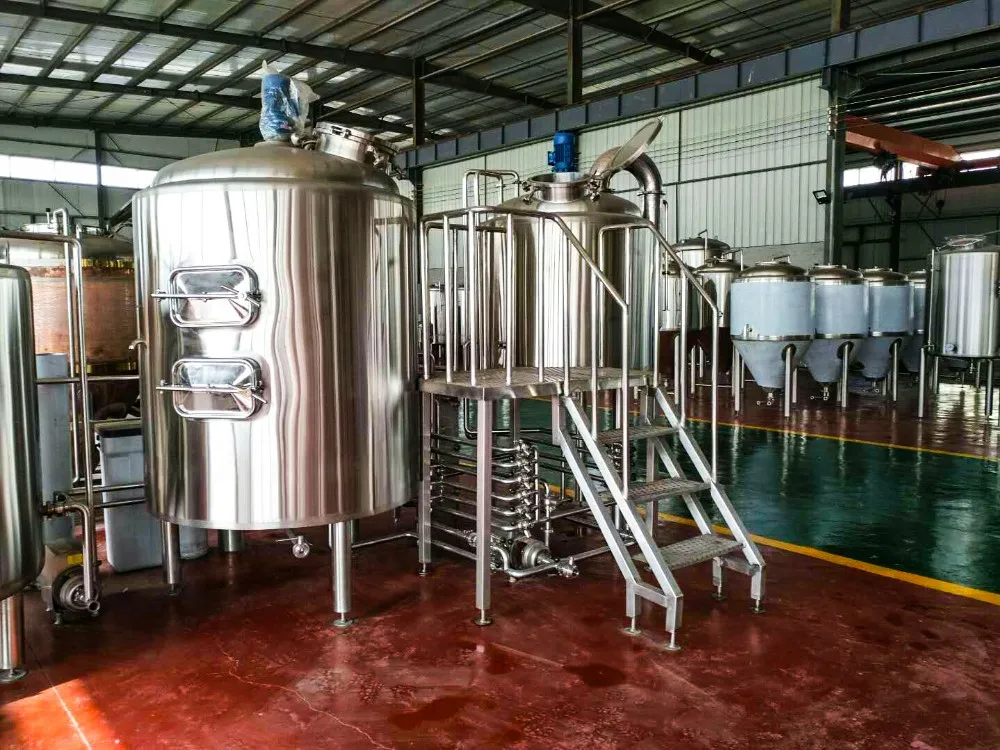

Mash Tank

LED lamp: save more energy and good lighting.
ABB motor power 1.5kw
Glass manhole: easy to observe

Material:Stainless steel 304





 Lauter Tank

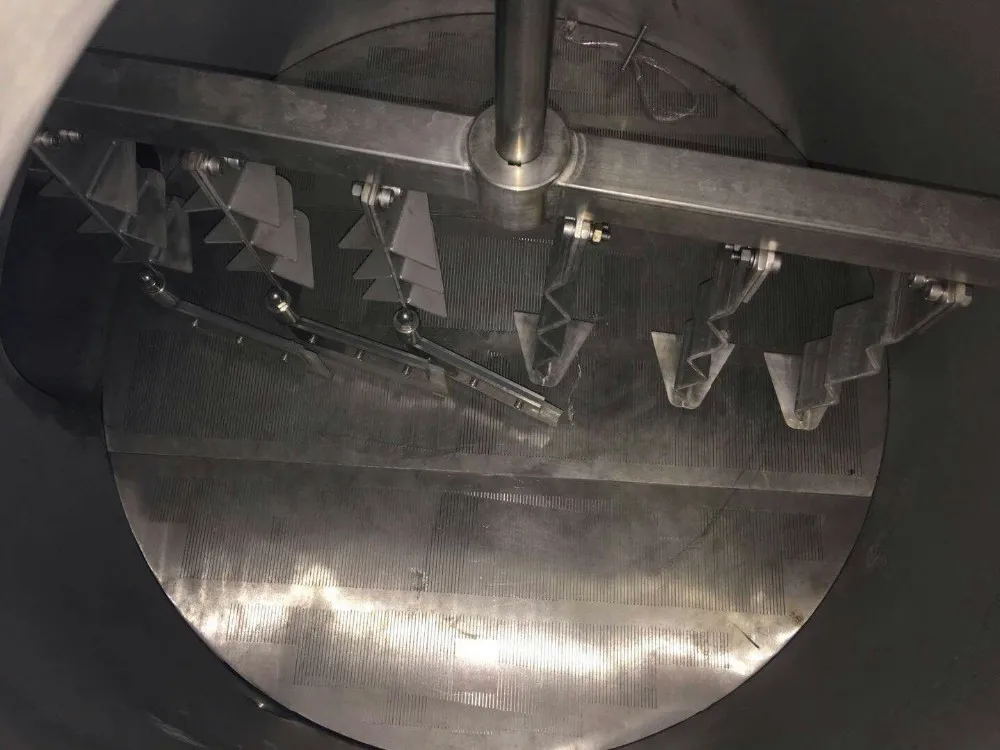

Milled sieve: filter plate gap≤0.7mm

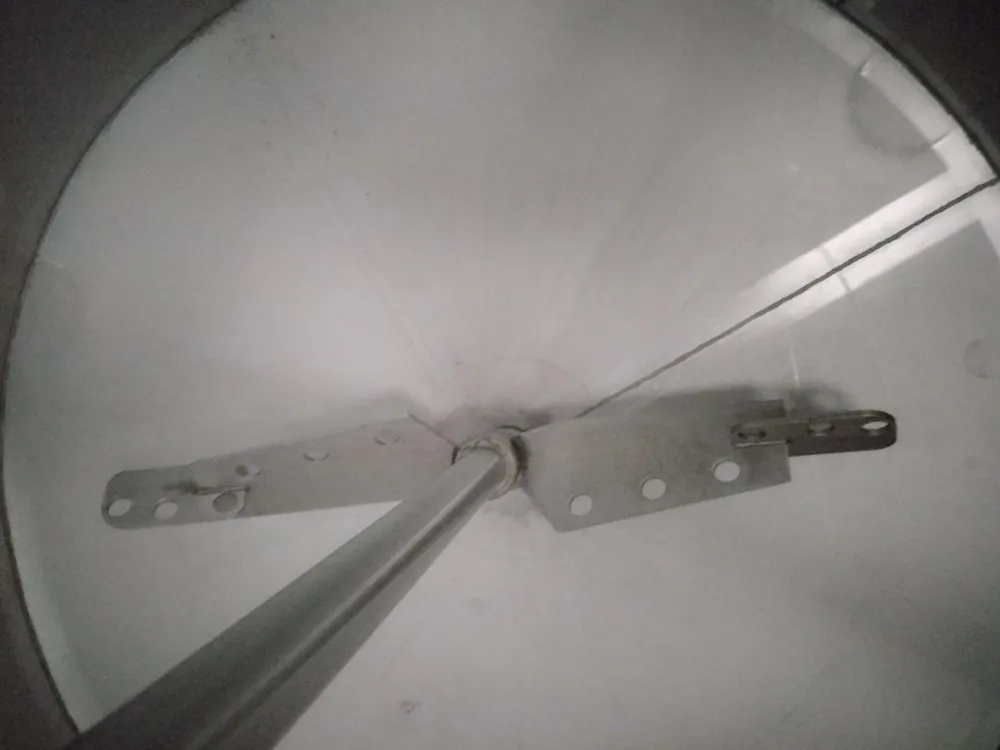

Customized raker in mash tank
Moto power is 1.5 kw; ratio 1:29





Boiling Tank

Spring washing ball
Good efficiency heating element
LED sight light:save more energy and good lighting
Indoor exhaust




Whirlpool tank

Glass manhole: easy to observe

Grain outlet: good tightness

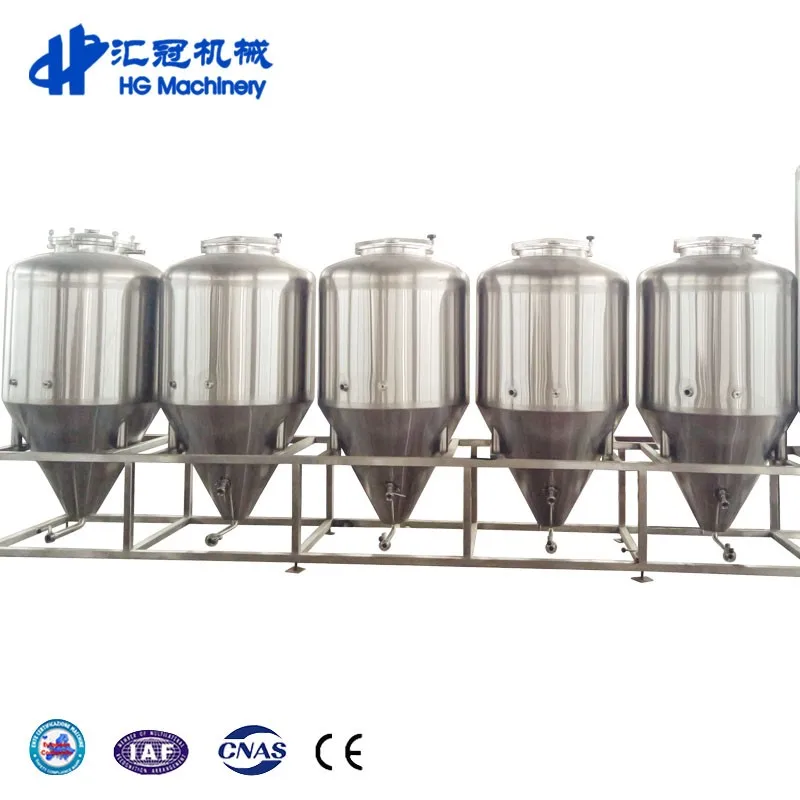

Fermentation Tank

Hop adding port: use to add the hops
Dimple plate: it has more refrigerated area
Stainless steel spray washing ball
Beer outlet valve, the size is customized

Packing & Delivery

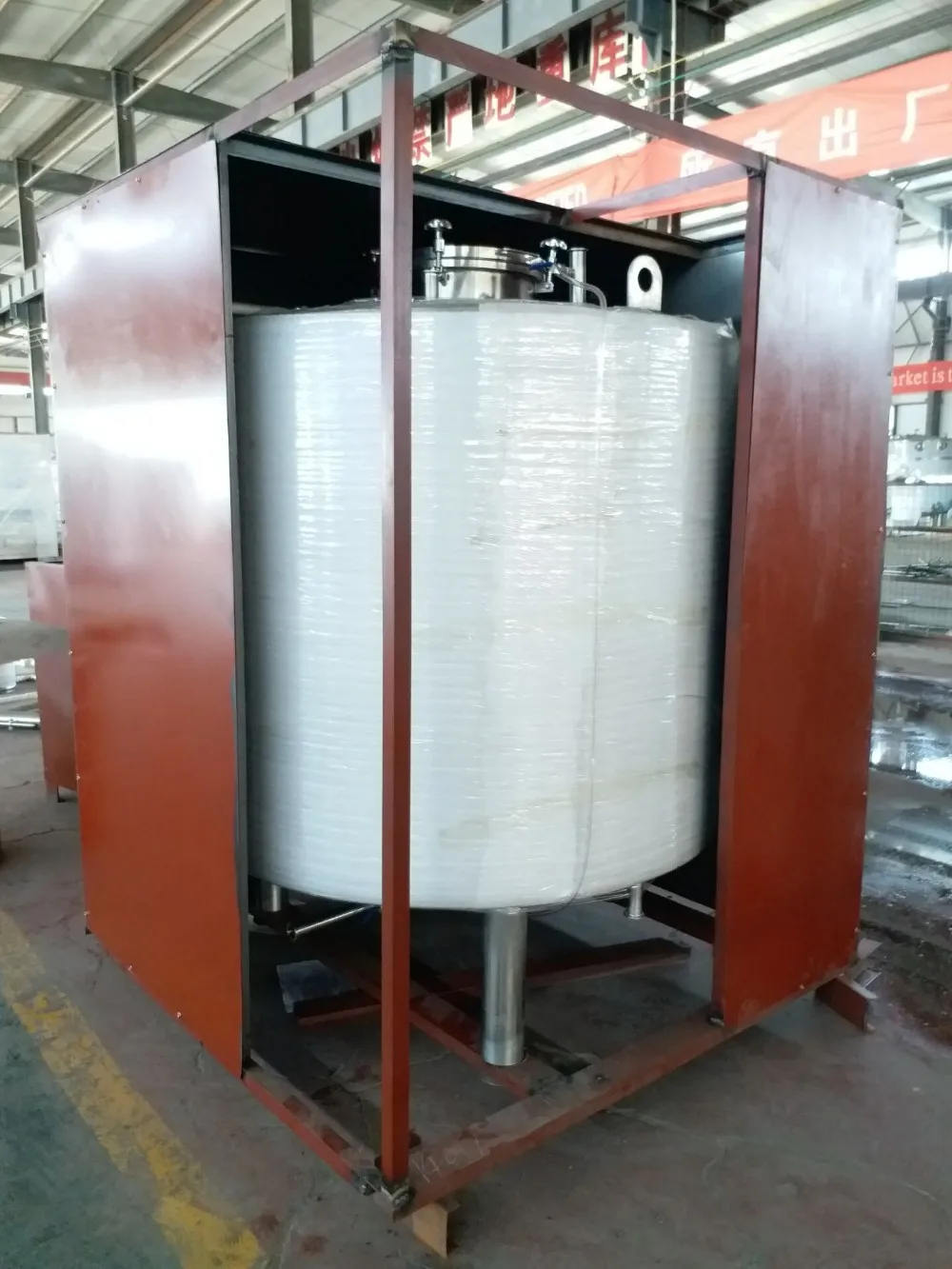

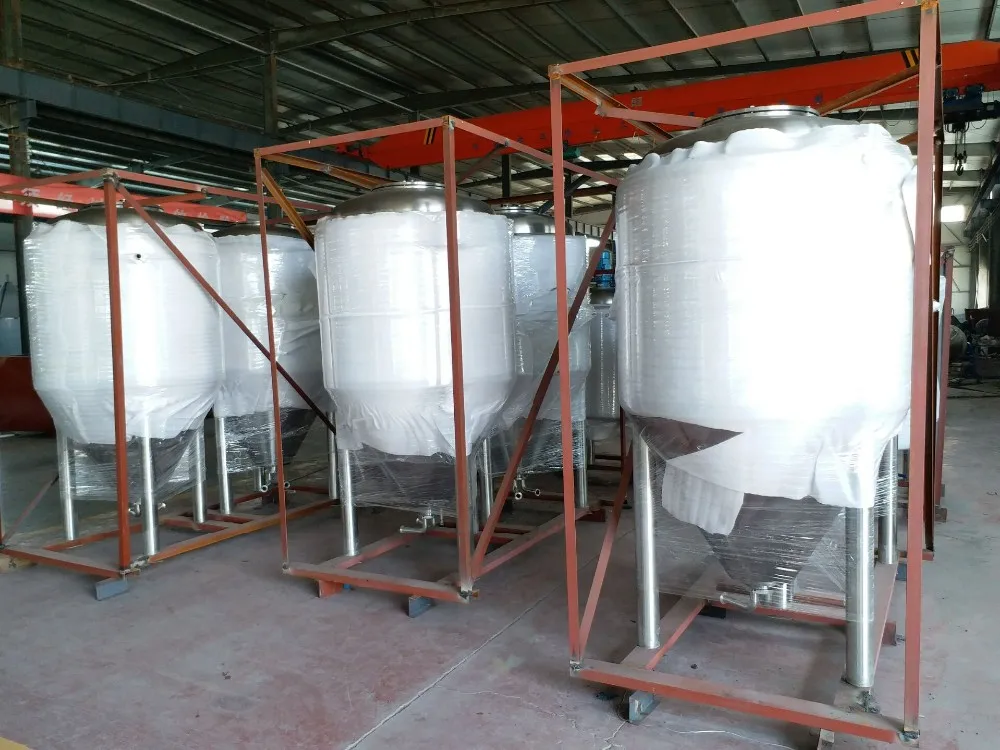

The iron frame packing makes the equipment safer in transportation.


The iron frame packing makes the equipment safer in transportation.


Certificates

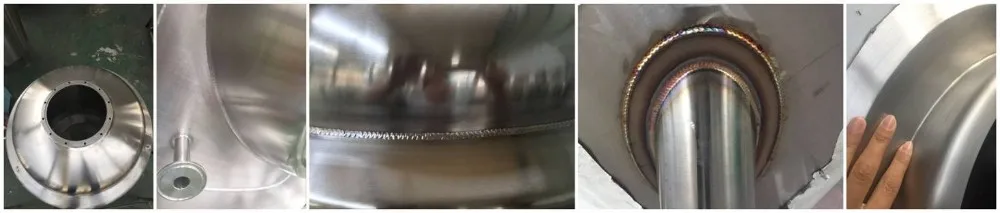

Weld and Polishing

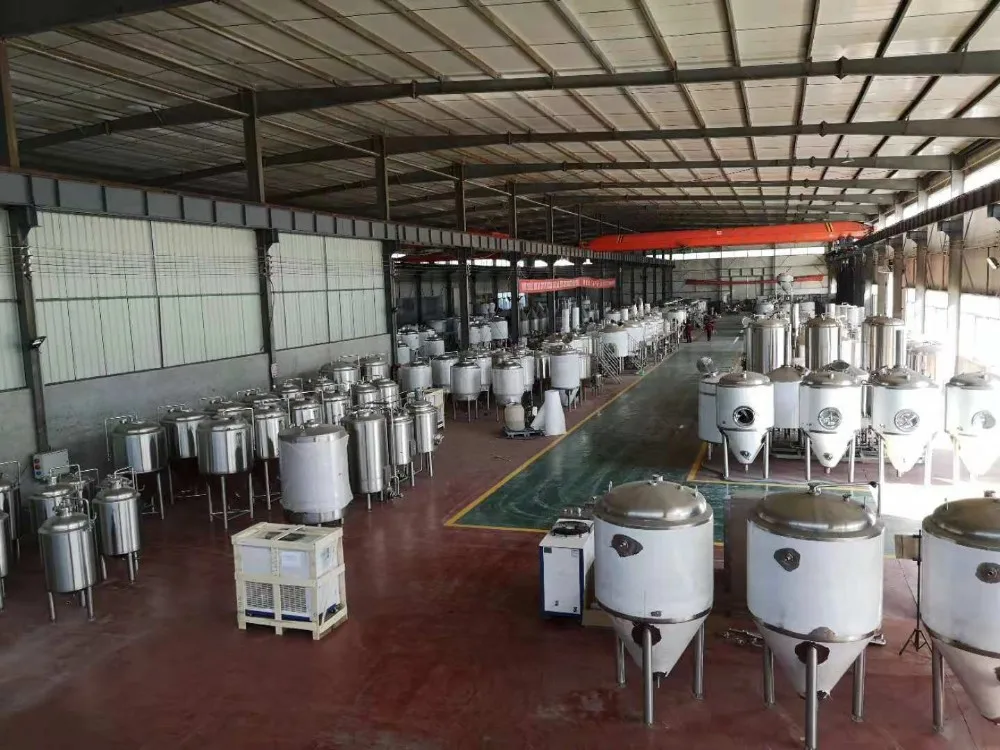

Our company

Shandong HG Machinery Co.,Ltd

We have specialized in designing and manufacturing brewery equipments for over 10 years, whose cost is more competitive than your local suppliers. We are able to install and maintain equipments in your brewery. Our great technical supporting and accessory supply is also permanent available.
