200TON 300TON Computerized Concrete Strength Tester Supplier Hydraulic Compression Strength Testing Equipment

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Usage:
Compression Testing Machine
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Marxtest
Model Number:
YAW-D
Power:
Hydraulic
Load force:
2000kN/3000kN
Load Accuracy:
≤±1% Class 1
Load Range:
10%~100% FS(200-2000kN)
Test Specimen:
Concrete, Cement, Brick and Mould
Piston Stroke:
50mm/80mm
Distance between upper and lower platen:
320mm/340mm
Max space between two columns:
260mm/280mm
Power supply:
AC380V
Warranty:
12 Months
Certificate:
CE ISO SGS
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood packing for overseas transportation(for concrete strength tester)
Port
Qingdao or Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 5 To be negotiated
Video Description
Product Description

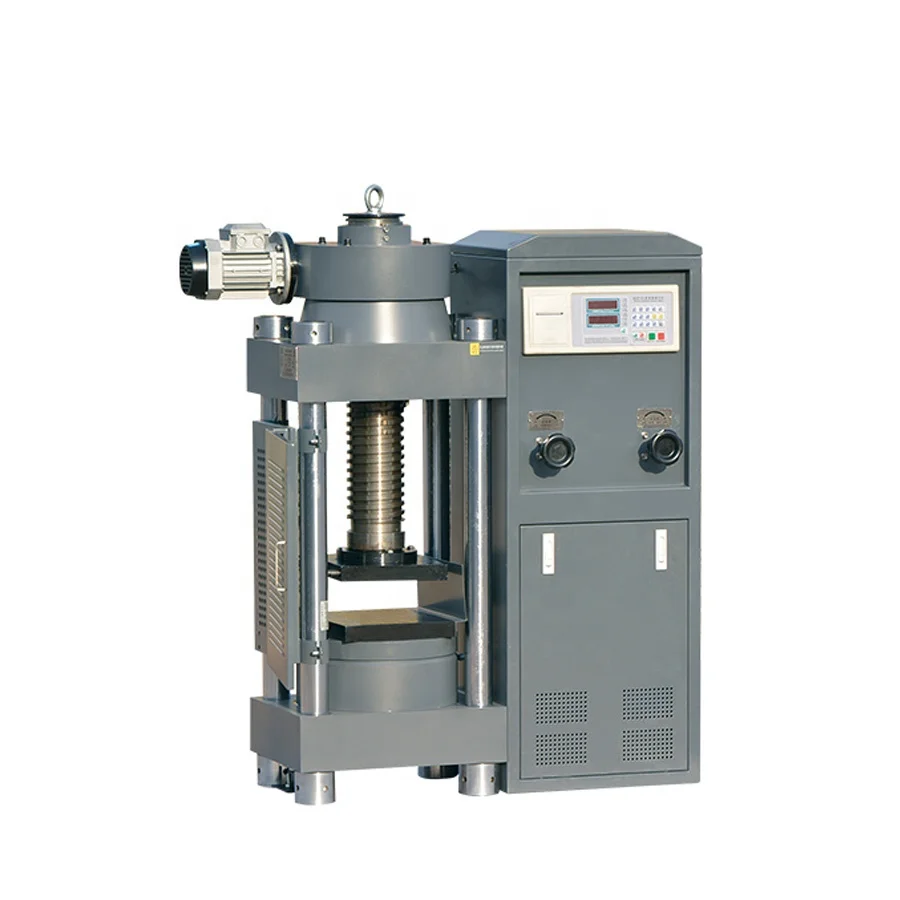

200TON 300TON Computerized Concrete Strength Tester Supplier

Hydraulic  Compression Strength Testing Equipment



1.Application

YAW-D mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

2. Features
2.1 Computer control up, down, test, stop and loading progress.
2.2 Electric screw ball adjust test space.
2.3 Unibody desktop oil source control cabinet.
2.4 This machine consist of the host machine, oil source and control system.
2.5 Can realize the load rate, such as load or stress rate loading.
2.6 Can auto printing.


3.Technical Parameters

Control method
YAW-2000D
YAW-3000D
Max. Load
2000kN
3000kN
Control method
Computer auto control loading process
Test space adjustment mode
Electric ball screw adjust
Oil source control cabinet structure
One-piece oil source control cabinet
Test class
1 class
Testing range
10%-100%FS
Load display accuracy
Better than ±1%
Piston stroke
50mm
80mm
Distance between upper and lower platen
320mm
340mm
Max space between two columns
260mm
280mm
Size of upper and lower platen
250×250mm
260×260mm
Power supply
2.1Kw/AC380V
2.3Kw/AC380V
