200gallon copper distillation equipment rum brandy vodka whisky distillery alcohol still

FOB Reference Price:Get Latest Price
  • >=1 Units
    $48,000.00
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Units)
Customized packaging (Min. Order: 1 Units)

More

customerized design (Min. Order: 1 Units) Less
Samples:
$10,000.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Applicable Industries:
Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, distillery
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, United Kingdom, United States, Australia
Showroom Location:
Canada, United Kingdom, United States, Australia
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
DYE
Model Number:
ZLSB-200gallon
Voltage:
220V/380V
Power:
1.1KW
Weight:
200KG-2000KG
Dimension(L*W*H):
6.2*1.3*4.2m
Processing Types:
alcohol
Certification:
CE,PED,ISO9001,SGS,TUV
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
200gallon steam heat still pot:
ss made with copper head
whisky helmet:
copper whisky helmet
distillatin column 1:
12" dia,copper made with 8 bubble plates
dsitillation column 2:
12" dia,copper made with 12 bubble plates
Condenser:
12" dia,ss made, pipe and shell
CIP plumbing:
CIP pump and fittings included
Product tank:
2 product tanks included
Alcohol percentage:
Max 96%
spirits to make:
Brandy, Gin, Vodka, Whiskey, Rum
Usage:
Wine Making
Product Certification certification
CE Certified.
Valid from 2017-02-24 until 2022-02-23
Packaging & Delivery
Packaging Details
Wooden case or by your needs
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

           200gallon copper distillation equipment rum brandy vodka whisky distillery alcohol still

We can give you a whole solution of a distillery(Mash tun,fermenter,distiller,product tank etc.).

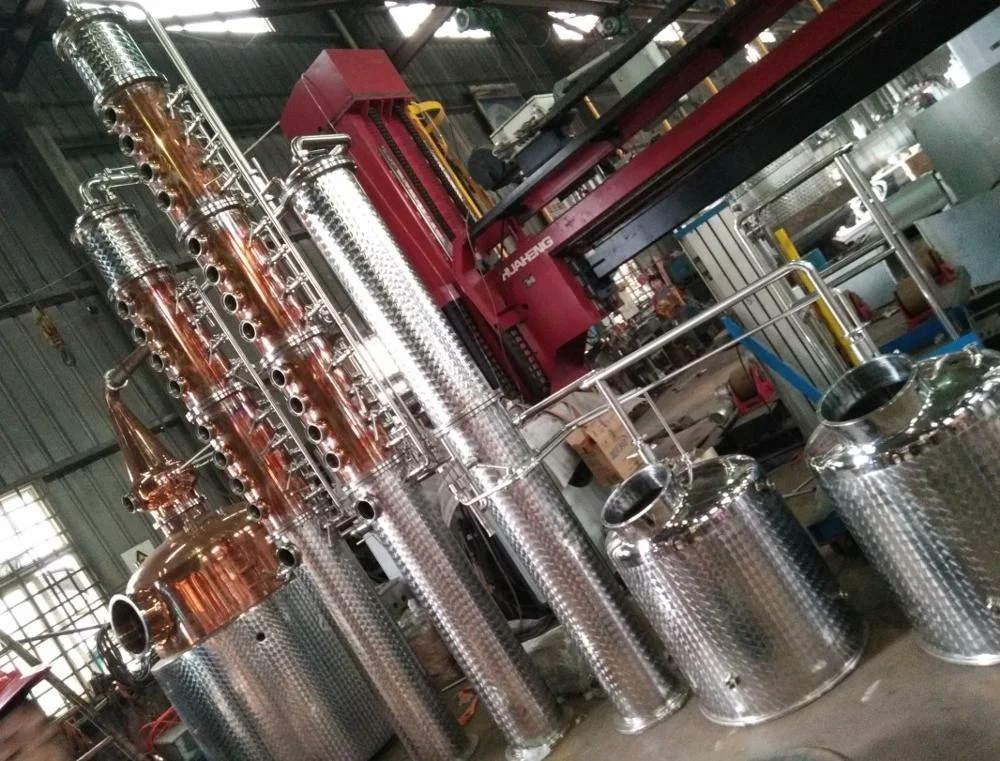

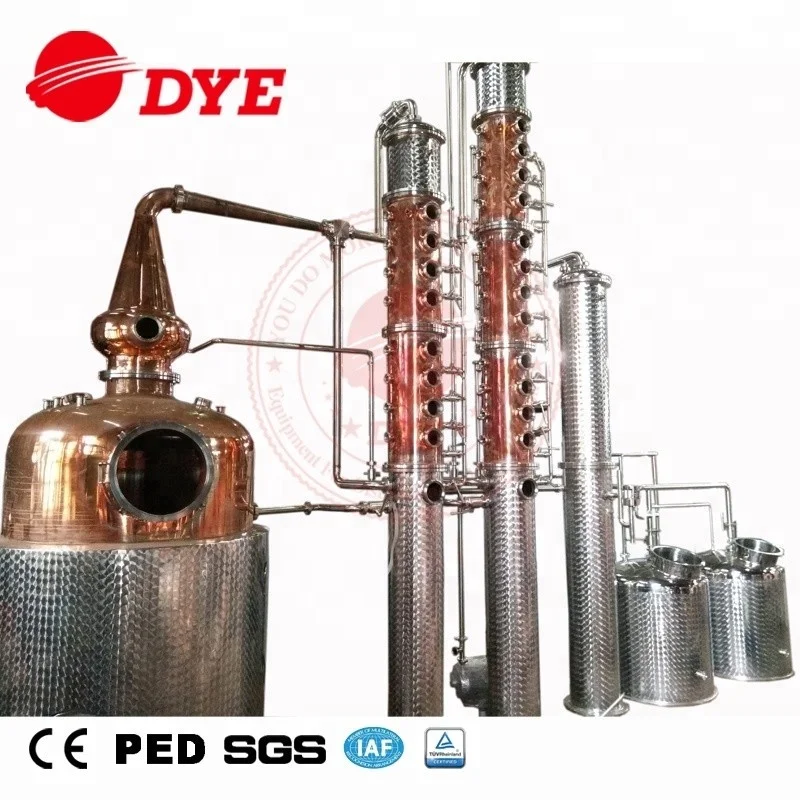

What's the pictured still consist of?

Still pot
200gallon ss pot with copper head,steam heat and explosion proof agitator motor
Helmet
Copper Whisky helmet
Double Copper distilling columns with totally 20 bubble plates
Copper distillation column one,12" dia,8 bubble plates
copper distillation column two, 12" dia,12 bubble plates
condenser column
ss made,12" dia,pipe and shell type
Product tank
2 of storage tanks included as product tanks
Application
It can make sure you get function of distilling whisky,brandy,vodka,gin etc..It's quite popular to be located in a pub or a distillery as centerpieces.

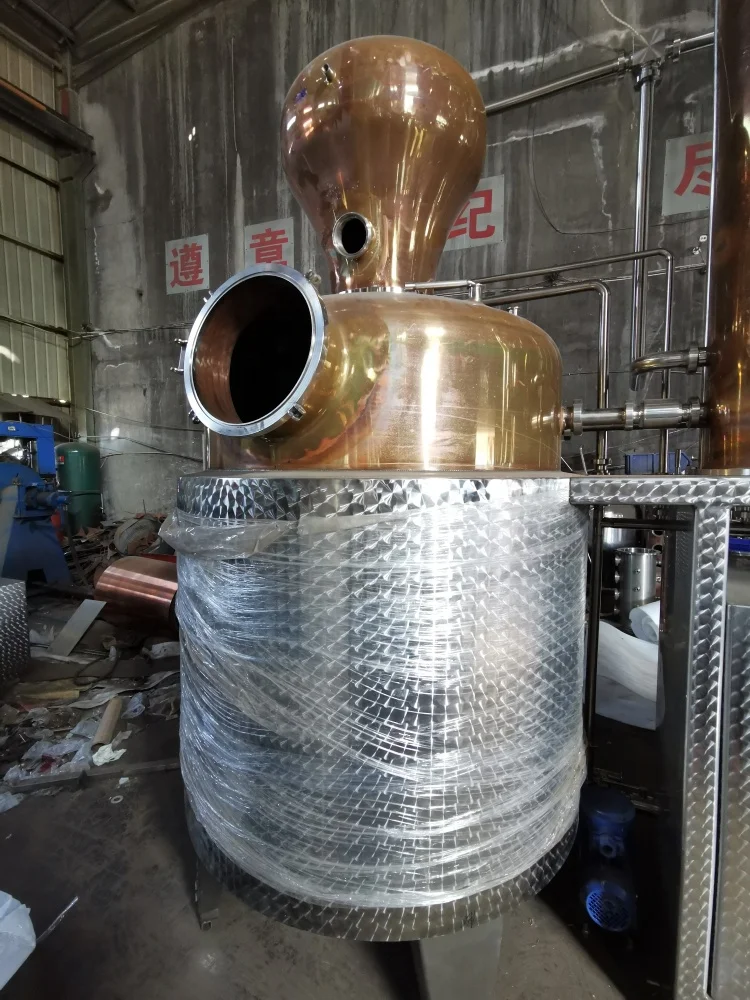

Still pot

Copper made

steam jacketed and insulated

full glass manway

ex-proof agitator

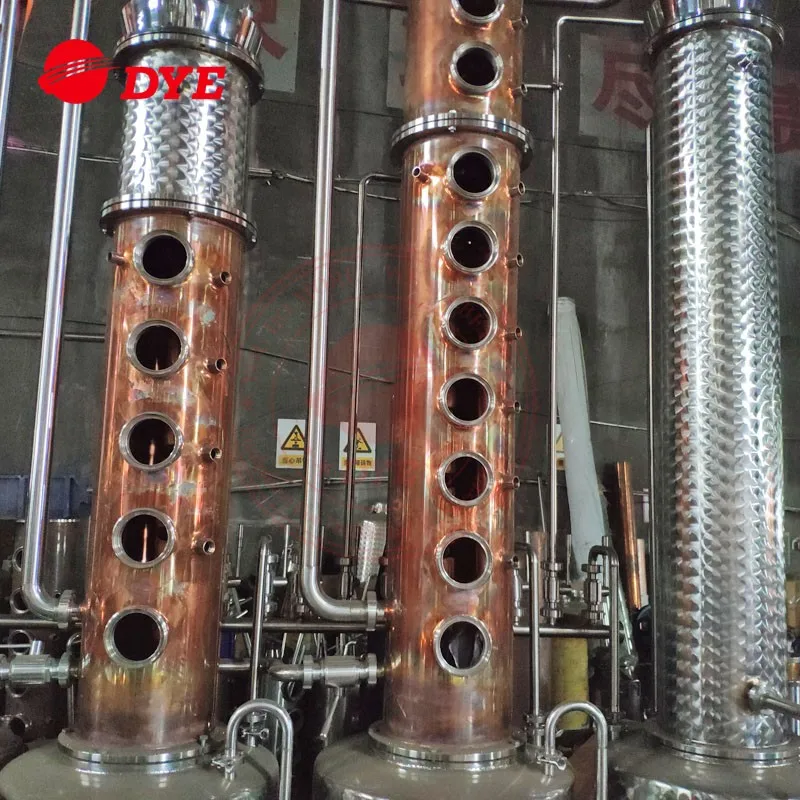

Distillation column

2 of distillation column with totally 20 copper bubble plates

by-pass/CIP cleaning for each plate

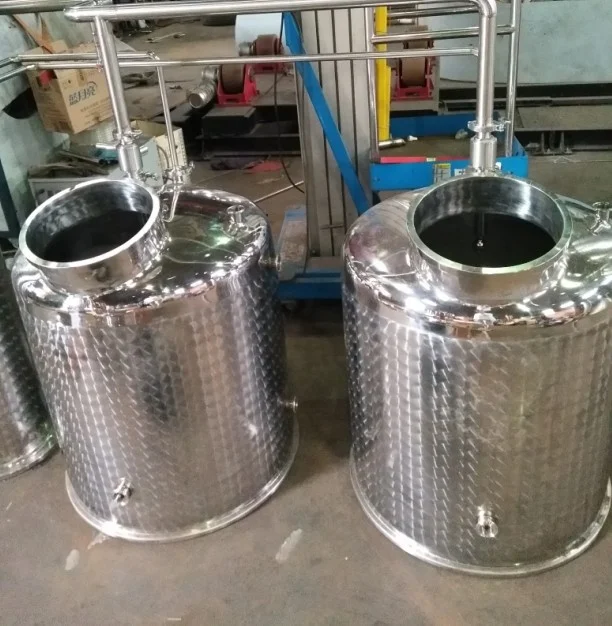

Product receiving tank

SS 304 made

top manway

What we make


Our Advantage


DYE company,one of white hair for Brewing and distilling equipment business in China since 1986,wish you good luck and hope you can find suitable product here.

Quality

Quality is the soil of an enterprise. We can offer you competitive advantage products.With us,your money in safe and your business in safe.

Delivery

Time is gold for you and for us,so we have professional team work and production line and can make nice quality in short time.

Certificate

Our equipment is coming with certifications of PED and our company is TUV approved.We use CE approved components for Europe customers,and CSA or UL approved motor for North American customers.

We are ready to sign a contract with you in case you need to ensure our quality.
Certifications
Our Service

Pre-Sales Service

1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.

After-Sales Service

1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Packing & Delivery


Quality control:

Spectrometer

We have the Spectrometer(from Germany.) and CMM, which ensures the raw and furnace material elements testing, and the precision of machining products. The company has passed the ISO9001.

surface roughometer

Strictly manufacture in accordance with standards Roughness is less than 0.22 μm
Adopt international standards of high quality stainless steel tanks tank 304 stainless steel material, high pressure polyurethane foam insulation, sheath according to customer requirements, can adopt stainless steel polishing, inferior smooth, carbon steel, such as spray form.

thickness measuring meter

thickness of steel plates
super quality with competitive price, adopt the SUS304 as material, CE certificate and ISO certificate.equipment 3 year's warranty, all life service.

FAQ:

Which is better and more productive – a Reflux Still or a Pot Still?

Both types of Still will remove the alcohol from a wash or mash, therefore the productivity is basically the same.

A Reflux Still refines the distillate to a high degree, producing a distillate of very high alcohol content with very little of the 'character' of the wash or mash coming through. A Reflux Still is a must for producing neutral spirit or Vodka.

A Pot Still produces a distillate with much lower alcohol content but with a correspondingly increased level of the 'character' coming through. This is important for distilleries producing Spirits such as Whisky, Tequila and Rum etc. where the character of the base ingredients is required in the final product.

Why do I need coppper?

Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.

Copper has the ability to react with many sulfide compounds, such as sulfides or mercaptans, which are normally present in fermented mash, making them insoluble and removing them from the high wine vapor. As this chemical reaction proceeds within the still, a bright copper surface becomes very dark in color. For continuation of effective scavenging, it is necessary periodically to clean the still to remove these black deposits.

How much copper is really needed?

a. Copper provides an essential chemical reaction, especially at lower proofs, that removes sulfides while the alcohol is in vapor form.

b. Our systems are designed to give you the needed amount of copper for any distilled product. We can always add more copper to your system for a premium,if you require it.

Do I need Permits?

a. Yes there are many permits required to start a new distillery depending on where you are located. Besides the federal permitting with the Alcohol and Tobacco Tax and Trade Bureau (TTB), most states and local jurisdictions require permitting of some sort. Please consult with an industry consultant or your legal counsel.

Will someone from DYE train me on how to operate the equipment?

Because we specialize in equipment design and manufacturing, we recommend contacting a consultant regarding your particular product line. While we offer general guidelines, a consultant will be able to offer a more specific set of instructions, often tailored to the product(s) you plan on producing.

If you have no available consultant,please feel free to contact us and we will recommend you one.

If you want to know more detailed price and drawings and customer reference,pls feel free to contact me.
