2015 new touch kit all in one touch PC monitor smart tv with CE, FCC, ISO

FOB Reference Price:Get Latest Price
30 Piece/Pieces touch kit (Min. Order)
Report Suspicious Activity
Quick Details
Products Status:
Screen Size:
42,55,65,70,84 inch
Interface Type:
1920 x 1080
Brand Name:
Model Number:
DS1403/ DC1403
Place of Origin:
Hubei, China (Mainland)
multi touch:
support 2,4,6,10 points touch
IR touch frame:
document camera:
500 megapixel built-in
operating system:
win XP/7/8, Android
TV/PC box:
built under the screen, easy to repair
screen brand:
LG or Samsung
aluminium alloy/ steel
document format:
viewing angle:
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week touch kit
Packaging & Delivery
Packaging Details
carton/PEP/blister/ pearl touch kit
Product Description
 touch kit
2015 new touch kit all in one touch PC monitor smart tv with CE, FCC, ISO


What is Multitouch?
Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time. Stridetop Touch Frame is famous for introducing multi-touch to the game machine, KIOSK interactive display, Adverstising Display, education whiteboard, and HD TV. By using it to allow pinching and stretching gestures on the screen to control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.
How does it work?

An infrared touchscreen uses an array of X-Y infrared LED and photodetector pairs around the edges of the screen to detect a disruption in the pattern of LED beams. These LED beams cross each other in vertical and horizontal patterns. This helps the sensors pick up the exact location of the touch. A major benefit of such a system is that it can detect essentially any input including a finger, gloved finger, stylus or pen. It is generally used in outdoor applications and point of sale systems which can not rely on a conductor (such as a bare finger) to activate the touchscreen. Unlike capacitive touchscreens, infrared touchscreens do not require any patterning on the glass which increases durability and optical clarity of the overall system. Infrared touchscreens are sensitive to dirt/dust that can interfere with the IR beams, and suffer from parallax in curved surfaces and accidental press when the user hovers his/her finger over the screen while searching for the item to be selected.


The mains materials for making the infrared touch frame, that is infrared LED.

The finished Infrared frame on stridetop interractive touch screen is detachable and convenient for repair.


By putting the infrared touch frame onto the HD samsung screen, we acheived free finger touch on large screen.

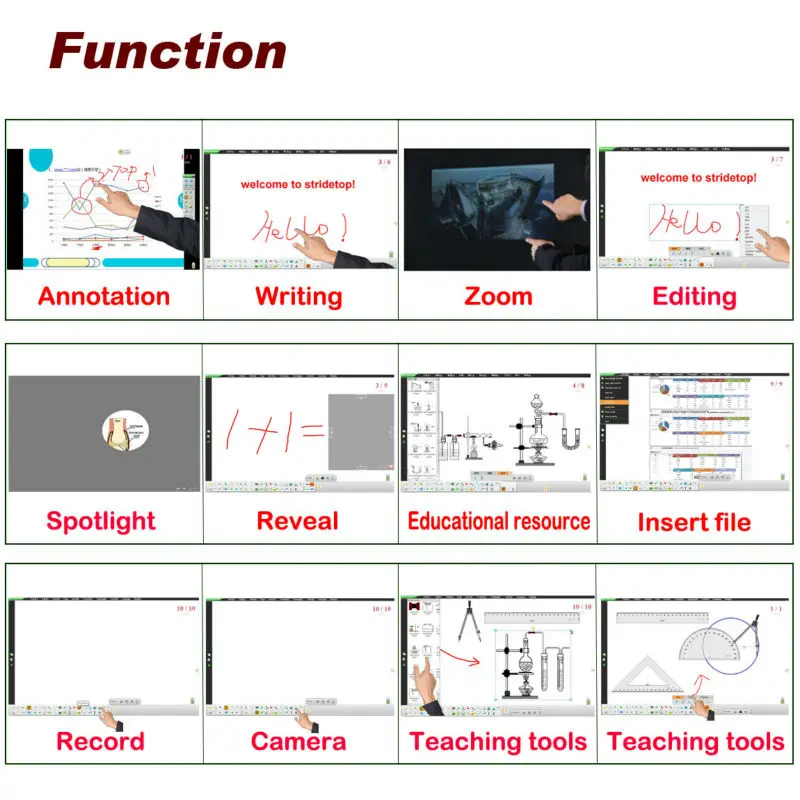

In order to providing better service for education, Stridetop combined document presenter, PC, soundbox, Samsung screen, IR touch frame and educational software into one monitor. It integrated the ppt display, marking, drawing, writing, document display, TV and PC function into a ultra-thin monitor, which can both be mounted on wall or installed onto a mobile stand.


Besides the traditional use in education field, the all-in-one HD touch screen monotor now is widely used in IQ board, business conference, Ads and trade show etc. It can also be useds as a large size movie displayer for party.



1. Removable: infrared touch frame is detachable. So it would be convenient for repair.

2. Ultrathin: the thickness of the frame is just 5cm;

3. Safety: with tempering glass, support strength 152Mpa;

4. LED panel:  grade A+ LED panel from Samsung or LG, more than 500 cd/m2;

5. Design: we built PC parts and TV circuit board under the screen. Repair and integrade is more easier to realize.

6. HDMI port:HDMI, VGA, USB , WIFI can be customized

7. TV mode:can be customized (PAL,NTSC,SECAM)

8. The frame is made by aluminum alloy.



Hardware parameters:


LCD/LED Screen Panel Features:


Screen size: 42/55/65/70/84 inch


Screen band: Samsung/ LG/ Sharp/ Auo


Frame material: Aluminum alloy front frame and steel back cover


Weight: 58-100 kg


Display Features:


Display size: 42/ 55/ 65/70/84 inch


Display color: 1.07 billion


Resolution: 1920*1080P


Brightness: 50cd/meters


Viewing angel: 178 °


TV Features:




Document format: MPEG 1, MPEG 2, MPEG 4, H264, RM, RMVB, MOV, MJPEG


Multimedia: Audeo, video, picture


Resolution: HDMI, 1080P





Denoise: support 3D video denoise
Scan: progressive scanning
Audio: balance adjustable, encircle
Audio output: 2*10 W
USB: USB 2.0*1
VGA: 1
PC Audio: 1
AV: 2
S-Vedio: 1
Touch parameters:
Sensor technology: Infrared
Induction: finger or opaque objiects
Resolution: 4096*4096
Response speed: For single point, first point is 8 ms, consective point 3 ms. For multi point, first point  8ms,  consective points 8 ms. For mouse, the first point 8 ms, consective points 8 ms.
Cursor speed: For single point, < 300 points/s. For multi points, 125 points/ s
Life time: >60,000,000 times click
Power: USB (4.6-5V, DC)
Comsumption: < 1 W
Multi points: 2 points writing, gesture recognise
Test software: 1
Anti-light intensity: use under  direct sunlight
Default configuration in packing list:
All in one machine: 1
Remote contral: 1
USB cable: USB 2.0, 1.5 meters long
VGA cable: 1.5 meters long
Audio cable: 1.5 meters long
CD: 1
Pen: 2
Manual: 1
Installation accessory:
Wall bracket: load bearing 100 KG, safety lock.
Company Information







Who am I?

Wuhan Stridetop Technology Co., Ltd is a manufacturer for education products. Like student table and chair, interactive infrared whiteboard, digital touch panel, drafting tables, multi media lectern etc.

When are you set-up?

Wuhan stridetop Technology Co., Ltd starts business at 2004, now we have over 11 years experience in education field.

What is your main products?

Stridetop specialised in infrared whiteboard and infrared touch screen smart tv/pc technology for over 6 years. large size touch screen PC, digital touch panel, large size touch screen advertising koist and IR frame are our star products.

How can you promise quality?

We have passed ISO 9001, ISO 14001, ISO 18001, CE, RoHs, FCC etc. certificates. And we have set a quality control department to insure that quality be good. Each product would be test for 24-72 ours before sending out.

Where can I find your company?

Stridetop is located in  No.225 Wubei Road, Dongxihu district, Wuhan, Hubei, China. You can also find us at http://ty01.en.alibaba.com/
