2017 High temperature 1200C Industrial Bottom Loading Kiln for ceramic tiles

FOB Reference Price:Get Latest Price
$500.00 - $2,000.00 / Sets | 1 Set/Sets order more Kiln for ceramic tiles for a discount (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Resistance Furnace
Usage:
Heat Treatment Furnace
Place of Origin:
Henan, China (Mainland)
Brand Name:
Brother
Model Number:
BR-12BL
Voltage:
110V / 220V, 110V or 220V
Dimension(L*W*H):
as per order
Weight:
as per order
Certification:
CE Certificate
Product type:
Kiln for ceramic tiles
Chamber size:
200X200X200mm (width x Height x deepth)
Max temperature:
1200C
Working temperature:
0-1100C
Temperature control:
30 Segments Programmable PID auto control
Heating element:
High quality heating wire
Power:
7KW
Thermocouple:
K type
Heating rate:
Max 20C/min
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
7KW
Supply Ability
Supply Ability:
2000 Set/Sets per Year 60% of our Kiln for ceramic tiles is for export
Packaging & Delivery
Packaging Details
Plastic and foam inside, wooden box out side , strong packing to ensure shipment safety of 1200C lab electric bottom loading Kiln for ceramic tiles.
Port
China port
Lead Time :
30 days
Why Choose Us
2017 High temperature 1200C Industrial Bottom Loading Kiln for ceramic tiles

Manufacturer with 10+ years' experience

Best quality
Customized disign
Experienced workers
Big factory
Customers from more than 30 countries choose us
Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

Free design for special furnace

Free technical support for lifetime

Free sample test

Product Description

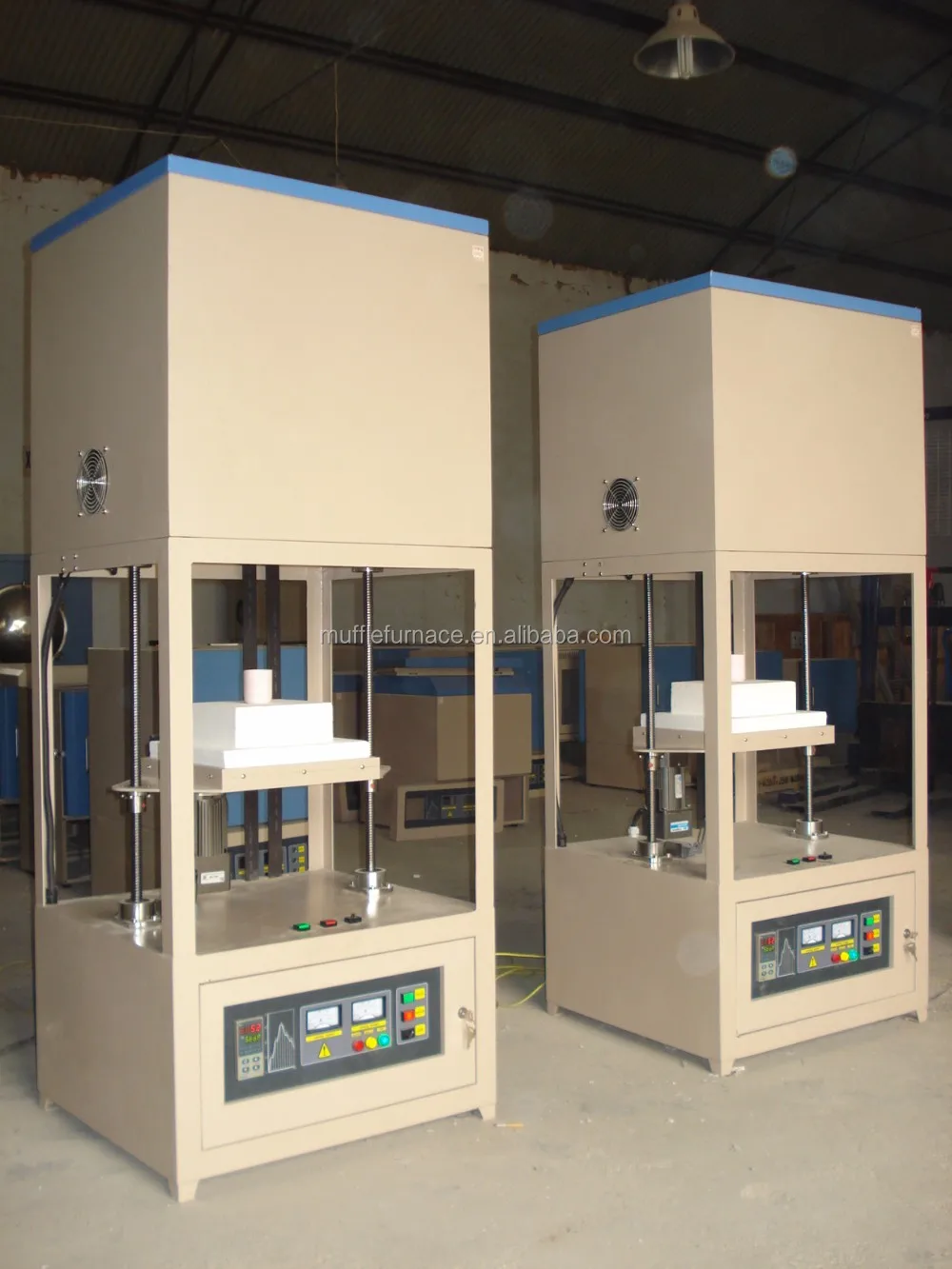

1200C Lab Electric Bottom Loading Kiln for ceramic tiles

Max working temperature: 1200C
110 or 220V single phase .

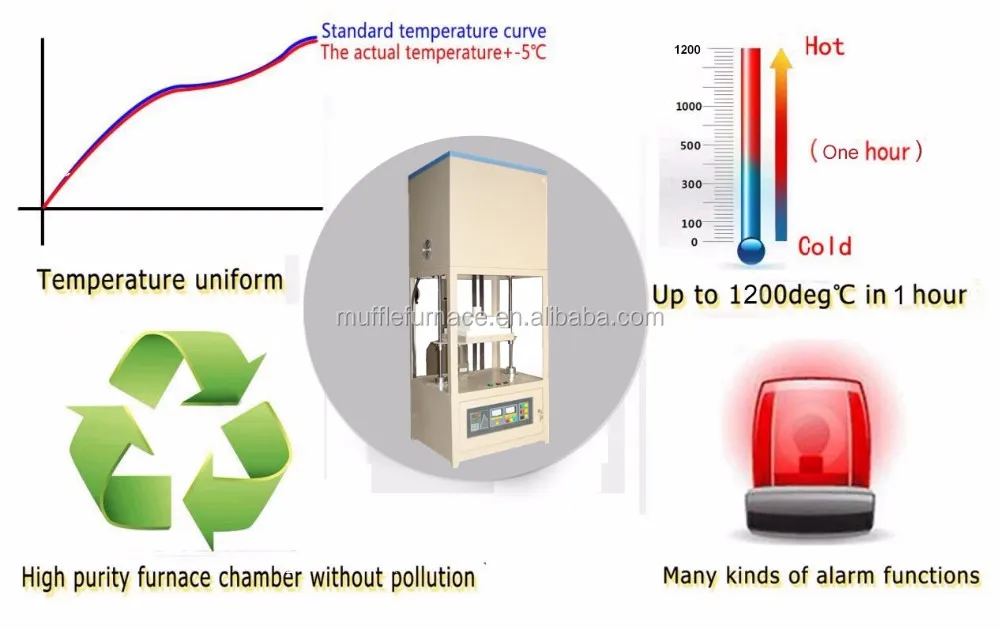

Excellent temperature uniformity.

30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.

One Year Limited Warranty on All Electronic Parts.


Quality heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.

All models use Ceramic fiber board lining to ensure energy efficiency

Safety feature includes a safety interlock system to shut off power when furnace door open

Details

For laboratory, safety, efficiency and high success rate is the most important thing, which are exactly what Kiln for ceramic tiles offer you.

Technical Specifications of 1200C lab electric bottom loading Kiln for ceramic tiles
Chamber size
200x200x200mm (Width * Height * Depth) (8 Liter)
Max. temperature
1200 C (<2hour)
Working temperature
1100 C
Temperature controlling
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over temperature protection and alarm allows for operation without attendant.
Temperature accuracy
±1C
Temperature Uniformity
±5C over 120mm @ 1100C
±3C over 80mm @ 1100C
Heating rate
0-20C /min
Thermocouple
K type with 99.7% purity Alumina tube
Heating element
Quality heating wire

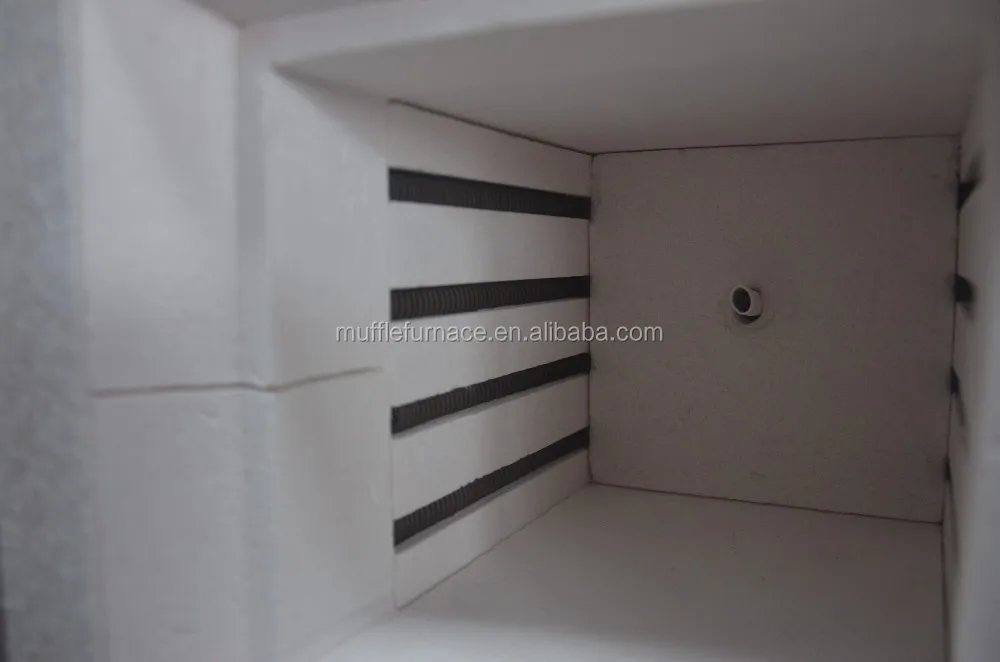

Furnace Chamber
Two layers of ceramic fiber insulation materials
● First layer: 1430°C ceramic fiber board.
● Second layer: 1260°C ceramic fiber board.
Furnace structure
Double layer steel casing with dual cooling fan, surface temperature below 60oC
Furnace door

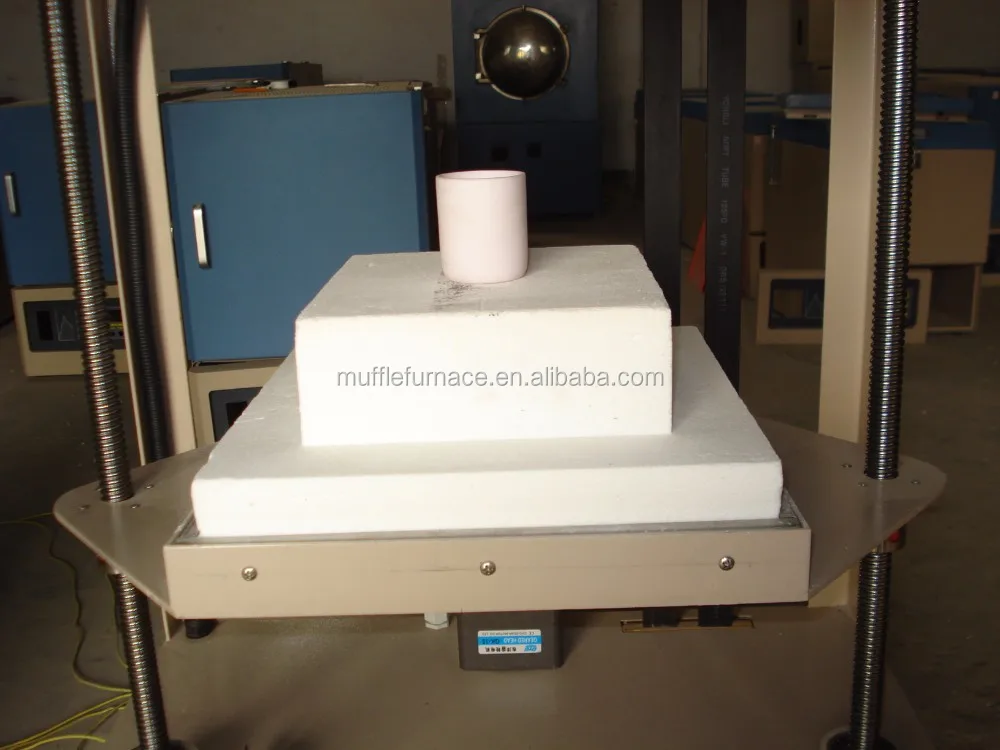

● Bottom Loading
● Power cutting off when furnace door open
Working voltage
220V, 50HZ
Rated power
7KW
Stander chamber size (mm)
100x100x100      120x120x130      150x150x150      150x150x200
200x200x200      200x200x300     250x250x300      300x300x300
300x300x400      350x350x500     400x400x400      450x450x450
500x500x500      600x600x600     800x800x800      900x900x900
Packing & Delivery

Strong packing ensures shipment safety of 1200C lab electric bottom loading Kiln for ceramic tiles

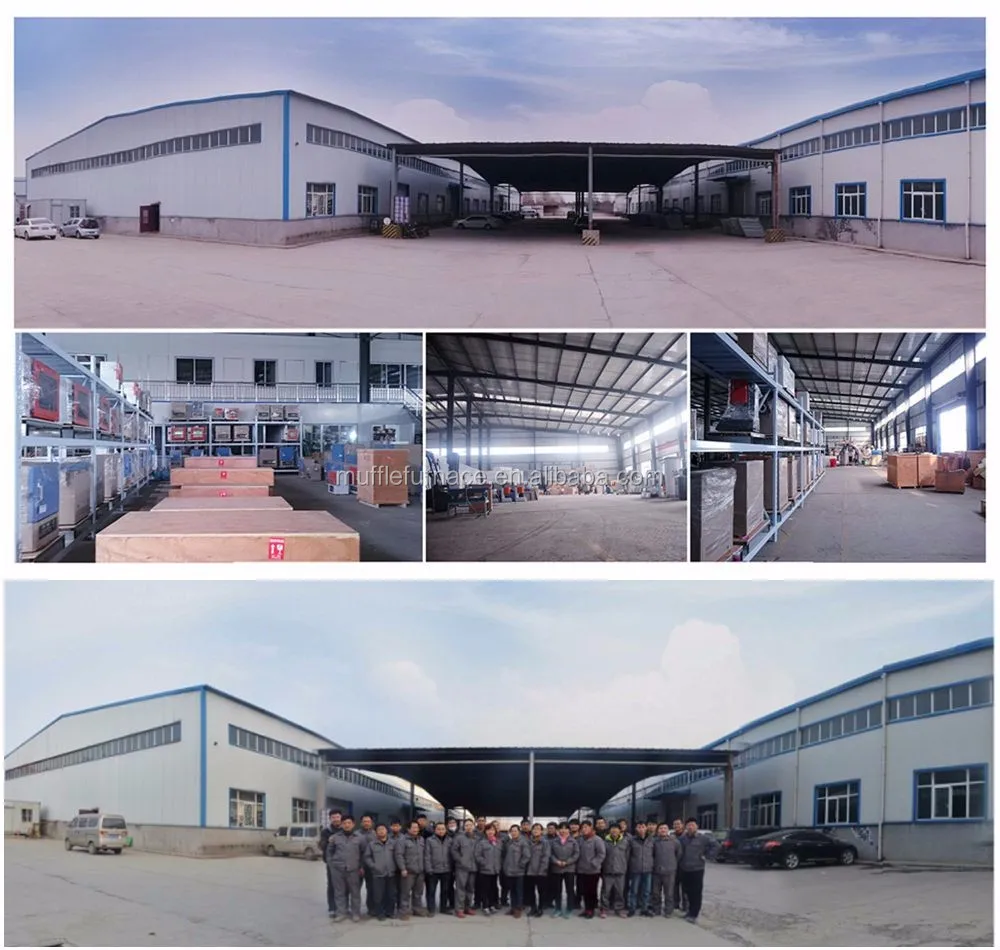

Our Company

More than heat!!! Brother Furnace focuses on quality and service for more than 10 years!


Brother furnace is an international leading manufacturer of high quality furnaces. We manufacture low and high temperature laboratory and production furnaces, tube furnace, muffle furnace, dental furnace, Bottom loading furnace, Crucible furnace, Atmosphere furnace, Vacuum furnace, Drying oven and high temperature heating element (SiC heating element, MoSi2 heating element). All custom designed to meet your thermal requirements.


Learn more about Brother Furnace:

Interested in Brother Furnace 1200C Lab Electric Bottom loading Kiln for ceramic tilessend your inquiry Now for a Discount!!!

FAQ

What is your delivery time for Kiln for ceramic tiles?

For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

What is your advantage?
We are a manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
We supply good service after sale, you can be assured about that.

How many years have you been in this field?
We have been manufacturing in this fields more than 10 years
