2017 cnc fiber laser cut machine for jewelry gold metal,silver, stainless steel,brass,aluminium

FOB Reference Price:Get Latest Price
$19,999.00 - $69,999.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
500*400mm
Cutting Speed:
200mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Cutting
Model Number:
XTC-FM6040
Condition:
New
Cutting Thickness:
6mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
Jinan Xintian XT LASER
Certification:
CE, ISO, SGS, FDA
Product name:
2017 cnc fiber laser cut machine for jewelry gold metal,silver
Keyword:
mini fiber laser jewelry cutting machine
Laser Wavelength:
1070~1080nm
Laser power:
Raycus, IPG, nLIGHT
Function:
Laser Cutting Engraving for Metal Materials
Servo motor:
Japan Yaskawa servo motor
Laser head:
Switzerland Raytools
Reducer:
MOTORREDUCER
Power required:
380V 50HZ
Warranty:
2 years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month High Precision Fiber Laser Cutting Machine for Metal Sheets
Packaging & Delivery
Packaging Details
plywood case for 2017 cnc fiber laser cut machine for jewelry gold metal,silver, stainless steel,brass,aluminium
Port
Qingdao Shanghai Shenzhen
Lead Time :
Within 30 days after receiving your downpayment
Product Description

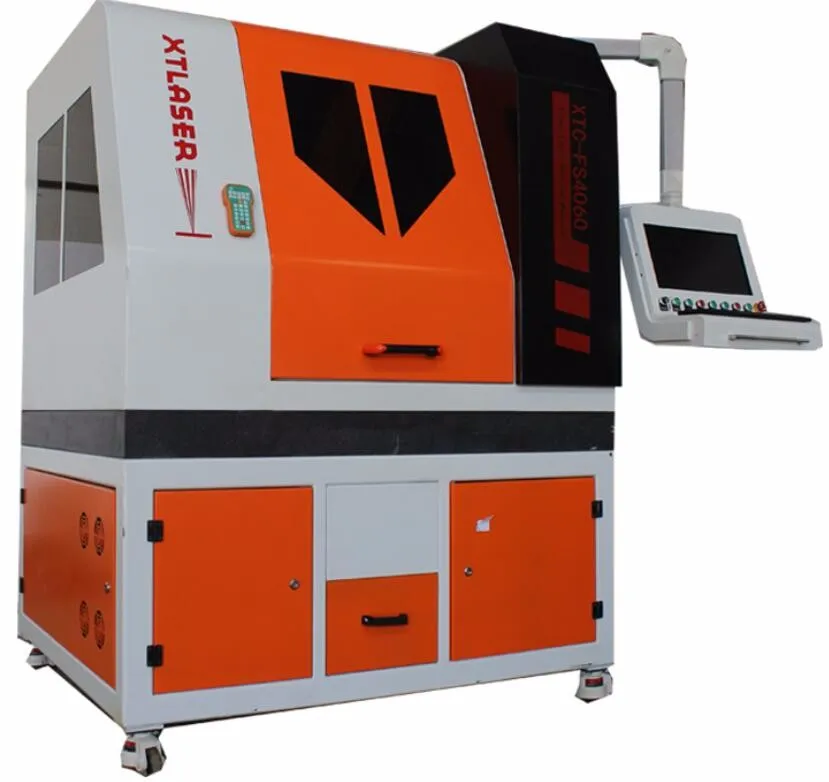

2017 cnc fiber laser cut machine for jewelry gold metal,silver, stainless steel,brass,aluminium


Engraving Area
500x400mm
Laser Power
300w 500w 750w 1000w
Software Interface
Included w/ PC control tower
Material Capability
metals
Motor type
Servo motors on ball screw drive
Laser / PC Connectivity
USB connection
Power Supply
380V three phases
Warranty
2 Years (includes parts & laser power)
Class
Class 4 laser

Description

• Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals

• Fiber laser power source options from 300W to 3KW

• Fiber offers reduced maintenance requirements and operating costs compared to CO2

• Position acccuracy < + / – 0.04mm

• Japanese servo motors & drivers

• Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear

• Working voltage: 380V, 50Hz / 60Hz

• 2 year Warranty covers laser machine parts. Ask about our optional warranty extensions

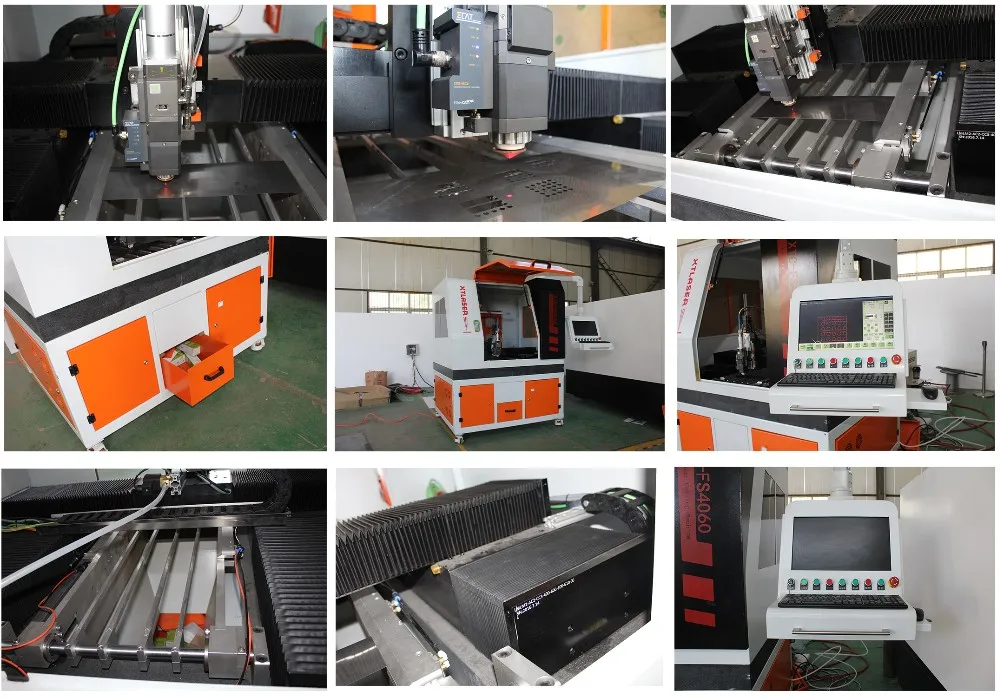

Detailed Images

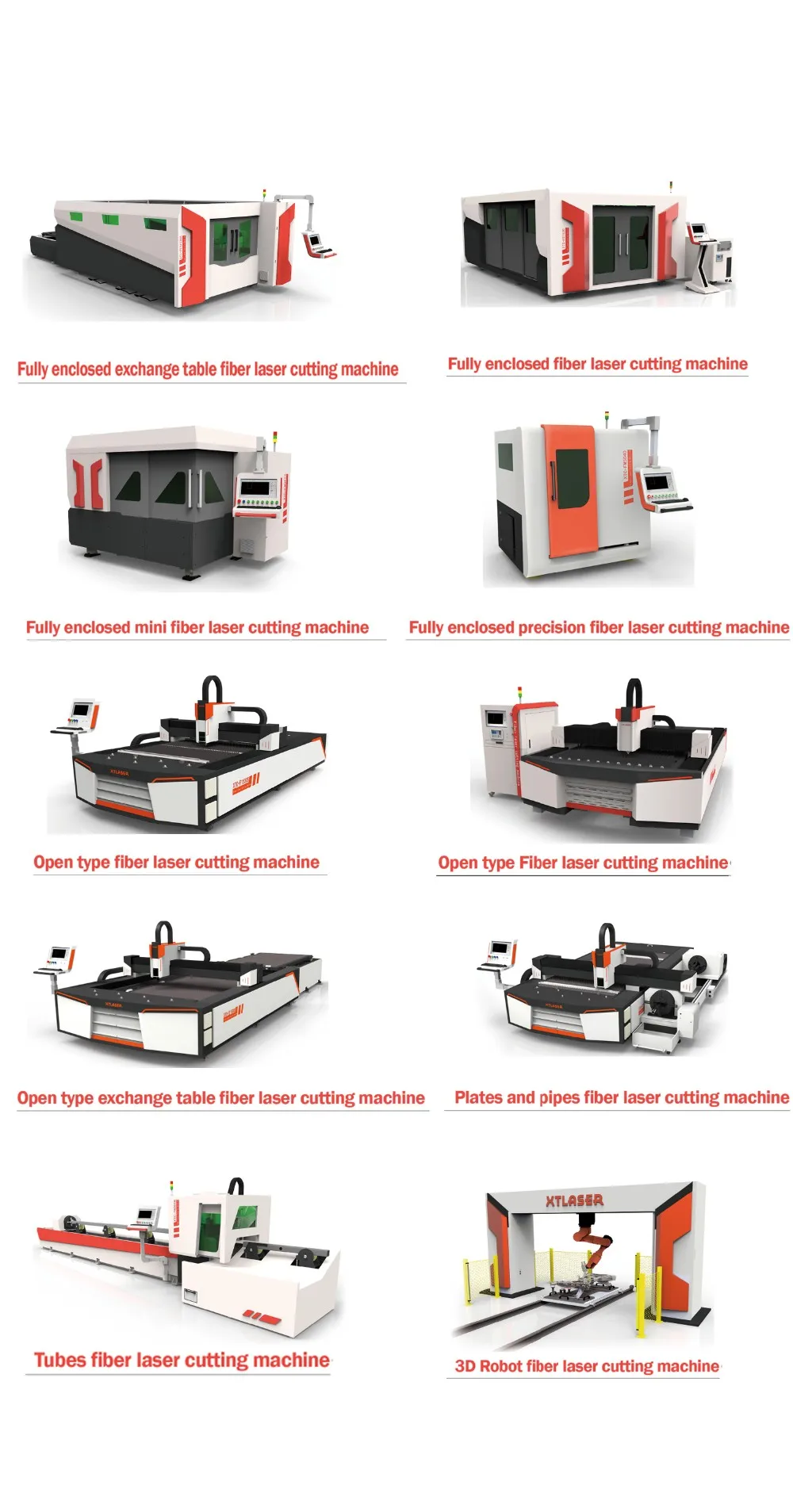

Other Products
Our Company

Jinan Xintian Technology Co., LTD. Is an assemblage of research and development, design, and production laser automation equipment manufacturing. Our products include laser marking machines laser welding machines, laser engraving machines, laser cutting machines, pneumatic marking machines, and non-standard automation equipment. Our company has a group of high level optics, electronics and precision machinery researchers and developers, international first-class optics and microelectronics test instruments, advanced quality management systems to improve the efficiency of the manufacturing testing process, to create excellent quality products. It has a professional and consummate staff with rich experience dedicated to the pursuit of excellence and the quality of product for the customer.
Our commitment is to continue to improve the level of technology by research and development, standardization of scientific management, excellent product quality and customer service concepts. Xintian technology has won an excellent reputation in the global market, and with Germany, the United States, Japan, Britain, Russia, Malaysia and other countries it has collaborated with well-known companies and domestic laser research institutes maintained a long-term friendly cooperation. Over the years, our products have been exported to more than one hundred countries and regions.

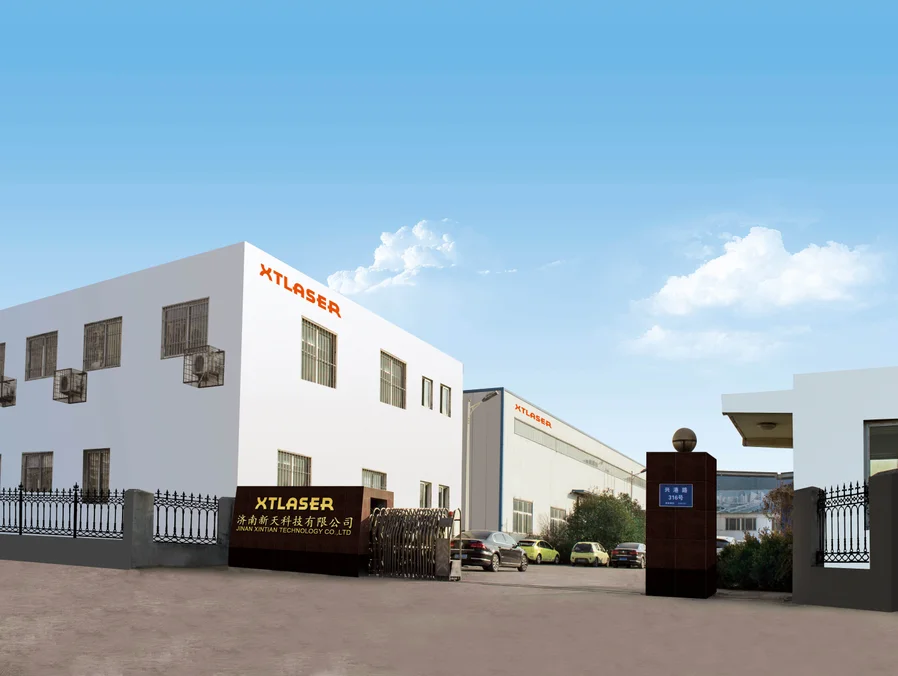

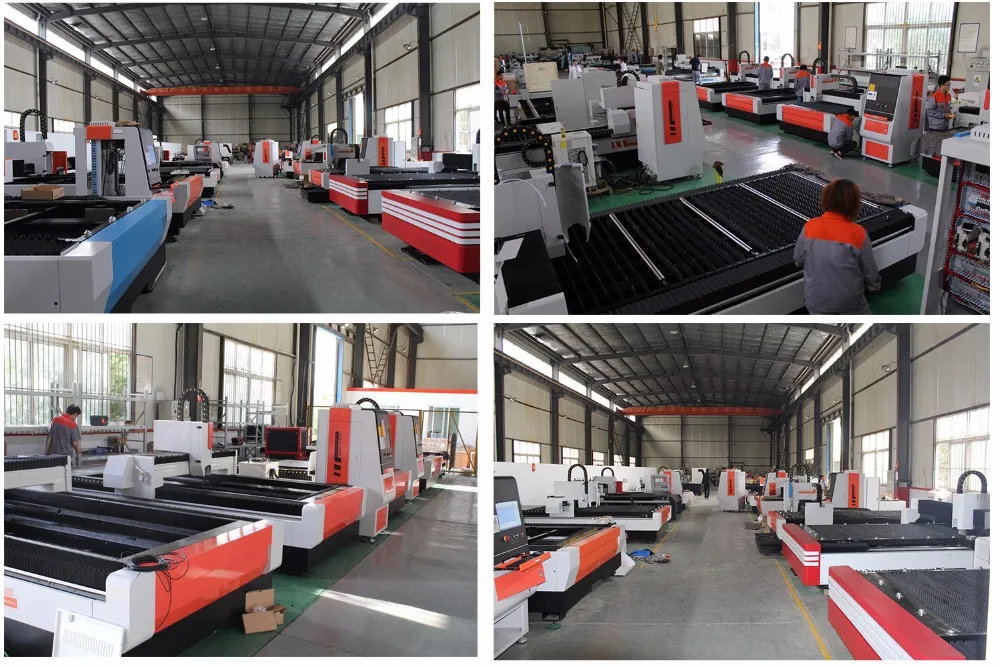

XT Laser Cutting Machine Factory 2017


XT LASER Team 2017

Packing & Delivery
Our Service

XT LASER. adheres to put customers at the first place to provide complete installation, commissioning, training, maintenance, pre-sales and after-sales service for your company.

1. Pre-sale services
Before signing a contract, our company provides customers a variety of production technology proposal, technical advice of laser equipment, sample specimens, equipment selection, and price etc. all aspect of consulting and services.

We sincerely welcome customers to visit our company and factory, and we provide customers reception staff, food, transportation and other facilities.

2. Sale of services
Based on the contract, we delivery laser machine to customers place safely within the specified time, and send engineer to install at user place. Under the basic conditions of installation machine, engineer will complete the installation and commissioning machine within 1-2 days for the user, and ensure neat, clean and orderly.

We provide technical training. After the installation and commissioning completed, engineer will service buyer operator at lest 5 days at buyer place or at seller factory until the operator can operate machine. The training as follows:

Training operating instruction of turning on and off machine;
Meaning of panel and control parameters,
Training parameter selection range;
Training control software operation ;
Basic maintenance and cleaning of the machine;
Dealing with common hardware problem;
Noted question in operating ;

In addition to, we also provide users technical support related their producing products.

3. After-sale services
To provide customers with all aspects of service.

We promise:
a. One year warranty of machine.
b. Customer service will be feedback within 12 hours.
c. We provide machine lifetime maintenance services though warranty expires.
d. Offered a wide range of hardware and software support after the warranty expires, enjoy free upgrades.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B:We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
