2017new Brother Customized kinds of 1200C electric kiln for ceramic tiles

FOB Reference Price:Get Latest Price
  • 1 - 1 Sets
    $1,492.00
  • >=2 Sets
    $1,490.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
kiln for ceramic tiles, kiln for ceramic tiles
Usage:
Muffle Furnace
Place of Origin:
Henan, China (Mainland)
Brand Name:
Brother
Model Number:
kiln for ceramic tiles
Voltage:
220V/380V, 220V
Dimension(L*W*H):
Depands
Weight:
<100
Certification:
CE
Max temperature:
1200C
Working temperature:
1100C
Heating element:
Resistance wire
Temperature control:
PID Control
Heating Rate:
0-20C/min
Name:
kiln for ceramic tiles
Color:
Blue
Power:
1kw
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Power(W):
1KW
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Package in wooden box.
Port
Qingdao/Shanghai
Lead Time :
7days
Product Description

Application:2017new Brother Customized kinds of 1200C electric kiln for ceramic tiles

kiln for ceramic tiles is an ideal product for high temperature sintering, high temperature heat treatment, metal annealing, quality test in laboratory of university, academy, industrial and mining enterprises.
Model: BR-12N-1kiln for ceramic tiles kiln for ceramic tiles kiln for ceramic tiles
Max temperature: 1200deg.c ( 2hours)Digitally Controlled muffle furnace Digitally Controlled muffle furnace
Working temperature: 1100deg.c (continuous).
Furnace chamber dimension : 100x100x100mm kiln for ceramic tiles

Features
Technical Specifications of our kiln for ceramic tiles :
Chamber size
100x100x100mm (Width * Height * Depth)Customized design is available.
Max. temperature
1200 oC (<2hour)
Working temperature
1100C  kiln for ceramic tiles

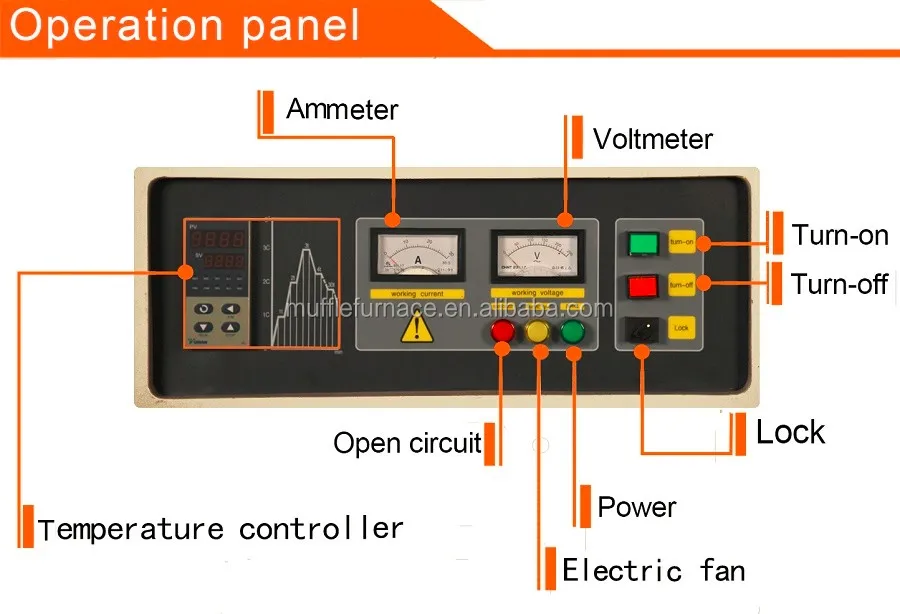

Temperature controlling
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over temperature protection and alarm allows for operation without attendant.
Temperature accuracy
± 1 oC Bench top muffle furnace Bench top muffle furnace
Temperature Uniformity
± 5°C over 120 mm @ 1600°C
± 3°C over 80 mm @ 1600°C
Heating rate
0-20 oC /min Bench top muffle furnace Bench top muffle furnace
Thermocouple
K type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube

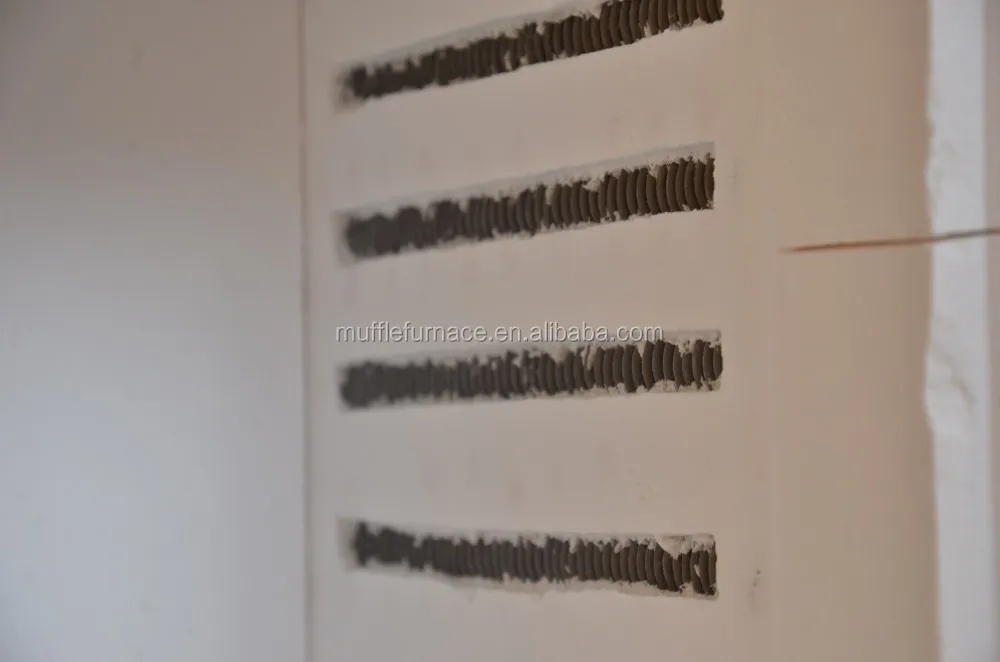

Heating element
Resistance wire
Furnace Chamber
Three layers of ceramic fiber insulation materials
● First layer: 1800°C ceramic fiber board, density 500kgs/m3. Thermal conductivity (1200℃) is only 0.18W/m.k.
● Second layer: 1600°C ceramic fiber board, density 400kgs/m3.
● Third layer: 1260°C ceramic fiber board, density 320kgs/m3.
Furnace structure
Double layer steel casing with dual cooling fan, surface temperature below 60oC
Furnace door
● Front open to asid
● Power cutting off when furnace door open
Outer dimension
About 400x380x560mm
Working voltage
220V, 50HZ
Rated power
1KW  kiln for ceramic tiles
Weight
Net Weight: about 26kgs
Gross Weight: about 56kgs

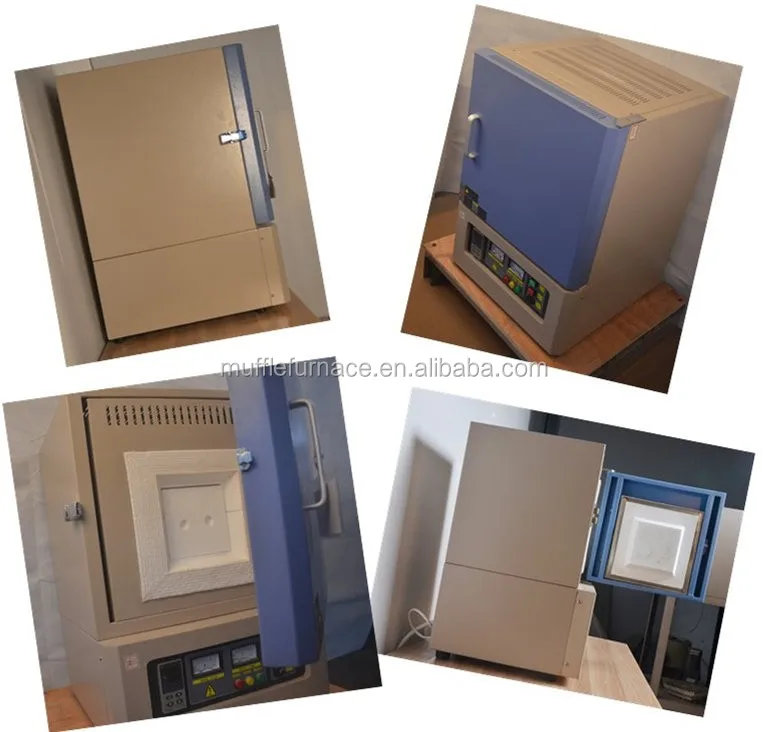

Detailed Images

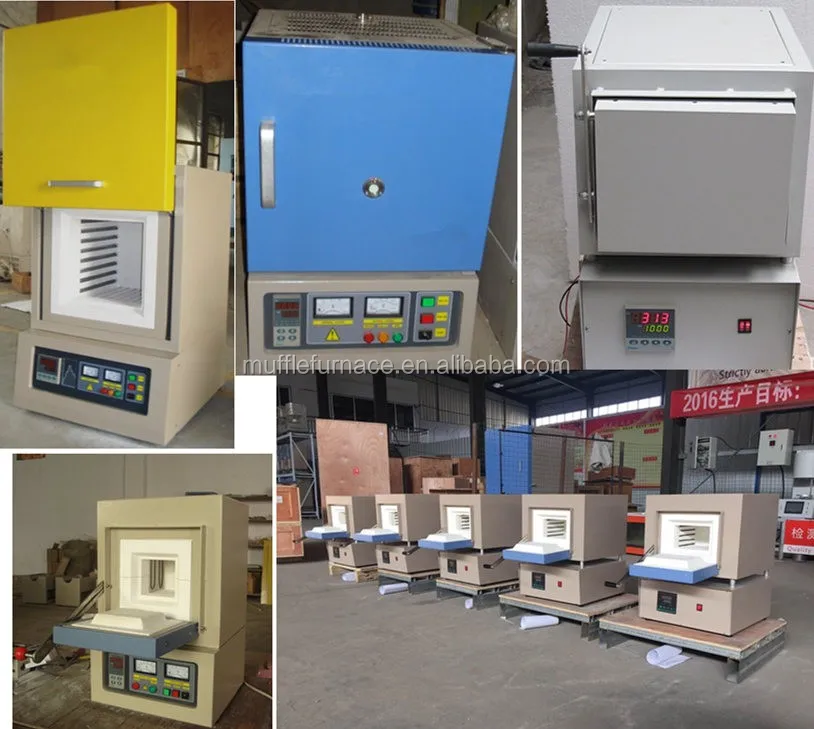

Our stock and delivery time:
Regular sizes
Delivery time
Regular sizes
Delivery time
100x100x100mm
3 days (in stock)
120x120x130mm
20 days
150x150x150mm
3 days (in stock)
150x150x200mm
20 days
200x200x200mm
3 days (in stock)
200x200x300mm
20 days
300x300x300mm
20 days
300x300x400mm
20 days
400x400x400mm
20 days
Optional accessories
Warranty

Warranty of our kiln for ceramic tiles:

● One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products)
● ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. kiln for ceramic tiles kiln for ceramic tiles kiln for ceramic tiles kiln for ceramic tiles kiln for ceramic tiles

FAQ

Q:What is your delivery time ?
A:For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

Q:What is your advantage ?
A:1.We are a manufacturer in China. So we can control the cost well.
2.We use the top material in our furnace, imported ceramic fiber and accurancy temperature controller.
3.We supply good service after sale, you can be assured about that.

Q:How many years have you been in this field?
A:We have been manufacturing in this fields more than 17 years.


Q:Why are you choose us ?
A:We have a professional R&D team, and rich production experience of 17years,point to point service,customer brand,multiple selections,and customers all over the middle East,Europe and America,Southeast Asia and other regions.
