2018 Newest design 6 color flexo printing machine price

Feedback Ratings
$18,000.00 - $30,000.00 / Set | 1 Set (Min. Order)
Model Number:
YT-61200
$18,000.00
- +
available
YT-61400
$25,000.00
- +
available
YT-61600
$30,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Plate Type:
flexo printing machine
Color & Page:
Multicolor
Certification:
CE/ISO9001
Gross Power:
28KW/30KW/32KW
Usage:
Paper Printer, Nonwoven
Type:
Flexographic Printer
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Allwell
Automatic Grade:
Automatic
Voltage:
380V
Dimensions(L*W*H):
4500*2200*2700mm
Weight:
3700kg/3900kg/4100kg
Color:
6 Color
Plate:
Letterpress
Plate1:
Rubber Plate
Material:
Nonwoven Fabrics
Device 1:
EPC
Device 2:
Auto tension
Max. Width of Printing material:
1200mm/1400mm/1600mm
Max. Printing Width:
1160mm/1360mm/1560mm
Length Range of Printed Product:
191-914mm
Printing speed:
50m/min
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
450X220X270 cm
Single gross weight:
3700.0 kg
Package Type:
Without package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

Production Application

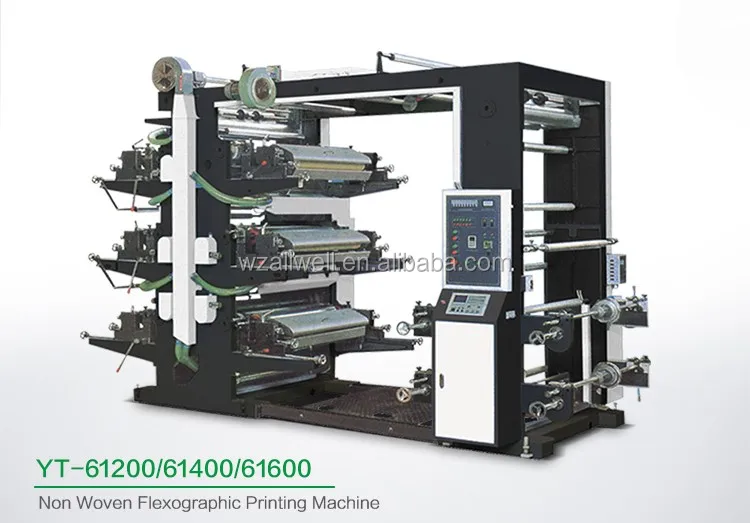

YT-61200/61400/61600 Six color flexographic printing machine is ideal equipment for non woven fabric printing. Adopt rubber plate or resin plate to printing non woven fabric with water-based Ink. More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.

Main Technical Variables
Type
YT-61200
YT-61400
YT-61600
Printing Width
1160MM
1360MM
1560MM
Printing Thickness
100-940MM
100-940MM
100-940MM
Plate Thickness
2.38 MM
2.38 MM
2.38 MM
Speed
10-50M/MIN
10-50M/MIN
10-50M/MIN
Overall Size
4500X2200X2700
4500X2400X2700
4500X2600X2700

Procedure

1. Figure out the fabric width when you get a bag order.
2. Purchase the special width fabric rollers or slitting the general one into right width.
3. Printing according to your customers' requirement.

Flexographic Printing Effect

Screen Printing Effect (View more)

Detailed Images

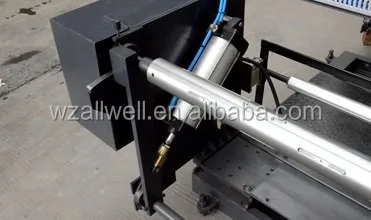

Feeding Part

Function:
Air Shaft Winding
Automatic Loading

Correcting Deviation Device

Using photoelectric eye to correct deviation automatically

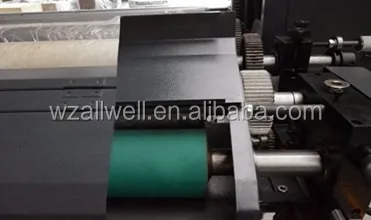

Printing Unit

Group: Six
Printing Way: Plating roll, Plate roll, Net roll, Peel roll.

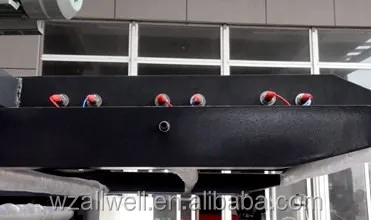

Heating And Dryer Unit

Fan drive and heating

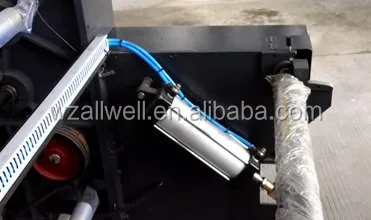

Rewinding Unit

Air Shaft Rewinding
Automatic Up And Down Loading
Magnetic Tension Control Device

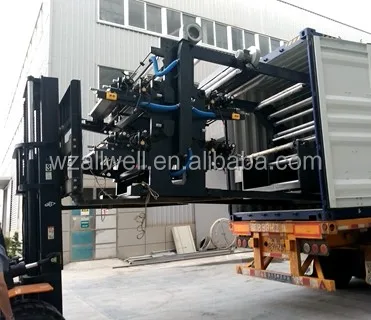

Packing & Delivery
YT-61200 Flexo Printing Machine
Size
4500X2200X2700
Weight
3700KG
Packaging Details
Plastic film.
Related Products

Non Woven Screen Printing Machine


ONL-XE1800 Non Woven Slitting Machine

Slitting into suitable width for bag and handle making

Non Woven Box Bag Making Machine

One machine can make 5 bag type
Box Bag, Handle Bag, D-cut Bag, Shoes Bag T-shirt Bag

Our Company

Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevant equipments, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.

Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product originated from our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.

2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than the relevant industry standards.
