2018 QJYL food grade stainless steel electric wine pump

FOB Reference Price:Get Latest Price
  • 1 - 1 Pieces
    US $1500.00
  • >=2 Pieces
    US $1100.00
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
QJYL
Model Number:
ZXBII-5-20
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water, liquid
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
electric
Pressure:
Low Pressure
Application:
milk
Material:
Stainless Steel
Impeller diameter:
180mm
Weight:
20kg-200kg
Warranty:
1 Year
Power(W):
1.5kw
Voltage:
220V/380V
Certification:
ISO9001
Product name:
high lift shimage motor water pump
keywords:
high lift water pump
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard wooden box
Port
Shanghai/Ningbo
Lead Time :
Quantity(Pieces) 1 - 1 2 - 2 >2
Est. Time(day) 15 25 To be negotiated
Video Description

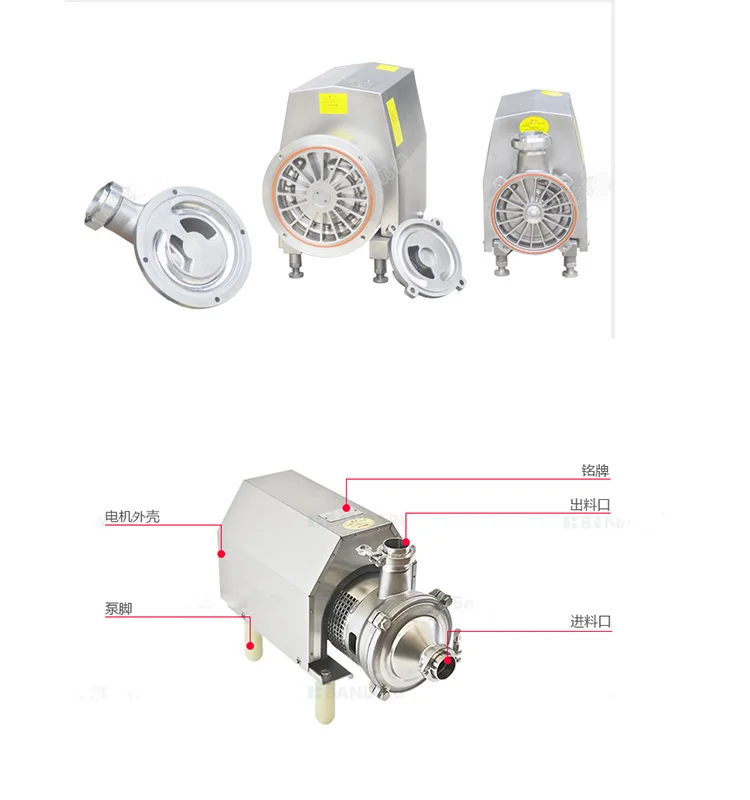

Product Description

2018 QJYL food grade stainless steel electric wine pumpApplicable range





The sanitary centrifugal pump can be widely used in the transportation of all kinds of liquid materials, such as dairy products, beer, beverage, medicine, biological engineering, fine chemical industry and so on.
It can not only transport ordary low, medium viscosity solutions, but also can transport suspended or corrosive solutions.
The pump is in the form of single and single suction.
The pump case and impeller are carefully designed to reduce the resistance and eliminate the health dead Angle completely.
Due to its special structure, the flow rate of the fluid in the pump is increased, which improves the overall performance of the pump and is easy to clean and has excellent hygienic performance.
It can meet the requirements of hygienic, flexible treatment and chemical corrosion resistance.



Materials

Material of liquid passing parts:

AISI316L or AISI304 stainless steel

Out surface:titanium

Inner surface:polish 0.4

Liquid passing seal material:EPDM



Impeller diamefer(mm)150
Motor power(kw)2.2
Lift(m)25
Medium20℃ clean water
Rotation speed2845r/min
Flow10Cubic meters/h
Error±5%
Frequency50Hz
Inlet diameter∅50.8mm,DN40
Outlet diameter∅38.1m,DN32
712_201803291623431242

Contact Us

Rose Zhang

Mail:moqiaonilu@gmail.com

Whatsapp/skype/mob:+8613918920854

_20180126153741

Company Information

The major managements and technical elites are composed of senior technical personnel ,technical workers and various management of rich experience from Shanghai Beverage Machinery Factory.The company is made up of general manager's office,chief engineer's office ,production technical development room ,production management and supply room,product sale and after-sale technical service room ,workshop office,finance room ,human resources,quality supervision,raw materials warehouse and semi-finished products warehouse etc.

zhengshu_

_20180126153827



Our Services

Pre-sale service:

1. Free of making offers, craft and technical guidance.

2. We can provide company’s qualification certification and the drawings.

3. We can also make customized products according to customer’s needs.

After-sale service:

1. We provide long-term after-sale service.

2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Packaging & Shipping

The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.

Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.

_20180126155539

FAQ

1.Q:What is your packing?

A: We usually packing in plywood case.



2.Q:How long is the service time?

A:It could use several year without external force factors.



3.Q:Do you have warranty?

A:We have 1-2 years warranty.



4.Q:What is the MOQ?

A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.



5.Q:What is the payment terms?

A:We accept T/T and L/C,also can using trade assurance.



6.Q:How to choose the shipment way?

A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).



7.Q:How about the surface finishing?

A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
