2018 new machine rollers and ring die delivery to Vietnam biomass pellet mill

  • 1 - 1 Sets
    $20,000.00
  • 2 - 3 Sets
    $19,200.00
  • >=4 Sets
    $18,000.00
Model Number:
XGJ560-90KW XGJ560-110KW XGJ560-132KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 4 >4
Est. Time(days) 7 10 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
BIOMASS MACHINERY
Voltage:
380V
Dimension(L*W*H):
2400x1350x1800m
Certification:
CE,ISO
Warranty:
One year
Raw material:
hard wood,wood sawdust.wood wastes,corn straw,cotton stalks
Application:
Biomass Energy
Color:
yello,green,light gray,blue
Pellet diameter:
4-12mm Wood Pellet Machine
Pellet size:
6/8/10mm
Moisture Of Raw Material:
15%-20%
Lubrication:
Automatic Lubrication System
Mould Material:
stainless steel
Pellet length:
≤ 32
spare parts:
ring die and rollers
After-sales Service Provided:
Overseas service center available
Power:
90kw
Weight:
5700
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
one 20GP container load two set XGJ560 model pellet mill.
simple packing,the smaller motor pack into wooden box.
Port
The nearest port:Qingdao port,also can arrange to Shanghai,ningbo,yiwu,Guangzhou,
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 4 >4
Est. Time(days) 7 10 10 To be negotiated
Video Description
Product Details

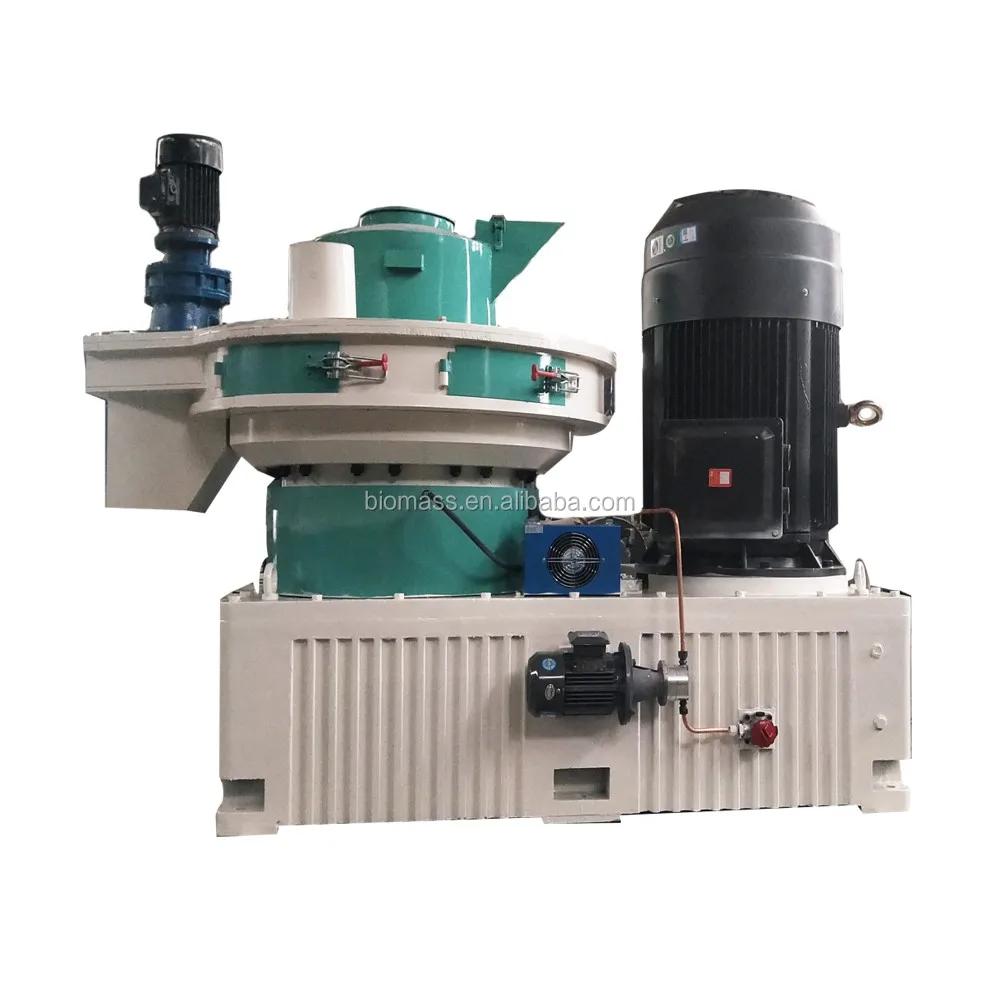

biomass pellet mill

1.our factory main poruducts are wood pellet mill,wood chipper,wood hammer mill,biomass pellet production plant;
2.the 6th generation wood pellet mill is higher effciency centrifugal pellet mill,specialized in pressing hard wood,reduce maintenance fee.produce all kinds of hard wood,corn straws,stalks and rice husk are easy.it is widely used in power station plant.pellet production factory.
3.the machine have auto-lubricating device,also install the device which is  cooling the gears during machine running,higher lifetime for using;
4.double layer stainless steel ring die,the hardness is stronger than alloy steel,each hole made by cnc milling machine.then make heat treatment.longer lifetime.
5.pellet diameter from 4mm to 10 mm for selection,but the 6mm and 8mm are best seller in pellets markets.
6.wood pellet mill complete set have five motors totaly.
   -main vertical motor:90kw/110kw/132kw
   -vertical motor for discharge rotory device:1.5kw;
   -auto-lubrcate oil pump motor:0.37kw;
   -dust collector fan-3kw;
   -auto-lubrcate gear box oil device:0.1kw
7.One set pellet mill install one set spare parts inside,if you need different pellet diameter,please consider to buy different ring die for spare during long time working;
8.our machine main market is Bulgaria ,Greece,Poland,...meet for Europen standard.have CE certificate.
Product Introduction

wood pellet mill complete set: main machine,all motors,oil pump,dust collect device,automatic-lubricating device and electric control cabinet.


Product Parameters
Model
Main Power(kw)
capacity (T/H)
Pellet diameter(MM)
XGJ560
90
1.0-1.2
4-10
XGJ560
110
1.2-1.8
4-10
XGJ560
132
1.5-2.0
4-10

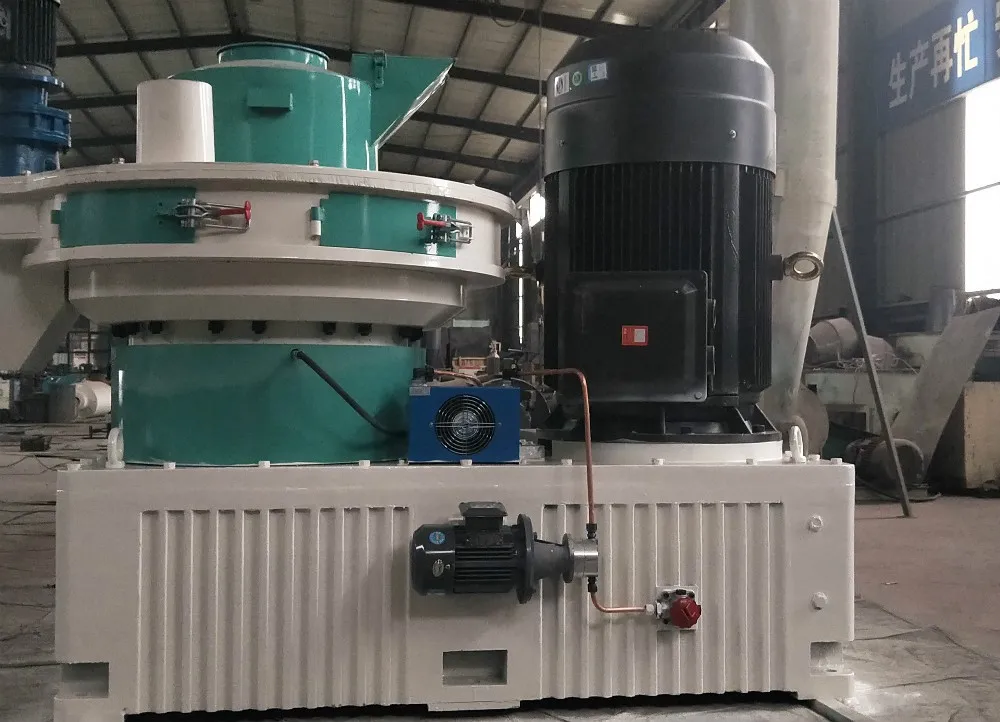

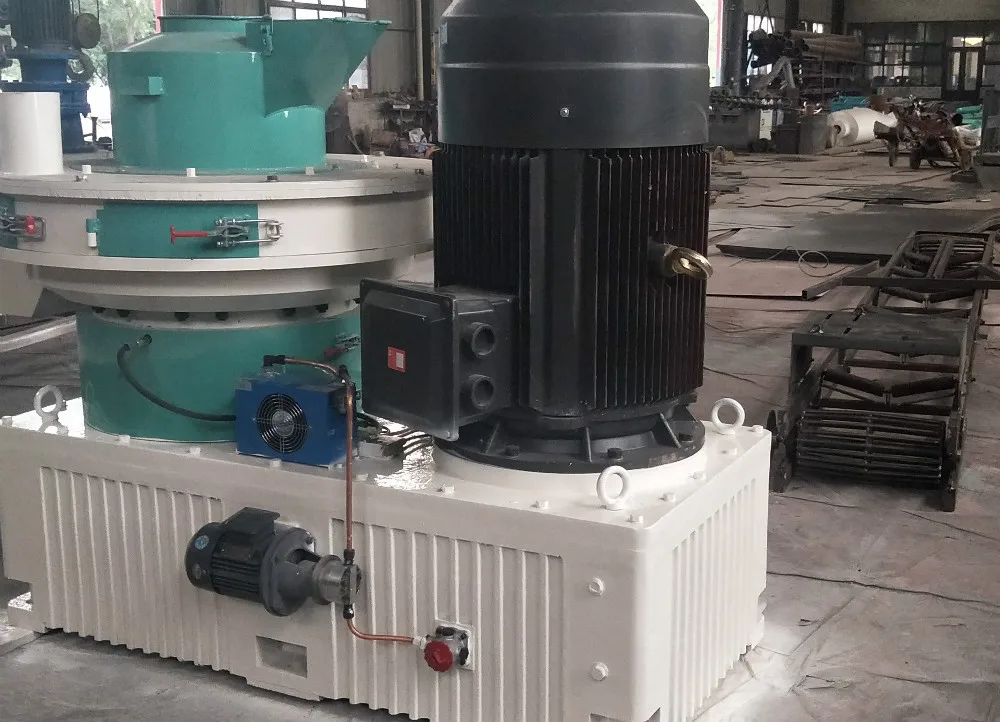

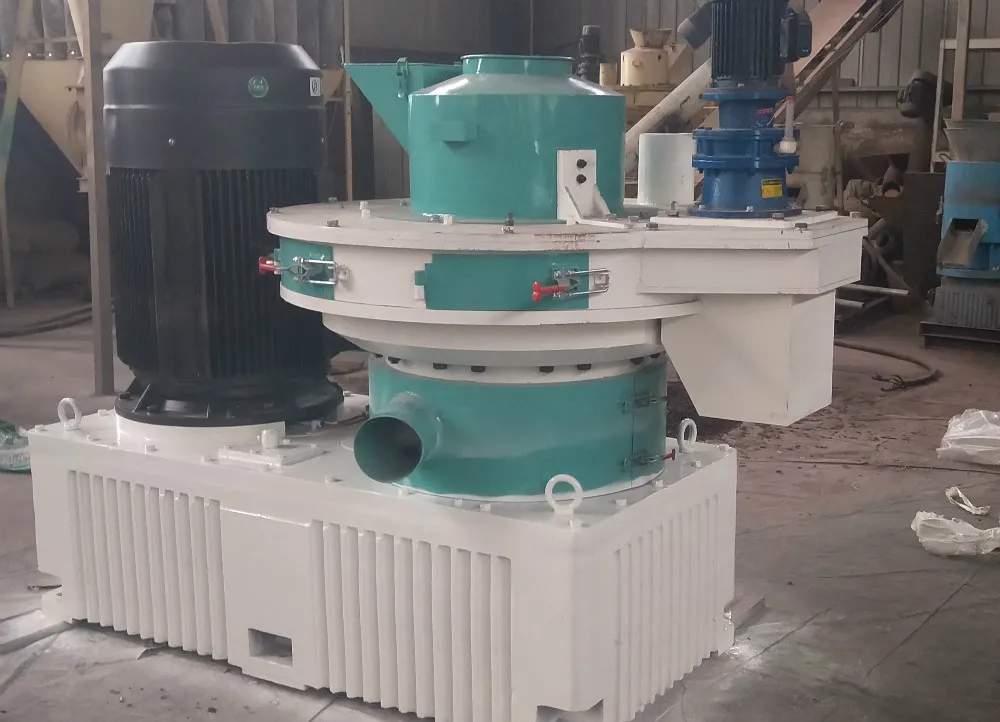

Product Details Show
Machine Color
1.about biomass wood pellet mill color:normally light gray,green,blue,yellow and red,if clients have requirments,please send color card,we will paint it based on client selection;
2.we paint two times color,one is red color for rust protection,the second time is face color for beautiful
Spare parts shows

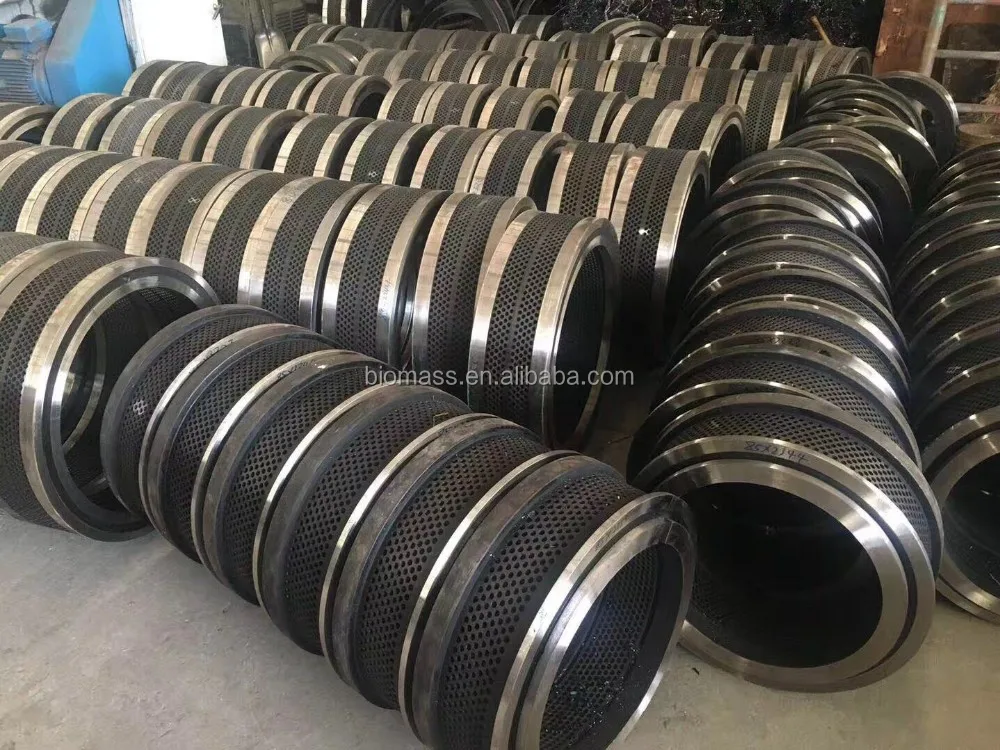

Double layer ring die

1.stainless steel ring die;

2.double layer use,once one layer wear out,please turn it over to use the second layer,longer lifetime to us.

3.the ring die hole:4mm.5mm,6mm,8mm,10mm for your selection

4.we have lots of ring die for spare in store,standard size supply client on time.

5.one set pellet machine have one piece ring die inside;

Spare parts shows

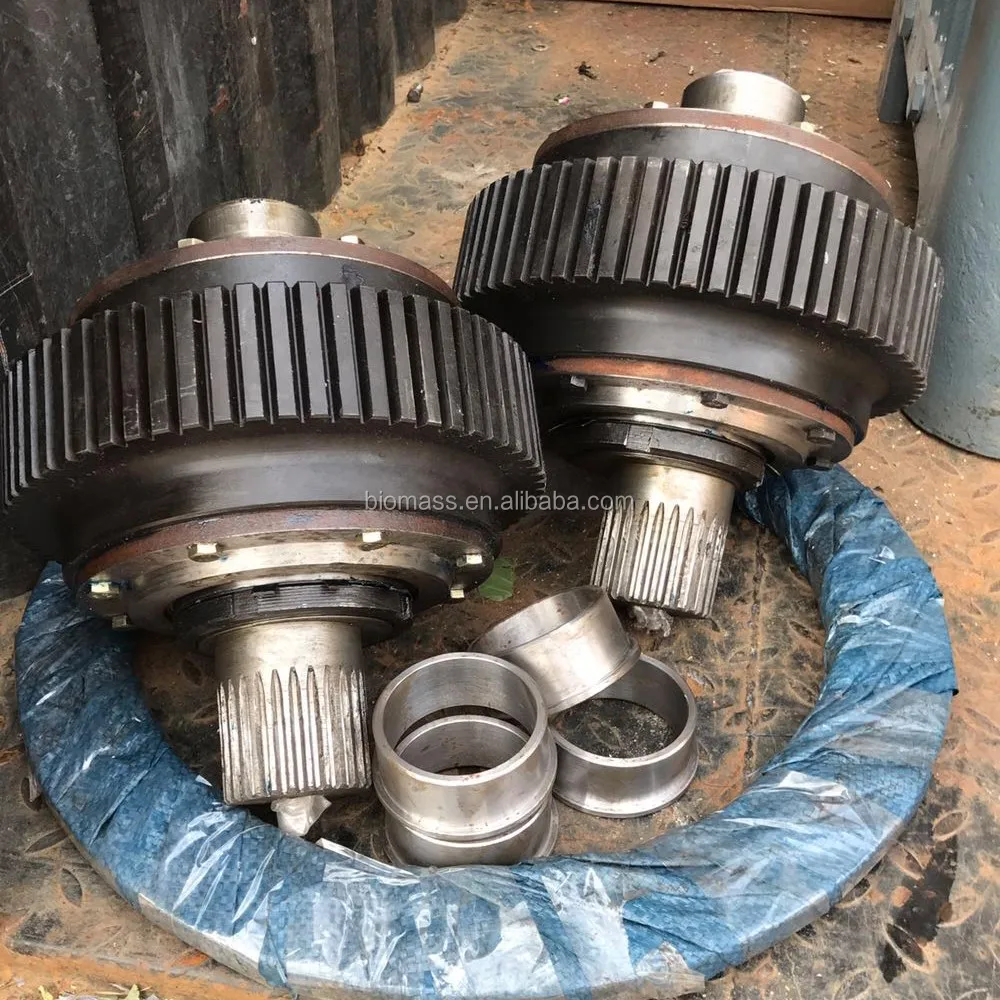

Roller Assemble.

1.raw materials are alloy steel,high strong type alloy.

2.the inside have bearing,the automatic lubricating device can inject the oil to the bearing automaticly through the oil pump.

3.the roller Assemble also called rollers,one set pellet machine have two rollers inside;

Roller sheel.

1.jinan biomass machinery equipment co.,ltd produce wood pellet mill,our company website

www.bio-machinery.com

Miss Anne Hua whatsApp:+8613583178040;

wechat/zalo:+8618615199409

2.one set pellet mill inside have two pieces of roller sheel.

3.the roller sheel and ring die make friction each other,then the pellets come out,so the roller sheel can protect the rollers.

Friendly clients

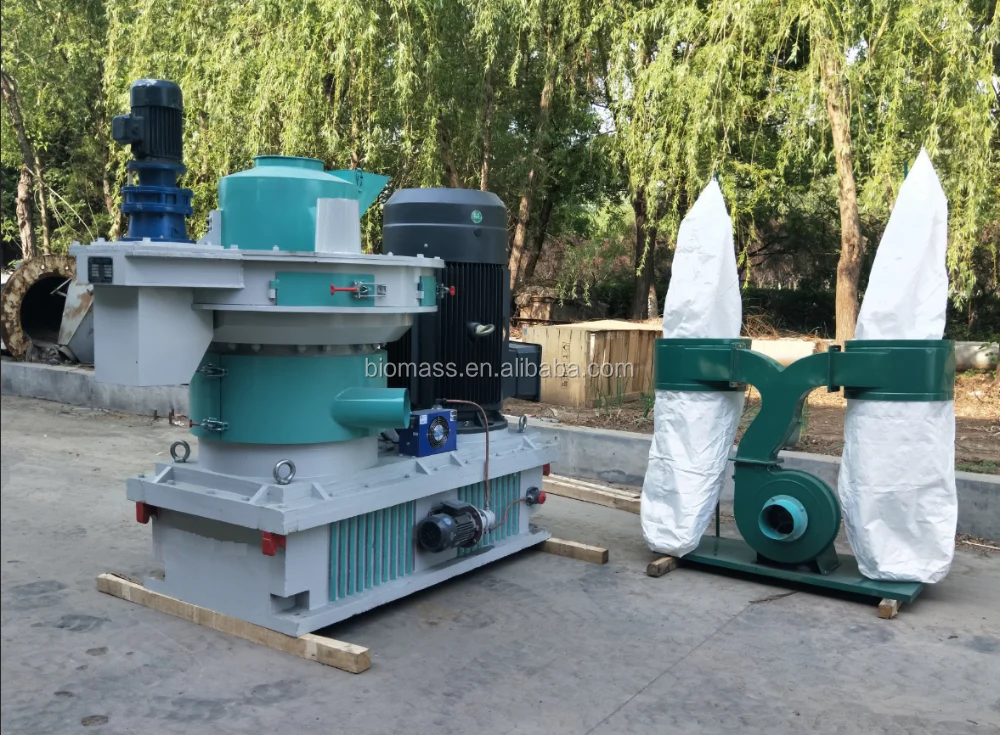

Machine delivery
