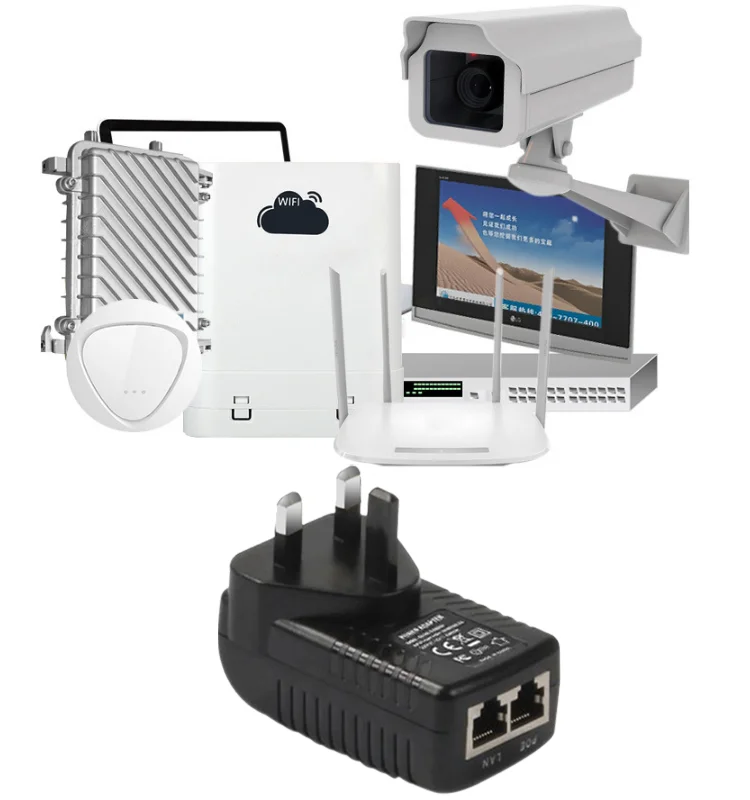

2018 trending products 48V 0.5A 24w Wall Plug POE Injector Ethernet Adapter with 1000mpbs for IP cameral

FOB Reference Price:Get Latest Price
$2.70 - $4.70 / Pieces | 50 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
kabool
Model Number:
48v 0.5a
Output Type:
DC
Connection:
Plug In
Name::
24w poe adapter
Input:::
100-240V,50~60Hz
Output:::
48v 0.5a and 1000mpbs
Protection::
SCP,OVP,OCP,OTP
Approved::
CE,FCC,RoHS
Warranty:
12 months
Color:
Black/White
Package:
Brown Box
DC Connector:
2 port
Supply Ability
Supply Ability:
200000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
24w PoE Charger
Package:50PCS/CTN
Port
Shenzhen

2018 trending products 48V 0.5A 24w Wall Plug POE Injector Ethernet Adapter with 1000mpbs for IP cameral



Product Description



 Ethernet power supply (POE)

 POE characteristic

*IEEE802.3 af 15.4W ; Power(max):16W

*IEEE802.3 at 25.5W; Power(max): 25W

*one port support POE power supply

 Power supply way

*Spare Part to 4/5(+) ,7/8(-)

*Data Part to 1/2(+) ,3/6(-)

 Port and Performance

 Port

2 Ethernet front-end ports

 Port parameters

*Electrical interface : RJ45

*Cable type :5 kinds of shielded twisted-pair cable(UTP) or higher level

 Transmission rate

10/100mbps adaptive

 Protocol standard

*IEEE802.3 i 10 BASE-T;

*IEEE802.3 u 100 BASE-TX;

*IEEE802.3 x Flow Control;

*IEEE802.3 af Power over Ethernet;

 Interface protection

Meet IEC61000-4-2( ESD) ±15KV(air), ±8KV(contact) requirements, and withstand 8/20us 24A(12A) energy.

 LED indicator

Each port : rate,link indicator

 Environment and Specification

 Environment condition

*Operating Temperature :0~55℃; Storage Temperature : -20~70℃

*Operating Humidity : 90% ,No condensation; Storage Humidity :95%,No condensation

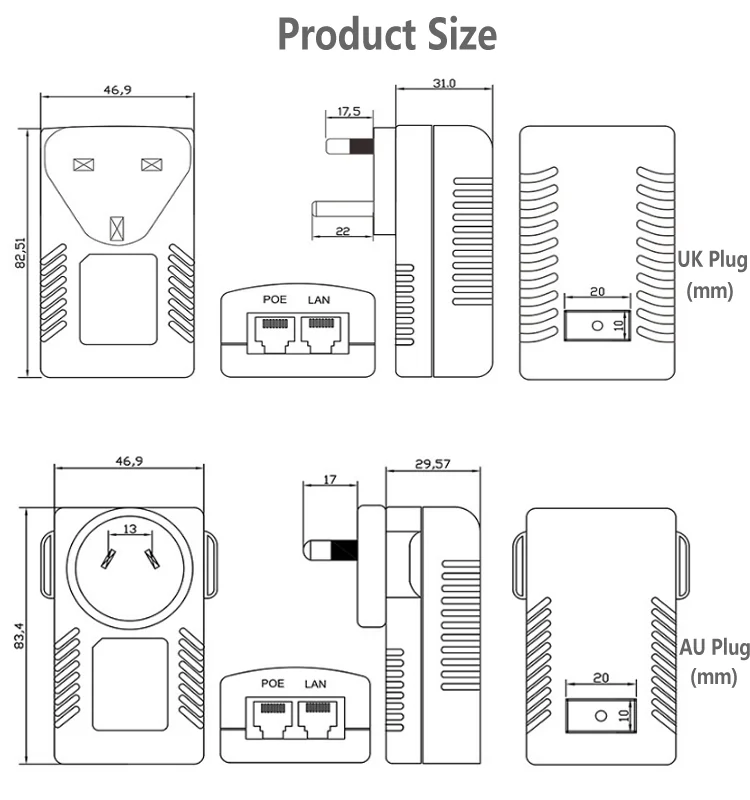

 Dimension

83*43*29mm

 Weight

0.075kg

 Safety standard

CE/LVD

 Warranty

3 years

 Other Characteristic

 Power support

AC220  0.5A/DC-48V (built-in)

 Power consumption

24W

 Electromagnetic  compatibility

*CE Class B

*FCC Part 15 , Class B

*VCCI Class B

*C-Tick



 Certification

CE, FCC ,ROHS





Features:



1. An input port and an output port. The power has input under-voltage, output over-voltage,

 each output has short circuit protection.



2. System reliability : MTBF > 100k hours , CE, RE, and compliant to EN55022,CLASS B standard.

 Anti-thunder feature : AC Input are able to withstand 5 KB, 8/20uS impulse current waveform,

 plus or minus 5 times, each time interval for 1 minute.



3. Power anti-thunder circuit has failure alarm function and insurance tube safety protection

 component.
