2019 12inch New Products Front 2K Reverse 1080P Super Resolution Degree 170 Wde Angle Car DVR Dash Cam With Night Vision
1. Use the automatic recording function
Start the car engine, the recorder will start and start the recording function automatically, turn off the car engine, the recorder will automatically save the recording content and shut down.The recorded images are saved in sections on the TF card. When the TF card is full of storage, the recorder will cover the earlier recorded images.The recorded time period can be set in the menu, and the range is 1 minute /3 minutes /5 minutes/three files.
[note] when selecting any of the three files of "1/3/5" minutes, the recorder will cover the earlier recorded images when the TF card is full;
The forward normal folder is "front_norm" and the back normal folder is "back_norm"
The forward photo folder is "back_photo" and the backward photo folder is "front_photo"
2. Use the manual recording function
Press the "power button" of the recorder. After the recorder is started, press the "confirm" button to start recording.If it is necessary to shut down, press [power button] for 2 seconds, the recorder can automatically save records and shut down.
3. Collision sensing function
The device is equipped with a g-sensor. In case of a serious vehicle collision, the recorder will lock the broken video recording of the accident and save it as a special image. At the same time, the lock icon is displayed in the upper left corner of the display screen.Locked images are not cyclically overwritten.
B. The g-sensor supports sensitivity adjustment. You can change the Settings according to the actual needs in the Settings menu.
4. Date and time setting

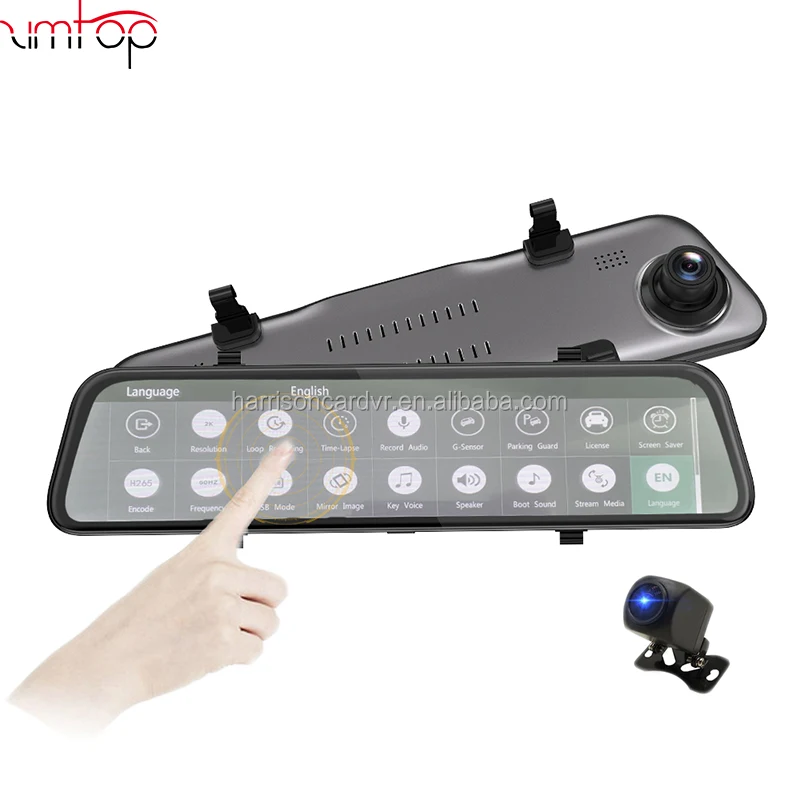

In the recording or standby state, the 1./3 part in the middle of the screen slides into the setting interface or clicks the setting button to select the date setting.Slide up and down to adjust the date and time.
[note] in order to effectively record the date and time of obtaining evidence of driving safety accidents, please set the correct time before using the machine.
5. One-click mute function
In the working state, click the recording button on the screen, and the microphone on the screen turns into the disable icon, indicating that the recording function has been turned off. At this time, the recorder only records images but not sounds.When the recording key is clicked again, the microphone on the screen turns into the recording icon, indicating that the recording function is resumed.
[prompt] the Settings will be automatically saved, and there is no need to set the mute function after starting up again.

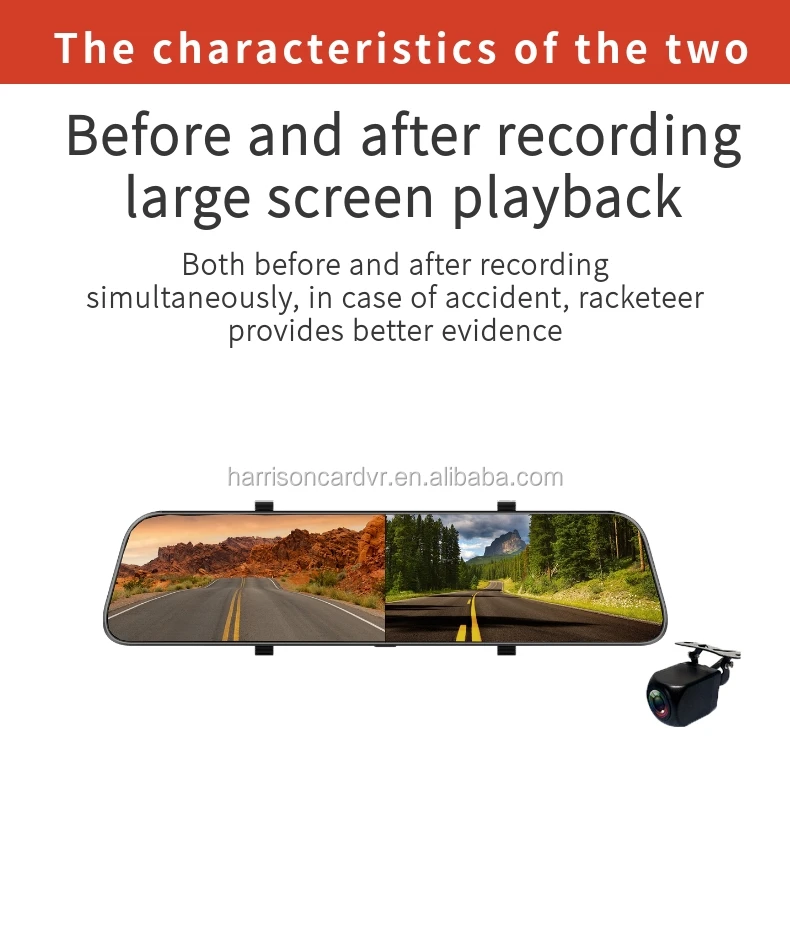

6. Shoot files for playback
Video recording and photo taking interface: slide the screen from left to right to enter the playback interface.
7. Reverse visual
First, you must connect the car charger to the recorder, and the red line on the cable camera to the headlights.The car charging machine will automatically start the recording state, and the reverse image will be displayed if there is a reverse in any state.The machine will automatically return to video mode after the end of reverse viewing.
8. Parking monitoring
When the parking monitoring function is turned on, if the car has a slight vibration (trigger sensitivity can be set as needed in the menu), the recorder will automatically start recording for 20 seconds and then shut down.
9. The USB model
In the recording or standby state, part 1./3 in the middle of the screen slides down to enter the setting interface or click the setting button to connect the USB cable, select USB in the setting and pop up window: USB storage, USB camera and USB recording.

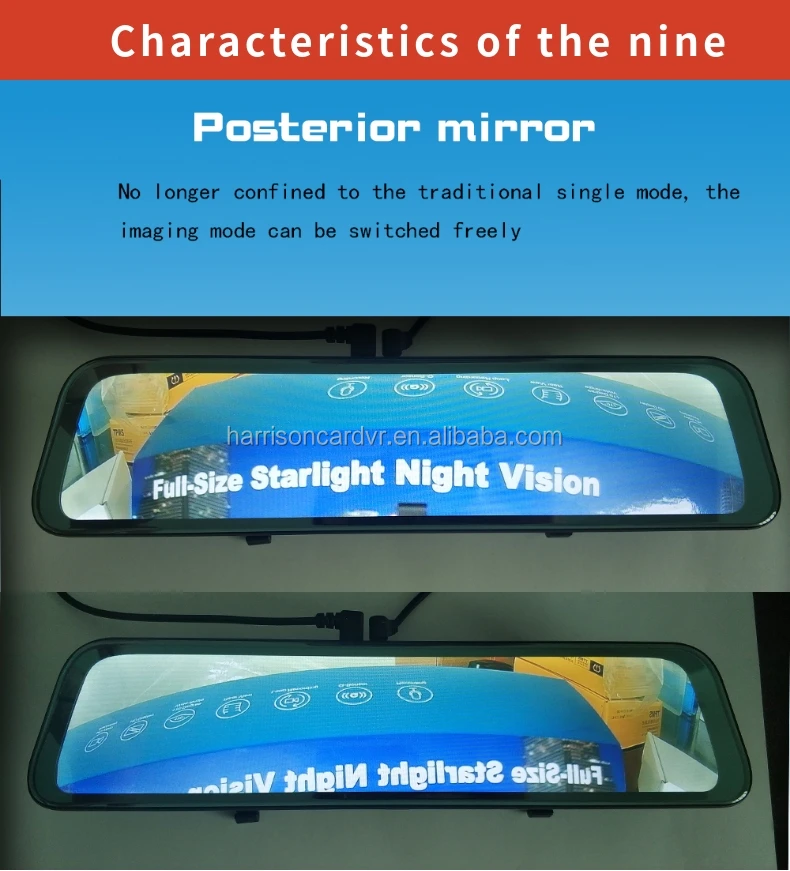

In the recording or standby state, the middle 1/3 part of the screen slides down to enter the setting interface or click the setting button, select rear mirror, and then pull left and right mirror after opening.But playback doesn't change.

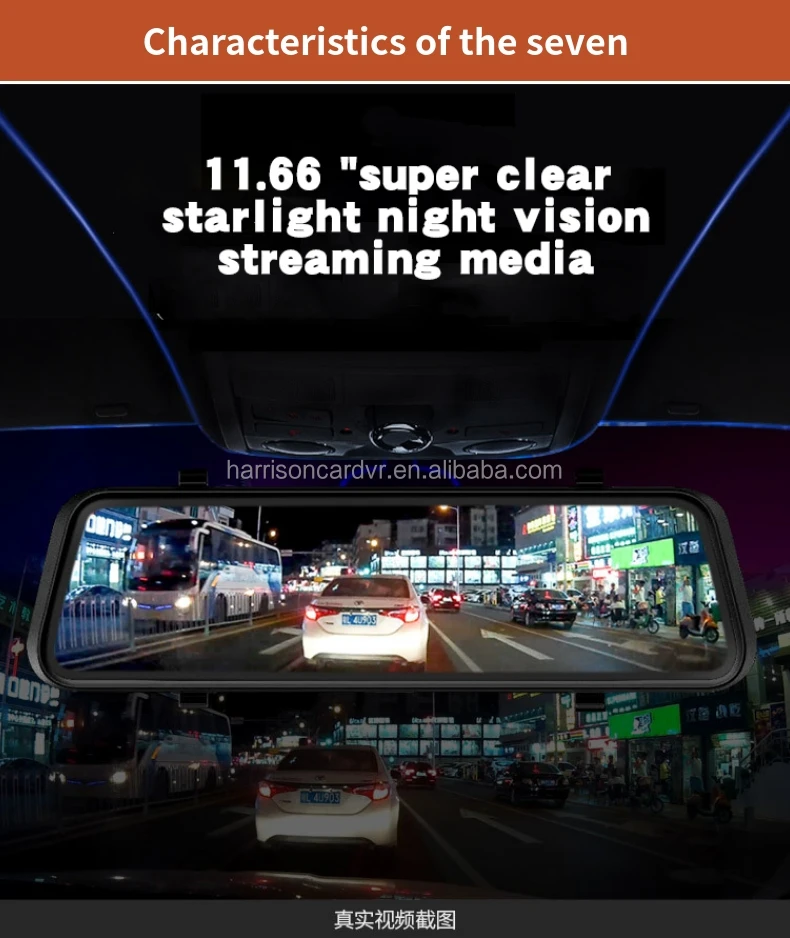

11. Streaming media
In the recording or standby state, part 1. 3 in the middle of the screen slides down to enter the setting interface or click the setting button, and select "on" and "off" of the streaming media function.When streaming media is "on", full-screen rear circuit is the default when starting; when streaming media is "off", full-screen front circuit is the default when starting.

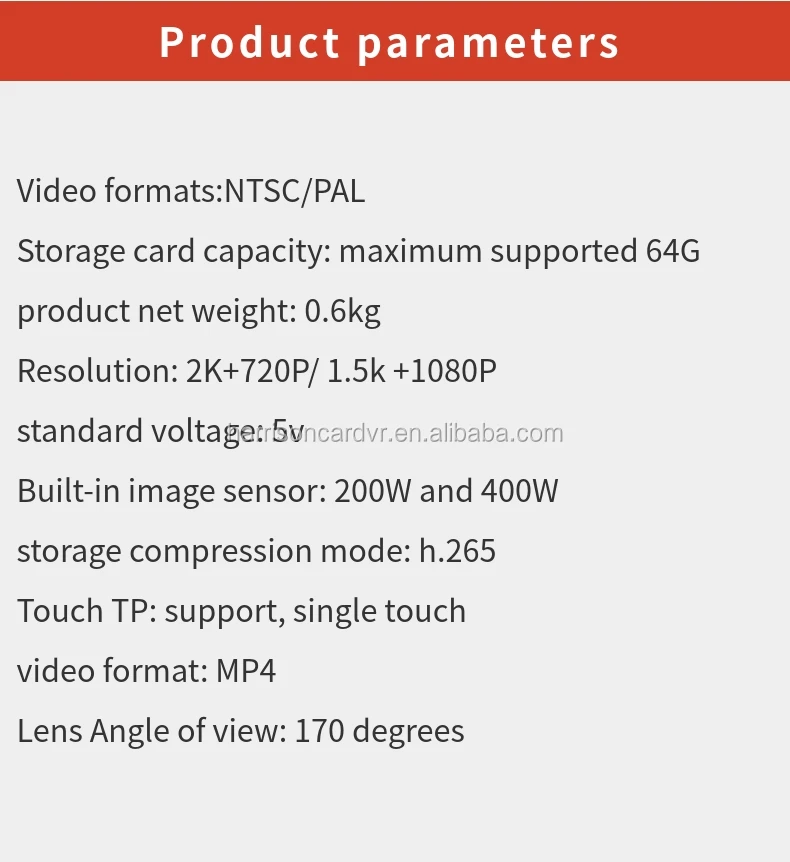

Front Sony 355+Back 2308Y
Storage compression mode
UP to 64G (do not include)
12. Time-lapse monitoring
In the recording or standby state, part 1. 3 in the middle of the screen slides into the setting interface or clicks the setting button to select the time-lapse monitoring function.The options are: "off", "1S", "2S", "3S".When selecting "off", when equipped with voltage drop line: disconnect ACC line and the machine will automatically shut down.Power off when car charger is supplied.Select "1S", "2S" and "3S" with voltage drop line: when the ACC machine is disconnected and the screen is off, it automatically enters into the time-shrinking recording state, recording at "1S one frame", "2S one frame" and "3S one frame" respectively.ACC on the power, machine on screen back out of shrink, start normal recording.When the car is charged, the machine shuts down automatically.
1.Can we get a lower price? Any Discount? ·Yes, price is not a problem, everything could be negotiated based on the quantity.
2.What is your MOQ?
·No MOQ for any sample test.We often have goods in stock
3.OEM/ODM Service is available? ·Yes, Harrison Industry have strong ability to offer customers ODM&OEM products of highest quality,but it will require the MOQ.
4.For Trade Terms, such as payment and leadtime. ·Payment Terms: We mainly support T/T bank transfer,Paypal ,Western Union Or pay online on alibaba. ·Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent. ·Leadtime: Sample order 4 working days; Bulk order 10-25 working days(after your payment)
5.How about the Warranty? ·There are 12 month warranty. ·While the warranty is not responsible for those broken by violence or updated with other brands.
