2019 Diesel sheet bore pile driver drilling machine

  • 1-4 Sets
    $25,500.00
  • 5-6 Sets
    $25,000.00
  • 7-9 Sets
    $24,800.00
  • >=10 Sets
    $24,500.00
Model Number:
HWL-600
Power:
85kw
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Piling Speed(m/min):
90s/per pile
Efficiency:
High
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Weight:
6T
Certification:
ISO,TUV
Dimension(L*W*H):
4200*2150*4600mm
Applicable Industries:
Construction works
UNIQUE SELLING POINT:
High operating efficiency
Name:
Hydraulic Solar Pile Driver Machine
Impact Rate:
400-800bpm
Engine power:
85kw
Rotation angle:
360
Driling Depth:
6M
hydraulic system pressure:
22Mpa
Operating Speed (m/min):
90s/per pile
Max torque:
11500N.m
Duplex gear pump rated pressure:
25MPa
Rotate speed:
25-30r/min
Product Certification certification
CE Certified.
Valid from 2019-03-06 until 2024-06-03

Packaging & Delivery

Selling Units:
Single item
Single package size:
420X215X250 cm
Single gross weight:
6500.0 kg
Package Type:
container for solar pile driver/construction hydraulic static pile drive
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 20 30 To be negotiated
Video Description

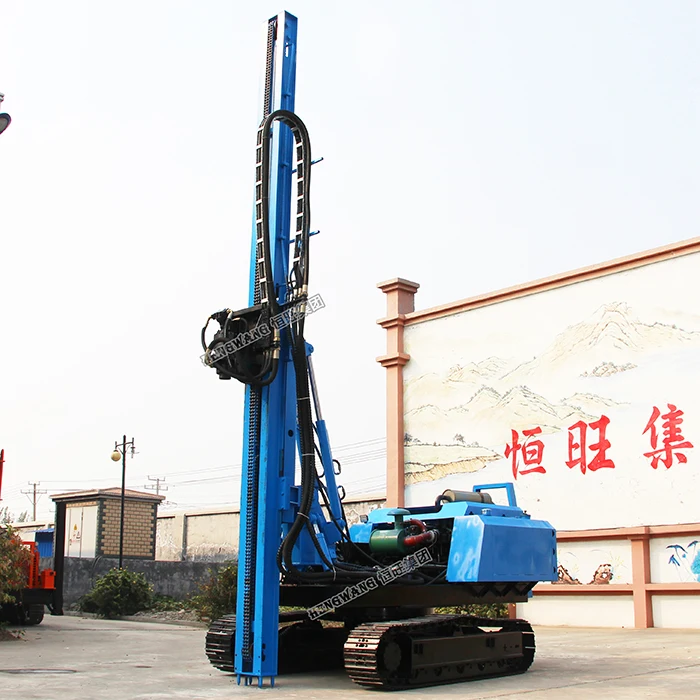

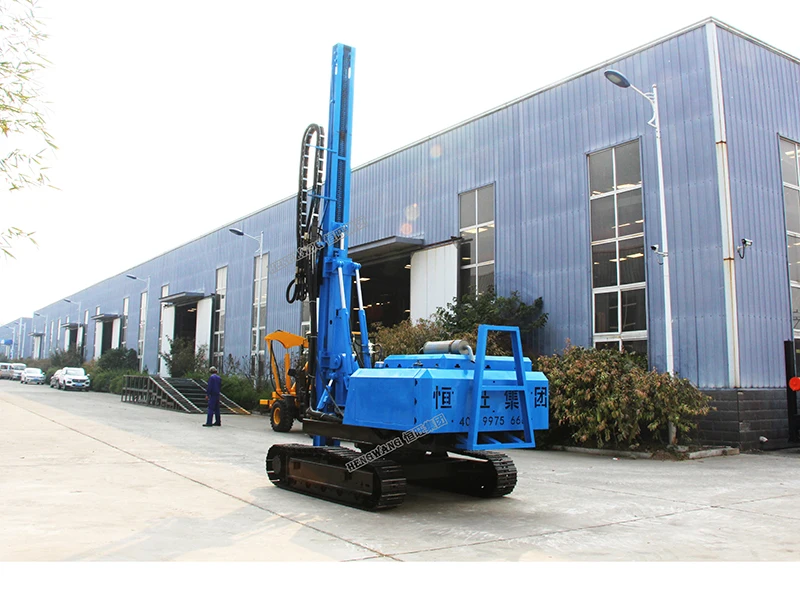

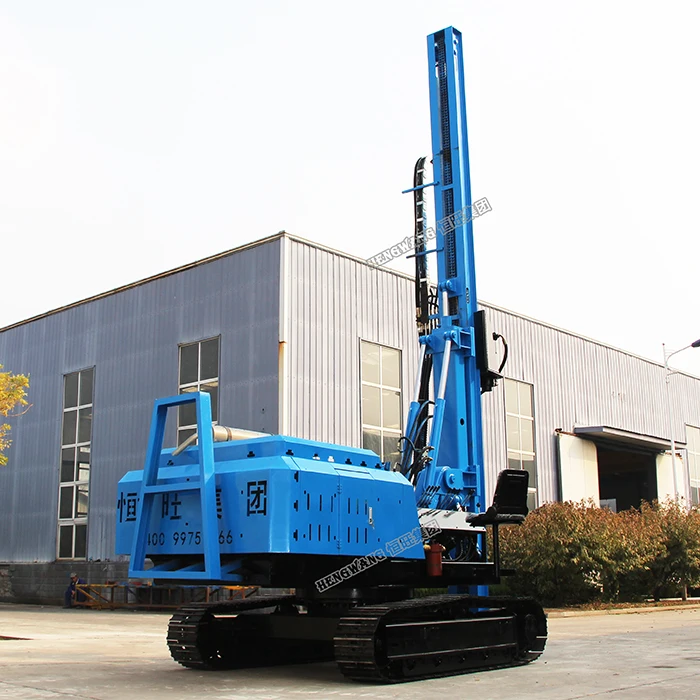

2019 Diesel sheet bore pile driver drilling machine



Product Description

 Pile driver speed,the average 1.5 minutes can realize piling 3 meters deep,namely a hole 1.5 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

Crawler walking,high walking and climbing ability The frame can be moved back and forth,bit can be adjusted , high piling position accuracy.



 Specification of pile driver

Technical Parameters

Model

HWZGX-600L

Remark

Hammer Model

750

weight :480KG

Impact Rate

400-800

BPM

Pile length

0-6000

mm

BOOM LENGTH

7

M

Press Pile Diameter

0-300

mm

Drilling Depth

0-6000

mm

Hydraulic system pressure

20

Mpa

Main valve flow

150

L/Min

Overall Machine weight

6.8

T

Diesel engine power

85

KW

Rated Speed

2400

R/min

Starting Voltage

24

V

Rotation angle

360

°

Effective press pile stroke

0-6000

mm

Dimension(LXWXH)

7600×2150×2800

mm


u (2)800170070067007003 7007002

IMG_7578

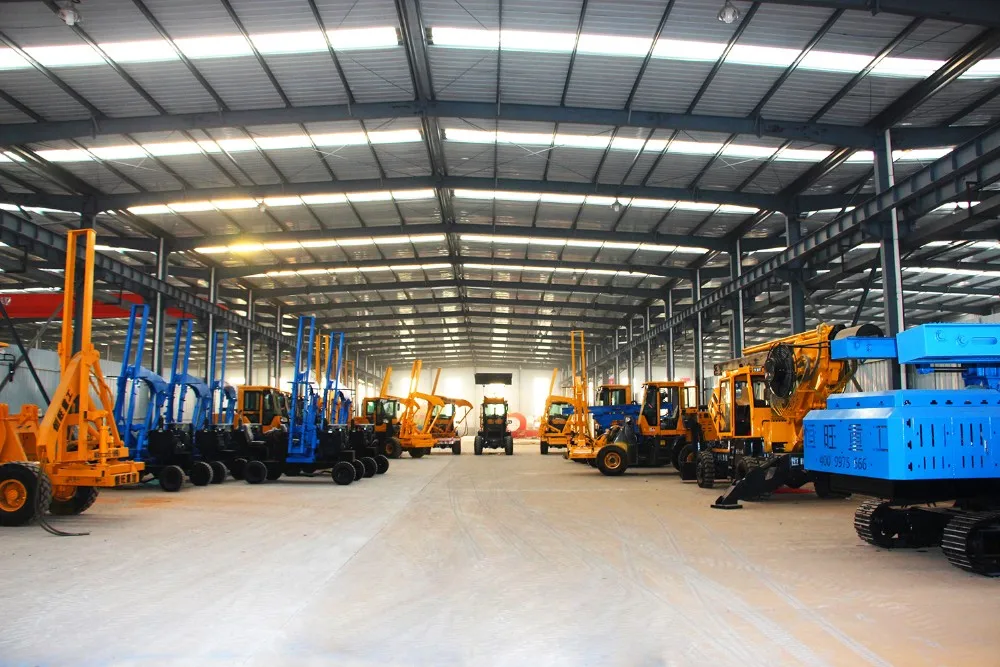

company introduction
