2019 New design bottle neck sleeve shrinking applicator of CE and ISO9001 standard

FOB Reference Price:Get Latest Price
$10,000.00 - $14,500.00 / Sets | 1 Set/Sets (Min. Order)
Power:
3.0KW
Model Number:
SLM-150B
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Packaging Type:
Bottles
Packaging Material:
Plastic
Type:
Labeling Machine
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Reliable
Dimension(L*W*H):
2100x1200x2000mm
Weight:
1000kg
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
2019 New design bottle neck sleeve shrinking applicator
Keyword:
high quality PVC sleeve machinery
Material:
S304 Stainless Steel
Labeling speed:
150 Bottles/min
Customized:
Acceptable
Labels:
PET PVC
Function:
Shrink sleeve labeling
Advantage:
Economy Labeling Machine
Bottle type:
Square/ Round
Control:
PLC + touch screen
Supply Ability
Supply Ability:
15 Set/Sets per Month for 2019 New design bottle neck sleeve shrinking applicator of C
Packaging & Delivery
Packaging Details
The normal packages is wooden box. If export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine. or according customer special request.
for 2019 New design bottle neck sleeve shrinking applicator of CE and ISO9001 standard
Port
Shanghai Port For pvc shrink labeling machine
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Product Description

2019 New design bottle neck sleeve shrinking applicator of CE and ISO9001 standard

Component:

Labeling main machine + Heat shrink tunnel + steam generator

Brief Description:

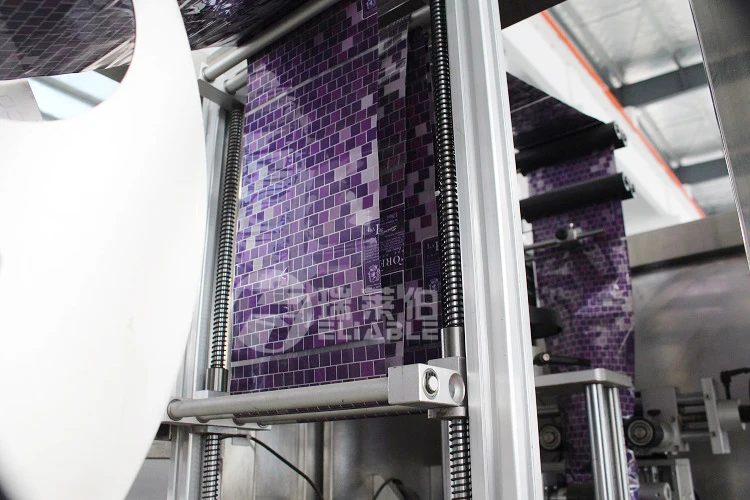

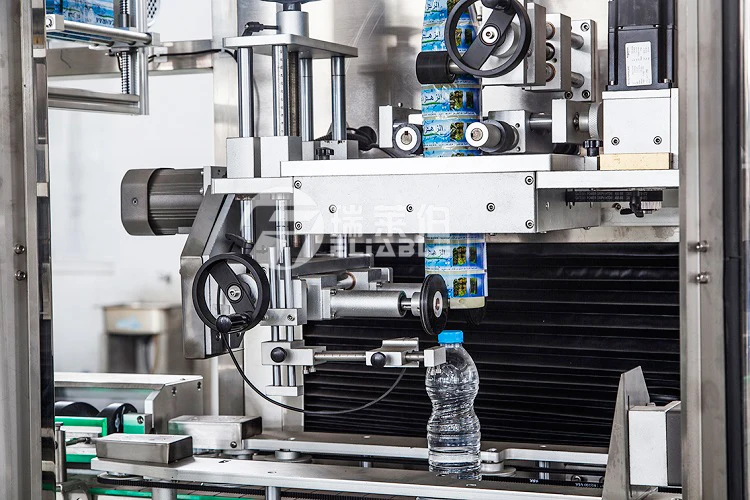

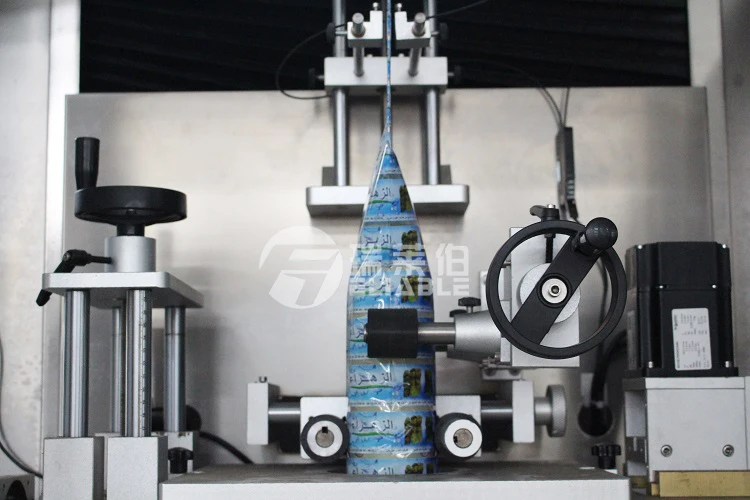

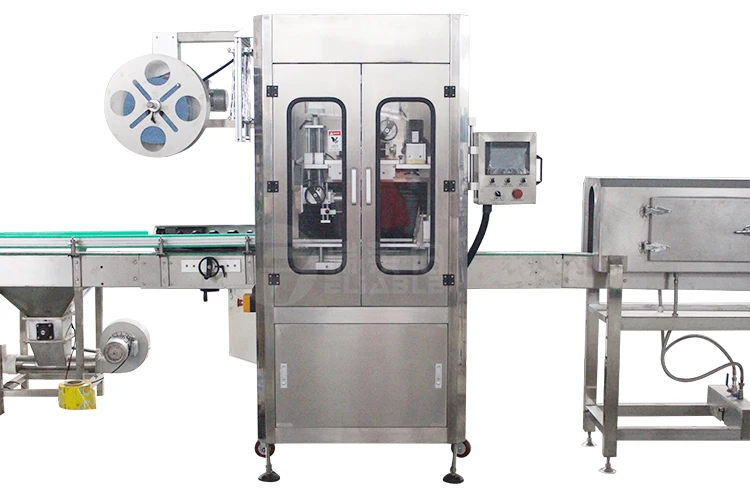

Labeling main machine:
This machine adopts international advanced technology, cover the circle label on the PET bottle/cans/jar, and then hot shrinking to fix on the position which bottle body designated.Roll-fed type sleeve label setting, central bottle locating system by bottle mold locating post.

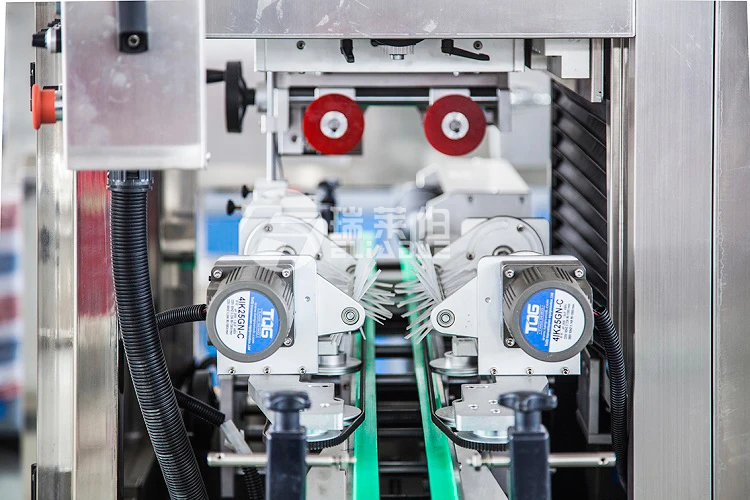

1) Electrical-eye checking system for label sensoring, label cutting, label shooting, and label brushing fixing unit.

2) Screwing convey type bottle inlet for stable bottle transport to the labeling unit, electrical-eye checking bottle sensoring system.

3) Saturated water steam shrinking tunnel, SS304 label shrinking tunnel, with automatic water boiler type steam generator.

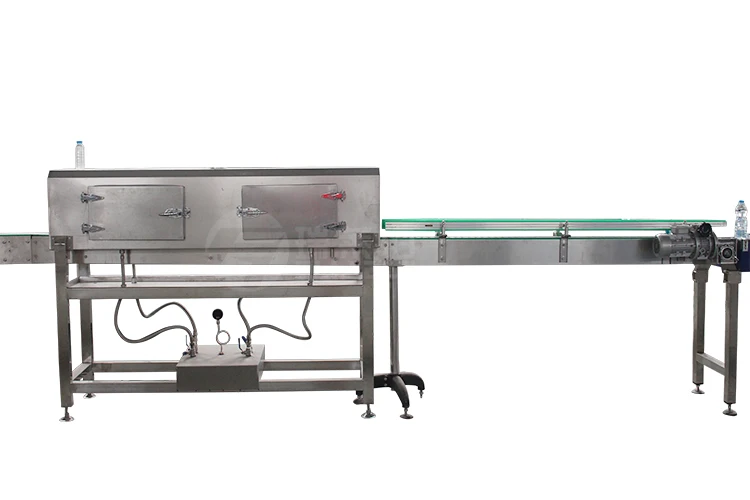

Steam Shrink Tunnel
Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles.It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth.The steam nozzle is divided to three adjustable segments; the height, position and steam output of each segment can be adjusted respectively; this guarantees a perfect shrinking effect.

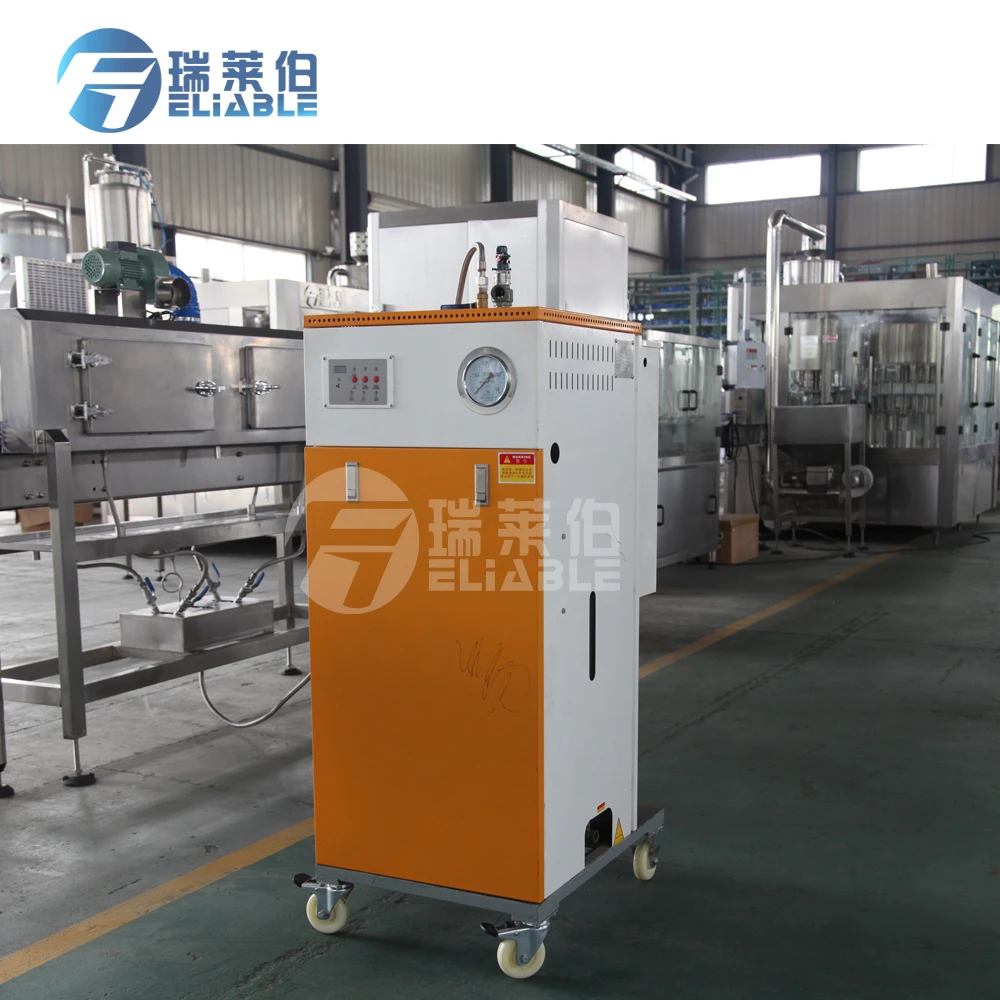

Steam Generator
The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service.A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.Working system is all automatically controlled.After connecting the water supply and power supple for 5 minutes or so,it can output the steam continuously with high working efficiency.

Technical Datas

2019 New design bottle neck sleeve shrinking applicator of CE and ISO9001 standard

Labeling main machine:

Model
SLM-150
Label length
35-250mm
Label thickness
0.035-0.08mm
Label material
PET, PP, PE, PVC, OPS, etc.
Production capacity
Max 12000BPH
Suitable bottle diameter
28-120mm
Suitable bottle height
150-320mm
Suitable bottle type
round type, elliptical type, square type, curve type
Power
220v, 50HZ
Overall size
2900x1200x2000mm(LxWxH)
Weight
1000kg

Steam Shrink Tunnel

Model
SLM-2000
Input Power Supply of Blower
AC220V 50/60Hz 1.1KW
Transporting Speed
0-35M/min
Working Pressure
≤0.1Mpa
Steam Consumption
10-20Kg/H
Weight
230kg
Overall size
2300x400x400mm(LxWxH)

Steam Shrink Tunnel

Model
SLM-150B
Input Power Supply of Blower
AC220V/380 18KW
Steam Pressure
0.25-0.4Mpa
Vapor Generation Value
48Kg/h
Weight
96kg
Overall size
600x550x1200mm(LxWxH)
Packing & Delivery
Packaging



Packaging Details


The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Free 2D & 3D Bottle Design
Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle
And three size of bottle fitting parts for free .


Free Layout Plant Design
Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you

Free Spare Parts
All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine's running .

Engineer Available Installation Service

Our engineer can go to your factory to install the machine, give you the operating manual and train your employee until they can operate the machine well.

Our Company

RELIABLE will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
Don't hesitate to contact us if you show interesting on our beverage production machine and our RELIABLE company.

ZHANGJIAGANG RELIABLE MACHINERY CO.,LTD
