2019 Servo Motor CNC punching machine

Feedback Ratings
US $45000.00 / Set | 1 Set (Min. Order)
Model Number:
ZA series cnc turret punching machine
US $45000.0
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Power Source:
Mechanical
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BESCO
Voltage:
220V/380V
Power(W):
10000W
Weight:
10 Ton
Dimension(L*W*H):
5500*3500*2300 mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training
Name:
CNC turret punching machine
Color:
customization
punch frequency:
160/240(double speed)hpm
Bed Structure:
C or O optional
process precision:
0.1 mm
mold station:
16/20/24/32
pressure:
0.55 mpa
Max thickness of workpiece:
6 mm
Max movement speed:
40m/min
self rotated mold:
2 ( C station) optional

Packaging & Delivery

Selling Units:
Single item
Single package size:
550X350X230 cm
Single gross weight:
10200.0 kg
Package Type:
Foreign trade standard packing for cnc turret punch press machine
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(day) 30 To be negotiated
Video Description
Product Description

Product Application


It can be applied to punching,drawing and other shapes of holes in sheet metal.It is suitable for process of batch or sample,reducing mold investment and reducing product cost.It is mainly used in various large and low-level switch furniture ,kitchenware,advertising industry.

SPECIFICATIONS FOR cnc turret punch press machine
Name
Unit
Specification Parameter
Nominal Force
kn
300
range of one time processing
mm
1250*2500
Max movement speed
mm/min
40
Max thickness of workpiece
mm
6
mold station
set
16/20/24/32
self rotated mold
set
2 ( C station) optional
process precision
mm
0.1
punch frequency
hpm
160/240 (double speed)
Bed Structure
C or O optional
Air pressure
mpa
0.55
Machine power
kw
10
Machine weight
ton
10
Dimension
mm
5500*3500*2300
the mold distribution list of the different stations
Size of mold
16 station
20 station
24 station
32 station
A
¢1.5-¢12.7
8 pcs
8 pcs
8 pcs
16 pcs
B
¢12.7-¢31.8
4 pcs
8 pcs
12 pcs
12 pcs
C
¢31.8-¢50.8
2 pcs
2 pcs
2 pcs
2 pcs
D
¢50.8-¢88.9
2 pcs
2 pcs
2 pcs
2 pcs

cnc turret punch press machine Main Features

1, standard thick turret, using international 85 series mold, long-oriented, versatility, high stability, marketing and determination;
2, C-open type bed or O-type closed bed, good rigidity, small deformation, stable feeding support;
3, CNC punching special system, WINDOWS operation interface, pure Chinese tips, easy to learn, easy to operate;
4, bed rail design span, horizontal, good support, to ensure processing accuracy, high-speed feeding stable;
5, The software adds automatic search for the position of the clamp without manual intervention, and the accuracy is high.

Certifications
Detailed Images

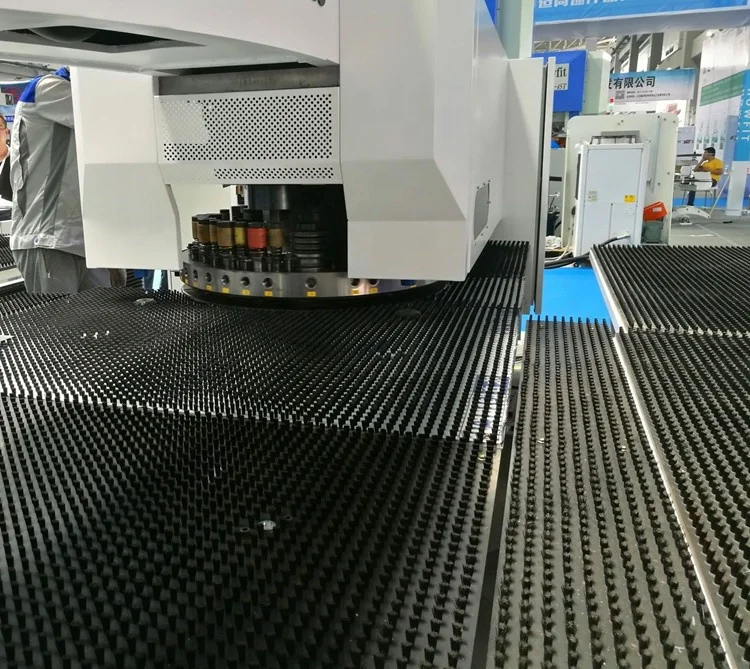

Turret
Standard thick turret, using international 85 series mold, long-oriented, versatility, high stability, marketing and determination.

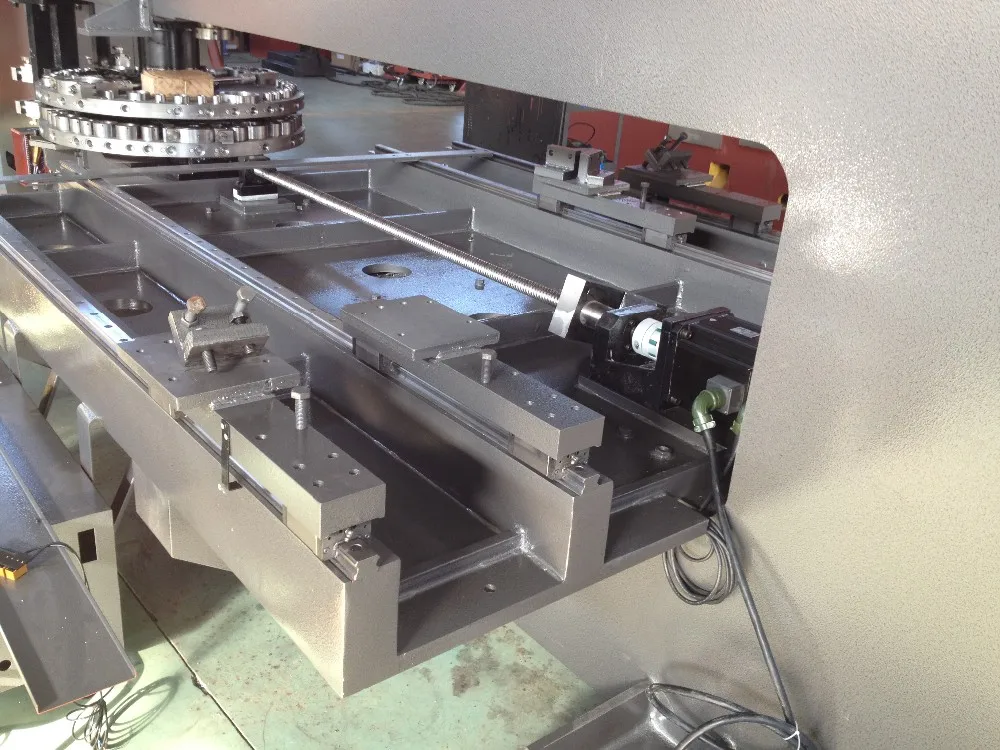

CNC machine automatic feeder


Bed rail design span, horizontal, good support, to ensure processing accuracy, high-speed feeding stable.

Mold

Made in BESCO.2019 Servo Motor CNC punching machine2019 Servo Motor CNC punching machine2019 Servo Motor CNC punching machine

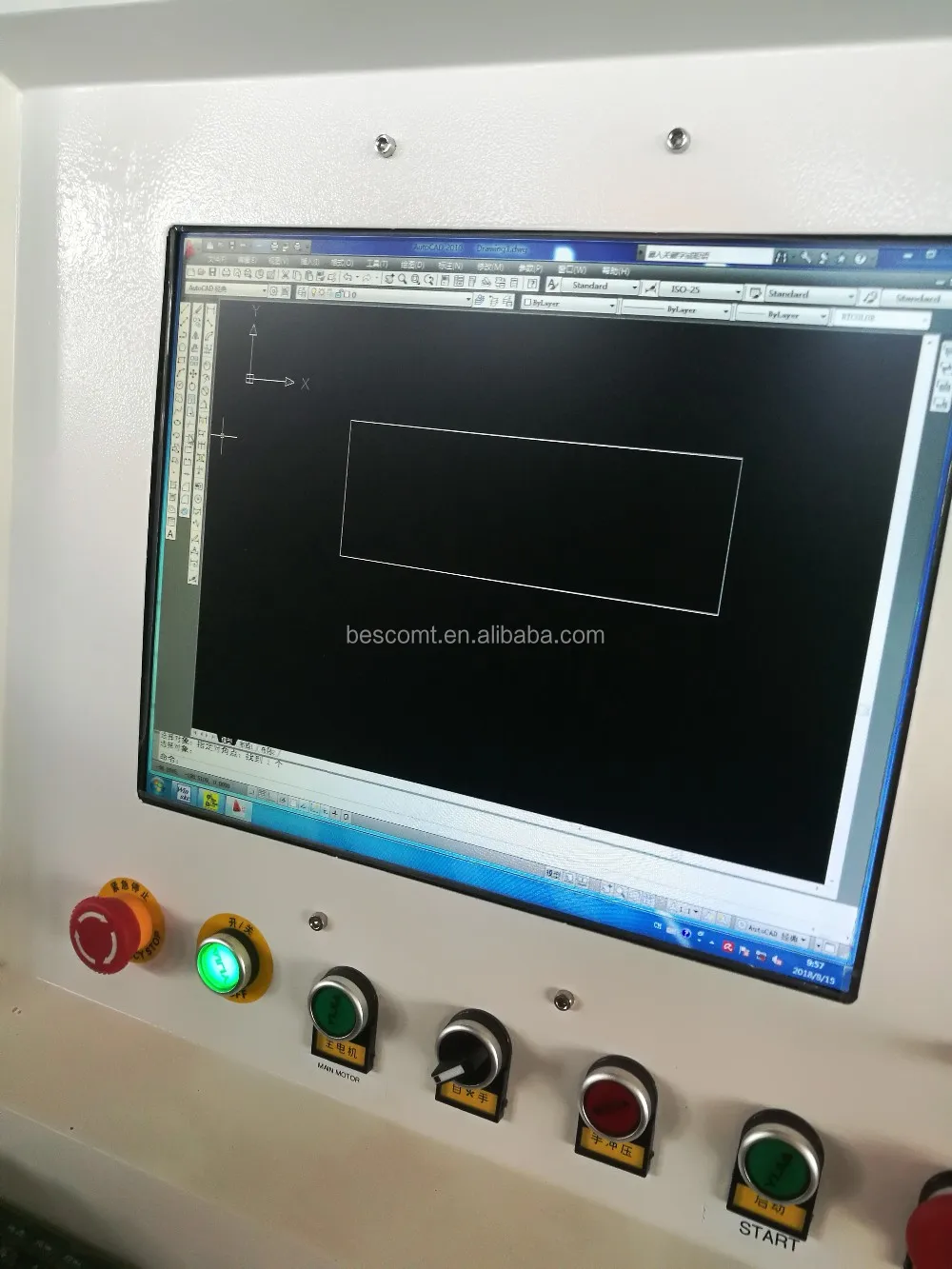

CNC punching special syste

CNC punching special system, WINDOWS operation interface, pure Chinese tips, easy to learn, easy to operate;


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5500*3500*2300mm
Weight
10.2 T



Packaging Details
The normal package is wooden box.
Related Products

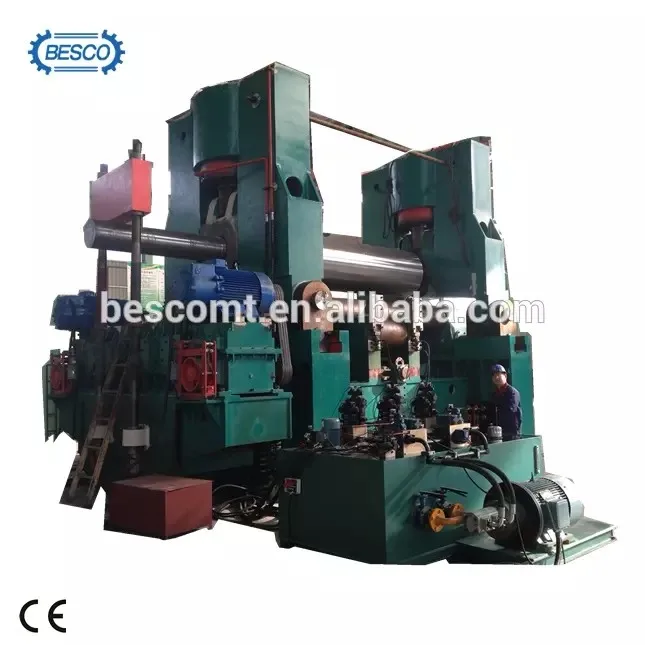

roller bending machine

91.8% Response Rate

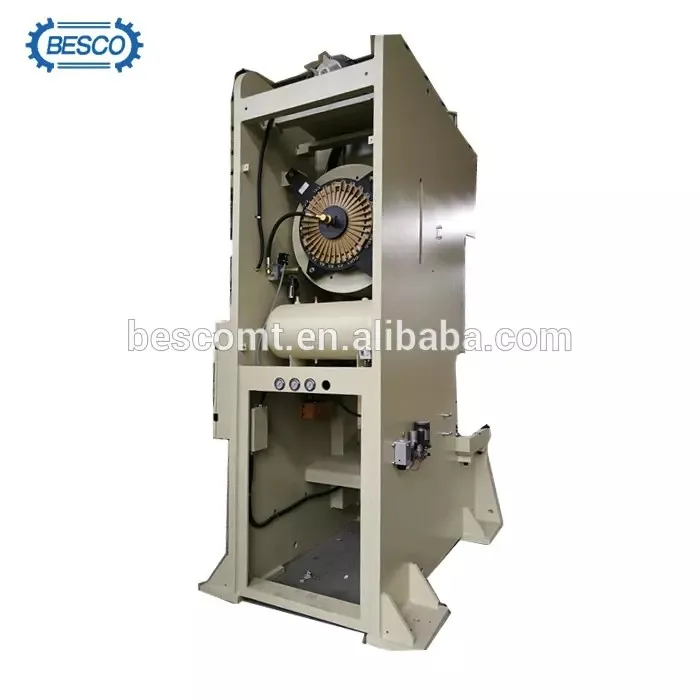

hydraulic press
