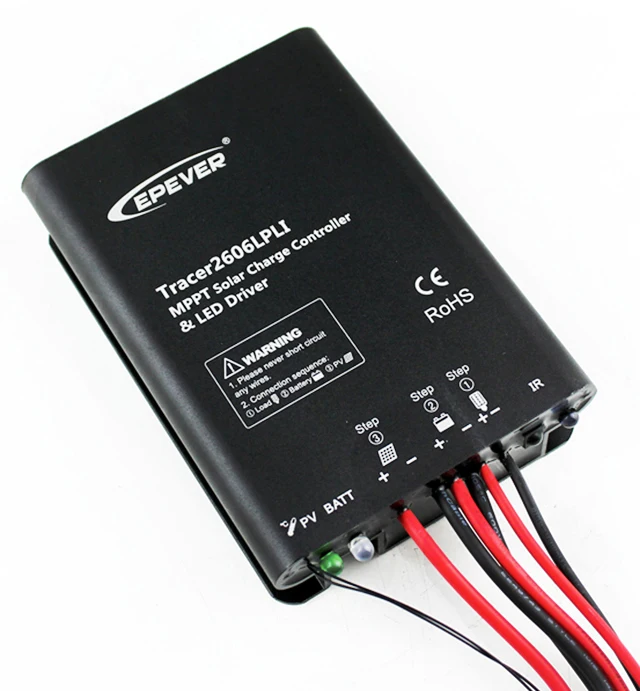

2019 new Tracer 2606LPLI built-in LED driver IP68 MPPT solar street light controller 12V24V 10A

  • 5-99 Pieces
    $25.43
  • 100-499 Pieces
    $23.18
  • >=500 Pieces
    $22.88
Rated Voltage:
12V 24V 12V/24V auto
Maximum Current:
10A
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples: $26.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $26.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUNS
Model Number:
Tracer 2606LPLI-1
Application:
Charger Controller, Voltage Controller, Lighting Controller, Solar System Controller, Solar Working Station
Type:
MPPT
Work Time (h):
50000
Max PV Voltage:
58V(Min.Temp.) 46V(25℃)
Max PV Power:
130W/12V; 260W/24V
Product name:
solar street light controller
Charge mode:
10A MPPT technology
System voltage:
12V/24V auto
Temperature compensation::
temperature compensation
Protection::
electronic protection
Battery setting::
battery type selection
Communications::
IR communication
Guarantee::
2 years
Enclosure:
IP68(1.5m,72h)
Certificate::
CE,RoHS,ISO9001

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X10.5X5.5 cm
Single gross weight:
0.56 kg
Package Type:
CTN:36*35*24cm Weight: 14.1kg 24pcs/CTN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 6 - 100 101 - 500 >500
Est. Time(days) 2 5 10 To be negotiated

Tracer1305LPLI/ Tracer2606LPLI/ Tracer3906LPLI/ Tracer5206LPLI

The Tracer LPLI series MPPT solar charge controller combines solar charge controller and LED constant current driver into one unit which is ideal for solar LED Lighting, especially when dimmer function is needed. The advanced Maximum Power Point Tracking charging methods enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost. The features are listed below.

2606LPLI-1

Features:

• Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99.5%
• Maximum conversion efficiency of 98%
• Accurately recognizing and tracking of multiple power points
• Ultra-fast tracking speed and guaranteed tracking efficiency
• Apply to lead-acid battery and lithium battery
• Lithium battery self-activating function
• Lithium battery low temperature protection function
• Lithium battery limit current in low temperature
• Load reduce power automatically
• Aluminum housing for better cooling
• Real-time energy statistics function

• Wide working environment temperature(-40℃~60℃)
• IP68 waterproof degree
2606LPLI-2

Electronic protections:

•PV Reverse Polarity                 • Battery Reverse Polarity                  • Battery Over Voltage

•Battery Over Discharge            • Battery Overheating

•Lithium battery Low Temperature(Default 35℃)

• Lithium battery limit current in low temperature



Specifications:

Item

Tracer1305LPLI

Tracer2606LPLI

Tracer3906LPLI

Tracer5206LPLI

Nominal system voltage

12VDC

12/24VDC

Battery input voltage range

8.5~16VDC

8.5~32VDC

Rated charge current

10A/12V

10A

15A

20A

Rated charge power

130W/12V

130W/12V;260W/24V

195W/12V;390W/24V

260W/12V;520W/24V

Max. PV open circuit voltage

48V(Min. Temp.)

58V(at minimum operating environment temperature)

45V(25℃)

46V(at 25℃ environment temperature)

MPP Voltage range

( Battery voltage+2V)~36V

Max. output current

3.3A

3.3A

4.5A

6.6A

Max. output power

100W

100W

130W

200W

Output voltage range

( Max. battery voltage+2V)~46V

( Max. battery voltage+2V)~58V

Load open circuit voltage

46V

58V

Load over voltage protection

50V

63V

Maximum output efficiency

96%

Output current control accuracy

≤2%

Battery Type

Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery:LiFePO4/Li-NiCoMn/User

Lead-acid

Equalization Voltage

Sealed:14.6V; Flooded:14.8V;User:9-17V (24Vsystem×2)

Boost Voltage

Sealed:14.4V;Gel:14.2V;Flooded:14.6V;User:9-17V(24Vsystem×2)

Float Voltage

Sealed/Gel/Flooded:13.8V;User:9-17V(24Vsystem×2)

Low Voltage

Sealed/Gel/Flooded:12.6V;User:9-17V(24Vsystem×2)

Reconnect Voltage

Low Voltage Disconnect Voltage

Sealed/Gel/Flooded:11.1V;User:9-17V(24Vsystem×2)

Lithium

Boost Charging Voltage

LiFePO4(4s):14.5V/Li-NiCoMn(3s):12.5V/User:9-17V(24Vsystem×2)

Low Voltage Reconnect Voltage

LiFePO4(4s):12.8V/Li-NiCoMn(3s):10.5V/User:9-17V(24Vsystem×2)

Low Voltage

The controller has the limit charge current function, the current can be set via the APP software and RC10.

Disconnect      Voltage

Self-consumption

≤15mA/12V;≤22mA/24V

Communication

IR communication

Working environment Tem.

-40℃~+60℃

Enclosure

IP68(1.5m,72h)

Overall dimension(mm)

124×89×30

150×93.5×32.7

153×105×52.1

Mounting hole size

Φ3.5mm

Mounting dimension

88×76mm

120×83mm

120×94mm

Power cable

PV/BAT:14AWG(2.5mm2)

PV/BAT:12AWG(4mm2) LOAD:16AWG(1.5mm2)

LOAD:18AWG(1.0mm2)

Net weight

0.52kg

0.52kg

0.71kg

1.18kg
