2020 china best clay red brick tunnel kiln clay brick kiln for CLAY brick fire kiln

FOB Reference Price:Get Latest Price
$1,500.00 - $760,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
TK
Power:
45+90 kw
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, No service, Online support, Field maintenance and repair service
Local Service Location:
Saudi Arabia, South Korea, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan
Showroom Location:
South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Australia
Condition:
New
Type:
clay brick factory
Brick Raw Material:
Clay
Processing:
Brick Production Line
Method:
Vacuum Extruder
Automatic:
Yes
Place of Origin:
Shaanxi, China
Brand Name:
baoshen
Voltage:
380v
Dimension(L*W*H):
5600x2300x2500mm
Certification:
ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High Safety Level
Body of extruder:
steel
Guarantee:
1 year
Plasticity index of raw material:
7-15
Moisture water content:
Moisture water content
Drying linear shrinkage rate(%):
3-8
Loss on ignition(%):
3-15
Coefficient of drying sensitivity:
<2
services:
Before-sale services,In-Sale services,After-sale services
Equipments:
brick making mchine,dryer/ kiln,tunnel kiln
Max. Capacity:
10,000~30,000 pieces/h
Supply Ability
Supply Ability:
6 Set/Sets per Month
Packaging & Delivery
Packaging Details
container
Port
shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

                                                            best CLAY RED BRICK TUNNAL KILN

    automatic clay brickTunnel kiln is computer-controlled, continuously operating kilns. Pushers move the train of cars non-stop at the predetermined rate. This method is ideal for all ceramics industries which require high volume production or the continuous production process. Computer technology allows kiln car move through the kiln to be controlled for changes in firing curves and firing temperatures. This increases the product recovery and minimizes production disruptions. Automation controls can be programmed to make firing changes for different product.

.

Tunnel Kiln is completely controlled by computer, include the car moving speed, firing temperature, etc. Through the control of all details, we can make sure the firing quality. Also it can reduce the labor cost.The brick setting on Kiln car can be 14 layers high which increase the loading capacity. Compared with Hoffman kiln, is also occupy less land.
Tunnel kiln is very burning efficient, which not only save fuel cost, but also product less pollution. So, tunnel kiln is also environment friendly solution.The well-control of temperature makes sure of the high and suitable firing temperature, which can produce good looking as well as high strength bricks.





Production capacity of Tunnel kiln. The production capacity is determined by the width of tunnel kiln.



Tunnel kiln

capacity

Equipment of kiln

Production days in a year

2.5meters width)

15~20 million pcs annual

kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days

3.3meters width)

20~25 million pcs annual

kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days

3.4 meters width

20~28 million pcs annual

kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days

4 meters width

25~30 million pcs annual

kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days

4.6 meters width

25~38 million pcs annual

kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days

6.9 meters width

35~40 million pcs annual

Kiln cart, hydraulic ferry pusher, blower, loading machine, etc

330 days



The features of tunnel kiln as following:
1. Operating temperature up to 1000 to 1280. Fast firing and according to various types and shapes of work pieces.
2. Fully automatic temperature control provides economic fuel consumption.
3. The tunnel kiln is equipped with high efficiency burner and fuels can be fired completely without any air pollution.
4. The quality of firing products is very stable thus reducing unacceptable finished products.







Details of brick production line:



1. Clay is loaded into box feeder. Belt conveyor which is under box feeder carries clay to primary roller crusher. The size of clay is 5 mm after crushing.



2. Clay is crushed one more time by finess crusher to 3mm. It is then transported by belt conveyor to mixer where water is added into clay.



3. Clay entered into extrusion mixer where it is mixer and extruded to enhance the plasticity to make good brick. The brick machine extruded the solid and smooth mud strip





4. Mud strip is cut into green bricks with required size by column cutter and green brick cutter.



5. Green bricks are transported to dryer. The water content after drying will be below 6%.



6. Dried bricks are moved to kiln, where bricks are fired at around 900°C. Finished bricks will be produced after firing.





Welcome your cooperation in any form.





Best clay brick production line

  Baoshen brick machine for design and build best brick tunnel kiln for clay brick production line,clay brick production line

      Technology  Time

Raw material procedure

Forming procedure

Drying procedure

Burning procedure

Annual working hour

2400

2400

7200

7200

Annual working day

300

300

300

300

Daily working hour

8

8

24

24

      Baoshen Brick machine in one build supply design and build best brick tunnel kiln clay brick production line including:

Brick making machinery

No.

Machinery

Model

Power   (KW)

Qty.

Unit

1

Box feeder

XGD80×450

7.5*

1

set

2

Belt conveyor

DS 60×10m

4

1

set

3

Primary roll crusher

SGP70×50

15*×2

1

set

4

Belt conveyor

DS 60×10m

4

1

set

5

Double shaft mixer

SJ360×36B

55

1

set

6

Belt conveyor

DS 60×10m

4

1

set

7

High speed roll crusher

GS80×60B

22*×2

1

set

8

Belt conveyor

DS 60×16m

5.5

1

set

9

Double stage de-airing extruder

JKB50/50C-32

55*+132*

1

set

10

Vacuum pump

MH-2/150

7.5

1

set

11

Air compressor

VW-0.3/10

3

2

set

12

Auto brick cutting system

ZTP-E

7.5

1

set

13

Belt conveyor (waste brick return to mixer)

DS 60×16m

5.5

1

set

14

Control panels

1

set

Total amount

241.5

17



clay brick making process

   Large capacity brick machine for brick making process in supply to build  and design best brick tunnel kiln for clay brick production line,including many different clay brick machinery.

1.taking clay with box feeder ,belt conveyor  carry clay to roller crusher to crush under 5 mm.



2.crushing clay under 5 mm, belt conveyor carry clay to double shaft mixer to mix clay.and then use fineness roller crusher to crush clay under 3 mm.



3.after fineness roller crusher,the clay is under 3 mm. belt conveyor  carry clay to extrusion mixer to mix again,which to enhance the plasticity to make good brick.and then extruding wet column brick with High pressure extruder brick machine



4.after extruding wet column brick,cutting column brick under 1.0-1.5 m,use the fully automatic brick cutter to cut piece brick.with different capacity.



5.after cutting bricks,manual stacking wet bricks on to dryer car, The dryer cart is sent to the inlet of drying chamber by ferry cart.

6. Dry the unfired brick in small tunnel dryer and the heat source comes from the residual heat of tunnel kiln.

7. After drying in small tunnel drying chamber, the unfired bricks are unloading to belt conveyor,and then manual stacking dried bricks from belt conveyor to tunnel kiln car.

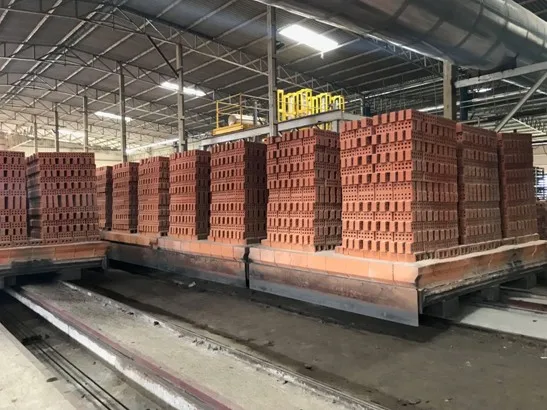

8. pulling kiln cars on the rail way to tunnel kiln,ferry pusher car push the kiln car into tunnel kiln.



9.firing 24-30 hours,pushing one kiln car half hour, the tunnel kiln work circulate ,getting finished bricks half hour,due to your capacity.



10. after firing well,automatic unloading finished bricks from tunnel kiln car to the finished bricks yard.



Design and build best brick tunnel kiln for Clay brick production line

Burning

1)The burning adopts tunnel kiln. After drying in small tunnel drying chamber, the unfired bricks are sent onto tunnel kiln car by the belt conveyor, workers stack the bricks into the tunnel kiln car for burning. The burning adopts coal combustion sintering method. The correspondent fume extraction system, cooling system, temperature & pressure measurement system and control regulating system are arranged in tunnel kiln for preheating, burning and cooling to guarantee the work performance of tunnel kiln for clay brick factory.

Design and build best brick tunnel kiln for clay brick production line layout
