204K easy load type hose squeeze pump OEM popular model accept all payment

FOB Reference Price:Get Latest Price
$30.00 - $100.00 / Units | 1 Unit/Units (Min. Order)
Horsepower:
Various flow rate for option
Maximum Flow Rate:
Various flow rate for option
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
hose squeeze pump
Model Number:
hose squeeze pump
Structure:
hose squeeze pump
Usage:
pump liquid
Application:
Pump liquid
Power:
Electric
Pressure:
High pressure and low pressure
Standard or Nonstandard:
Standard
Theory:
hose squeeze pump
hose squeeze pump:
650ml/min flow rate
OEM:
hose squeeze pump
Color:
3 kinds of color
Voltage:
6-36V DC or 220V and 380V AC
Motor speed:
max. 300RPM
Sample Time:
within 7 days-hose squeeze pump
Standard:
GMP and FDA
ITEM:
ZDCY0008
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Sample: standard packing with bubble sheet or foam to avoid break.
Lot: each box packing and standard packing with bubble sheet or foam to avoid break.
Port
SHANGHAI

Product Name:    204K easy load type hose squeeze pump OEM popular model accept all payment


204K Easy Load Type Pump ≤650mL/min

204K is a high-performance OEM peristaltic pump,applicable to home appliances,food machinery,chemical machinery,pharmaceutical machinery,electronic equipment,analytical instruments and feeding equipment.To compare with normal type,it has high-precision,low noise,long life and high voltage advantages.Beautiful appearance,easy to load the pump head,can meet your requirements under a variety of harsh conditions.



Application
Transport Detergent:Washing Machines,DishwashersAnalytical Instruments:Analytical Instruments Injection
Printing Equipment:Delivery InkFood Machinery:Beverage Machine
Warewashing Equipment:Warewashing EquipmentLaundry Equipment:Laundry Equipment t



Features

Max Flow Rate up to 650ml/min
Max Inside Diameter(ID) up to 6.4mm
Pump Cover Easy to Load,easy to Replacement the Hose
Can equipped with fixed speed DC gear motor,DC planetary geared motor,AC synchronous motor and stepper motor(Speed adjustable).The stepper motor meet the demand for motor long life and low noise running.
Pump cover in two colors(Blue and white transparent , no request delivery in random)

Crust Material:PC,PA66
Roller:Nylon+MoS2

Selection

Gap using,no requirements for flow accuracy,strict cost control,please use the DC gear motors and synchronous motors.For requires precise control flow,high motor life requirements,suggested to use stepper motor.
Continuous long-term operation please use in low speed(160r).

Specification 204K Easy Load Type Pump

Item

204K/ZLX(DC motor)

204K/ZL(DC motor)

204K/BT(stepper motor)

204K/TB(AC motor)

Speed

150,300r

50r,120r,160r

0.1~300r

5,10,30,60,100r

Hose

Can fit for hube with 1.6mm or 2.4mm thickness,inner diameter 3.2mm,4.8mm and 6.4mm
25#,17#,15#,24#

Flow

≤650ml/min

75~415ml/min6~650ml/min5~260ml/min

Roller

2 Rollers with 2 guide wheels

Power

6-16W

6-16W

25-50W

14W
MotorDC planetary gear motorDC gear motor57 Stepper Motor(Must equipped with stepper drive before running,standard no drive)AC synchronous motor(Constant speed)
Drive

Can equipped with DC speed control plate to fine-tune speed

Drive motor in optional,include Type A(Inner-velometer) and Type B(External-velometer)No need to drive,power to run

Voltage

12V,24V

6~36V

220V50HZ(110V60HZ in optional)
Weight0.8kg0.8kg1.0kg0.8kg
Flow for 204K Easy Load Type Pump ml/min(Media:Water)
Motor TypeDC planetary motorDC motorStepper Motor

Synchronous Motor

Motor Speed150--300501201600-3005103060100
16#(3.2×1.6)109--2203897.51300-2203.757.5224575
25#(4.8×1.6)210--425681802450-4256.7513.540.581135
17#(6.4×1.6)325--6501102503350-650

10.5

2163126210

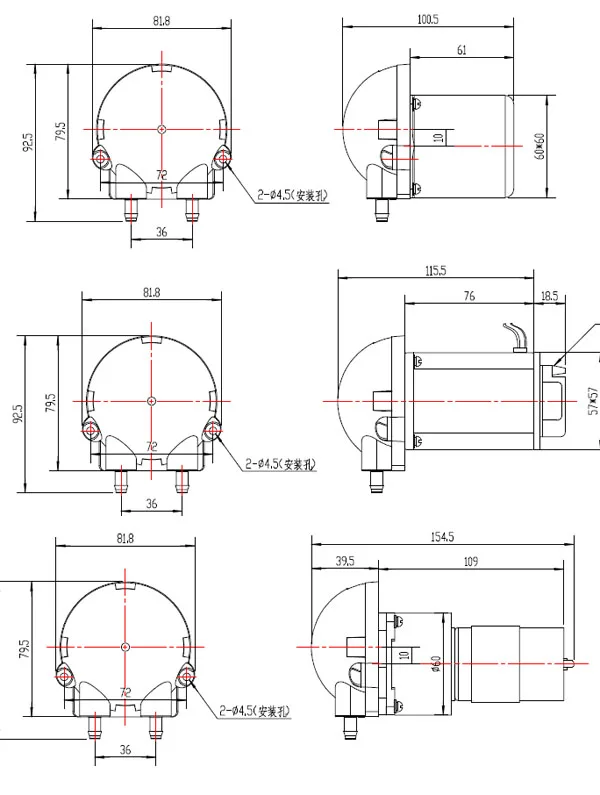

 Demension
