20kW Vertical Axis Wind Turbine Alternator Generator Wind Turbine20kW

  • 1 - 9 Pieces
    $29,400.00
  • 10 - 19 Pieces
    $28,900.00
  • >=20 Pieces
    $28,800.00
Type:
Wind Power Generator
Rated Power:
19.8kW
Lead Time:
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 30 60 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Golen
Model Number:
LWC-20KG
Application:
Wind Hybrid System
Generator type:
3 Phase AC Permanent-magnet
Rated power:
19.8kW
Certificate:
NK
Color:
Customer's Requirements
Rated Voltage:
Request
Rated wind speed:
10m/s
Material:
GFPR
Warranty:
3 Years
Start-up wind speed:
3 M/S
Supply Ability
Supply Ability:
30 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard packaging
Port
Port Of Shanghai
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 30 60 90 To be negotiated
Video Description

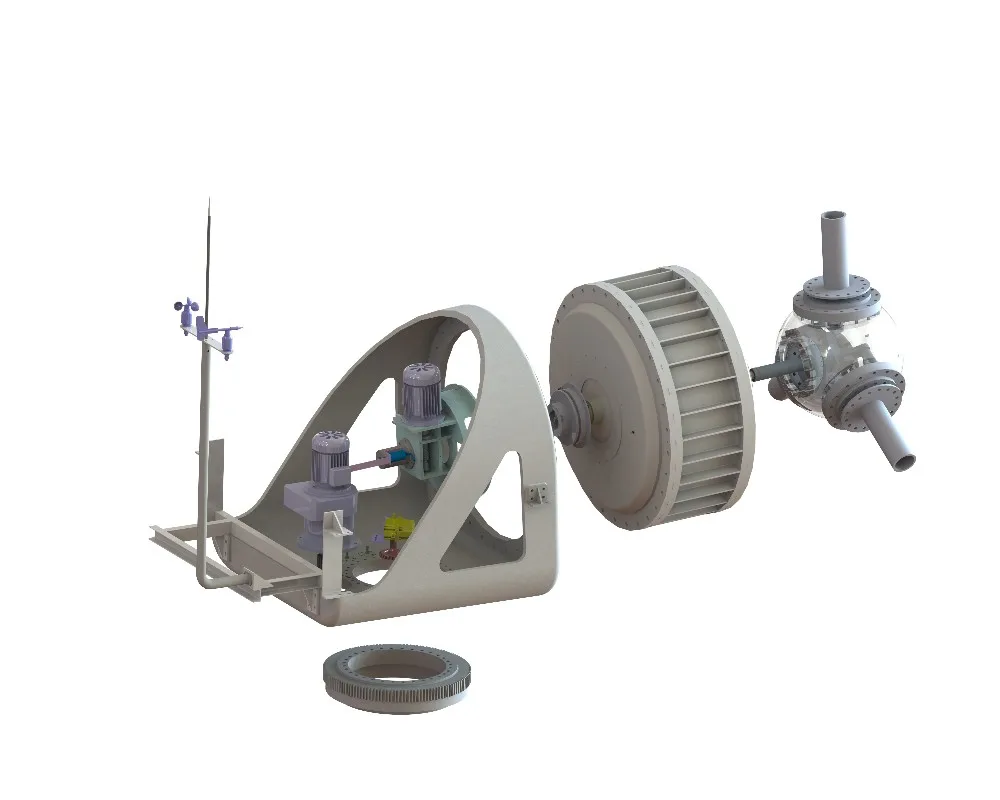

Product Introduction

Product Introduction:

Generator
The generator adopts rare earth permanent magnet direct drive type machine

Active blade pitch control
The pitching mechanism adopts three-blade synchronous torque, and the control speed is operated in the working range to increase the annual power generation.

Yaw control
The wind drive mechanism adopts automatic tracking wind vane control.

Braking System
Pitch control → yaw control → electric disk brake.

Paddle
The blade adopts variable-section airfoil and is made of FRP composite resin material with high efficiency, long service life, installation angle and output power adjustable.

Tower pole
The tower is conical, multi-section design, high strength and easy to transport. The surface is hot-dip galvanized to enhance the corrosion.

Independent remote monitoring system
Through the Internet, the on-site fan operation data is transmitted to the domestic data background in real time.

Product Parameters
Name
Specification
Axis mode
The horizontal axis
System connection form
System interconnection type
Operating temperature range
-30 ~ +50℃
Relative humidity
4 ~ 95%RH
Rotary engine direction (downwind or headwind)
Downwind
Impeller rotation direction (clockwise / counterclockwise)
Clockwise
Number of blades
3 pieces
Blade material
GFRP
Blade material
6.38m
Diameter of impeller
13.35m
Impeller wind receiving area
140㎡
Tower height
20m
Starting wind speed
3m/s
Cut out the wind speed
20m/s
Safe wind speed
50m/s
Rated wind speed
10m/s
Number of revolutions
0 ~ 90
Rated number of revolutions
90r/min
Maximum number of revolutions
120r/min
Generator type
Permanent magnet synchronous generator
Fan rated output (wind speed 10 m / s)
19.8kW
Control device type
GZ20-C
Control device software
PG-GW04-001-1.0
Output control method
Active pitch control
Yaw control method
Active yaw control
Mechanical protection
Active pitch control
Active yaw control
Main shaft brake
Automatic stop means
Active pitch control
Active yaw control
Main shaft brake
Standard annual power generation (annual average wind speed of 7 m / s)
88,476kW/h
Noise level
≤ 50dbA
Service life
20 years

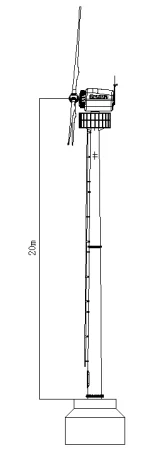

Product size

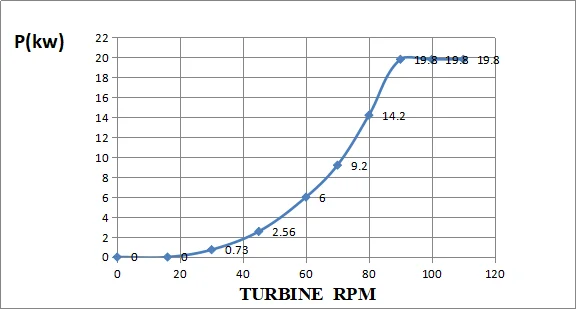

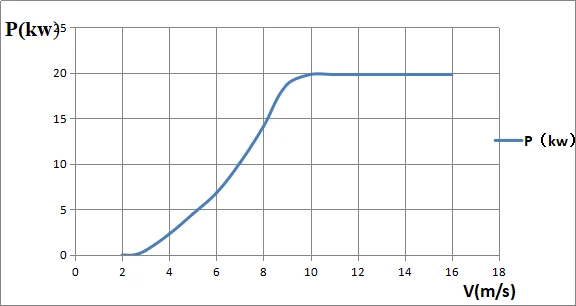

Power curve
Why Choose Us
Product Processing
Contact us
FAQ

1. What is your company's leading product?
20kW wind turbine is our company's leading product.

2. What is your main overseas market?
Our main overseas markets is Japan.

3. Does 20kw wind turbine installtion easy ?
Yes,every customer can installtion by themselves, we will supply all the components for installtion and very detials installtion manual.

4. Does our wnd is enough for a 20kw wind turbine?
As our wind generator can start running at low wind speed 3m/s. so your average annal wind speed is more thant 5m/s then you can use it .

5. Wich model 20kw wind turbine is suitable for me?
For batter to help you start our business cooperation please contact our sales.

6. Do you have experience of OEM contract produce?
Certainly,OEM product is welcomed.

7. How long is the warranty period for your products??
Our product's warranty are two years, can extent to 3-5 years.

8. How do you guarantee product quality??
All products have to pass strict inspection before shipping it out.
