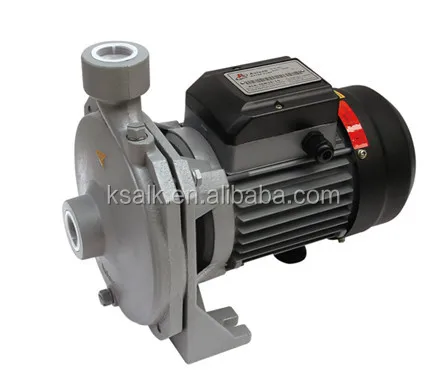

20m head lift water centrifugal pump /high pressure hot water pump

FOB Reference Price:Get Latest Price
US $10-300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Aulank pump
Model Number:
ISW pump
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Diesel
Pressure:
Low Pressure
Application:
circulation
Type:
ISW25-05 water centrifugal pump
Flange Diameter:
G1"(DN20)
Motor (kw):
0.37/0.5
Voltage (V):
3phase-380
Frequency (Hz):
50
Rotation speed (r/min):
2760
MAX Head (m):
20
Capacity (L/min):
88
Pump weight:
8kg
Packaging & Delivery
Packaging Details
standard wooden case for centrifugal pump
Port
shanghai port
Lead Time :
15 days after receiving the payment for hot water pump



Product Description



                         20m head lift water centrifugal pump /high pressure hot water pump



  1. It is centrifugal pump to circulate the water by axial suction. The circulating medium is liquid without the particle and fiber.
  2. The centrifugal circulating pump has the vantages are stable performance , low noisy , simple repairing
  3. It is widely used in the cooling circulating system , air conditioning system , household water circulating system

    and other area



Feature

  1. Single impeller centrifugal pump, axial suction, radial suction discharging.
  2. Sealing cast copper impeller , prefect hydraulic model to make sure the efficiency and stable
  3. performance of the pump
  4. Stable performance , low fault rate
  5. Easy to maintain , simple to change the sealing and shaft



Application scope

  1. Transferring the clean , no stimulation water and other liquid
  2. Cooling water machine , water chiller equipment
  3. Cooling system of the air conditioning equipment



Pump material

  1. pumps body: cast iron
  2. axial material : SUS
  3. sealing material : carborundum+ graphite +rubber
  4. impeller: copper
  5. insulation of the mater: B
  6. protection(IP): IP54



Using condition



General liquid

- 5 ~ + 50

Working environment

-5 ~ + 40



Technical parameter

Type

Flange Diameter

Motor

(kw)

Voltage

(V)

Frequency

(Hz)

Rotation speed (r/min)

MAX Head  (m)

Capacity

(L/min)

Pump weight

ISW25-05

G1(DN20)

0.37/0.5

3phase-380

50

2760

20

88

8

ISW25-05S

G1(DN20)

0.37/0.5

1phase-220

50

2760

20

88

8

ISW25-10

G1(DN20)

0.75/1

3phase-380

50

2760

25

106

13

ISW25-10S

G1(DN20)

0.75/1

1phase-220

50

2760

25

106

13

ISW40-10

G1.5(DN40)

0.75/1

3phase-380

50

2760

22

123

13

ISW40-10

G1.5(DN40)

1.5/2

3phase-380

50

2760

25

217

20.5

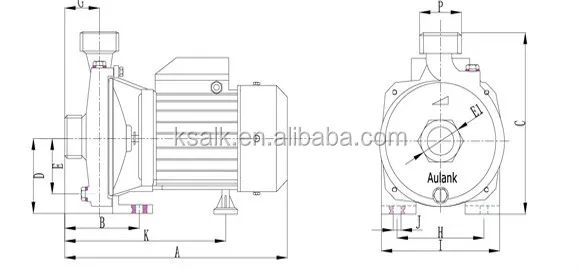

Installing drawing








Characteristic curve of the pump




The testing base of the pumpcharacter

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees.

 The error of the capacity and head is about 10%, characters ‘error is about 10%. The pump characters

 change according to the difference of the liquid mediums’ proportion and density.





FAQ



 A. packing & shipping



 1.shiping by sea :  standard wooden case for exporting by sea

 2. shipping by express or by air :  standard wooden case and carton

 3.shiping by train : standard wooden case and carton



All the above shiping ways can be chosen according to real conditions. We can offer you best suggestions to save your costs .



B. Our services :



 1. According to your requirements, we supply you the high quality pumps with the best price , more better suggestions  are offered to you .

 2. We will arrange the delivery the pumps when receiving your deposite. Generally speaking , It will taked about 5 -10 days to arrange .

3. The warranty period is 1 years except the wear parts . We will supply you free replaced parts (except wear parts ) if the pump is damaged caused by the machine itself during warranty period .   For online instruction service is free . For the wear parts , we will supply you by the lowest price if necessary .



C.  orther questions :



1. OEM &ODM:

       According to your requirements, we can supply OEM &ODM service for you if necessary .

2. Material and motor :

      We can customize the pumps according to your detailed requirements .

3. Reputation :

    We are legal company supervised by the government and Alibaba as well as the third parties , which have the strict requirements for our company .  If you pay us and do not receive the pumps ,  the alibaba will compensate for your loss , and also our company will be accused by the Alibaba Group . Please trust me that we will try our best to supply you high quality prouducts with our professional service .
