21.5 inch Dual Core i5 6200U 3855U All in one Touch Panel PC with 4GB DDR3 64GB SSD

FOB Reference Price:Get Latest Price
$799.00 - $1,269.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TPC6000-C2153W
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Panel PC
Brand Name:
Nodka
Place of Origin:
Jiangsu, China (Mainland)
CPU:
6th i5 i7 skylake-U
Memory:
4GB/8GB
Storage:
2.5" SATA+ mSATA
USB:
4*USB3.0
LAN:
2* i210 Lan
COM:
2*RS232/RS485
Expansion 1:
1*Mini PCIe
Expansion 2:
1*EasyBus(COM,LAN...)
OS:
Win7,Win8,Win10,Ubuntu,VXWORKS,QNX
Model Number:
TPC6000-C2153W
Supply Ability
Supply Ability:
8000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carton
Port
Shanghai
Product Description

Introduction

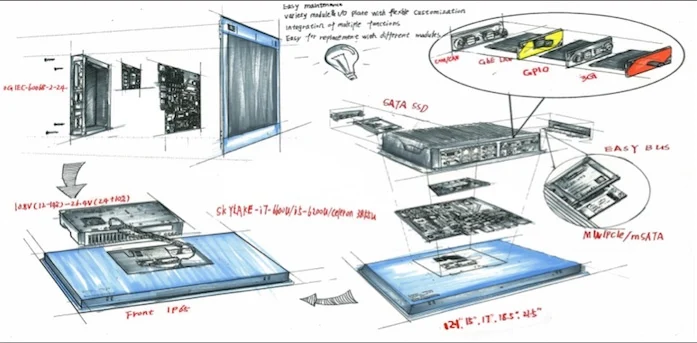

TPC6000-C series is finless industrial Panel PC with project capacitive touch screen, IP65 water and dust proof panel, stylish enclosure, and reliable modular structure. Through flexible combination among the different panel sizes and system boxes, customer could get various solution, and replace system or upgrade the platform without changing cabinet design, which is convenient to product maintenance, replacement, production and upgrade in future.

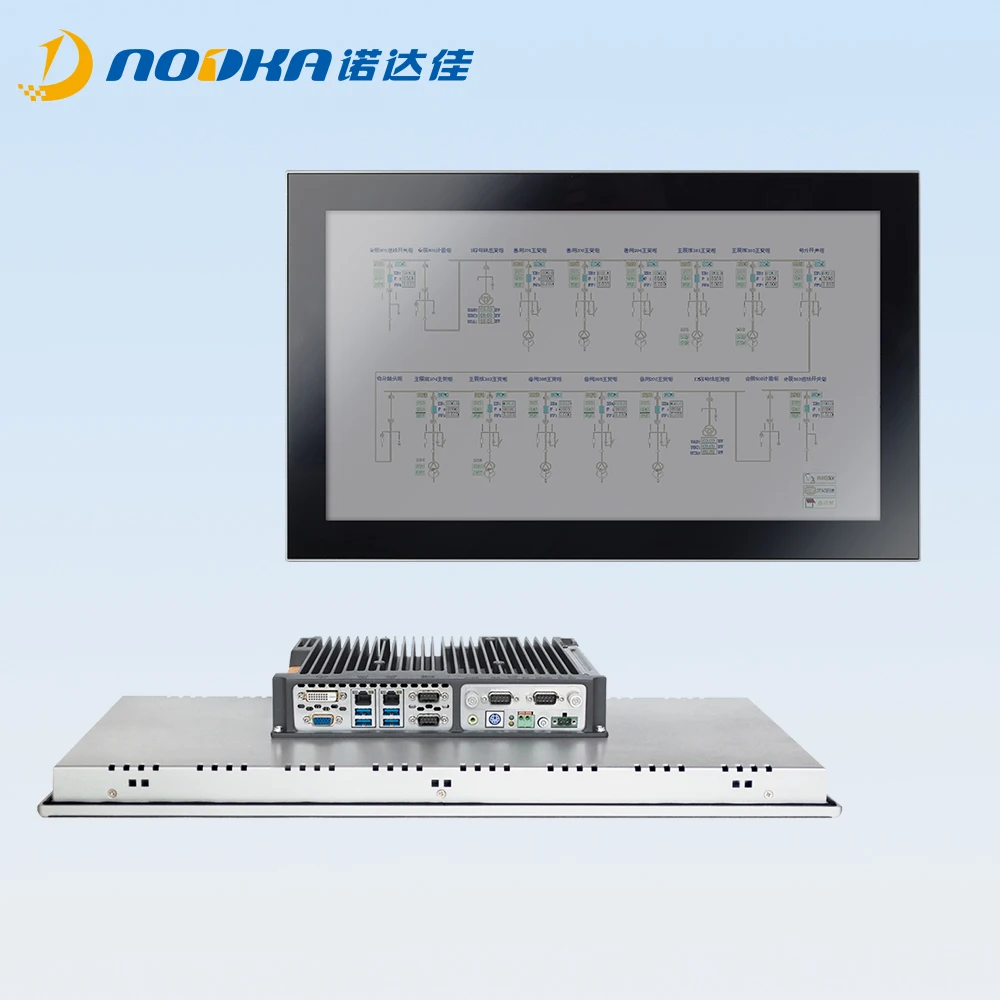

SPECIFICATIONS FOR TPC6000-C2153W

Processor
CPU
Core i5 6200U/3855U ,Core  i7 5500U/i5 5300U
Base Frequency
Dual Core 2.3GHz / 1.6 GHz / Dual Core 2.4GHz / Dual Core 2.3GHz
L3 Cache
3MB / 2MB / 4MB / 3M
Chipset
Integrated PCH-LP
Memory
1 x 204-pin DDR3L-1600MHz SODIMM, support up to 16GB
Storage

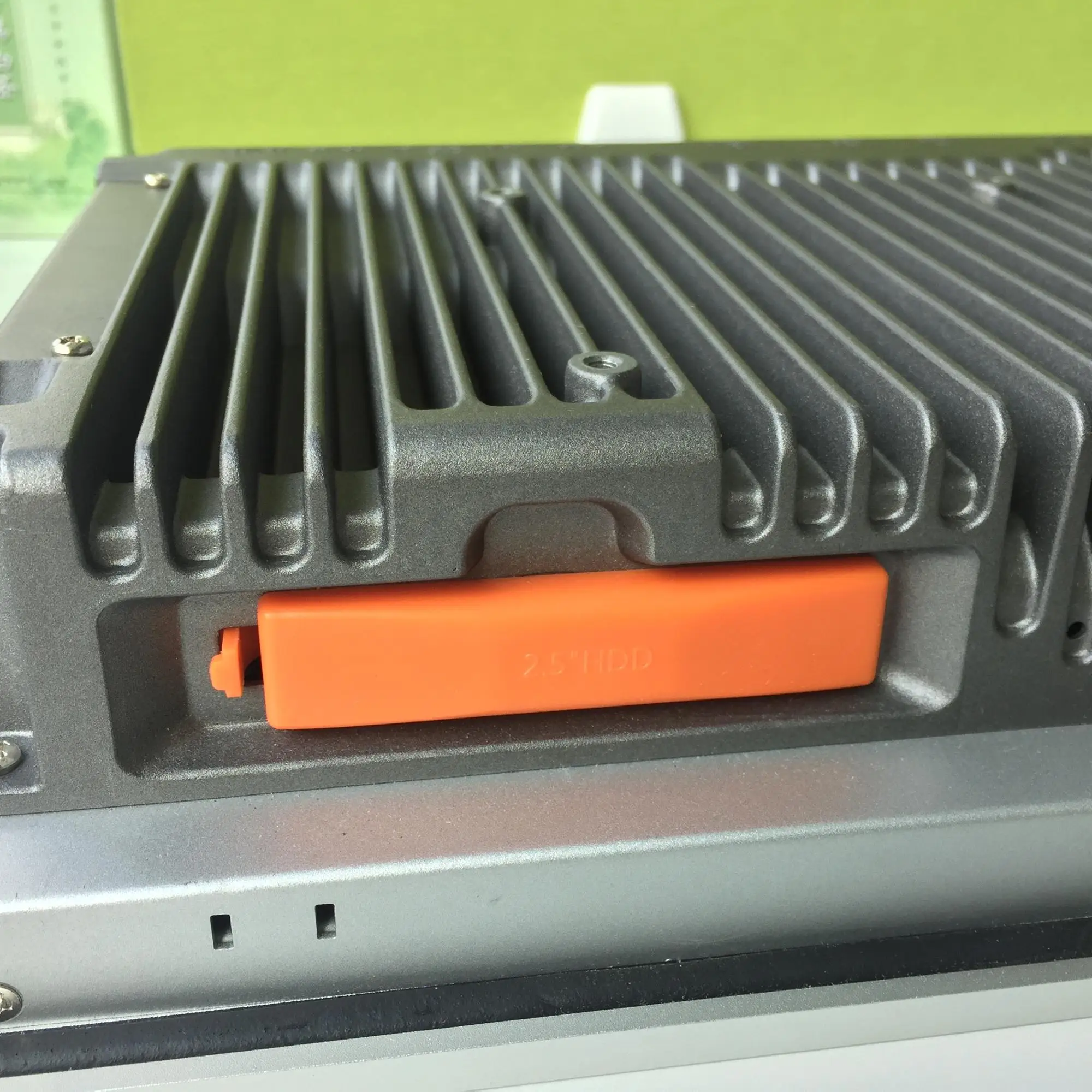

1 x 2.5" SATA bay + 1 x mSATA
I/O
LAN
2 x inte-l i210 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection
Audio
Realtek ACL662 Audio controller
USB
4 x USB3.0/2.0/1.1
COM
2 x RS-232 / RS-485 with surge protection,RS485 support automatic flow control
Expansion slot
1 x Mini-PCIe slot, extensible 3G,WIFI wireless card,1 x EasyBUS slot
I/O

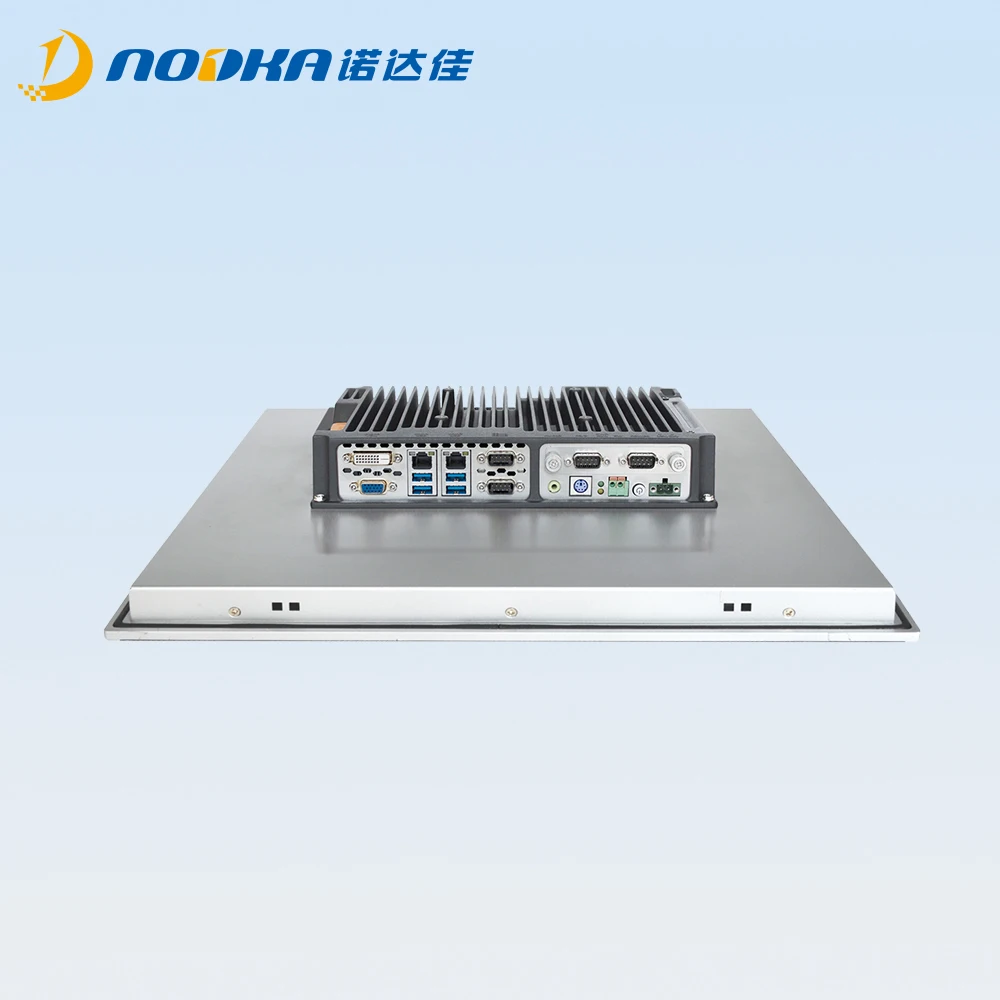

DVI-I / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in
Physical
Dimensions
550mm x 342mm x 80mm (21.65" x 13.46" x 3.15")(W x H x D)
Cut Size
533mm x 325mm (20.98" x 12.80")(W x H)
OS
Support
Win 7, Win 7 Embedded, Win8, Win10, Ubuntu, VXWORKS, QNX
Power
Input voltage
12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
LCD
Size
21.5" Full HD TFT
Resolution
1920 x 1080
Colors
16.7MB
Active Area
476.64mm x 268.11mm (18.77" x 10.56") (W x H)
Backlight
LED
MTBF
30000hrs
Pixel Pitch(H x V)
0.248x 0.248
Luminance
250cd/m2
Contrast Ratio
3000:1
Viewing Angle
(L) 89/ (R) 89 / (T) 89 / (B) 89
Touch Screen
Type
Multi-point capacitive touch screen
Transmittance
>75%
Controller interface
USB
Driver Support
Win7, Windws 8, Win 10, Linux
Multi-touch
10 points
Surface Hardness
Mohs' Number 7
Environmental
Work Temperature
-20 ~ 60°C (-4~140°F)
Storage Temperature
-30 ~ 80°C (-22 ~ 176°F)
Relative humidity
5~95% (Non condensation)
Shake: SSD applied
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: SSD applied
10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC
CE/FCC Class A
Water-proof
Front panel IP65
About us

WHO WE ARE

Nodka was founded in 2001 in Shanghai, after 16 years development, Nodka becomes a leading Chinese industrial solution manufacturer, and has Mainboard (R&D) center in Shenzhen, and precision sheet metal machinery machining center in Suzhou.
With branch offices in 14 major domestic cities in China and 1 European sales and service center in the Netherlands.

WHAT WE DO

Nodka is specialized in Industrial solutions, including:
Industrial Panel PC
Touch Screen Monitor
Industrial computer (Mini PC)
OEM and ODM service

Factory in China

Vodka Factory located in Suzhou city, about 5000 sq.m.

Nodka Team

This is a outward bound in 2017, more and more people will join us.

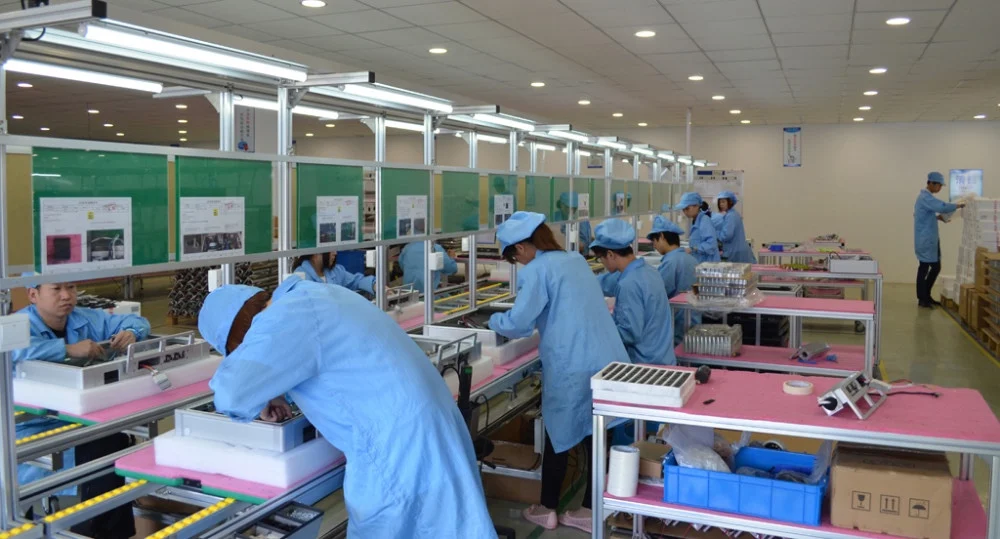

Assembly Workshop

5 production lines and 1 OEM production line

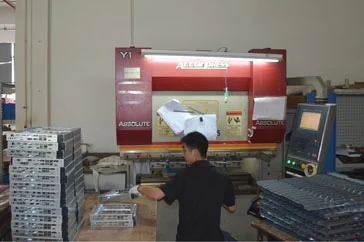

Precision machinery workshop

Own precision machinery factory, it can shorten delivery time

Welcome to visit our factory in Suzhou city!

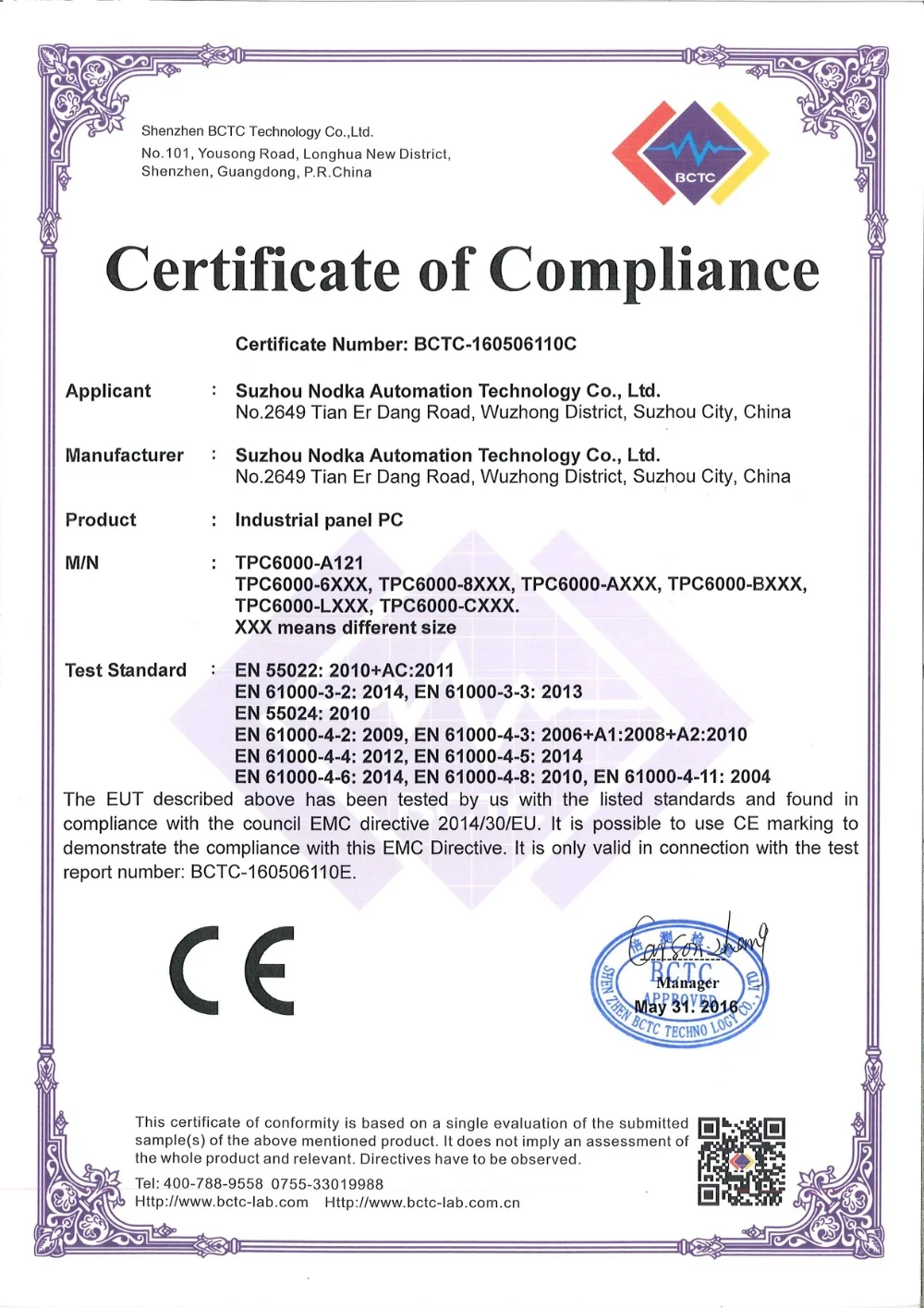

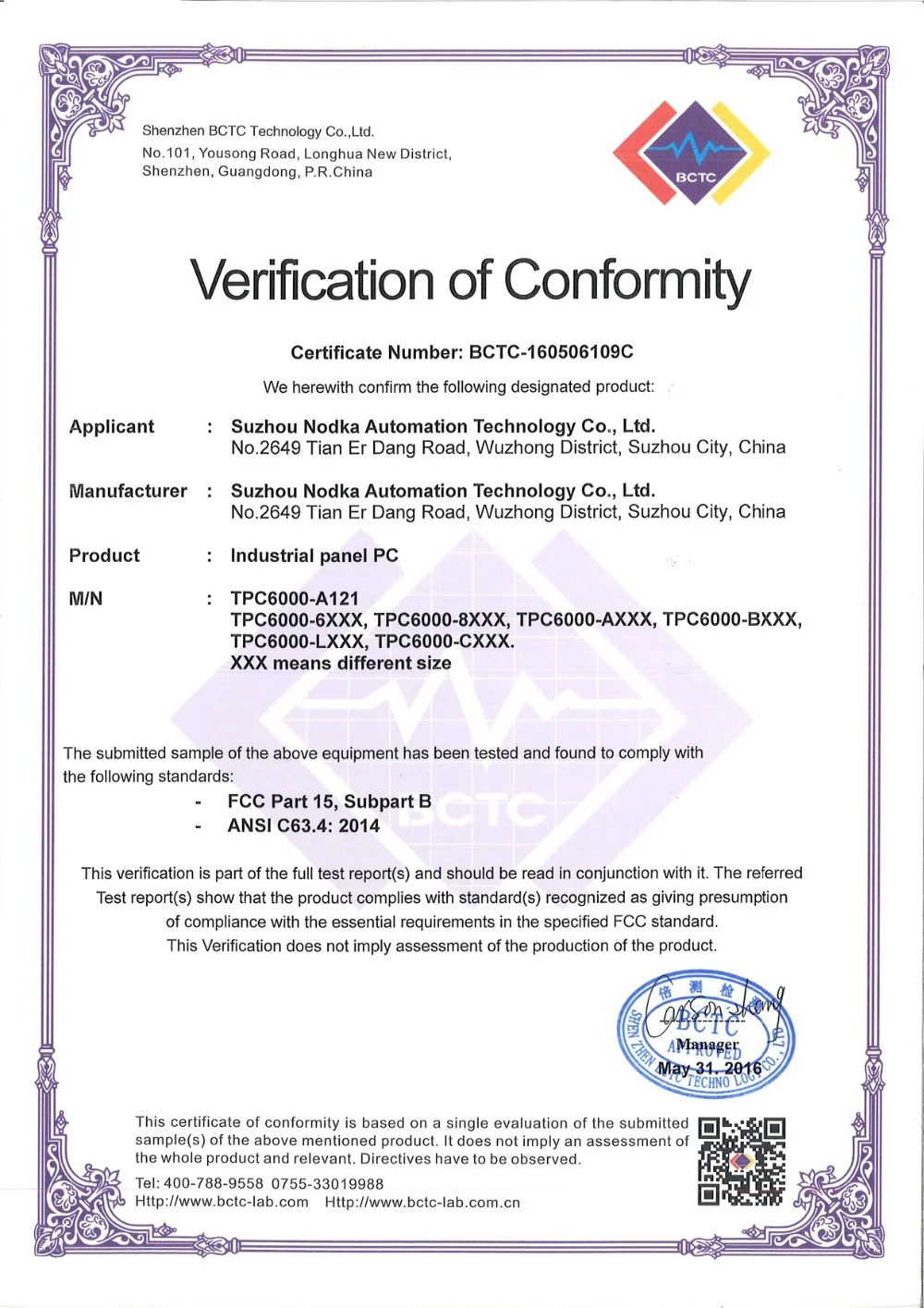

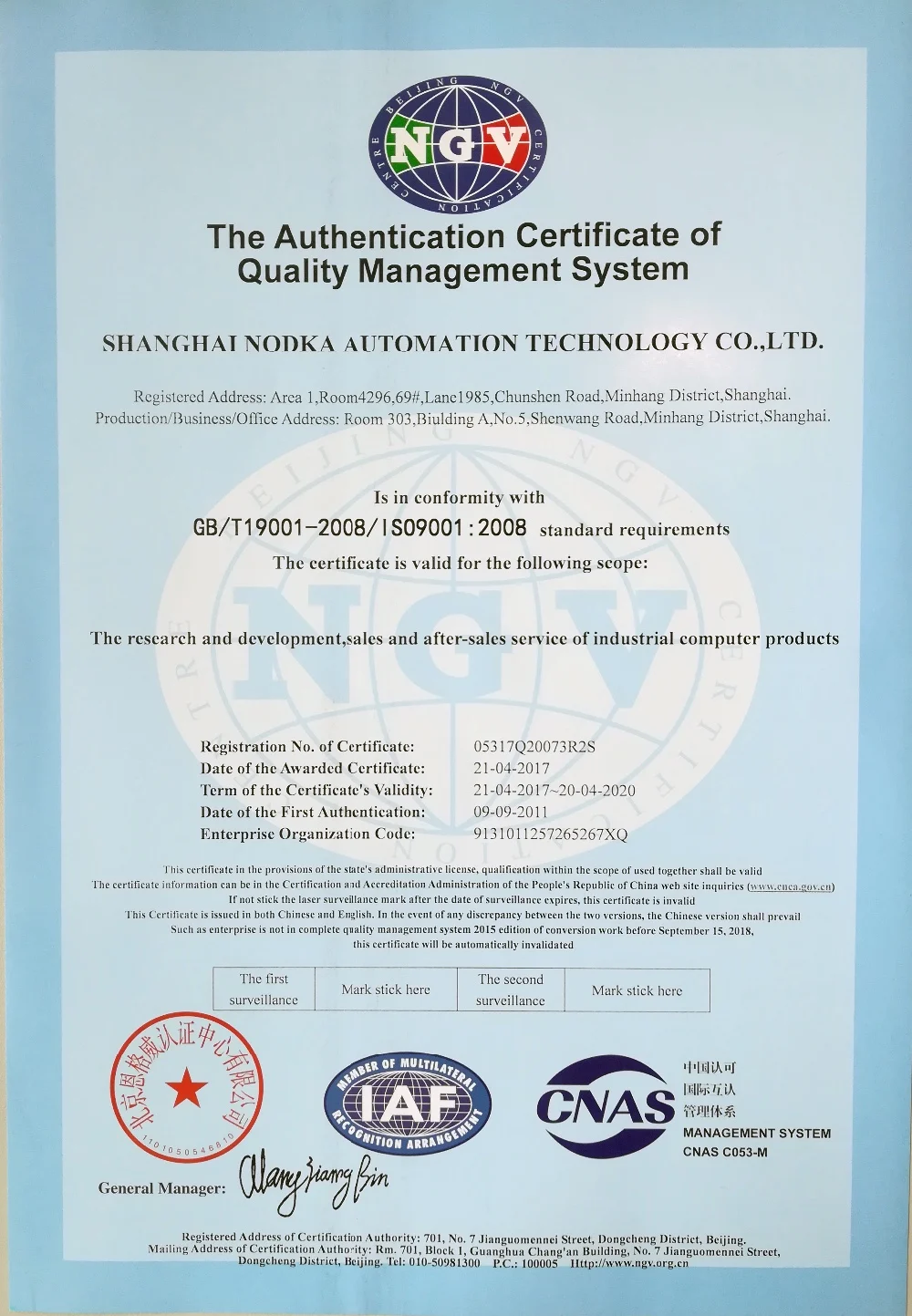

Certifications
Exhibition and Show

Embedded World 2016

City: Nuremberg
Country: Germany
Main and New launched:
(1)Panel PC based on J1900
(2)3rd generation Panel PC: TPC6000-6 series
(3)Touch Monitor
(4)Embedded Computer(eBOX-3230,eBOX-3622)


Embedded World 2017

City: Nuremberg
Country: Germany
Main and New launched:
(1)Panel PC based on Skylake-U
(2)Embedded PC based on Skylake-U
(3)Capacitive Touch Screen Monitor

Embedded World 2018

City: Nuremberg
Country: Germany
Main and New launched:
(1)2nd Industrial Operation Panel

(2)AgilePAC Open Controller

(3)Panel PC based on Skylake-U

(4)Embedded Computer(eBOX-3560,eBOX-3000,eBOX-3310)

(5)Touch Monitor and Tablet PC

SPS IPC Drives

City: Nuremberg
Country: Germany
Main and New launched:
(1)Industrial Operation Panel
(2)AgilePAC Open Controller
(3)Panel PC based on Skylake-U
(4)Embedded PC(eBOX-3560,eBOX-3000,eBOX-3310,eBOX-3320)
(5)Touch Monitor

Our Service

ODM OEM service

* ODM and customized service.

* China Factory.

* Full Design.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Overseas distributor network and European Service Center in the Netherlands.

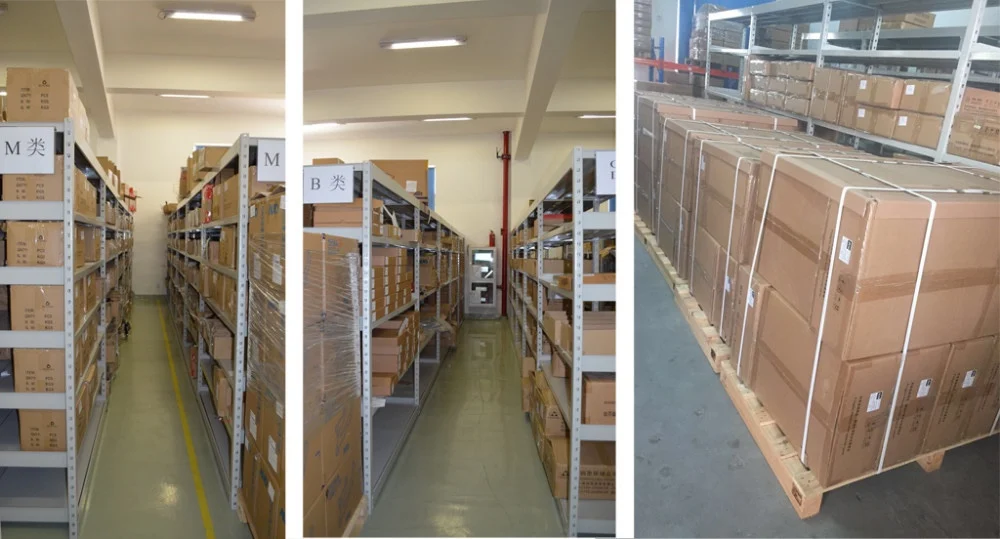

Packing & Delivery
Packaging Tray
Size
100 (L) * 120 (W) * 200 (H)

Packaging Details
International Express:Carton
By air: Carton
By sea: Tray
