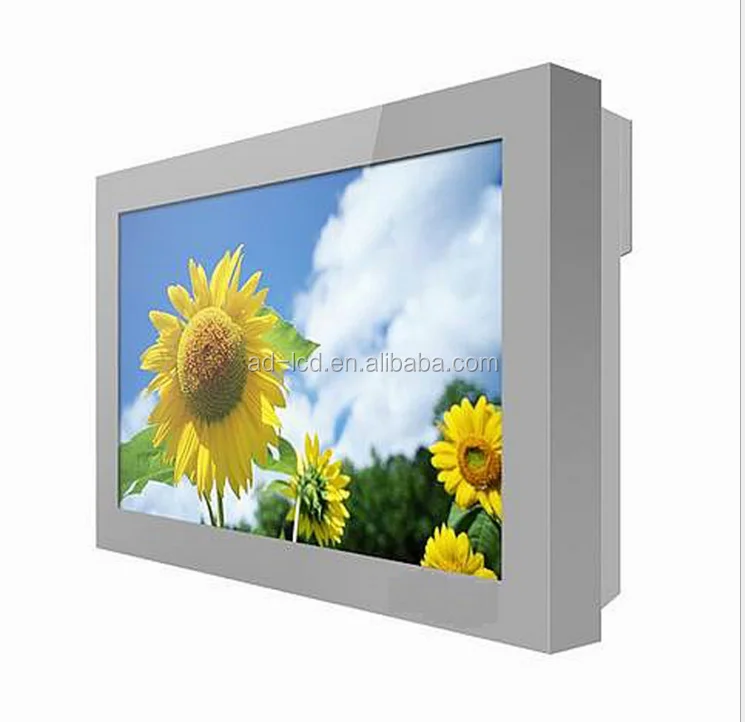

21.5" wallmounted outdoor LCD advertising player with fan cooling heat dissipation 2000nits

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $600.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Zhongxin
Model Number:
ZX-NO2215
Type:
TFT
Application:
Indoor
Viewing Angle:
178°
Pixel Pitch:
0.1038*0.3114mm
Color:
16:09M
Contrast Ratio:
3000:1
Brightness:
2000cd/m2, 2000cd/m2
Response Time:
6ms
Input Voltage:
100V-240V AC
Panel size:
21.5inch
Operating System:
Android/Windows/Standalone optional
Aspect Ratio:
16:09(W:H)
temperature oonctrol system:
fan cooling/air conditioner
light sensor:
automatical control Led brightness according to environment
touch screen:
optional/IR/CAP/NO TOUCH
lcd screen surface:
6mm AR tempered glass
surface treatment:
1.5mm galvanized steel sheet
Certificate:
CE, FCC, Rohs
Max Resolution:
1920*1080
Panel Size:
55 Inch
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each ad player packed in a carton, every 2 cartons packed in a wood frame.
Package size: 2035*928*215mm. Gross weight:70Kg
good price of lcd advertising display digital advertising screens for sale
Port
Shenzhen
Lead Time :
Shipped in 7-15 days after payment

21.5" wallmounted outdoor LCD advertising player with fan cooling heat dissipation 2000nits

outdoor description
Featurers of the outdoor advertsing Digital Signage:
1. Enclosure 1.5mm galvanized steel sheet, surface treatment metal sheet bake varnish, anti magnetic,anti static electricity, waterproof, anti-explosion, dust-proof, protection grade IP65
2. Strict protection of electrical leakage,overload of power and voltage, anti thunder,higher temperature
3. temperature control: can work at -25°-55°, industrial fan cooling heat dissipation system with EBM fan and Aluminum heat dissipation substrate and precise air filter system to maintain the machine inner part more cleaner
4. Screen surface: covered with 6mm AR tempered glass, anti ultraviolet , infrared ray, insulation, heat resistance, high light transmittance
5. Built in light sensor : can adjust screen brightness according to surrounding environment from 1000-2500nits
6. Remote control system , automatically power on and off, automatically update information
7. Unique LCD screen substrate wide range temperature -30℃-60℃ processing , can restart at lower temperature at fast speed with clear image display





LCD Panel Parameter
Panel Size21.5“
Panel BrandLG/Samsung/AUO/BOE etc
Installationoutdoor
Panel TypeHIGH nits LCD screen & patent LED backlight
Max Resolution (pixel)1920(RGB)*1080(FHD)
Aspect Ratio16:09
Display Color16.7M(8bit)
light sensorauto adjust brightness according to the surrounding enviroment
Brightness1500-2000cd/m2
Contrast Ratio4000:1
View Angle89°/89°89°/89°(Typical)
Response Time6ms(Typical)
Technical Specification
Frame material1.5mm galvanized steel sheet
Colored SystemPAL/NTSC/Auto-detecting
Menu LanguageMultiple language,English(Default)
Noise Reduction Yes
Voltage Frequency100V-240V AC
Horizon Frequency50/60Hz
Working Temperature0°C~50°C
Working Humidity10% - 90% no condensation
Storage Temperature-20°C - 80°C
Storage Humidity85% no condensation
Operating System
Android
Android CPU(Standard) Dual Core Allwinner A201.5GHz
Optional CPURockship RK3188 quad-core 1.6GHz
MemoryDDR3 1GB
Built-in Storage4GB FLASH for A20,8G for RK3188, Support TF card expansion
RJ45/WIFI/4G/USB/CF/SDInclude
Touch FuncionOptional
Touch sensorcapacitive/infrared
Touch surface9H Anti-glare Tempered Glass
Windows
CPU Core 3217U, 3317U, 3517U; H81 i3, H81 i5. H81 i7
MemoryRAM 4GB
Build-in storage500 HDD
RJ45/WIFI/4G/USB/TF/SDInclude
V59
CPUNo
MemorySD/USB
WIFI/RJ45/3G/4GNo
HDMI outputNo HDMI output
Infrared or capacitive touchNo
Support software installing applicationApplication is not supported
Temperature control system
air Cooling smart fan
cold and warm air conditionerfixed frequency and variable frequency air conditioner
Optional function
remote environment monitoring system








Packaging & Shipping



FAQ

Q: What kind of inspection you can provide?

A: Zhongxin has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.


Q: What is your guarantee period?

A: Zhongxin provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
 Beyond the guarantee period machine, Zhongxin will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility)



Q: How can I pay for the order?

A: Our payment terms: T/T, Western Union, Paypal.

1) For sample order: 100% T/T or Western Union in advance, Paypal is also acceptable.

2) For bulk order: T/T (Bank Transfer), 30% down payment, 70% balance should be paid before the delivery of the goods.
