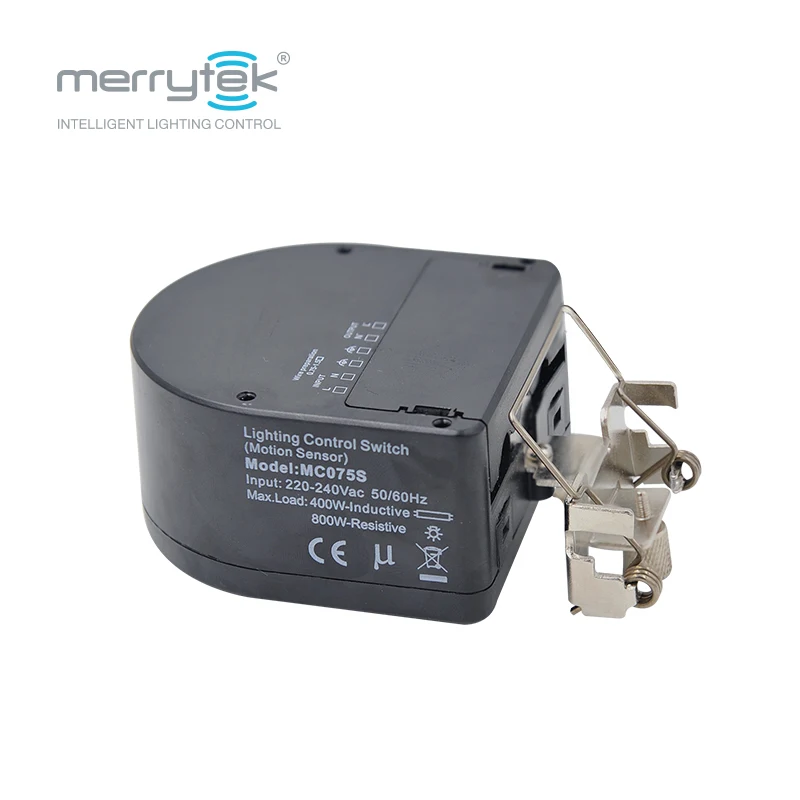

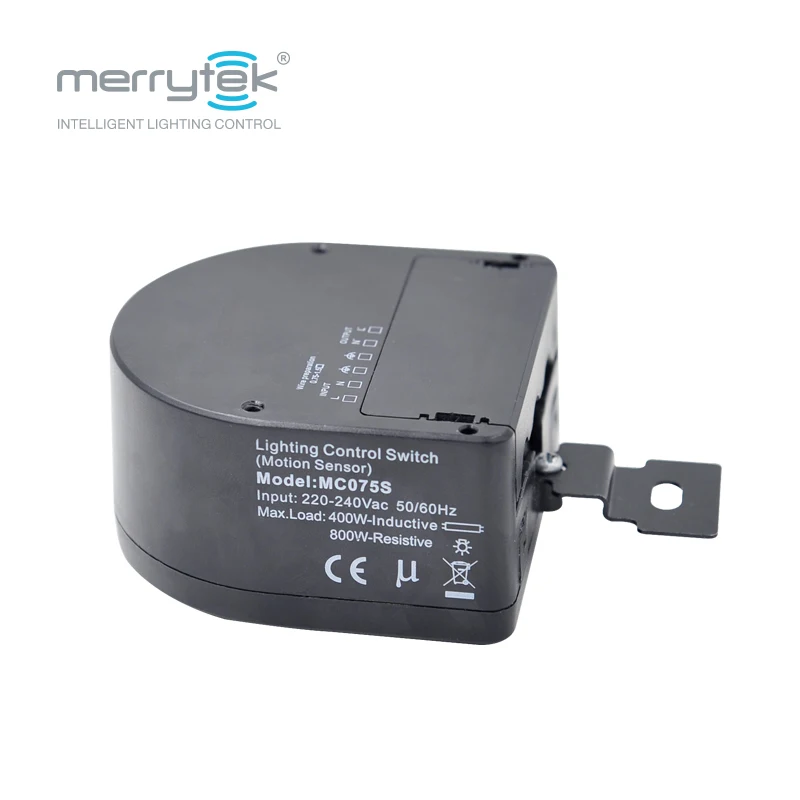

220-240VAC Microwave Radar Sensor Light Switch Human Body Induction Movement Detector Smart Motion Detection Light

FOB Reference Price:Get Latest Price
$1.00 - $15.70 / Piece | 1000 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
merrytek
Model Number:
MC075S
Usage:
Position Sensor
Theory:
Inductance Sensor
Output:
Switching Transducer
Description:
merrytek sensor
Amplifier Type:
Standard
Voltage - Supply:
N/A
Output Type:
N/A
Current - Supply:
N/A
Operating Temperature:
N/A
Mounting Type:
N/A
Resolution (Bits):
Not Applicable
Features:
N/A
Current - Supply (Max):
N/A
Package / Case:
N/A
Packaging:
N/A
Frequency:
N/A
Output Configuration:
N/A
Current:
N/A
Voltage Rating:
N/A
Operating Force:
N/A
Oxygen Range:
N/A
Humidity Range:
N/A
Size:
N/A
Size / Dimension:
N/A
Measuring Range:
N/A
Resolution:
N/A
Interface:
2-Wire
Technology:
Inductive
Sensing Range:
N/A
Current - Output (Max):
N/A
Bandwidth:
N/A
Function:
Latch, Bipolar Switch
Acceleration Range:
N/A
Sensitivity (LSB/g):
N/A
Sensitivity (mV/g):
N/A
Sensitivity (LSB/(°/s)):
N/A
Sensitivity (mV/°/s):
N/A
Sensing Distance:
N/A
Current - Output:
N/A
Power - Rated:
N/A
Voltage - Output Difference (Typ) @ Distance:
N/A
Voltage - Output (Typ) @ Distance:
N/A
Voltage - Max:
N/A
Voltage - DC Reverse (Vr) (Max):
N/A
Power - Max:
N/A
Sensing Object:
N/A
Sensing Light:
N/A
Resistance:
N/A
Resistance Tolerance:
N/A
Sensing Temperature - Local:
N/A
Sensing Temperature - Remote:
N/A
Current Rating - AC:
N/A
Current Rating - DC:
N/A
Tolerance:
N/A
Voltage - Rated:
N/A
Flow Sensor Type:
N/A
Voltage - Input:
N/A
Application:
Industrial Automation
Output Function:
/OK, OverTemp
Operating voltage:
220-240Vac,50/60Hz
Rated load:
400W(inductive),800W(resistive)
HF system:
5.8GHz±75MHz,ISM wave band
transmitting power:
≤0.5mW
power consumption:
≤1W(stand by)
Detection Area(radius):
5m Max
Max mounting height:
12
hold time:
5s/30s/1min/3min/20min/30min, RC:5s/30s/1min/3min/5m/10m/20min/30min,
daylight sensor:
5lux/15/30/50/100lux/150lux/diable
Applications:
N/A
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
White box+ use manual +Clapboard +Outer Carton
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Video Description
Product Paramenters

MC075S on and off function/upgrade version

 Design forHigh bay & low bay light
Our Company

Merrytek were founded in 2011,focuses on intelligent products for the lighting control industry.
We design and manufacture innovative Microwave motion sensors,integrated sensor ,Kreat power is the sub-brand,its main products are DALI dimming LED driver,LED emergency Converter,0-10/1-10V push driver for lighting & electrical manufacturers,distributors,wholesales,retrofit project,retail chain stores ,etc.
With the effort of over 40 R&D members and IOS9001:2015 a qualified production line,merrytek supplies over 150 models with an output volume of over 500k units per month for numerous applications.

Why merrytek
Our R&D staff and engineering team have over 20 years experience in designing intelligent lighting control products.merrytek has been continuing to focus on development of intelligent and innovative lighting control products,we ensure our customers have the best choice as well as competitive pricing in the lighting controls market.
In 2018 merrytek take the pioneer to introduce automatic manufacturing line,become the first domestic enterprise with automatic production and test for semi-finished and finished products.

Product design & innovation
Over 40 R&D members,8 design teams are concentrating on new product development.we launch over 20 new products each season,merrytek has clearly led the way in development and innovating intelligent control technology.

Quality and control
Our products are sold globally and they are tested 4 times in the whole production procedure,which includes waveform test,light control test,detection area test and imitation lighten in fixture test.

Sales & service
Merrytek has built the sales networks in Germany,UK,Scandinavia and North America.we provide 7x24 hours technical support and warm service to our clients.

Manufacturing center
Application Area
Certifications
Exhibition
FAQ

Q1. Where is your main market for the microwave motion sensor?
A: The main markets in western Europe and North America.


Q2. What about the lead time?
A: Generally samples lead time is around 2-5 working days, mass production time about 25-35days for different bulk order quantity.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, which normally takes 3-5 days for delivery. Airline and sea shipping ways for bulk order are also optional, and delivery time is different based on different destination.


Q4. How to proceed an order ?
A: Step 1, Let us know your requirements or application
Step 2, We quote according to your requirements or our suggestion
Step 3, Customer confirms the samples and arrange deposit for the order
Step 4, We arrange the production.


Q5. Do you offer guarantee ?
A: Yes, we offer 5 years warranty to the sensor switch products.


Q6: How about print my logo on the product and cartons?
A: Please inform us formally before our production and confirm the design firstly based on our sample.
