2200W Water Flow Instant Heating Tubes Electric Water Heater Kitchen Appliance

FOB Reference Price:Get Latest Price
$1.00 - $19.00 / Pieces | 1 Piece/Pieces Electric Water Heater Kitchen Appliance (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Electric Heater Parts, electric water heating element
Place of Origin:
Henan, China (Mainland)
Brand Name:
GIDAPE,ANDETONG
Model Number:
XHD-Y-220G030110
Feature:
Water Flow inside tube, Electric Heating outside
Other Name:
Instant Electric Water Heater Element
Service:
Engineers available to service machinery overseas
Certificates:
CQC, RoHS
Service Life:
>10,000 hours
Substrate:
SUS444 Stainless Steel
Technology:
Rare-Earth Thick Film Electric Heating
Power:
2.2KW
Diameter & Length:
30mm(diameter)*110mm(length)
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month Water Flow Instant Heating Tubes
Packaging & Delivery
Packaging Details
Packaged by Carton Box
Port
Tianjin/Qingdao/Shanghai

2200W Water Flow Instant Heating Tubes Electric Water Heater Kitchen Appliance

to Heat Water Flow inside Tube

Descriptiom
The Rare-Earth Metal Thick Film is one of today's most innovation and forward-looking solution for electric heating field.

The thick film heating tubes/elements are produced by screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃.

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.

For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).


Grounding Type

Spot-Weld



Heat Density

>40W/cm²

Ramp-Up Rate

80℃/s



Thermal Efficiency

>96%

Heating Power

2.2KW



Service Life

>10,000 hours

Rated Voltage

220v



Certificate

CQC, RoHS

Dielectric Strength

1,500V/5mA/60s



Power Deviation

-10% - +5%

Leakage Current

≤0.25mA



Insulation Resistance

≥200MΩ

Thermistor Type

PTC



Dimension

Φ30mm*110mm(length)





Main Features
1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications


Tube Structure

First Layer: Anti-oxidation layer (insulation, anti-rust)
Second-Sixth Layers: 5 isolation layers with high quality materials, and sintered 5 times.
Seventh Layer: Palladium-silver heating film (Quickly Heating, High Heat Utilization, Saving Power)
Eighth Layer: Silver conductor
Ninth Layer: Coating high quality isolation glazes in high temperature (protect surface and isolation)
8 times sintering in high temperature

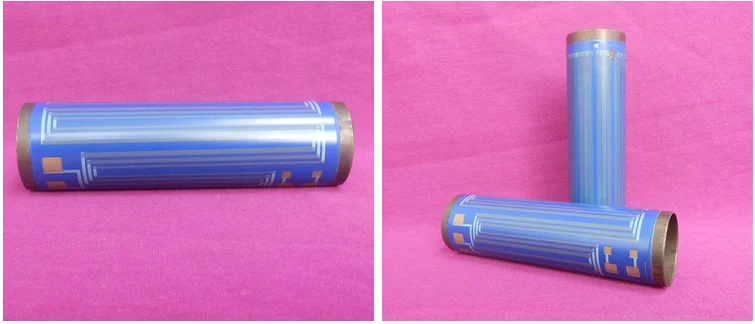

Thick Film Stainless Steel Tube

1). Electric Circuit printed on tube surface, to heating the water flow inside.
2). Compact size, high heat utilization
3). Available Power 2,2KW
4). SUS444 Stainless Steel





2.2KW Thick Film Electric Heating Tubes

Model

Power

Rated Voltage

Customized Power Range

Diameter

Length

MOQ

XHD-Y-220G018220

2.2KW

220V

≤2.5KW

18mm

110mm

500pcs

XHD-Y-220G020120

2.2KW

220V

≤2.5KW

20mm

120mm

500pcs

XHD-Y-220G030110

2.2KW

220V

≤3KW

30mm

110mm

500pcs



Certifications





Customize Service

1. Substrate: SUS 430, 316
2. Tube diameter, Tube length, Power, Thermostat, Control Board, etc are available for customer design.

Packing & Delivery





Related Products





CustomerApplications



The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.


Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
