220v ac to 5v 12v 24v dc pcb mount ite power supply

CFM06S SERIES

6 WATT SINGLE OUTPUT AC-DC OPEN FRAME

* Universal Input 90~264VAC
* High Efficiency up to 81%
* Approved EN55032 Class B and CIRSS/FCC Class B
* Approved IEC62368-1, UL62368-1, EN62368-1
* Meets EN61558 (60335)
* Continuous Short Circuit Protection
* No load input power < 75mW
* Over Voltage Protection
* Constant Current (Optional)
* Class II

Model type

6W AC/DC Power Supply Module

Input: 90-264Vac

Output: shown in the following list.


MODEL
Output
Voltage
Output
Current
Ripple
(mV p-p)
NOTE 1
Voltage
Accuracy
NOTE 2
Line
Regulation
NOTE 3
Load
Regulation
NOTE 4
% EFF.
(typ.
NOTE 5
CFM06S033
3.3V
1.5A
100mV
±6%
±1%
±6%
73%
CFM06S050
5V
1.2A
100mV
±5%
±1%
±5%
78%
CFM06S090
9V
0.67A
100mV
±5%
±1%
±5%
80%
CFM06S120
12V
0.5A
120mV
±3%
±1%
±3%
81%
CFM06S150
15V
0.4A
150mV
±3%
±1%
±3%
81%
CFM06S240
24V
0.25A
240mV
±3%
±1%
±3%
81%

NOTE:

1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for ripple & noise measuring @20MHz BW.

2. Voltage accuracy is set of 100% rated load.

3. Line regulation is measured from high line to low line with full load.
4. Load regulation is measured from 10% to 100% full load.
5. Typical efficiency at 230Vac and full load at 25℃

6. T Version wafer with JST B3B-XH / B4B-XH and mate with JST housing

     XH series or equivalent.

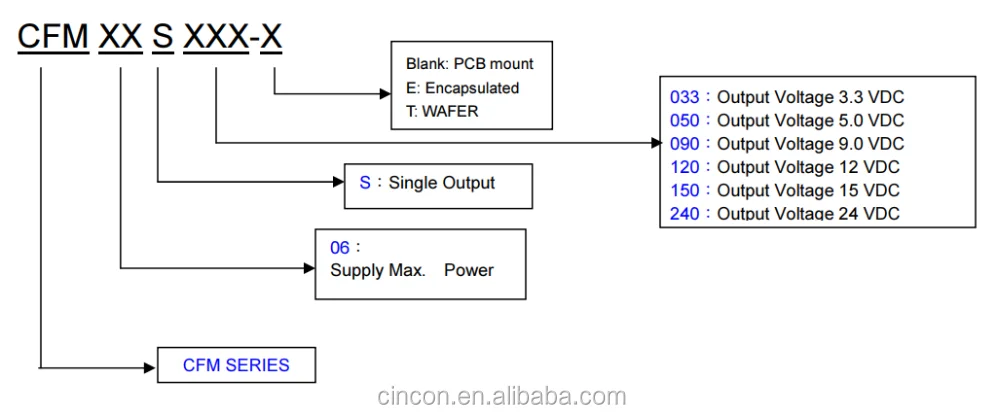

Ordering information
Specification
INPUT SPECIFICATIONS
Voltage
90~264Vac
Frequency
47 to 63Hz
Inrush Current
90A max. @240Vac, Cold Start @25℃
Leakage Current
0.25mA max. @ 264Vac
Input Current
0.25A max.
OUTPUT SPECIFICATIONS
Holdup Time
12ms typ. @115Vac
Short Circuit Protection
Hiccup Mode (Auto Recovery)
Temperature Coefficient
±0.05%/℃
GENERAL SPECIFICATIONS
Isolation Voltage(Input to Output)
3000VAC
Operating Temperature
-40℃~70℃ (Derating from 50℃ to 70℃)
Storage Temperature
-40℃~85℃
Cooling
Natural Convection
Humidity
93% RH max. Non condensing
Switching Frequency
30~70KHz Typical
MTBF- MIL-HDBK-217F, GB, 25℃/115VAC
610Khrs min.
Life time
56000 hours min.@ 75% load, 40℃
Altitude
5000m

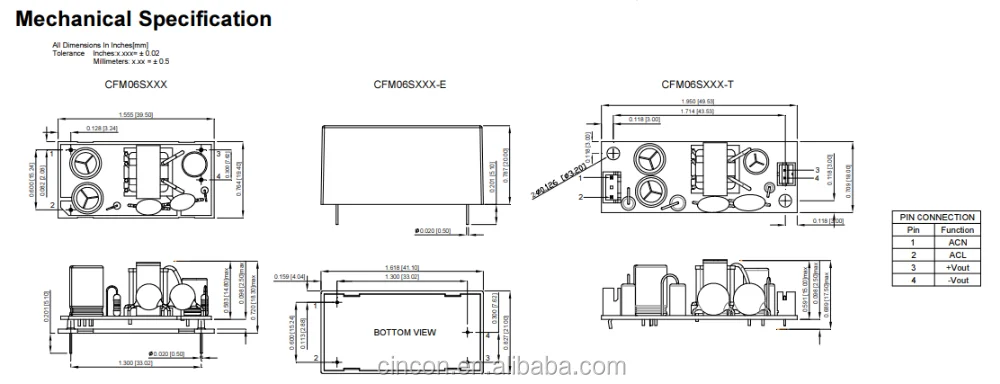

Dimensions
1.555x0.764x0.720 Inches (39.50x19.40x18.30mm)
-E: 1.618x0.827x0.787 Inches (41.10x21.00x20.00mm)
-T: 1.950.x0.709x0.689 Inches (49.53x18.00x17.50mm)
Weight
11g, (-E): 30g, (-T): 12g
SAFETY AND EMC
Emission and Immunity
EN55032 Class B, EN55024, EN61204-3
EN61000-3-2, -3, EN61000-6-1, 2, 3, 4
47 CFR FCC Part 15 Subpart B (Class B)
Safety
IEC62368-1, UL62368-1, EN62368-1, IEC60950-1

Typical at 25˚C, nominal line and 75% load, unless otherwise Specified

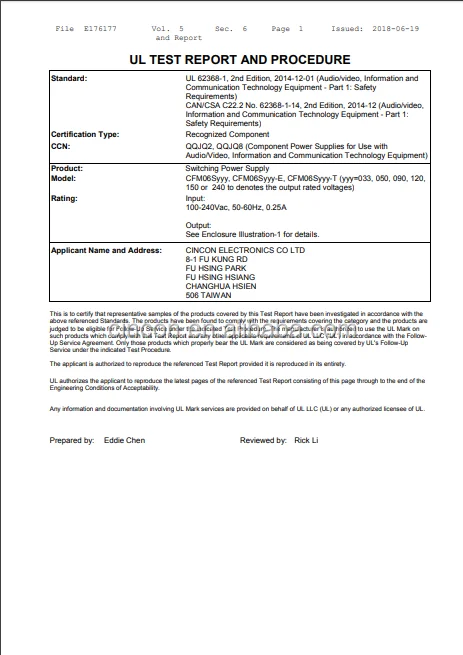

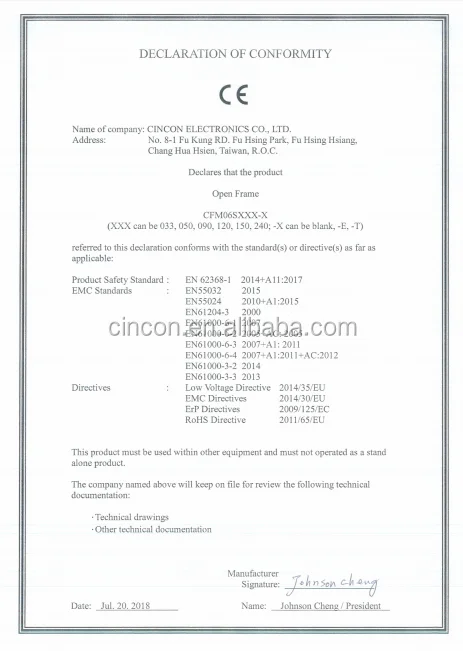

Certificates
