22KW EV charger 380V AC charging Pile with RCD built-in /Screws

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    $350.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HOFA
Model Number:
EV Charging Plug
Type:
Wall Socket, Auto Electrical Parts
Grounding:
Standard Grounding
Rated Voltage:
220V-250V
Rated Current:
32A
Application:
Residential / General-Purpose
size:
400mm*230mm*108mm
Material:
Metal+Plastic
Certificate:
CE ROHS
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Conventional packing or your needs
Port
SHENZHEN PORT
Product Description
Place of Origin:
Shandong,China
Model Number:
HF-A1-EV032
Voltage:
Current:
230V
32A
Product name:
Warrenty:
Wallbox/EV charger
18 months
Color:
IP Class:
White/Black etc
IP54
Socket Type:
Leads Output:
T1/T2
5meters/7.5meters/10meters etc
Standard:
IEC62196-2
Application:
Charging EVs,HEVs
Certificate:
CE
Size:
Weight:
400*260*108mm
7KG

Apperance Review:

1.White/Matt Black Color,can be OEM
2.LED showing the status of charging

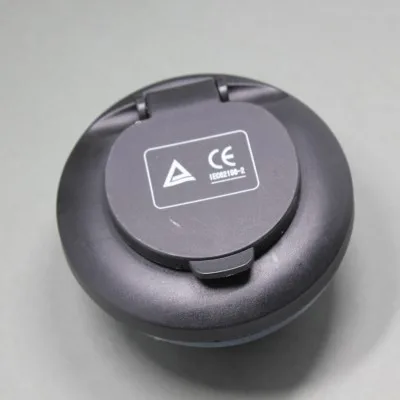

3.CE certified Type 2 socket
4.Logo can be OEM
5.Convinient



Circuits Inside:

1. Perfect protection:overload protection,short circuit protection,leakage protection function.
2.RCD Type A built-in
3.Circuit Breaker Built-in
4.Magnetic Lock Built-in
5.Can be progammed

6.RFID to control ON/OFF of wallbox

How to use

OPERATION GUIDE

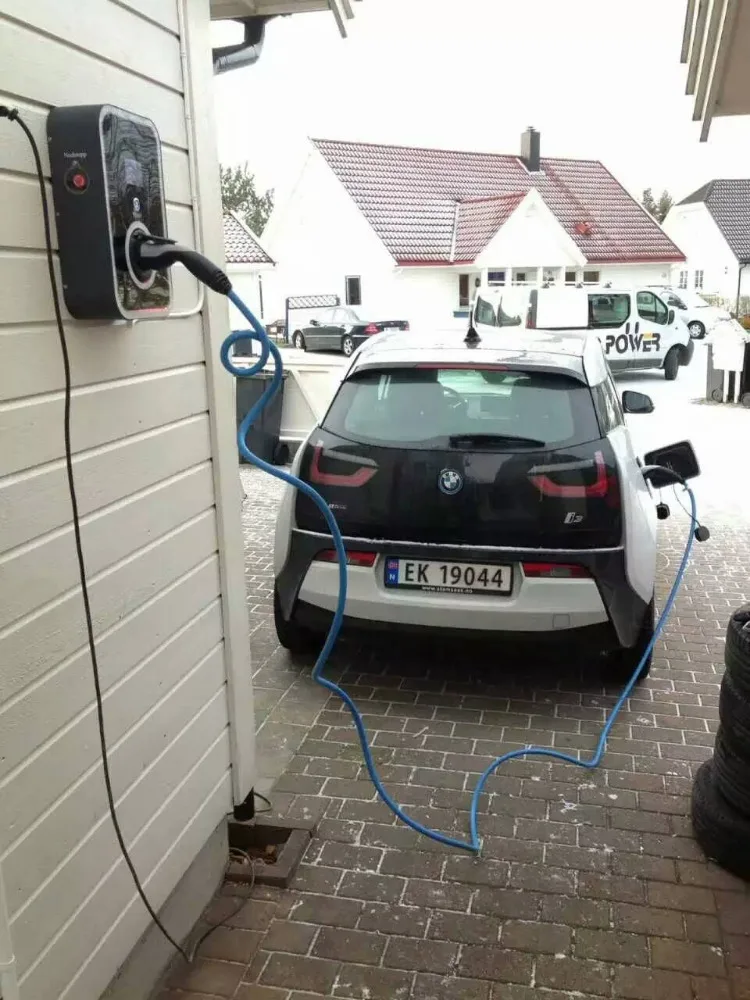

1. Insert the Type 2 charging plug/gun, on the charging cable,into the Type 2 socket, on the EVO32

2. Insert the other end of the charging cable into the vehicle to be charged

3. Swipe the key fob over the swipe panel on the side of the unit to begin charging.

4. To stop charging swipe the key fobagain, or when charging is completed simply remove the cable from the unit

5. To reinitialise a charge if stopped midway, remove the cable from the unit and begin from step 1.
6. When charging is finished remove the cable from the EVO 32 and vehicle
7. The small LED light on the front of the unit changes colour to indicate the charge status.


NOTE: the charging cable will not become live until the vehicle has communicated with the EVO 32 and the vehicle has instructed the unit to commence charging.

How to Install

INSTALLATION & WIRING

1. Remove the screws around the outside of the unit to separatethe back mounting panel from the front of the unit, keep the screws to one side.
2.Mount the wall mounting plate onto your chosen surface with suitable screws and wall plugs (M8), use a spirit level.
3. Your chosen cable will need to enter the unit through the cable gland at the bottom or the entry hole at the back of the unit.
4. When connecting the cable to the inside of the unit you will first need to remove the cover plate at the rear, then once open remove the holder bar that hold the RCD in place. You will then connect the cable, with suitable lugs crimped to the ends, into the RCD Live and Neutral and the Earth (CPC) to the earthingterminal inside the unit.
5. Use an earth spike where required if installed outside, follow applicable building regulations with regards to earthing, refer to current wiring regulations
6. Run the cable back to the consumer unit using conduit or other protective insulation where applicable, use a AC isolator between the unit and the consumer unit if it is a new build dwelling 'or' if requested in an existing dwelling. An optional kw/hr meter canalso be installed at this point. consult the home owner to establish preferences.
7. Check for a onsite generating supply when dealing with the consumer unit, such as a SOLAR PV installation (common with households with electric vehicles), and isolate it along with the mains supply before continuing. Connect the cable to a suitable MCB (Type B or C, 40A) at the consumer unit.
8. Check all connections are tight and correct and that all electrical tests are completed to comply with Part-P regulations.
9. Once satisfied that the unit is secure and safely installed on a circuit that meets all requirements of the building regulations in force, you can commission the unit by turning on the mains supply to the unit. Test the RCD and do other safety checks where needed. Follow the operation guide on the left hand side of this page to check that the EVO 32 is working correctly
10. Show the customer how to operate the unit with their vehicle, leave the fob keys and this instruction guide with them.
