240v 2400w 1" BSP Screw In Type Electric Immersion Cartridge Heater

  • 2-9 Pieces
    $28.60
  • 10-19 Pieces
    $26.80
  • >=20 Pieces
    $23.60
Model Number:
DT-711091
Power(W):
2400w
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Home Use, Retail
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Duct Heater
Power Source:
Electric
Place of Origin:
Guangdong, China
Brand Name:
DETAI cartridge heater
Dimension(L*W*H):
20*250mm
Weight:
0.8kg/pc
Voltage:
240v
Certification:
ROHS
Warranty:
1 YEAR, One Year
After-sales Service Provided:
Video technical support, Online support, No overseas service provided
Working Temperature Range:
800 ℃
Key Selling Points:
Sustainable
Material:
SS304
Color:
White
Tube diameter:
20mm
Tube length:
250mm
Heating wire:
Nickel chrome wire
Usage:
Multi
Thread:
1"BSP
Feature:
with locknut

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X5X5 cm
Single gross weight:
0.800 kg
Package Type:
PE bags with carton box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Product Description

The construction of cartridge heater positions a nickel-chrome resistance wire precision wound around a magnesium oxide core. It is inserted into a stainless or Incoloy tube locating the resistance wire close to the sheath. The core is centrally positioned within the tube and filled with magnesium oxide powder. Nickel pins pass through the centre of the core making contact with the resistance wire at both ends. The whole is assembly is highly compacted by a swaging operation and thus ensuring excellent heat transfer to the external sheath. This allows for operating temperatures to 1600ºF and high watt densities. One end of the heater is closed with a welded metal end-disc and wire leads exit at the opposite end which is typically closed with a lava seal. A variety of wire leads and lead protection options are available. Heaters can be supplied with internal thermocouples, mounting fittings and many other options.

Specifications: Detai 240v 2400w 1" BSP Screw In Type Electric Immersion Cartridge Heater
Sheath Material(SUS304, SUS316, Incoloy800)
SUS304
Volt&Watt(customized)
240v 2400w
Tube diameter(6-25mm)
20mm
Tube length(customized)
250mm
Thread
1"BSP
Resistance Tolerance
+10% - 5%
Spirals
Nickel - Chrome
Detai cartridge heater can be customized. Contact us for more information!
Detailed Images

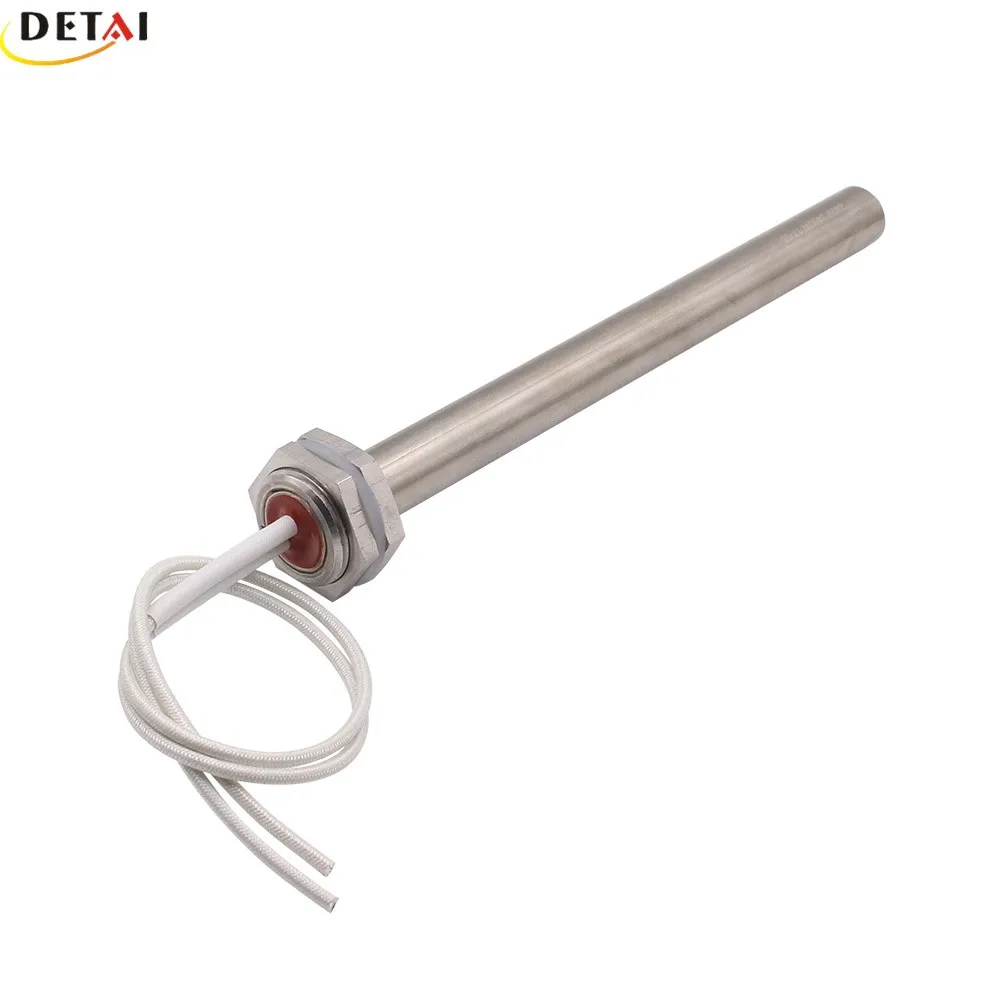

Detai 240v 2400w 1" BSP Thread Electric Immersion Cartridge Heater

Name: cartridge heater
Brand: DETAI
Original: China
Detai cartridge heater (insertion heaters) provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Customers benefit from Detai's on-time delivery, quality and technical assistance.

Product Application
Cartridge heater applications

Water Heating
We recommend 10 watts per square centimetre when cartridges are to be immersed in water because the water removes the energy from the element very effectively. Commonly used as a chemical solutions heater.


Oil Heating
Commonly used as engine sump heaters. When heating some oils, only 2 watts per square centimetre can be used otherwise the high cartridge heater surface temperature causes the oil to oxidise and carbon to be built-up on the surface of the heater. When this occurs, the carbon can thermally insulate the cartridge heater, causing the unit to heat up internally, often resulting in electrical failure.

Air Heating
Elements of approximately 1 watt per square centimetre are suitable for convection air heating, eg. Anti-condensation heaters.

Die Heating
Manifolds, hot runners and torpedoes.
Packaging
Hot melt glue applicators.
Certifications
Our Service

Pre-Sales Service

* Inquiry, drawing and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the heaters, training how to use the heaters.

* Engineers available to service machinery overseas.

Packing & Delivery

Packing

1.PE bags

2.Carton box

3.Wooden case

Delivery

1.Lead time:Normally 5 days after payment

2.Air&Sea shipping is available.

3.Worldwide international express.
