24v brushless dc motor 200rpm high torque bldc gear fan motor 50kgf cm

FOB Reference Price:Get Latest Price
$21.80 - $32.00 / Pieces | 1 Piece/Pieces (Min. Order)
Voltage(V):
24V
Output Power:
3.7W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Leison Motor
Model Number:
PG36BL32
Usage:
Home Appliance, Slot machine, office equipment, automatic doors
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
1-56kgf.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
1.6-1708rpm
Continuous Current(A):
Current
Efficiency:
IE 1
Shaft dimension:
8MM
Shaft type:
D-cut, round and keyway
Gearbox ratio:
1:3.7 to 1: 3736
Gearbox length:
25.1-50.9mm
Direction of rotation:
CW CCW
Gearbox diameter:
36mm
Housing material:
Steel
Geartrain material:
Steel/Powdered/POM
Motor type:
Carbon-brush Commutator
weight:
500g to 900g
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 Ctn size:28*30.5*13cm
2 120pcs/ctn, 30pcs/layer(foam packing)
3 N.W.: (3-5)kgs, G.W.: (4-5.5)kgs
4 As customer's requested
Port
Ningbo/Shanghai
Product Description

 24v brushless dc motor 200rpm high torque bldc gear fan motor 50kgf.cm


1.Features of PG36BL32
Voltage: 24v
Torque: 1-56kgf.cm
Speed: 1.6-1708rpm
Typical applications: Auto shutter, pan/tilt camera, slot machine, money detector, coin refund devices, currency count machine, towel dispensers, automatic doors, office equipment, household appliances, automatic actuator

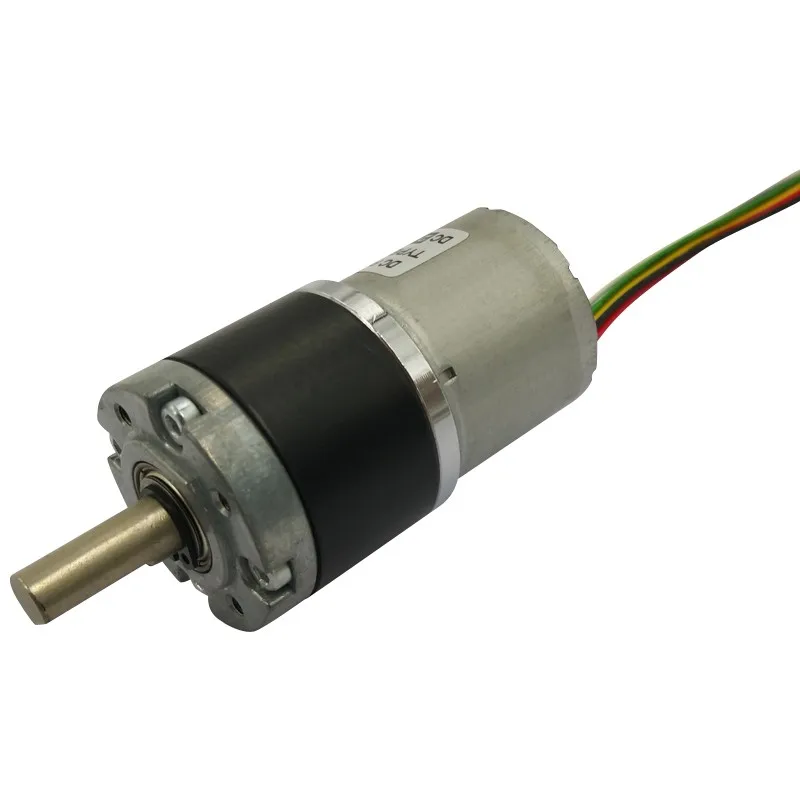

2.Pictures of PG36BL32

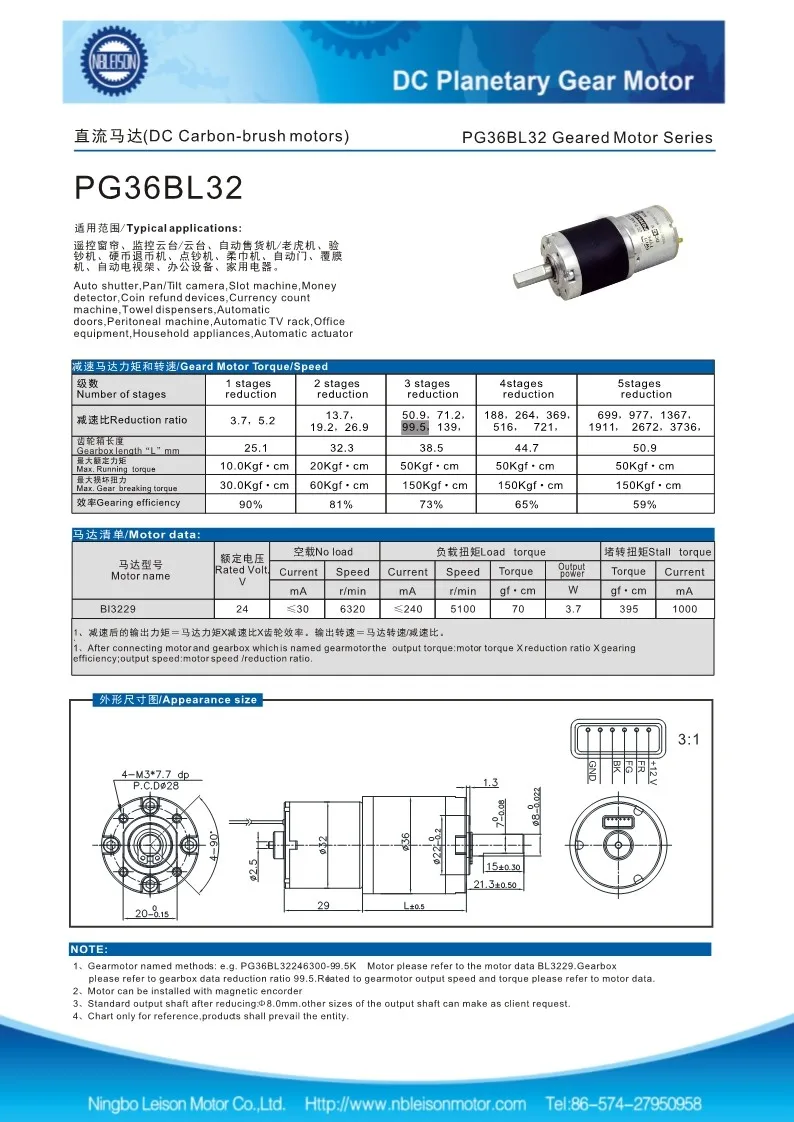

3. Specifications of PG36BL32


Note: It's the typical specificaitoin for reference only, We can choose DC motor with different voltage speed to meet your torque and speed requirement.
Related Products
Company Profile

1. About us

Business Type: Manufacturer, Trading Company Verified
Location: Zhejiang, China (Mainland) Verified
Main Products:1) DC Brush motor: 6-130mm diameter, 0.01-1000W output power
                           2) DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
                           3) DC Planeary Gear Motor: 10-82mm diameter, 0.1-100W output power
                           4) Brushless DC Motor: 28-110mm, 5-1500W output power
                           5) Stepper Motor: NEMA 08 to NEMA 43, Can with gearbox and lead screw
                           6) Servo Motor: 42mm to 130mm diameter, 50-4000w
                           7) AC Gear Motor: 49 to 100mm diameter, 6-140 output power Total Employees: 51 - 100 People
Total Annual Revenue: $5 Million - $10 Million
Year Established: 2014 Verified
Top 3 Markets: Western Europe 20.00% North America 15.00% Domestic Market 12.00%
Product Certifications : CE, RoSH, RoSH CE
Trademarks : NBLEISON

2.Production line and equipment

1) Production line

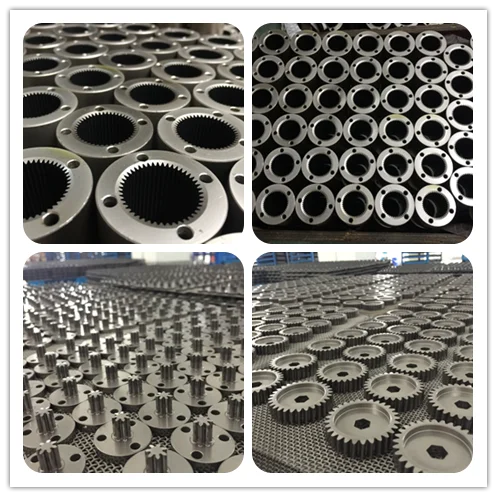

2) Product components

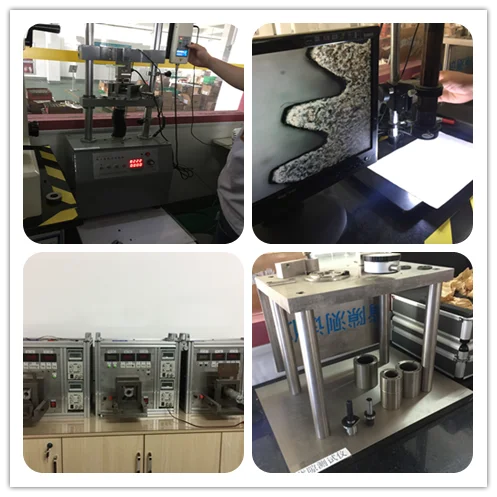

3) Testing equipment

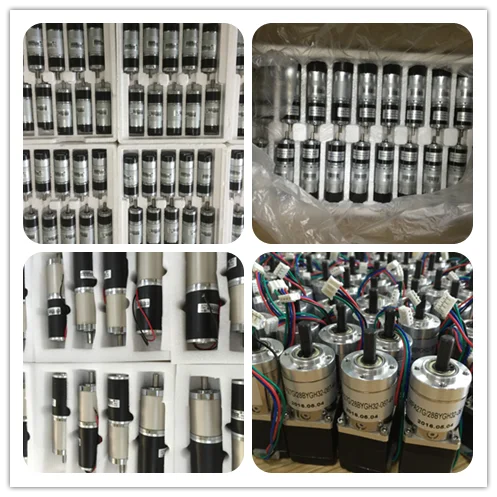

Packing & Delivery
Certifications
Customer Visits
FAQ

Q: What's your main products?
A:We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: you have individual design service for motors?
A:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q:What's your lead time?
A:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders

Q:What's your payment term?
A:For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q:When will you reply after got my inquiries?
A:We will response within 24 hours once get your inquires.

Q:How can I trust you to make sure my money is safe?
A:We are certified by the third party SGS and we have exported to over 85 countries up to June.2017. You can check our reputation with our current customers in your country (if our customers do not mind), or you can order via alibaba to get trade assurance from alibaba to make sure your money is safe.

Q:What's the minimum order quantity?
A:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q:What's your shipping method for motors?
A:For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q:What certifications do you have?
A:We currently have CE and ROSH certifications.

Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.

Q:Can I visit your company?
A:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
