26inch 350W GPS Locating Mountain Electric Bike with Diagnostic Data speedodemeter

  • 1 - 49 Pieces
    $510.00
  • 50 - 99 Pieces
    $500.00
  • >=100 Pieces
    $490.00
Color:
Black White
Samples:
$510.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Wattage:
250W/350W
Voltage:
36V
Power Supply:
Lithium Battery
Wheel Size:
26"
Motor:
Brushless
Frame Material:
Aluminum Alloy
Foldable:
No
Max Speed:
20-40kn/h
Range per Power:
> 60 km
Place of Origin:
China
Brand Name:
Topshine(support OEM/ODM)
Model Number:
TSMB01
Style:
Luxury
Software:
Free tracking E-bike platform
Wheel size:
26inch
Tire:
26 *1.94
Max climbing:
30 degrees
Brake:
F/R Dis-brake
Derailleur:
7 speeds
Color:
White/black
Remote lock motor:
Support
Remote send E-messages:
Support
Hydronic brake:
Support
Supply Ability
Supply Ability:
10000 Unit/Units per Month E-bicycle sample is available
Packaging & Delivery
Packaging Details
Packing Topshine 26inch 350W GPS Locating Mountain Electric Bike with Diagnostic Data speedodemeter
One E-bike one carton
Unit weight: 25Kg
Pack carton: 148*23*75cm
Port
GuangZhou
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 >100
Est. Time(days) 3 5 To be negotiated

Topshine 26inch 350W GPS Locating Mountain Electric Bike with Diagnostic Data speedodemeter

(*Built in GPS module  *Free tracking platform *Inertria cruise system *Stereo HIFI music system)







This is Unique Smart GPS locating electric bike in the world now. It have been combined with the features of traditional motorcycle and bicycle, we can either use handlebar to accelerate or pedal via 21 Shimano speed gear to go forward.


Electric bike has 4 advanced riding modes, inertial cruise/ pedal assist / twist throttle + cruise control / manpower mode, we can switch mode freely, our electric bike is different from all other E-bikes in the market.

This electric bike has several highlights as below:
1.Automatic Cruise system: When we are pedal our E-bike, it will give you power assist. Even we are stop pedal, it will still go forward by the current speed. (Default mode)

2. Uphill smart boost system: when we are go uphill, the E-bike will boost its energy and help you climb the uphill easily.

3.Flexible power-assisted system: it is use continuously-variable transmission system, it is according to the twist throttle to provide the corresponding assistance. You may worry about the safety, this bike will accelerate softly and you will not feel any uncomfortable.

4. Twist throttle + cruise control system: When you feel tired to twist throttle, you can step the pedal to remember current power assisted level, then release the twist throttle, at that moment, system will still go forward by the current speed.

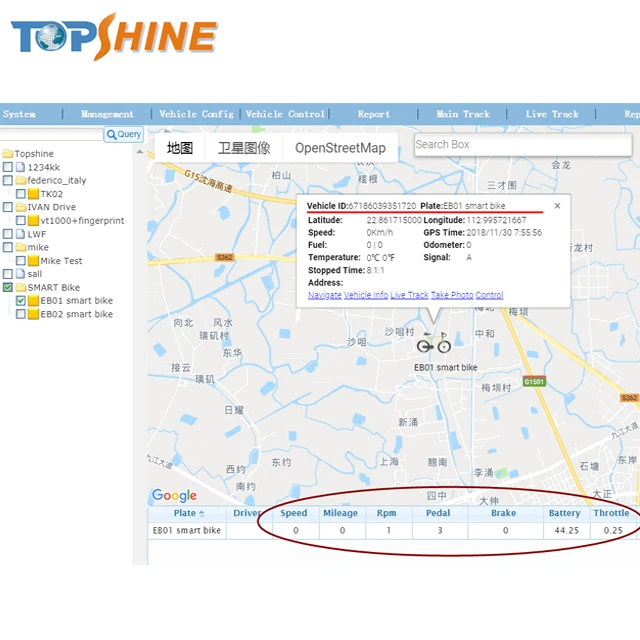

5.GPS Tracking System: We are integrated GPS chip in the controller, so we can real time track our E-bike via free tracking platform anytime anywhere. Remote diagnose is the highlight of this system, we can real time track data, such as: Rpm, Brake, Throttle, Pedal, Speed, Odometer, etc,. Remote cut off engine and speed limit are also supported.

Topshine company provide free online GPRS tracking platform to clients, no any monthly or yearly charge, we can real time tracking electic bike.

Platform: www.track-car.com
User: ebike
Password: 123

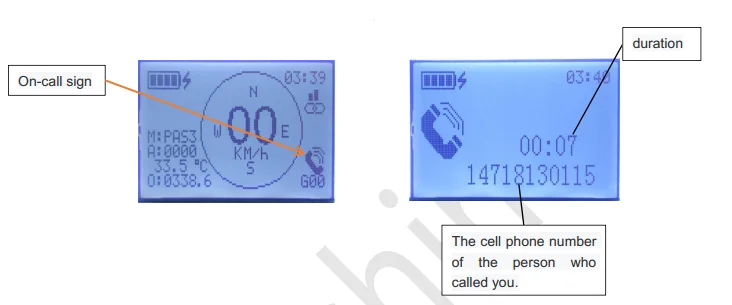

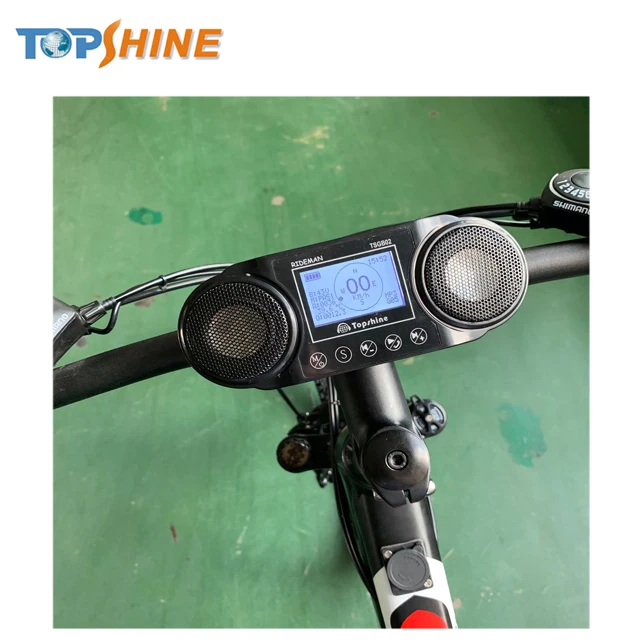

6. Optional accessories E-bike odometer: It have built in GPS chip, it can use for personal, boat, sailing, E-bike etc, it can real time detect battery capacity, riding speed, compass, time, GPS, GSM, temperature, total mileage, altitude etc



Key Features
1. Stereo HI-FI speaker
2. Built in 2,000mAh battery
2. MP3/Bluetooth player selection
3. Hand-free phone
5. Online GPS tracking
6. Electronic compass
7. Remote Disable motor function
8. Receive and showing e-Message on the LCD
9. Time, Date and Alarm clock function
10. Real time ambient temperature detection
11. Real time altitude detection
12. Remote e-bike diagnosis
13. Local diagnosis show on LCD
14. Check latitude and longitude on LCD
15. Touch keyboard instead of traditional mechanical keyboard to extend service life of the keyboard and good waterproof;
16. Trip Riding time and History Riding time report
17. Trip Odometer and History Odometer report
18. Max speed and average speed report

19. 6 types of riding mode selection
(0FF: Fitness mode; PAS1/2/3: Power assist mode; PASA: Stepless Power assist mode; ICS: Inertial Cruise)

20. Remotely lock motor and receive E-Message
21. Two way communication

Specifications:

Appearance
Product model  Mountain electric bicycle TSMB01
Color  Black/white
Product parameters
Frame  6061 high density aluminum alloy, rear shock absorber
Crank sprocket  Aluminum alloy crank, hight stength ultra light, chain plate is gold transmission
Tire

 27.5*1.95 Aluminum magnesium alloy wheel rim
Saddle shell material  3D super comfortable saddle, it is made of high elastic leather and high density punching sponge material
Saddle tube  Aluminum and magnesium alloys
Brake  Front / rear disc brake
Dreailleur  7/21/24/27 speed gears
RIM  Magnesium alloy A/V
Wheel size  27.5inch
Weight  25kg
Hydronic brake  Optional
front / rear light  Optional
GPS E-bike odometer  Optional
Basket  Optional
Fender apron  Optional
Power
Power system  Inertial cruise + electric power assist + smart uphill power system + GPS locating system
Controller  Double system controller
Voltage  36V/48V
Motor rated power  250W/350W
Speed  20 ~40M/H
Max climbing  30 degrees
Battery parameters
Battery capacity  Imported LG lithium 36V/ 48V 8Ah/10Ah
Recharge mileage  50-90km
Charge time  3-5 hours





Terms and Service:

1) Delivery time:

- 2-10 days after receive the payment.



2) Packing:

-One set per standard export carton

-According to customer's request.



3) Warranty:

-Frame Warranty against manufacturer defects, 1 year

-Components Warranty against manufacturing defects, 1 year




Payment & Shipment:

Payment Term: PayPal /Western union /TT
Shipping Term: Express / Air / railway / sea transportation
Lead time: Samples within 1-5 working days of delivery. bulk production within 6-17days of delivery.
