26mm 88db buzzer 6v 12v 24v LMB2617W

FOB Reference Price:Get Latest Price
$0.33 - $0.40 / Pieces | 1 Piece/Pieces 12v buzzer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Cresound
Model Number:
Mechanical buzzer
Type:
Buzzer
Rated Voltage(VDC):
24
Max Input Voltage(VDC):
16-30
Rated Current(mA):
≤35
Sound Output at 10cm(dB):
≥88
Resonance Frequency(KHz):
0.4±0.1
Operating Temperature(℃):
-20~+60
Color:
White
Housing Material:
ABS
RoHS:
Yes
Certification:
ISO9001,IATF16949
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month 12v buzzer
Packaging & Delivery
Packaging Details
standard packaging
Port
Shanghai
Video Description
Buzzer Description
Cresound
Other factory
SPL Error Range
≤4 db
≤ 8dB
Drop Test ( drop from 1.5mm totally 18 times)
×
PPM
≤100
≤2000
Customization
×
Engineer 24 hours service
×
Provide Buzzer Drive Plan
×

CHANGZHOU CRE-SOUND ELECTRONIC Co., Ltd is one of the worldwide leading acoustic electronics products total solution provider, serving our customers with innovation, time to market, time to volume & cost competitiveness. Now we have more than 270 staffs, especially including 25 professional acoustic engineers with more than 15 years working experience in acoustic area. Since 1996 we are always devote ourselves to research, develop and produce the acoustic components.

26mm 88db buzzer 6v 12v 24v LMB2617W

1. Specification of mechanical buzzer
Rated Voltage
(VDC)
24
Operating Voltage
(VDC)
16~30
*Resonant Frequency
(Hz)
400±100
*Rated Current
(mA)
≤35
*Sound Output at 10cm
(dB)
≥88
Operating Temperature
(℃)
-20~+60
Storage Temperature
(℃)
-30~+70
Weight
(g)
10.5
Color
White
Housing Material
ABS

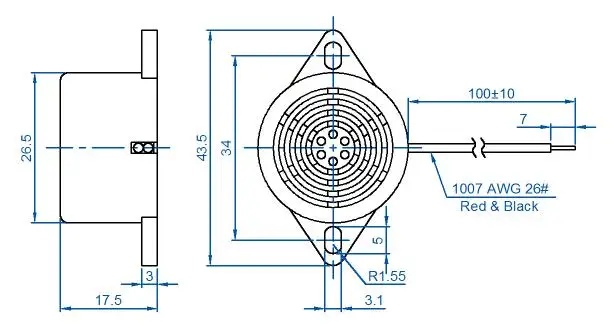

2. Dimension of mechanical buzzer
3.  Frequency curve of buzzer
5 . Related Buzzers

 External-Driven Piezo Buzzer

                    LPF3380

                          Piezo Buzzer

                      LPB4720W

               SMD PIEZO BUZZER

                       LPT1325S

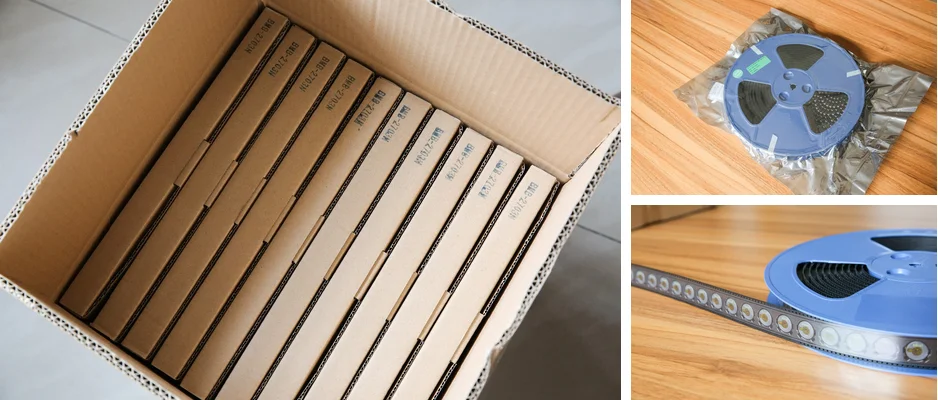

Packaging of buzzer
Buzzer application
Buzzer factory

Our main products are Piezo Buzzer, Magnetic Buzzer and Mylar Speaker, especially our SMD buzzer is the best in acoustic field . Today, we have strong capability of products' design, mould's design and manufacture. The enterprise work on TSI 16949, ISO9001, ISO14001 strictly to strengthen the control system. Our products normally pass through several procedures, such as products' designing, income purchasing, producing, testing and packaging. All these procedures are controlled by our QC staffs strictly to assure the products' high quality before the date of delivery.


Other buzzer and speaker

               Magnetic Buzzer

                    Piezo Element

                            Speaker

Buzzer certification

1. Global Source Electronics Fair in Asia World-Expo of HongKong , Oct 11-14,2016,Our booth No:9G17

2. Munich Electronica Fair,November 8-11,2016,Our booth No:B6.561/1.

Transport for buzzer
FAQ of piezo buzzer
Q:
When can we get the reply?
A:
Any inquiries will be replied within 24 hours.
Q:
Can i have samples?
A:
Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
Q:
What is your payment term?
A:
 Payment terms: T/T, west Union, Paypal and L/C etc.
Q:
What is the lead time?
A:
30 days for mechanical buzzer
Q:
How you will send the goods to us?
A:
We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
Q:
Are you trading company or manufacturer ?
A:
We are changzhou buzzer manufactory.
Q:
Do you support OEM and ODM services?
A:
Yes, surely support. we can customize products according to the drawing.
Q:
Can you provide driven circuit?
A:
Yes, of course sure.
