2BBL 3BBL 5BBL Pass the CE PED certificated beer brewing equipment for complete beer factory

FOB Reference Price:Get Latest Price
$22,900.00 - $49,900.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
NFE
Model Number:
200l
Processing Types:
Beer
Voltage:
110V , 220V , 380V , 480V
Power(W):
according to your requirement
Dimension(L*W*H):
Capacity
Weight:
according to the size
Certification:
CE ISO UL
Material:
Stainless Steel 304
Heating method:
Steam heating/electric heating/direct gas fired heating
Thickness of tank:
3mm for inner and 2mm for outer shell
Colour available:
Mirror SUS
Plants type:
turnkey or customized
Control system:
Semi-automatic
Motor:
ABB motor
Accessories:
with all the valves and pumps
Guarantee time:
one year
Keywords:
Brewpub Beer Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
By independent containers or by bulk carriers PVC film, or wooden case, or steel frame.
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Port
Ningbo, Shanghai
Product Description

• Mash/Lauter Tun with grist hydrator
• Kettle/Whirlpool Tank with heating jacketed
• Grant Tank
• Stainless steel Platform
• Plate Heat Exchanger
• Sanitary Wort Pump x2;
• Wort Oxygenator;
• Semi-Auto Control Panel;
• Interior surface to finish pickled and passivated
• Exterior surface to brushed, #4 finish
Or
•Interior surface to polished to RA≤0.22μm
•Exterior surface adapts satin polish.
Method of Heating Ways:
• Steam: Dimple plate jacket with inlet/outlet fittings for Steam heat transfer;
• Electric: Use electric heaters in jacket to heat the medium in the jacket
• Gas fired: Use gas burner at bottom to heat tank directly;

SPECIFICATIONS FOR A COMPLETE SET BEER BREWING EQUIPMENT

Grain Milling Unit
Rolling Miller
300-500 kg/h
Rolling Miller
800kg/h
Rolling Miller
1000kg/h





Brewhouse unit


Mash/Lauter tun
Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring(optional)
Anti-rinser(optional)

Boil kettel/whirlpool tun
Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack
Hot liquor tank
Steam Jacket heating/direct gas fired heating/electric heating




Fermentation unit




Fermenter
Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level




Bright beer tank




Bright beer tank
Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Dry hopping port
Carbonation stone
Sight level


Glycol Chilling Unit
Glycol Water Tank
Insulated conical top and sloped bottom
Cold Water Tank
Dimple plate on side wall
Chiller
Control unit
Brewing and fermetation process Controlling
Manual button control panel or PLC control with touch screen for special
CIP unit
Caustic Tank
Sterilization Tank Transfer&Control
electric heating element inside
Hot Sale Products

   300L/3BBL beer brewhouse

                98.2% Response Rate

 500L/5bbl brewery equipment

            99.6% Response Rate

        15bbl conical fermentor

                     89.0% Response Rate

2000L beer fermenter

                   91.8% Response Rate

    1000L brewery equipment

                 93.1% Response Rate

     2500L brewhouse equipment

                    86.9% Response Rate

Detailed Information
Part One

Name: Malt milling system
Brand: NFE
Original: China
Malt System: MILL MACHINE, FLEX AUGER, GRAIN BIN, GRIST HOPPER
Mill Machine: 80-150kg/h, 300-500kg/h, 500-800kg/h, 800-1000kg/h
Flex Auger: PPR material pipe, stainless steel auger, motor
Grist Hopper, Grain bin

Part Two

Name: Brewhouse
Brand: NFE
Original: China
Brewhouse Equipment: Mash tank, lauter tun, brew kettle, whirlpool tun.

1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Insulation material: rock wool. Insulation thickness: 100mm
4. Mash tank; hydrator, mixer, steam heating jacket
5. Lauter tun: rake, agitator, false bottom, hydrator
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry

Part Three

Name: Fermentation tank
Brand: NFE
Original: China

Fermentation tank : 100L-200HL

Main specification:
1. Stainless steel 304, side man way or top manway;

2. PU insulation, insulation thickness: 80-100mm;
3. Inside wall thickness: 3mm, outer shell thickness: 2mm;
4. CIP Rotary Spray Ball;
5.  Relief valve, mechanical pressure regulating valve, sample valve, butterfly valves;
6. PT100 temperature sensor, with temperature controller;
7. 2 sections dimple plate cooling jacket( 1 on wall and 1 on cone);
8. Complete with associated valves and fittings;

Part Four

Name: Bright beer tank
Brand: NFE
Original: China

Bright beer tank : 100L-200HL

Main specification:

1. Sanitary Stainless steel 304, dome top head and dome bottom;
2. Surface brushed, welding line polish sanding light belt;
3. Polyurethane insulation, thickness: 80-100mm;  Dimple plate cooling jacket

4. Inner body thickness 3mm, cladding thickness 2mm;
5. With rotary CIP spray balls and arm;
6. PT100temperature sensor;
7. Sample valve in the cylinder;
8. Carbonation stone;
9. Complete with associated valves and fittings.

Part Five

Name: Hot/Cold water tank, Glycol tank

Brand: NFE

Original: China

1. Stainless steel 304,
2. steam jacket heating or electric heating or direct gas fired heating,
5. rock wool insulation, and the thickness of insulation is 80-100mm;
6. The thickness of inner body is 3mm,
7. With glass level tube.

Part Six

Name: CIP system

Brand: NFE

Original: China

1. Sterilization tank;

2. Alkali liquor tank;

3. Sterilize vehicle;

4. CIP pump;

5. Pipes and valves;

6. Control box.

Part Seven

Name: Control system

Brand: NFE

Original: China

Control system: manual button control or PLC control;

According to customer's requirement.


Packing & Delivery

1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.

Company Information

*Our Design*

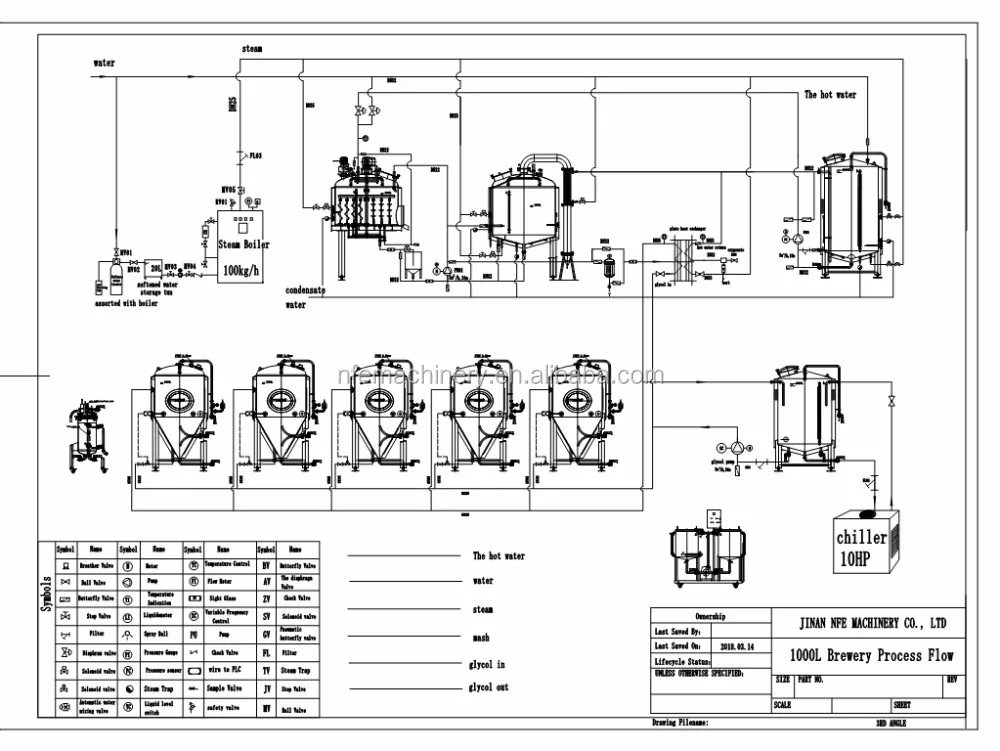

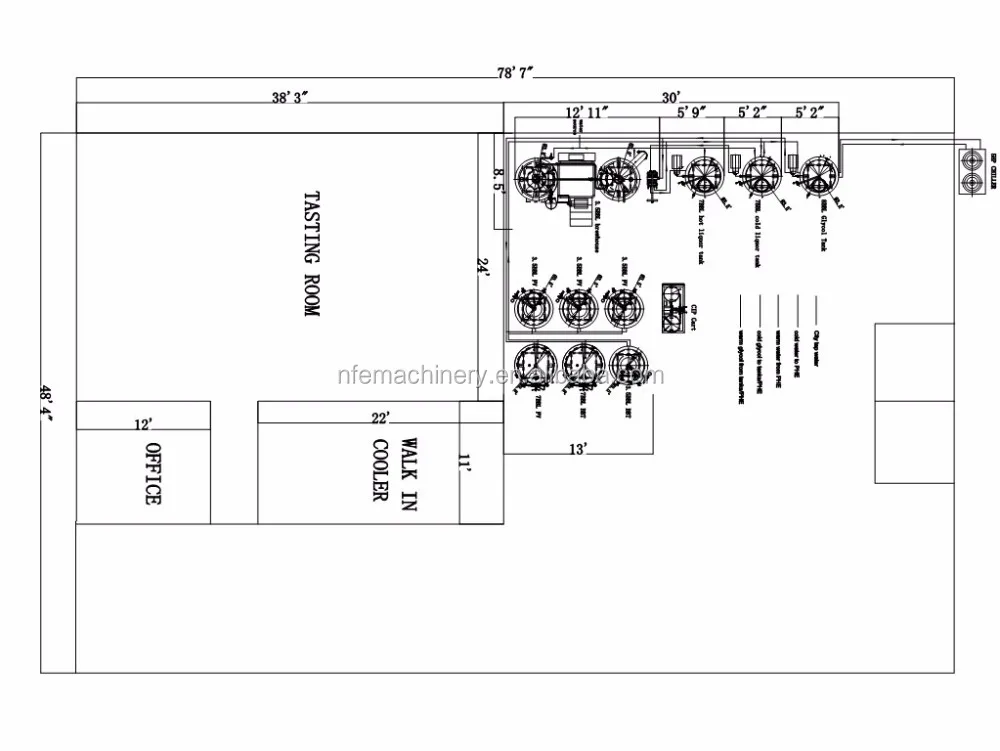

NFE own a rich-experienced technical design team, we can degin technical drawings and solutions completely as per demands of different customers. Based on the production capacity, workplace dimension, beer brewing technique, cost budget of different customers, we make the most reasonable technology process flow drawings, tank drawings, workplace layout drawings, pipeline connection drawings, electric control drawings etc, which can make the project clearly and easily for each customers.

*Our Service*

We provide turnkey system, onsite installation service for brewery projects.
We are preparing to supply technology service at any time, will offer equipment handbook, electrical appliance drawing and machinery drawing to customers with the equipment.

*Customers visiting*

Welcome every customer interested in our products to visit our factory and discuss the related product details. Our bar has already prepared beer for you.

*Our Exhibition*

2016.10-- -2016 CBC Shanghai

2017.04----2017 CBC BrewExpo in Washtington DC, USA

2017.09----2017 Drinktec in Munich, German

*Workshop*

100% Pressure & leak testing of all tanks, jackets, and hardpiping.

All eletronics and brewhouses pre-assembled and tested before shipping.
