2D Image Desktop Barcode Scannee BC-27 Guangzhou Bimi desktop scanner

FOB Reference Price:Get Latest Price
$65.00 - $70.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Bimi
Model Number:
BC-27
omnidirectional barcode scanner Name:
Bimi omnidirectional barcode scanner

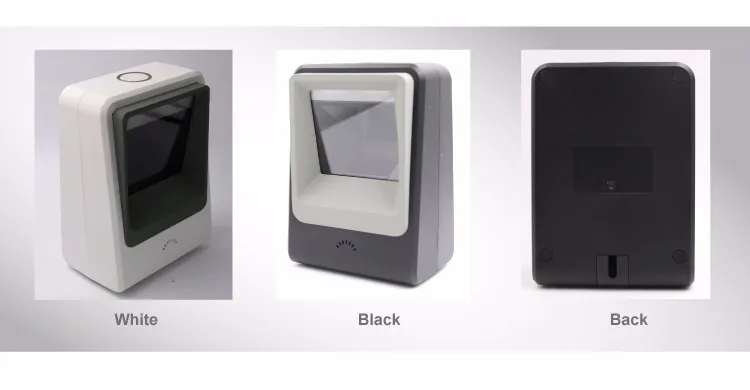

omnidirectional barcode scanner Color:
White or Black optional
omnidirectional barcode scanner Type:
1D/2D Omnidirectional Barcode Scanner
Omnidirectional:
Yes
Scanning lines:
20 lines under 5 field of 4 parallel lines
Interface:
USB
Scan Speed:
300scan/second
Max Paper Size:
600*600
Colour Depth:
16bit
Products Status:
Stock
Supply Ability
Supply Ability:
1000 Unit/Units per Day 1D/2Dauto scan barcode reader omnidirectional barcode scanner
Packaging & Delivery
Packaging Details
1 pc in inner box, 10pcs in a carton, size: 72*36*28cm.
Port
Guangzhou/ Shenzhen
Related Products
Product Description

1d auto scan barcode reader omnidirectional barcode scanner

Item Number
Omnidirectional Barcode Scanner BC-27
Physical Parameters
Material
ABS+PC
Size
L*W*H: 16cm*11cm*12cm
Power Supply
DC 5V/420mA
Weight
310±5g (without cable)
Performance Parameters
Support Interface
USB
Sensor
Planar CMOS sensor
Light Source
white LED (lighting)
Processor
32-bit ARM MCU
Decoding Capability
1D version: Codabar,Code39,Code32,InterLeaved 2 of 5(24bit),Industrial 2 of 5( Industrial25),Matrix 2 of 5,Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,GS1 DATABAR(RSS14),GS1 DATABAR Limited, Gs1databar Expanded
2D version: QR, MicroQR, PDF417, Data Matrix, AZTEC.
Resolution
5mil/0.127mm@PCS90%
Depth of Field
4MIL CODE39:  0--4   CM
13MIL UPC-A : 0--16  CM
15MIL QR :  0--14  CM
1D code from Alipay 0--24 CM
2D code from Alipay 0--47 CM
Available for Stationery small barcode & wide barcode
Scanning Speed
300scans/sec
Scanning Method
Auto-sensing
Scanning Area
5 * 5 cm² -- 20 * 20 cm²
Prompting Mode
Buzzer, indicator light (LED)
Printing Contrast
No lower than 35%
Scanning Angle
Roll 0-360°, pitch ±65°, yaw ±60°
Environment Parameters
IP Grade
 IP 54
Operating Temperature
0 to 50 ºC / 32 to 122 ºF
Storage Temperature
0 to 50 ºC / 32 to 122 ºF
Operating Humidity
5 - 95% (non-condensing )
ESD Protection
15kv air discharge
Shock Resistance
1m free fall on concrete surface
Detailed Images

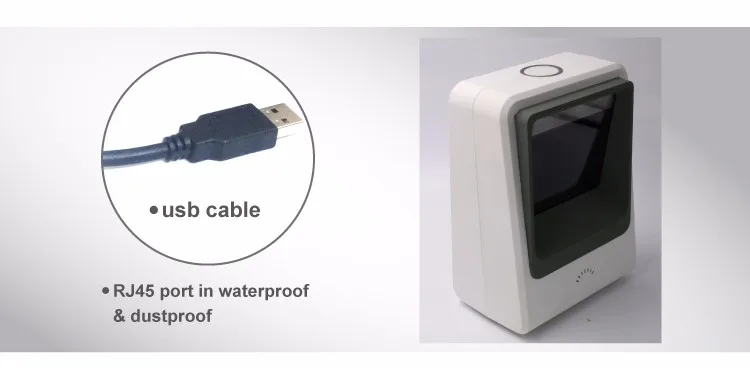

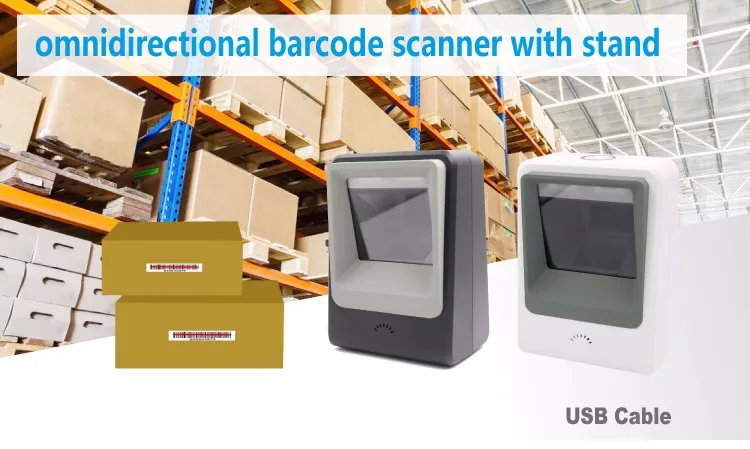

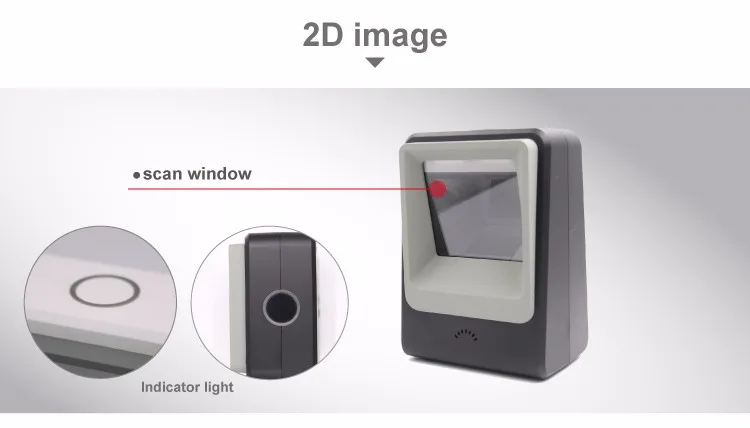

1D/2D auto scan barcode reader omnidirectional barcode scanner

Application Area
The Workshops

We have several buildings of workshops & warehouses for different products such as Time Recorder, Barcode Scanner, Cash Register, POS system... Below some workshop or testing rooms' pictures for your reference:

TIME RECORDER:

Here is time recorder long-time testing room, can load more than 4000pcs one time testing. All machines must over 48hours and every hour have QC testing machine under different steps.

BARCODE SCANNER:

More than 72hours testing under power and passed by QC before packing. Can load around 6000pcs per time.
1D & 2D scanners.

CASH REGISTER:

ECR-0013 cash registers with one station of 58mm thermal printer, can load around 300pcs per time in this testing room.

THERMAL PRINTER:

58 & 80mm thermal printers will be here of long time testing more than 72hours before packing.
Can load around 2000pcs per time on testing.

POS MACHINES:

We have two assembly lines for pos machines, can produce 5000pcs per month.

Finished packing of POS:

Here is the desktop pos machines which already finished packing and before entering the warehouse.

Our Company

Guangzhou Bimi Electronic Co., Ltd:
We manufacture Office Equipment (Time Recorder, Fingerprint Attendance Machine, Laminator, Binding Machine and accessories such as Time Card, Card rack holder, Ribbons) & POS Equipment (POS Machine, ECR Cash Register, Barcode Scanner of 1D/ 2D, Thermal Receipt Printer of 58mm / 80mm). we have provided customers with good quality products at reasonable prices, reaching European and Japanese quality. Warm welcome to visit our factory. OEM orders are highly welcomed!
Bimi took part in Canton Fair twice every year.
Bimi is willing to work and develop together with worldwide agents and distributors.

The Exhibition

We - Guangzhou Bimi Electronic Co., Ltd, took part in The Canton Fair twice per year, and also attended to Germany and Japan Fairs. Below are some pictures from our booth:
