2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter

  • 1-8 Units
    $595.00
  • 9-18 Units
    $585.00
  • >=19 Units
    $575.00
Model Number:
MM-2000 (smelter)
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Type:
gold smelter / copper smelter
Usage:
smelter for smelting different kinds of metal
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
Engine, Motor
Brand Name:
YALI (gold smelter)
Voltage:
200V/240V (gold smelter)
Dimension(L*W*H):
315*295*350(mm) (copper smelter)
Certification:
CE (smelter)
Weight (T):
0 T
Power (kW):
5
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
After Warranty Service:
Video technical support, Online support
Key Selling Points:
Easy to Operate
Local Service Location:
none
Applicable Industries:
Manufacturing Plant, Home Use, Retail, Energy & Mining, Univercity&Laboratory
Showroom Location:
none
Product Name (smelter):
2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter
Application (smelter):
Smelting, Refining, Recycling (gold smelter)
Suitable Metal (smelter):
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc (gold smelter)
Melting Capacity (smelter):
1KG/2KG/3KG (gold smelter)
Melting Time (smelter):
5mins for 0.5KG Gold (gold smelter)
Max temperature (smelter):
1200℃ (2200℉) (copper smelter)
Heating Element (smelter):
Induction Copper Coil (copper smelter)
Feature (smelter):
Temperature Control (copper smelter)
Operating time (smelter):
Continuously 24 hours (copper smelter)
Keywords (smelter):
copper smelter; gold smelter; smelter

Packaging & Delivery

Selling Units:
Single item
Single package size:
31.5X29.5X35 cm
Single gross weight:
10.000 kg
Package Type:
PE foam, Strong sponge, Carton, Wooden Case
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 6 - 10 >10
Est. Time(days) 10 30 To be negotiated
Video Description
Product Description

2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter

smelter / gold smelter / copper smelter

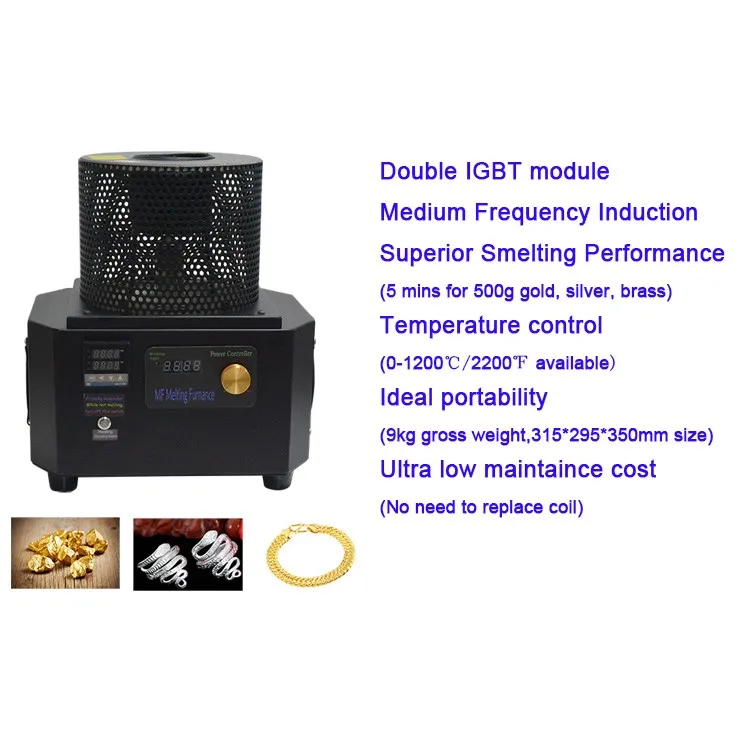

Features:

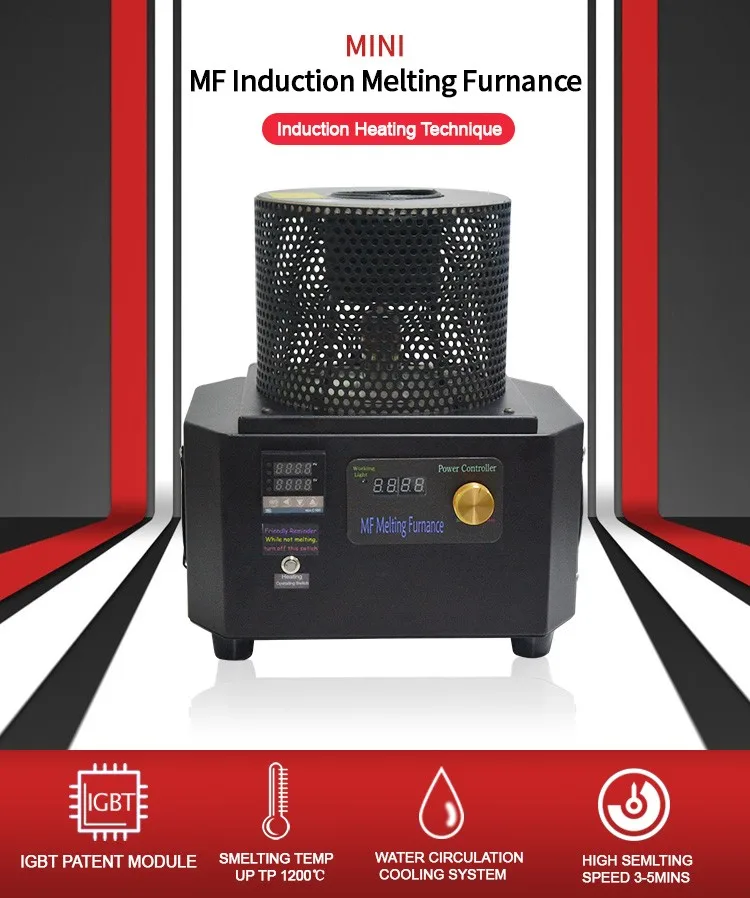

The smelter adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach 1200 ℃ (2200 ℉)

Used for refining precious metals (gold, silver, copper,  iron, etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance gold smelter / copper smelter.

Technical Parameters of
2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter
Product Name
2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter
Keywords
smelter / gold smelter / copper smelter
Voltage
200v - 240v (smelter)
Working Frequency
50hz - 60hz (smelter)
Power input:
2KG 5000W
Support 100%full load  (smelter)
System protection:
Double IGBT Over heat protection,Lack water protection.

Non - pot circuit detection function. Automatic many kinds of internal fault detection procedures, such as driving frequency error automatic alarm protection, such as a variety of protection circuits. (gold smelter)
Water Cooling system:
External water cooler, or direct tap water, only a minute 1L of water flow can be used normally. (gold smelter)
Melting Temp:
The actual temperature can be heated up to more than 1200 ℃, the temperature can be raised rapidly, the electricity can be saved, the smelting cost is low, the cost performance is high. (gold smelter)
Melting Speed:
500 grams of copper. Silver. Gold. About 6 minutes.Graphite crucibles are necessary. (copper smelter)
Dimension
About (315long * 295 wide * 350 high) innovative design, small size, light weight. (copper smelter)
Operation Steps

Operation Steps --
2KG Mini Gold Smelter Copper Smelter Multi-functional Smelter

1. Use the power line to connect the melting furnace & water chiller

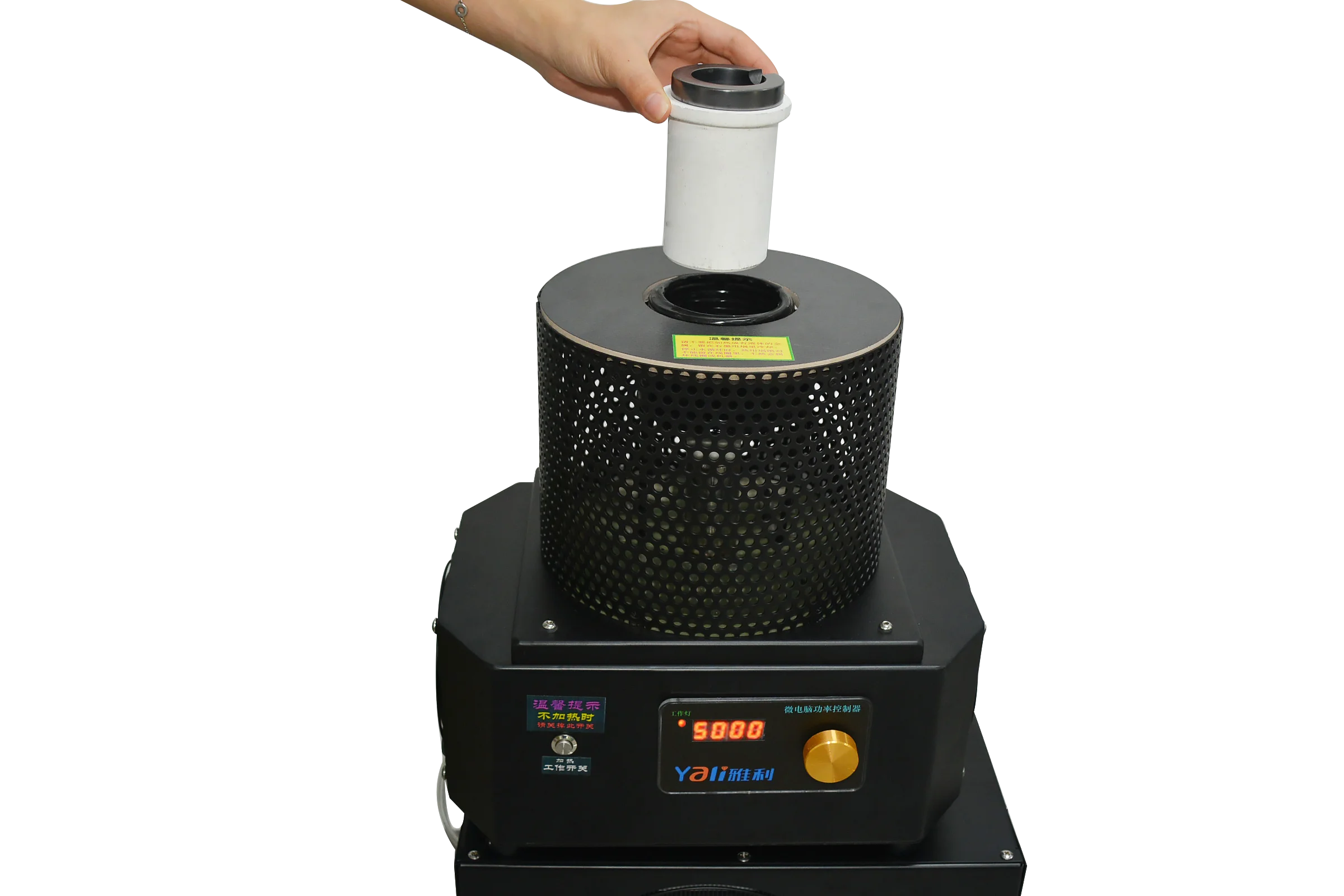

2. Put the crucible in the coil, press the operation switch and turn the power to maximum.
3. Put the metal into the crucible.
4. Press the operation switch, turn power to maximum and start melting.
5. High-speed melting is proceeding.
6. About 5 mins, melting is finished, turn off the stop switch.
7. Use the plier to grab the crucible and pour the liquid metal into a graphite ingot mold.
8. Let the machine run in 1 min and then turn off the master switch & pull the plug
