2L water distillation adjustable angle vacuum evaporator

  • 1-2 Sets
    $1,150.00
  • 3-4 Sets
    $1,115.00
  • >=5 Sets
    $1,093.00
Application:
Distillation
Model Number:
HEA-01
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
HAOCHENG
Voltage:
100 V- 240V
Weight:
38 kg

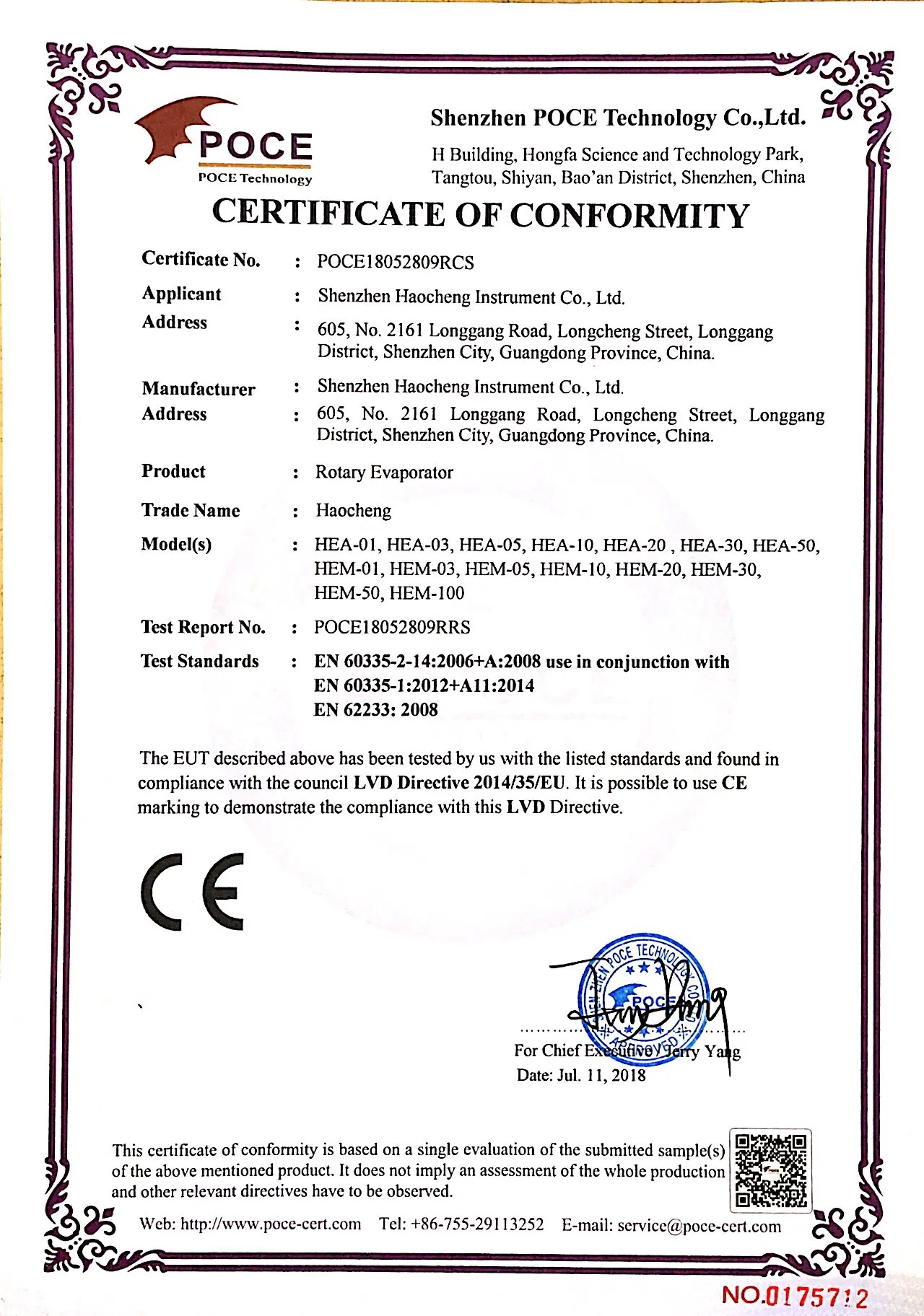

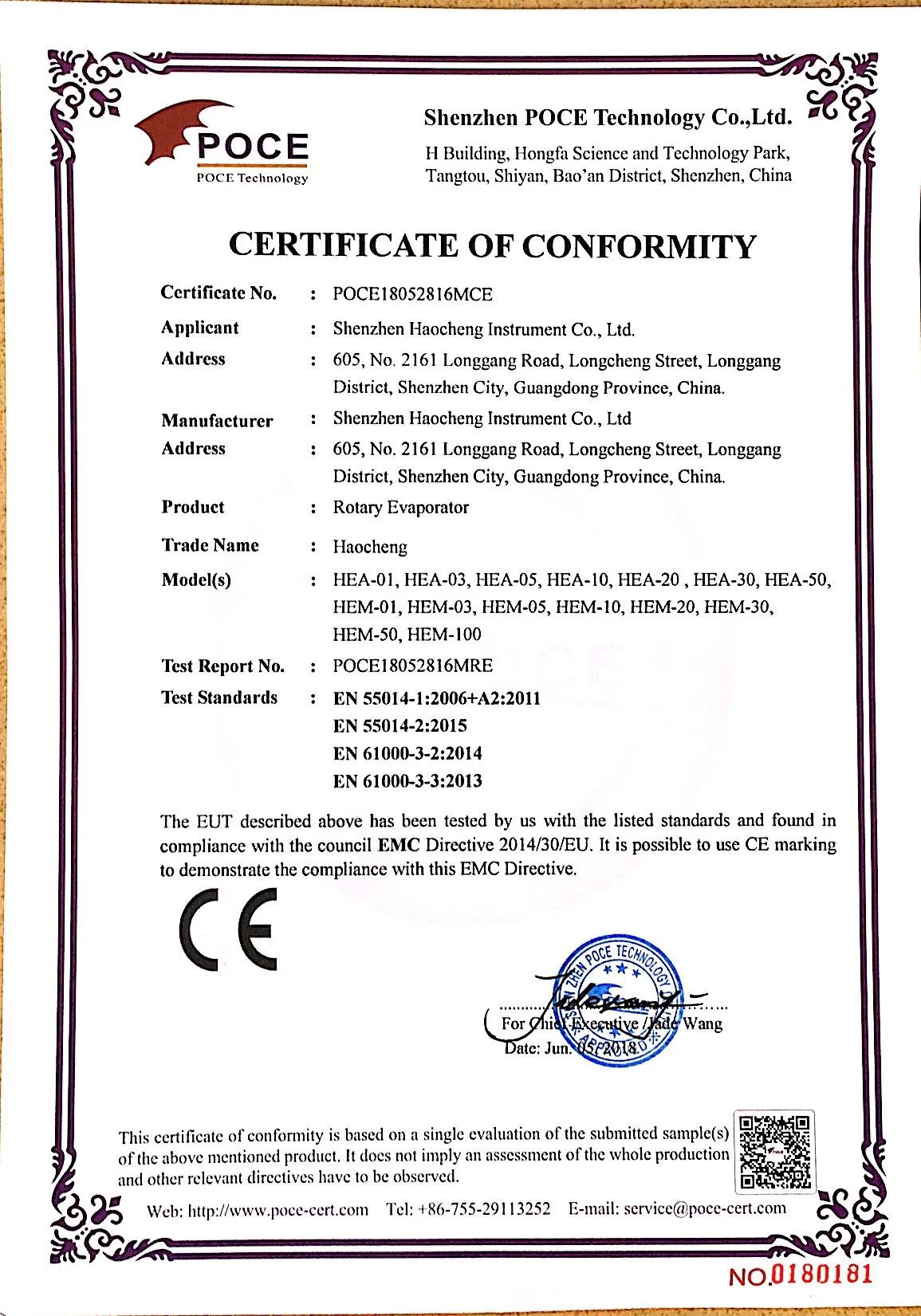

Certification:
CE Certificate
Power Source:
Electric
Process:
Vacuum Distillation
Dimension(L*W*H):
660*420*830 mm
Power(W):
Bath power 1000w
After-sales Service Provided:
No overseas service provided, Online support
Product name:
vacuum evaporator
Heat Control:
PID Control ,intelligent
Evaporation Flask:
1L
Heat control accuracy:
1 ±K , PT100 thermocouple
vacuum:
0.098 Mpa
Bath volume max.:
2L
Speed range:
0 - 200 rpm
Cooling surface:
Cooling surface
Charging:
Continue ,19# standard charging valve.
Warranty:
2 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
66X66X54 cm
Single gross weight:
38.0 kg
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 To be negotiated
Video Description

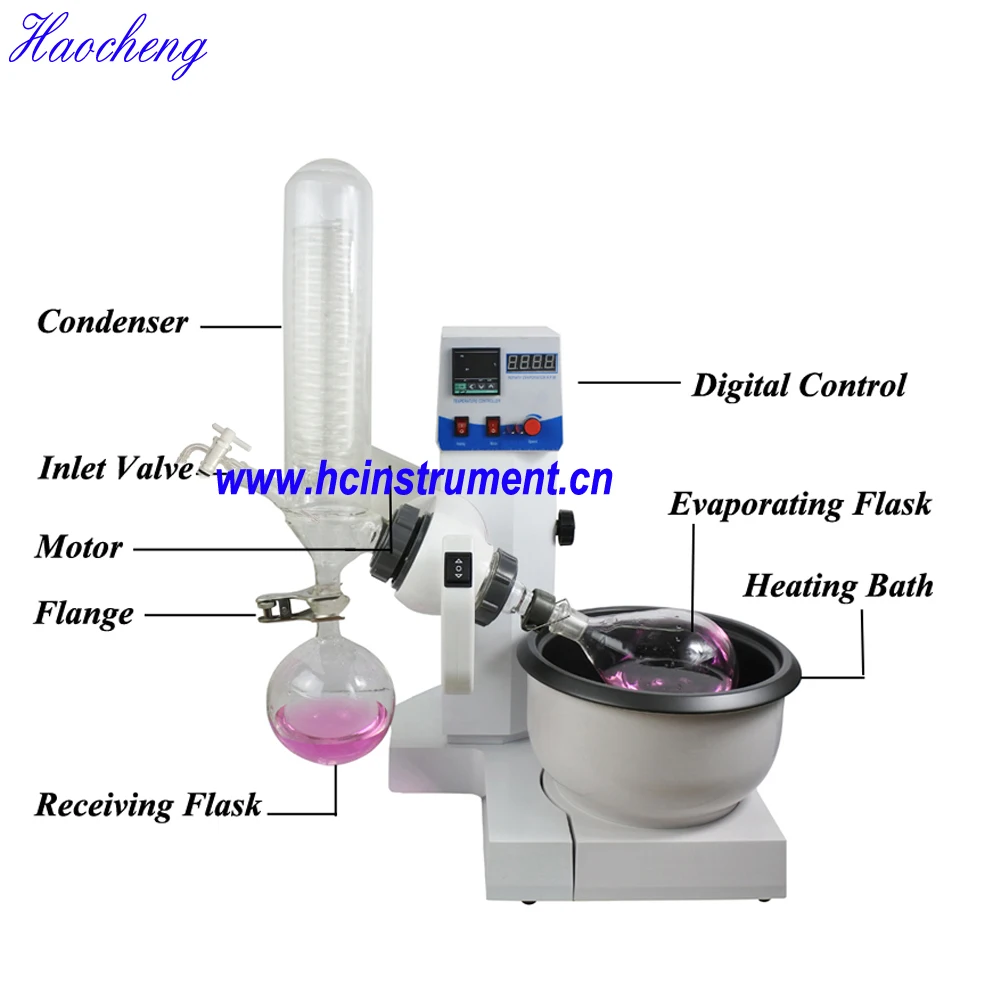

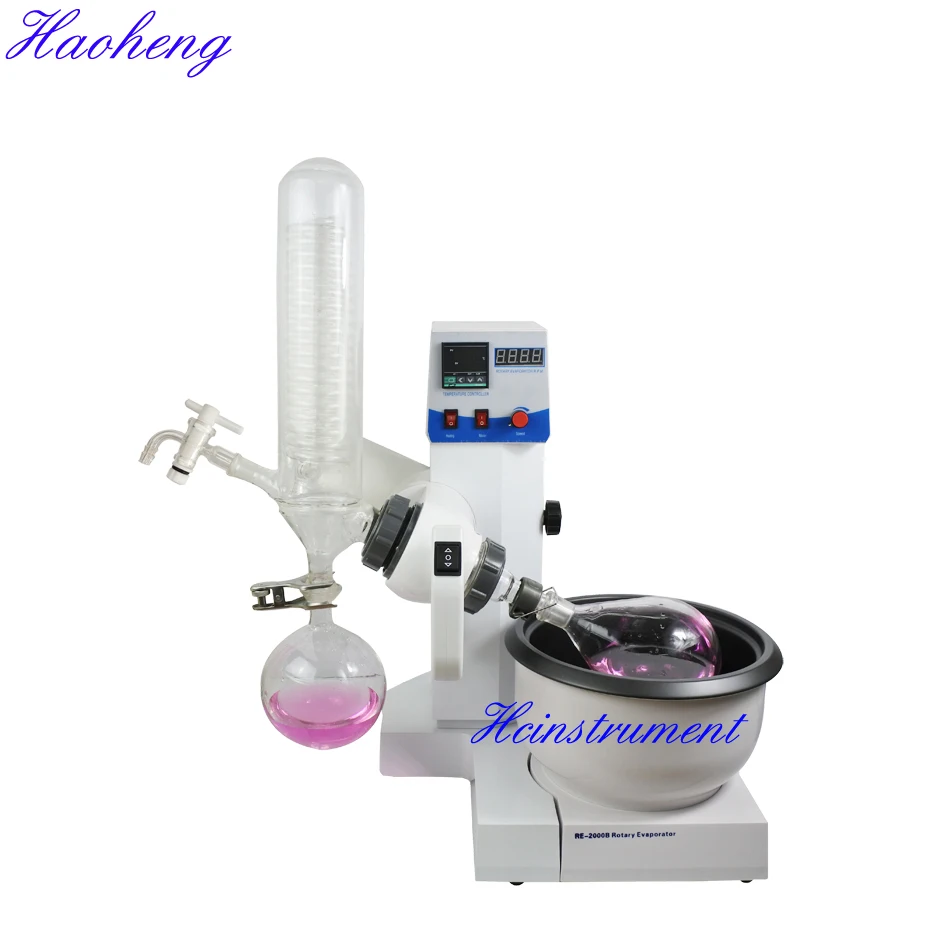

HAOCHENG new rotary evaporators in 2018 . The  new distilling system completes the existing series by adding a functional basic model. The manual lift, with ambidextrous design, allows for precise positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes. New clamp mechanism to simplify the changing of evaporation flasks. This package comes with heating bath and Set of glassware, (vertical)

Main Features
1.Manual lift with integrated safety “lift-out-function“
2.Water/oil heating bath with integrated ergonomic carrying handles
3.Key-button with locking function for the heating bath temperature
4.Adjustable immersion angle

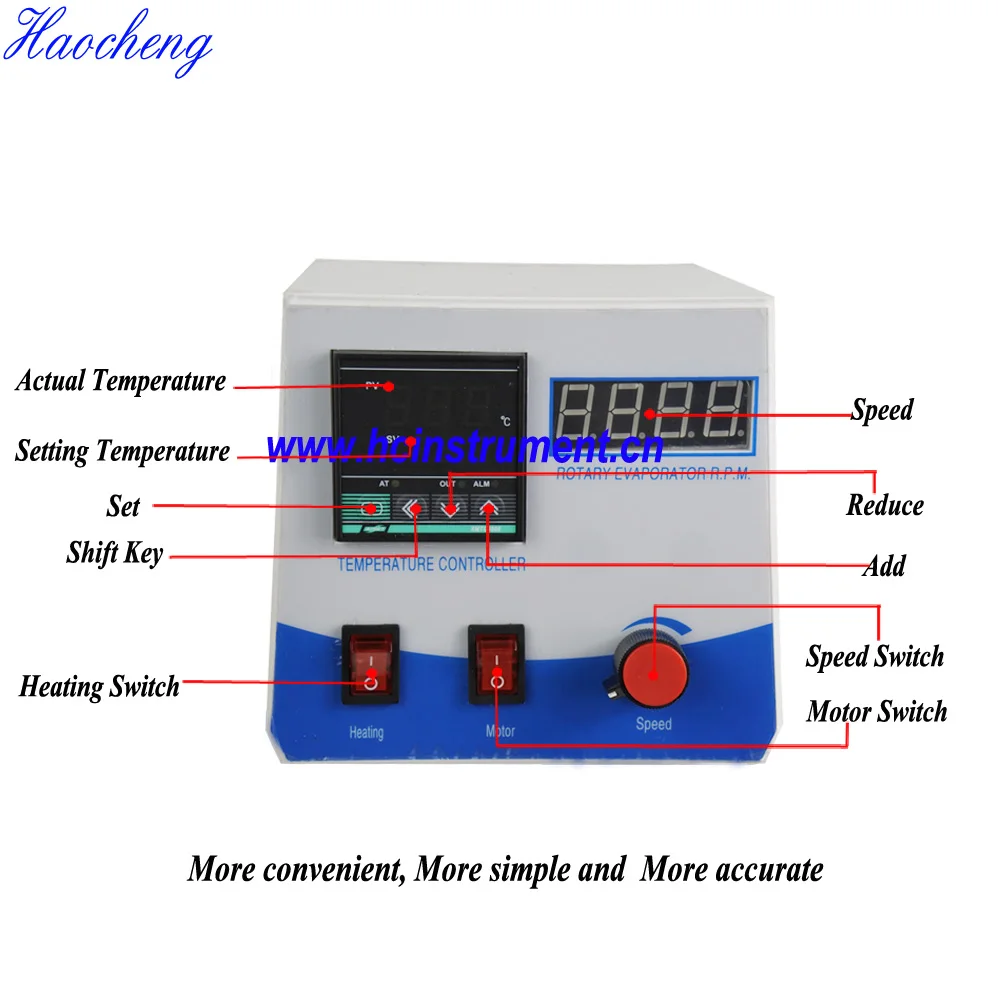

5.Digital displays for rotation speed and heating bath temperature
6.Single-hand operation; ambidextrous design
7.Speed range 0 - 200 rpm



Items

HEA-01

Type of cooling

vertical condenser

Collect flask

1 L

Rotary Flask

1 L

Motor Power

40W

Bath power

1000w

Bath Voltage

110 V/220V

Bath Material

Stainless steel combined bath.

Sealing

Teflon + Fluorelastome .

Charging

Continue ,19# standard charging valve.

Cooling surface

1500 cm2

Evaporation rate

2L/ H

Power supply

100- 240V.

Motor principle

DC

Speed range

0 - 200 rpm

Reversible direction of rotation

no

Speed tolerance set rotation speed < 100rpm

+/-1 rpm , digital display

Speed tolerance set rotation speed > 100rpm

1 ±%

Lift

Auto -drop/lift

Stroke

150 mm

Heating temperature range

RT to 99

Heat Control

PID Control ,intelligent

Heat control accuracy

1 ±K , PT100 thermocouple .

Bath volume max.

2L l

Dimensions (W x H x D)

6642830 mm

Weight

38 kg

vacuum

0.098 Mpa
